AGL-5

Airfield Ground

Lighting Tester

Operating Instructions

Bracken Hill

South West Industrial Estate

Peterlee

Co Durham

SR8 2SW

ENGLAND

Tel: +44(0)191 5863511

www.seaward.co.uk

sales@seaward.co.uk

service@seaward.co.uk

Part Number 374AA550 Revision 1

Limited Warranty & Limitation of Liability

SEAWARD Electronic Limited guarantees this product to be free

from defects in material and workmanship under normal use and

service for a period of 1 year. The period of warranty will be

effective at the day of delivery.

made public in any form or manner, either electronically,

mechanically, by photocopying, recording, or in any manner,

without prior written consent from SEAWARD Electronic Limited.

This also applies to accompanying drawings and diagrams.

Due to a policy of continuous development SEAWARD Electronic

Limited reserves the right to alter the equipment specification and

description outlined in this publication without prior notice and no

part of this publication shall be deemed to be part of any contract

for the equipment unless specifically referred to as an inclusion

within such contract.

DECLARATION OF CONFORMITY

As the manufacturer of the apparatus listed, declare under our sole

responsibility that the product:

AGL-5 Airfield Ground Lighting Tester

To which this declaration relates are in conformity with the relevant

clauses of the following standard:

BS EN 61243-2:1998

BS EN 61243-3:1999

BS EN 61326:1998

Electrical equipment for measurement, control and laboratory

user-EMC Requirements

Performance: The instrument operates within specification

when used under the conditions in the above

standards EMC and Safety Standards.

The product identified above conforms to the requirements of

Council Directive 89/336/EEC and 73/23 EEC.

Seaward Electronic Ltd is registered under BS EN ISO9001:2000

Certificate No: Q05356.

1 Important Information

These operating instructions are intended for the use

of adequately trained personnel.

Before use, ensure that the AGL-5 tester is clean and

dry; visually inspect all parts. Any damage must be

rectified prior to use.

Never hold an AGL-5 Tester between the hand-

guard and the contact electrode.

Always prove the AGL-5 Tester before AND after

use.

1. Holding the AGL-5 tester by the handles,

behind the handguards, connect the

instrument to a Seaward PH3-LLT proving

unit and verify that the LED indicators are

illuminated.

2. Holding the AGL-5 tester by the handles,

behind the handguards, place the contact

electrodes in contact with the circuit

under test.

3. If the LED indicators are illuminated there

is a voltage greater than the threshold

voltage present at the probe tips.

4. If the LED indicators do not illuminate any

voltage present at the probe tips is less

than the threshold voltage.

5. Repeat step 1 above to verify that the

instrument is still operational.

2 Proving

• Connect the one probe to the BLACK

terminal.

• Connect the other probe to the RED terminal.

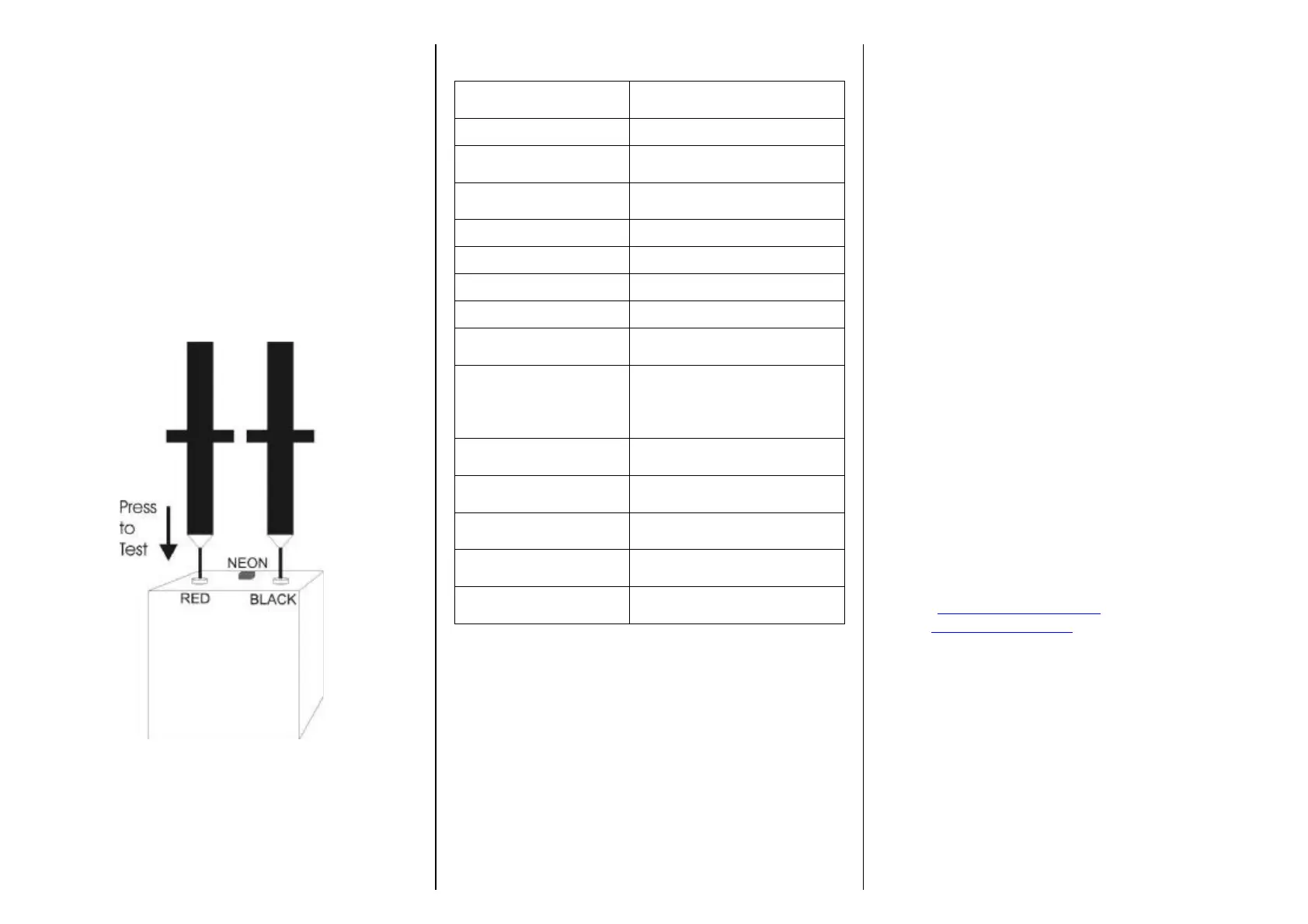

• Press the probe down onto the RED terminal

as shown below to operate the internal

micro-switch.

• Confirm that the neon illuminates indicating

the test voltage is active.

• Confirm that the LED indicators in the AGL-5

illuminate.

• Disconnect both probes from the proving

unit.

3 Specifications

Maximum Working

Voltage

5000V AC/DC

Threshold voltage 50V AC / 70V DC

Operating Current

<3.5mA AC/DC at max

working voltage

Indicator

High intensity LED with

polarizing filter

Handle length 160mm

Overall Length 530mm

Probe tip length 38mm

Hand guard height

>10mm over 70%

circumference

Length of insulation

between contact

electrode and hand-

guard

574mm

Un-insulated contact

electrode length

5mm

Contact Electrode

diameter

3mm

Lead length between

probes

0.8m triple insulated cable

Construction

High Impact, total

encapsulation

Compliance

BS EN 61243-2:1998

4 Maintenance

Clean only with a dry cloth; do not use solvents.

Before use, ensure unit is clean and dry; visually

inspect test terminals and case. Any damage must be

rectified to preserve user safety.

5 Service and Calibration

To maintain the specified performance, the

instrument must be verified at regular intervals by

either the manufacturer or an authorised Seaward

Service Agent. We recommend a calibration period

of one year.

For help or advice on Service and Calibration

contact:

Service Department

Seaward Electronic

Bracken Hill

South West Industrial Estate

Peterlee

Co Durham SR8 2SW

England

Tel: 0191 5878739 / 0191 5878737

Email: service@seaward.co.uk

Web: www.seaward.co.uk
