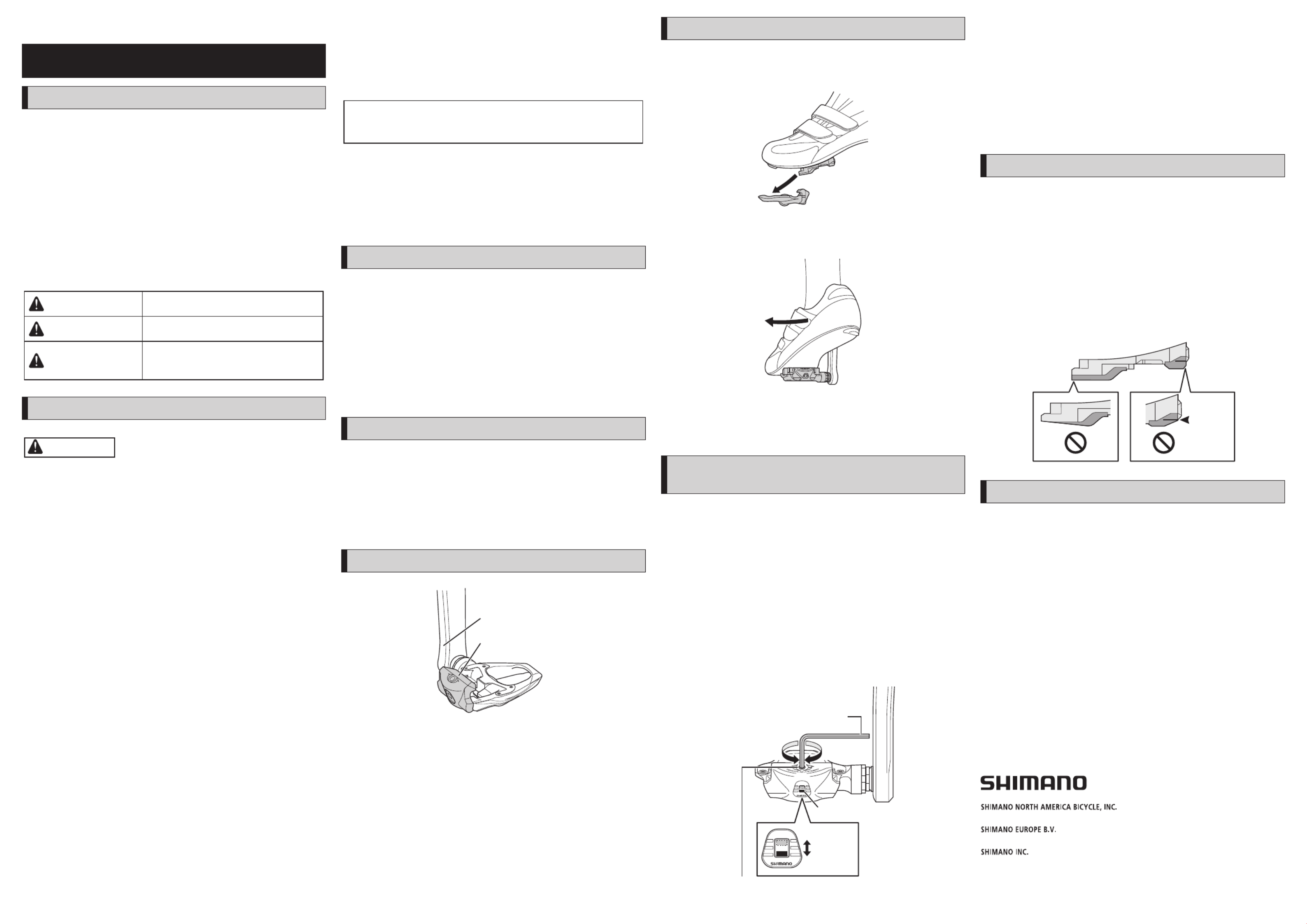

SPD-SL Pedals

IMPORTANT NOTICE

•Contact the place of purchase or a distributor for information on

installation, adjustment, and replacement of the products which are not

found in the user's manual. A dealer's manual for professional and

experienced bicycle mechanics is available on our website (https://si.

shimano.com).

For safety, be sure to read this “user's manual”

thoroughly before use, follow it for correct use, and

store it so that it can be referenced at any time.

The following instructions must be observed at all times in order to

prevent personal injury and physical damage to equipment and

surroundings. The instructions are classified according to the degree of

danger or damage which may occur if the product is used incorrectly.

DANGER Failure to follow the instructions will result

in death or serious injury.

WARNING Failure to follow the instructions could

result in death or serious injury.

CAUTION

Failure to follow the instructions could

cause personal injury or physical damage

to equipment and surroundings.

Important Safety Information

WARNING

•Do not disassemble or modify the product. This may cause the product

to not operate correctly, and you may suddenly fall and be seriously

injured.

•Before attempting to ride with these pedals and cleats (shoes), make

sure you understand the operation of the engagement/release

mechanism for the pedals and cleats (shoes). SPD-SL pedals are designed

to be released only when intended. They are not designed to be

released automatically when you have fallen off the bicycle.

•Use only SPD-SL shoes with this product. Other types of shoes may not

release from the pedals, or may release unexpectedly.

•Use only SHIMANO cleats and make sure that the mounting screws are

tightened securely to the shoes. Failure to securely tighten the screws

may result in a fall in which the cleats do not release.

•Before attempting to ride with these pedals and cleats, apply the

brakes, then place one foot on the ground and practice engaging and

releasing each cleat from its pedal until you can do so naturally and

with minimal effort.

•Ride on level ground first until you become accustomed to engaging

and releasing your cleats from the pedals.

•Before riding, adjust the cleat holding force of the pedals to your liking.

If the cleat holding force of the pedals is low, the cleats may become

accidentally released and you may lose balance and fall off the bicycle.

If the cleat holding force of the pedals is high, the cleats cannot be

easily released.

•When riding at low speed or when there is a possibility that you might

need to stop riding, (for example, when doing a U-turn, nearing an

intersection, riding uphill or turning a blind curve), release your cleats

from the pedals beforehand so that you can quickly put your feet onto

the ground at any time.

•Use a lighter cleat holding force for attaching the pedal cleats when

riding in adverse conditions.

•Keep cleats and bindings out of dirt and debris to ensure proper

engagement and release.

•Remember to check the cleats periodically for wear. When the cleats

are worn, replace them, and adjust the cleat holding force before riding

and after replacing the pedal cleats.

If the warnings above are not followed, your shoes may not come out

of the pedals when you intend or they may come out unexpectedly or

accidentally, and severe injury may result.

•Reflectors have to be mounted to the bike at any time as soon as

traveling on public roads. Reflectors are sold separately for models that

do not come with reflectors equipped as standard. For information on

compatible reflectors, contact the place of purchase or a distributor.

•Do not continue riding the bicycle if the reflectors are dirty or damaged.

Otherwise, it becomes more difficult for oncoming vehicles to see you.

Notice

•If pedaling performance does not feel normal, perform an inspection

again.

•If you experience any trouble with the rotating parts of the pedal, the

pedal may require adjustment. Consult your place of purchase or a

distributor.

•Products are not guaranteed against natural wear and deterioration

from normal use and aging.

•For maximum performance we highly recommend SHIMANO lubricants

and maintenance products.

Regular Inspections Before Riding the Bicycle

Before riding the bicycle, check the following items. If any problems are

found, consult your place of purchase or a distributor.

•Are the fastening sections fixed securely?

•Has excess play increased between the cleat and pedal due to wear?

•Are there any abnormalities when the cleat engages or releases?

•Are there any abnormal noises?

Names of parts

Fastening section

Binding

Using the cleats

How to engage

Press the cleats into the pedal binding with an angled downward motion.

How to release

These cleats only release when the heel is moved outward.

Notice:

Keep one foot on the ground and practice repeatedly engaging and

releasing the pedals. Adjust to the optimal cleat holding force when

releasing the cleats from the bindings.

Adjusting the cleat holding force of the

pedals

•The spring tension of the pedals can be adjusted by turning the

adjustment screw.

•Clicking the adjustment screw once changes the tension one step. There

are four clicks per turn.

•The adjustment screw is located at the rear of each binding.

•Adjust the spring force to the optimal cleat holding force when

releasing the cleats from the bindings.

•Equalize the spring tensions for both pedals by referring to the tension

indicators and by counting the number of turns of the adjustment

screw.

•Turning the adjustment screw clockwise increases the cleat holding

force, and turning it counterclockwise decreases it.

Indicator

2.5 mm hexagon wrench

Adjustment screw

Decrease

Increase

Decrease Increase

Do not turn the screw past the point at which the indicator shows the

maximum or minimum tension.

Notice:

•In order to prevent accidental cleat release and ensure that release is

possible when needed, make sure that the cleat holding force is

properly adjusted.

•If the cleats are not adjusted equally, it can cause the rider difficulty in

engaging or releasing the cleats. The cleat holding force for the right

and left pedals should be adjusted so they are equal.

Replacing cleats

Cleats become worn and need to be replaced periodically.

When, due to wear, the cleat release starts to becomes too tight or too

loose, immediately contact the place of purchase or a distributor and

replace the cleats with new ones.

Notice:

If the colored portion of the cleat becomes worn, replace it with a new

one.

Front: Replace the cleats when the black layer underneath the cleats is

visible.

Rear: Replace the cleats when the cleat wears down to section A in the

figure.

Section A

Front

Cleat

Rear

Installing the reflectors (sold separately)

Optional reflector sets are available. Reflector sets vary depending on the

model of the pedals, therefore, consult a distributor or a place of

purchase.

UM-41W0A-003 User's manual

Please note: specifications are subject to change for improvement without notice. (English)

One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003

High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222

3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan
