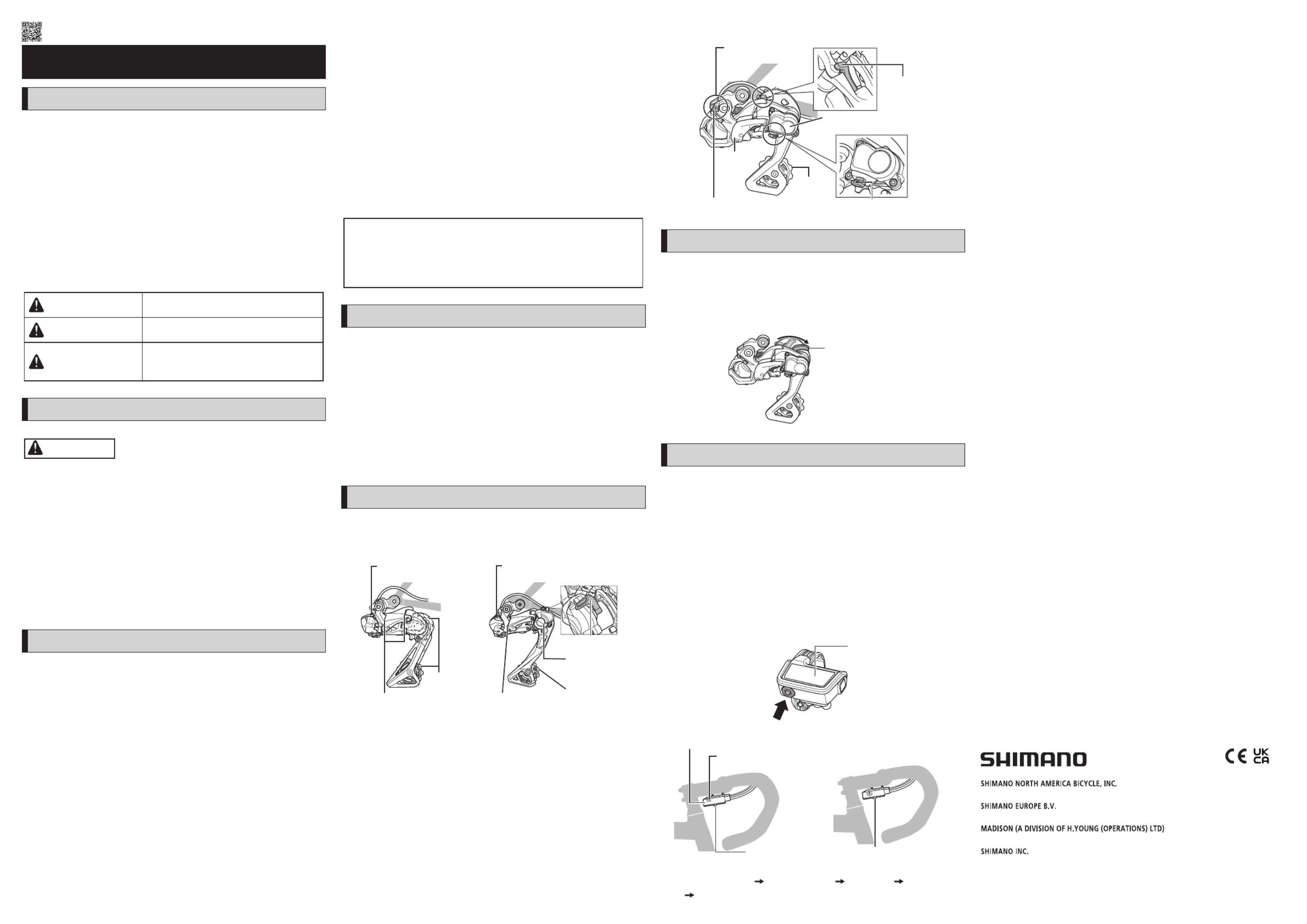

Side 1/5

Rear Derailleur (DI2)

IMPORTANT NOTICE

•Contact the place of purchase or a distributor for information on

installation, adjustment, and replacement of the products which are not

found in the user's manual. A dealer's manual for professional and

experienced bicycle mechanics is available on our website (https://si.

shimano.com).

For safety, be sure to read this “user's manual”

thoroughly before use, follow it for correct use, and

store it so that it can be referenced at any time.

The following instructions must be observed at all times in order to

prevent personal injury and physical damage to equipment and

surroundings. The instructions are classified according to the degree of

danger or damage which may occur if the product is used incorrectly.

DANGER Failure to follow the instructions will result

in death or serious injury.

WARNING Failure to follow the instructions could

result in death or serious injury.

CAUTION

Failure to follow the instructions could

cause personal injury or physical damage

to equipment and surroundings.

Important safety information

WARNING

•Do not disassemble or modify the product. This may cause the product

to not operate correctly, and you may suddenly fall and be seriously

injured.

•Never use alkali based or acid based solvents such as rust cleaners. If

those solvents are used the chain might break and cause serious injury.

•Clean the chain with an appropriate chain cleaner regularly. Intervals

between maintenance depend on the use and riding circumstances.

•Check the chain for any damage (deformation or cracking), skipping, or

other abnormalities such as unintended gear shifting. If any problems

are found, consult your place of purchase or a distributor. The chain

may break, and you may fall.

Notice

•Be sure to check that the plate unit cover and cap are installed before

riding the bicycle.

* In the case of a model with a chain stabilizer (However, there are

models without a cap.)

•Be careful not to get water into the E-TUBE ports.

•The components are designed to be fully waterproofed to withstand

wet weather riding conditions; however, do not deliberately place them

into water.

•Do not clean the bicycle with a high-pressure washer. If water gets into

any of the components, operating problems or corrosion may result.

•Handle the components carefully, and avoid subjecting them to strong

shock.

•Do not use thinner or other solvents to clean the products. Such solvents

may damage the surface.

•If gear shifting operations cannot be carried out smoothly, clean the

shifting unit and lubricate all moving parts.

•If the chain keeps skipping, replace the gears and chain at the place of

purchase.

•If there is a large amount of excess play in the pulleys and extra noise is

generated while riding, replace the pulleys at your place of purchase.

•The gears should be periodically washed with a neutral detergent. In

addition, cleaning the chain with neutral detergent and lubricating it

can be an effective way of extending the life of the gears and the chain.

•Contact the place of purchase for updates of the component software.

The most up-to-date information is available on the SHIMANO website.

•Products are not guaranteed against natural wear and deterioration

from normal use and aging.

•For maximum performance we highly recommend SHIMANO lubricants

and maintenance products.

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may

cause undesired operation.

Regular inspections before riding the bicycle

Before riding the bicycle, check the following items. If any problems are

found, consult your place of purchase or a distributor.

•Is gear shifting carried out smoothly?

•Has excess play increased in the links?

•Has excess play increased in the pulleys?

•Are there any abnormal noises coming from the derailleur?

•Has the chain become elongated?

•Is there any noticeable damage on the chain?

•Is the plug cover installed in the correct position? *For MTB

Names of parts

Without chain stabilizer

E-TUBE port E-TUBE port

Switch lever

Plate unit cover

Pulley

Link Link

With chain stabilizer

Link

Plug cover Cap

Pulley

Plate unit cover

Switch lever

E-TUBE port

How to operate

When removing the rear wheel, be sure to first move the switch lever to

the OFF position.

* The shape and position of the switch lever differ depending on the

model.

Switch lever

OFFON

About the RD protection function

* Rotate the front chainwheel while restoring operation after the RD

protection function has activated.

In order to protect the system when the bicycle falls and is subjected to a

strong impact, the RD protection function will activate and momentarily

sever the connection between the motor and the link, impairing the

proper function of the rear derailleur. If this happens, press and hold the

mode button on the system information display or the button on junction

[A] (for 3 seconds or more for SM-BTR2, or 5 to 8 seconds for BM-DN100/

BT-DN110). This will restore the connection between the motor and the

link, and clear the RD protection function for the rear derailleur. When

recovery cannot be performed via button operations, it may be possible

by hand. Check with the place of purchase in advance.

(Push 3 seconds or more for

SM-BTR2, or 5 to 8 seconds

for BM-DN100/BT-DN110)

System information display

Button

LED window for button

Illuminates (red)

Button (push)

Junction [A]

Press and hold button illuminate (red) flash (red) RD protection

reset complete

(The LED flashes red after holding down the button for approximately 3

seconds for the SM-BTR2 or approximately 5 seconds for the BM-DN100/

BT-DN110.)

When the red LED of junction [A] is lit, the rear derailleur will not shift.

Press the button until the red LED turns off.

UM-3HR0B-000 User's Manual

Please note: specifications are subject to change for improvement without notice. (English)

One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003

High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222

Roebuck Way, Knowlhill, Milton Keynes, Buckinghamshire, MK5 8HL, United Kingdom

3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan
