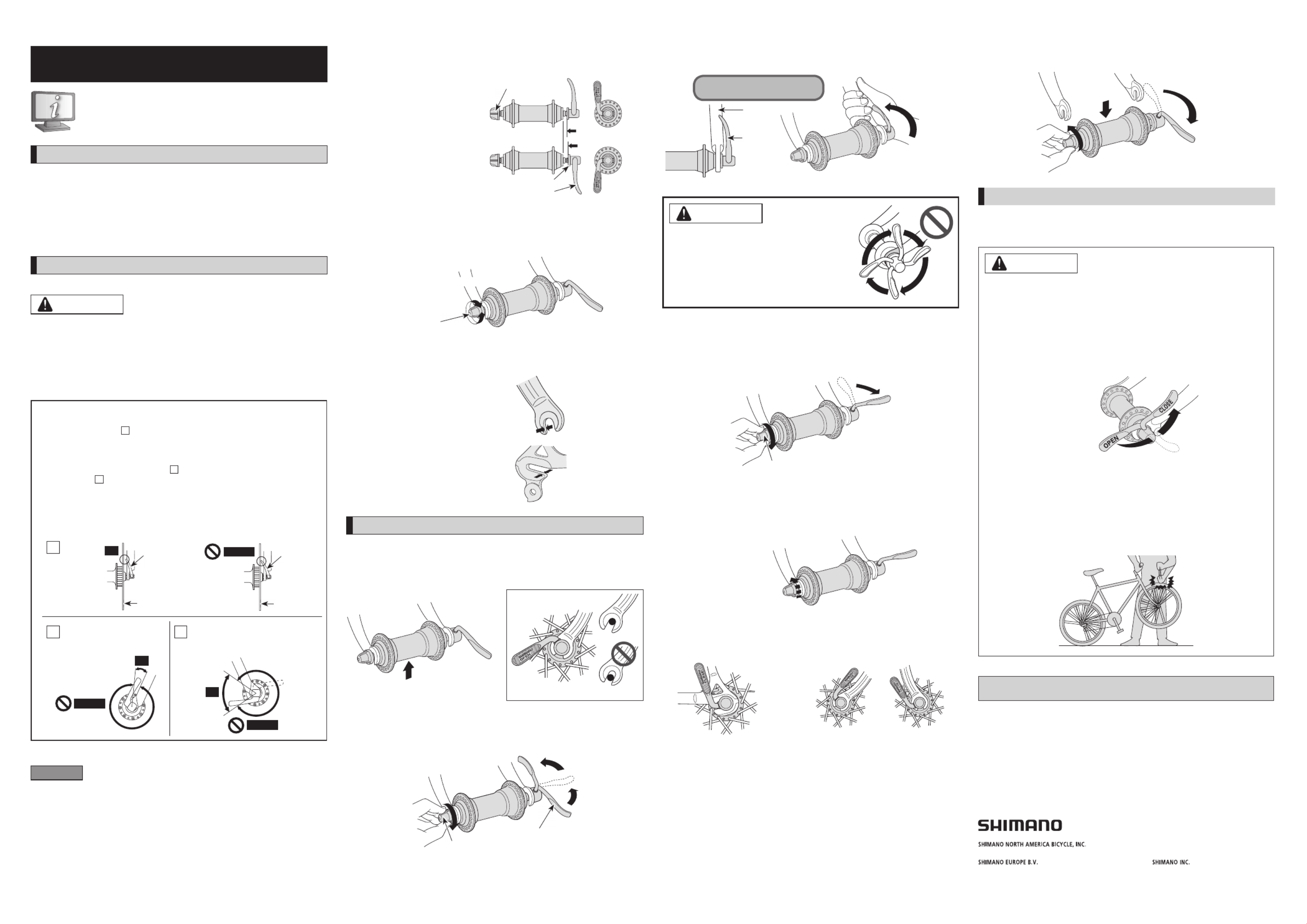

Side 1/11
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003
High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan
Please note: specifi cations are subject to change for improvement without notice. (English)
© Dec. 2017 by Shimano Inc. ITP
UM-3000H-006-00 User's manual
Quick Release
User's manuals in other languages are available at :
http://si.shimano.com
IMPORTANT NOTICE
•Contact the place of purchase or a bicycle dealer for information on installation and
adjustment of the products which are not found in the user's manual. A dealer's
manual for professional and experienced bicycle mechanics is available on our website
(http://si.shimano.com).
•Do not disassemble or alter this product.
For safety, be sure to read this user's manual thoroughly before use,
and follow it for correct use.
Important Safety Information
For replacement information, contact the place of purchase or a bicycle dealer.
WARNING
•This wheel is equipped with a quick release hub to facilitate installation and removal.
Failure to properly install this quick release hub (wheel) onto your bicycle may cause
the wheel to become detached from the bicycle while you are riding and result in
serious bodily injury.
•Use a front fork which is equipped with a wheel retention mechanism.
•BEFORE USE, CAREFULLY READ THE QUICK RELEASE HUB INSTRUCTIONS IN YOUR
OWNER'S MANUAL. If you have any questions, ask your dealer. IMPROPER HUB
INSTALLATION CAN RESULT IN SERIOUS BODILY INJURY.
Quick release lever position on rotor compatible hubs
•Install the quick release through the front wheel so the lever is on the brake rotor
side as shown in Figure
1
. Swing the lever fully to the CLOSE position and check
that it does not interfere with the rotor. If the lever interferes with the rotor,
re-insert the quick release so its lever is on the side opposite the rotor.
•When the quick release lever is in the CLOSE position, the lever should be in parallel
position with the fork (refer to Figure
2a
) or point toward the back of the bicycle
(refer to Figure
2b
). This is to prevent foreign objects such as tree branches from
getting caught during riding, which can cause the quick release lever to open and
cause the wheel to release unintentionally from the fork.
•If the lever obstructs the fork blade, the lever may not close fully, nor properly
secure the wheel. The wheel may fall off the bicycle during riding and serious injury
may occur as a result.
1
Quick
release
lever
OK
Rotor
Quick
release
lever
Not OK
Rotor
2a
Lever :
Right side when looking at the
bicycle from the front
OK
Not OK
2b
Lever :
Left side when looking at the bicycle
from the front
OK
Not OK
•After reading the user's manual carefully, keep it in a safe place for later reference.
NOTICE
•Be sure to operate the quick release lever by hand only. Never use any other tool, such
as a hammer, to tighten the quick release lever as this could damage it.
Note
•Products are not guaranteed against natural wear and deterioration from normal use
and aging.
•For maximum performance we highly recommend Shimano lubricants and maintenance
products.
What is a Quick Release?
The lever operates an internal cam that allows the wheels to secure easily and remove
quickly.
Quick Release function
When the quick release lever is brought
to the CLOSE position, the lever nut
moves inward. This force clamps the
wheel to the frame and holds the wheel
securely in place.
CLOSE position
OPEN position
Adjusting nut
Lever nut
Quick release lever
The clamping "force" is adjusted by turning the adjusting nut. When the nut is turned
clockwise, the clamping force increases; when the nut is turned counter-clockwise the
clamping force decreases.
Adjusting nut
Weaker
Stronger
Suitable dimensions of the fork end
Be sure to use only forks of suitable widths.
Front:
Cannot use fork thicknesses less than 5 mm.
Rear:
Cannot use fork thicknesses less than 6 mm.
Operation
The front hub axle is used as an example. The rear axle works in the same way.
How to fasten the quick release hub
1. Move the quick release lever to the OPEN position and set the wheel so it fi rmly
touches the interior of the fork end. (See sketch below)
OPEN position
OK
Not OK
2. Open and close the quick release lever with your right hand while gradually
tightening the adjusting nut clockwise with your left. Continue tightening the nut
until you feel resistance from the lever when it reaches parallel position with the hub
(as indicated by the dotted line in the diagram below).
Adjusting nut
Quick release lever
3. Grip the fork blade with your fi ngers and use the palm of your hand to apply force to
the quick release lever. It should take considerable force against to tighten the lever
completely. The word "CLOSE" inscribed in the lever should face out. The lever should
be in front of, and parallel to the fork blade as shown in the diagram below.
Tightening torque:
5.0 -7.5 N·m {44 -66 in. lbs.}
Fork
Quick
release
lever
CLOSE position
CAUTION
Never fasten a wheel to a frame by rotating the quick
release lever as shown in the diagram on the right.
Simply rotating the lever in a circular motion will not
fasten the wheel to the frame.
Detachment of the wheel as a result of improper hub
installation can result in serious bodily injury.
Note
If the quick release lever can be easily pushed to the CLOSE position, this means the
clamping force is insuffi cient. Return the quick release lever to parallel position with the
hub (as shown below) and again turn the adjusting nut clockwise to increase the
clamping force. Push the quick release lever back to the CLOSE position.
Adjusting nut
If the clamping force is adjusted too strong and the quick release lever cannot be pushed
to the CLOSE position, turn the adjusting nut counter-clockwise to reduce the clamping
force. When doing this, do not over loosen the adjust nut. Rotate the adjusting nut 1/8th
of a turn then push the lever to CLOSE position. Repeat this procedure until maximum
clamping force is achieved by hand.
Turn 1/8th of a turn at
a time
Positioning of the quick release lever
For safety, the quick release lever should be in alignment with the bicycle frame when in
the CLOSE position.
Rear Front
Removing the wheel
Move the quick release lever from the CLOSE position to the OPEN position.
Loosen the adjusting nut, and then remove the wheel.
OPEN position
Regular inspections before riding the bicycle
Before riding the bicycle, check the following. If any problems are found with the
following, contact the place of purchase or a bicycle dealer.
WARNING
THINGS TO CHECK BEFORE RIDING
1. Always check your quick release hubs before riding to make sure that the wheels
are correctly installed on the bicycle frame. This is especially important after you
park your bicycle in a public place.
2. Make sure that the quick release levers are pushed fully to the CLOSE position. (The
side of the lever with the inscription "CLOSE" must be facing away from the
bicycle.)
As shown in the diagram, the lever operates by swinging from OPEN to CLOSE
position. It must not be rotated like a nut on a bolt.
OPEN position
CLOSE position
QUICK CHECK
Lift up the bicycle so that the wheel is off the ground. Give the top of the tire a few
sharp downward blows as shown in the diagram. The wheel should not be loose or
come off. This check does not guarantee that the quick release lever has received
adequate tightening torque.
If you are uncertain as to whether the quick release is tightened correctly, repeat the
installation procedure as explained in "How to fasten the quick release hub" of this
service instruction.
If the quick release will not adjust properly, please contact a professional dealer for
advice.
