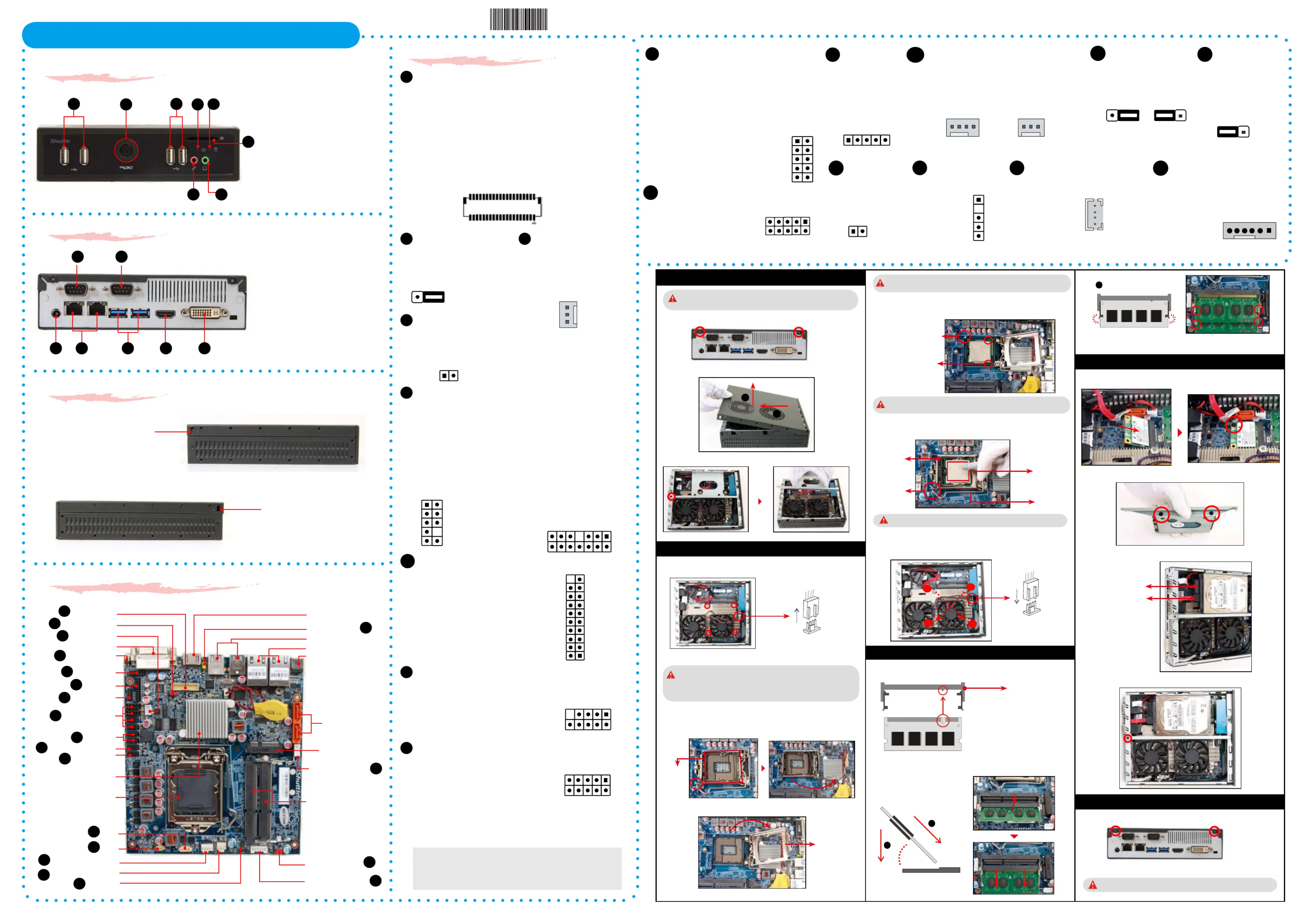

DS61 Series Quick Guide

【

English

】

Jumper Settings

C. Memory Module Installation

53R-DS6103-2401

Front Panel

Back Panel

The product’s color and specification will depend on the actual shipping product.

Safety Information

Read the following precautions before setting up a Shuttle XPC.

A. Begin Installation

D. Component Installation

CAUTION

Incorrectly replacing the battery may damage this computer.

Replace only with the same or equivalent as recommended by Shuttle.

Dispose of used batteries according to the manufacturer's instructions.

E. Complete

1. Unscrew the two screws of the chassis cover.

1. Install the Mini PCIE card into the Mini PCIE slot and

secure with

screw

3. Connect the Serial ATA and power cables to the HDD.

B. CPU and ICE Module Installation

2. Place the HDD in the rack and secure with the four screws from the side.

For safety reasons, please ensure that the power cord is discon-

nected before opening the case.

Please note this 1155 pin socket bends easily. Always apply

extreme care and little force when installing a CPU and limit the

number of times you remove or exchange it. Before installation,

make sure to turn off the computer and unplug the power cord

from the mains to avoid damage.

notch

SODIMM slot

DO NOT touch socket contacts. To protect the CPU socket, always

replace the protective socket cover when the CPU is not installed.

Socket

1155

CPU

45-degree

angle

Triangle Pin1

Marking on the CPU

Notch on the CPU/

Alignment Key of the

CPU Socket

Latch

Metal load

plate

Please be aware of the CPU orientation, DO NOT force the CPU into

the socket to avoid bending of pins on the socket and damage of CPU!

Please do not apply excess amount of thermal paste.

1. Replace the cover and refasten the screws.

Please load the optimized BIOS settings.

2 . Complete.

2. Slide the cover backwards and upwards.

3. Unfasten the rack mount screw and remove the rack.

1. Unfasten the four ICE module attachment screws and unplug the fan

connector.

2. Remove the ICE module from the chassis and put it aside.

4. Slide the rack in the chassis and refasten the screw.

3. Tear off the protective membrane first, then unlock and raise the socket

lever.

Follow the steps below to correctly install the CPU into the

motherboard CPU socket.

5. Orientate the CPU and socket and please align the CPU notches with

the socket alignment keys. Make sure the CPU is perfectly horizontal,

insert it into the socket.

4. Lift the metal load plate on the CPU socket.

6. Close the metal load plate, lower the CPU socket lever and lock in place.

7. Spread thermal paste evenly on the CPU surface.

1. Locate the SODIMM slot on the mainboard.

2. Align the notch of the memory module with the one of the memory slot.

3. Gently insert the module into the slot in a 45-degree angle.

4. Carefully push down the memory module until it snaps into the locking

mechanism.

5. Repeat the above steps to install additional memory modules, if required.

F1. Power Button

F2. USB2.0 Ports

F3. Power LED

F4. HDD LED

F5. Mic-In

F6. Headphone

F7.

SD Card Reader

USB Headers

Pin Assignments (USB1/USB2/USB4/USB5):

1=5V_USB 2=5V_USB

3=USB A- 4=USB B-

5=USB A+ 6=USB B+

7=GND 8=GND

9=NC 10=NC

Audio Connector

PANSW connector

Pin Assignments (SW2):

1=GND

2=PWR_SW

1 2

Pin Assignments (AUDIO1):

1=MIC2_L

2=AGND

3=MIC2_R

4=FRONT-JD

5=LINE2-R

6=SENSE1_RETURN

7=FRONT_SENSE

8=NC

9=LINE2-L

10=SENSE2_RETURN

Pin Assignments (AUDIO2):

1=PULL AGND

2=LINE-R

3=NC

4=LINE-L

5=PULL AGND

6=FRONT_L

7=NC

8=FRONT_SENSE

9=PULL AGND

10=FRONT_R

11 = BK_AUDIO-JD

12 =MIC1_R

13 =AGND

14 =MIC1_L

LVDS Connector

COM PORT(COM1&COM2)

Pin Assignments:

1=DCD

2=RX

3=TX

4=DTR

5=GND

Pin Assignments (LVDS1):

1=LVDS_DCLK

2=GND

3=LVDS_DDAT

4=NC

5=PANEL_VDD

6=GND

7=PANEL_VDD

8=BKLTEN

9=PANEL_VDD

10=PWMO

11=GND

12=GND

13=LVDS_B3P

14=LVDS_A3P

15=LVDS_B3N

16=LVDS_A3N

17=GND

18=GND

19=LVDS_BCK_P

20=LVDS_ACK_P

21=LVDS_BCK_N

22=LVDS_ACK_N

23=GND

24=GND

25=LVDS_B2P

26=LVDS_A2P

27=LVDS_B2N

28=LVDS_A2N

29=GND

30=GND

31=LVDS_B1P

32=LVDS_A1P

33=LVDS_B1N

34=LVDS_A1N

35=GND

36=GND

37=LVDS_B0P

38=LVDS_A0P

39=LVDS_B0N

40=LVDS_A0N

6=DSR

7=RTS

8=CTS

9=RI

10=NC

9 7 5 3 1

10 8 6 4 2

Serial ATA Cable

Serial ATA Power Cable

8. Screw the ICE module to the mainboard. Note to press down on the

opposite diagonal corner while tightening each screw.

9. Connect the fan connector.

Retention tab

Fan connector

Metal load plate

Thermal Paste

application area

Load lever

DDR3 SODIMM slots

LGA1155 Package CPU Socket

CONVERTER Voltage

Select

CONVERTER connector

Mini PCIE Slot

HDMI Port

Clear CMOS Jumper

USB3.0 (x2) Ports

DC IN

Lan (x2) Ports

Serial ATA Connectors

(SATA1,2)

SATA Power Connector

Fan Connector-CPU_FAN2

USB Header

Intel H61 Chipset

C14

C17

C18

C16

C15

C13

PANSW connector

DVI-I Port

SPDIF Connector

LVDS Connector

Panel Voltage Select

Audio Connector

LPC Header

USB Headers 1/2/4/5

COM PORT

Support RS232 Back panel

C10

Power Connector

Audio Connector

Fan Connector-CPU_FAN1

LPC Header

Pin Assignments (LPC1):

1=+12V 11=NC

2=5V 12=3VSB

3=5VSB 13=RI

4=SERIRQ 14=LDRQ

5=CLK-48M 15=PME

6=CLK-33M 16=LAD1

7=SIORST# 17=LAD0

8=LFRAME 18=+3.3V

9=LAD3 19=GND

10=LAD2 20=NC

Panel Voltage Select

Pin Assignments (JP4):

1=+3.3V

2=Panel_VDD

3=+5V

SPDIF connector

Pin Assignments

(SPDIF1):

1=GND

2=+5V

3=S/PDIF-OUT

Left / Right Panel

Motherboard Illustration

Kensington® Lock Port

B1 B6

B7B4 B5

B2 B3

B1. DC IN

B2. RS232/RS422/RS485

B3. RS232

B4. LAN Ports

B5. USB3.0 Ports

B6. HDMI Port

B7. DVI-I Port

HDD Rack

Pin1-2 (Default)

(Normal Mode)

Pin2-3

(Clear CMOS Mode)

C15

Clear CMOS Jumper

Pin Assignments (JP1):

1=UL_BAT_PWR

2=-RTCRST

3=-RTCBTN

SATA Power Connector

C16

Pin Assignments (PW1):

1=GND

2=GND

3=+5V

4=+5V

1 2 3

1 2 3 4

Fan Connector-CPU_FAN1,2

C13

Pin Assignments (FAN1):

1=GND

2=+12V

3=SPEED_SENSE

4=PWM_CTRL

Pin Assignments (FAN2):

1=GND

2=FAN_PWM

3=FAN_TAC

CONVERTER

Voltage Select

C17

Pin Assignments

(JP3):

1=+12V

2=INV_PWR-SRC

3=+5V

CONVERTER connector

C18

Pin Assignments (LVDS2):

1=INV_PWR-SRC

2=INV_PWR-SRC

3=GND

4=GND

5=PWMO

6=BKLTEN

6 5 4 3 2 1

Support RS232 Back panel

Independent External Power 12V / 5V

JUMP1 Connector Pin 1 and Pin 2 = RI1 Signal.

JUMP2 Connector Pin 3 and Pin 4 = RI2 Signal.

IF JUMP1 Connector Pin 5 and Pin 7 = RI1 is +5V

IF JUMP2 Connector Pin 6 and Pin 8 = RI2 is +5V

IF JUMP1 Connector Pin 7 and Pin 9 = RI1 is 12V

IF JUMP2 Connector Pin 8 and Pin 10 = RI2 is 12V

Pin Assignments (JP2):

1=-XRI1 2=COM_-XRI1

3=-XRI2 4=COM_-XRI2

5=+5V 6=+5V

7=COM1_PWR 8=COM2_PWR

9=+12V 10=+12V

USB Header

C14

Pin Assignments

(USB6):

1=GND

2=NC

3=USB+

4=USB-

5=VCC

Remove the

protective

membrane

13 11 9 7 5 3 1

14 12 10 8 6 4 2

6=PWR_SW

7=GND

8=GND

9=NC

Pin Assignments (SW1):

1=+HD_LED

2=PWR_LED

3=-HD_LED

4=GND

5=RST_SW

Power Connector

9 7 5 3 1

8 6 4 2

C10

SPKR

CN6

C11

C12

1 2 3 4 5

C11

CN6

Pin Assignments

(CN6):

1=SMBCLK_SB

2=SMBDATA_SB

3=+5V

4=GND

5=LED-EN

1 2

SPKR

C12

Pin Assignments

(SPKR):

1=SPKR_OUT

2=GND

62R-DS6101-0601 DS61 V1.1

English.Spanish.Korean.

Traditional Chinese.Japanese.

French. German Quick Guide

Produkt Specifikationer

Mærke:	Shuttle
Kategori:	Skrivebord
Model:	D 6100BA
Bredde:	165 mm
Dybde:	190 mm
Højde:	43 mm
Vægt:	- g
Produktfarve:	Sort
Produkttype:	Mini PC
Kompatible hukommelseskort:	SD, SDHC, SDXC
Wi-Fi:	Ja
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Antal HDMI-porte:	1
DVI-port:	Ja
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	4
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Wi-Fi-standarder:	Wi-Fi 4 (802.11n)
Processorkerner:	2
Driftstemperatur (T-T):	0 - 50 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Intern hukommelse:	4 GB
Operativsystem installeret:	Windows 7 Professional
Certificering:	FCC, CE, BSMI, C-Tick, CB, BSMI, ETL
Bedste Wi-Fi standard:	Wi-Fi 4 (802.11n)
Kabelteknologi:	10/100/1000Base-T(X)
DC-in-stik:	Ja
Indbygget kortlæser:	Ja
Intel® Wireless Display (Intel® WiDi):	Ja
Understøttet placering:	Vandret
Strømforsyningens indgangsfrekvens:	50 - 60 Hz
Processorfrekvens:	3.3 GHz
Processorserie:	Intel® Core™ i3
Processortråde:	4
Processor-cache:	3 MB
Processor cache type:	Smart cache
Intern hukommelsestype:	DDR3-SDRAM
Maksimal intern hukommelse:	- GB
Samlet lagringskapacitet:	60 GB
Lagermedie:	SSD
On-board grafikkort, model:	Intel® HD Graphics 2500
Diskret grafikadaptermodel:	Ikke tilgængelig
On-board grafikkort:	Ja
Indbygget grafikadapterfamilie:	Intel® HD Graphics
Mikrofonindgang:	Ja
Intel® Hyper Threading Teknologi (Intel® HT Technology):	Ja
Intel® Turbo Boost Teknologi:	Ingen
Processorproducent:	Intel
Processormodel:	i3-3220
Mus inkluderet:	Ingen
Antal installerede SSD'er:	1
SDD-kapacitet:	60 GB
SSD-grænsefladetype:	SATA
Optisk drevtype:	Ingen
Enhanced Intel SpeedStep Teknologi:	Ja
Udfør deaktivering af bit:	Ja
Idle status:	Ja
CPU-konfiguration (maks.):	1
Intel® VT-x with Extended Page Tables (EPT):	Ja
Indlejret tilgængelige muligheder:	Ja
Intel® 64:	Ja
Intel® Virtualization Technology for Directed I/O (VT-d):	Ingen
Intel® Virtualization Technology (VT-x):	Ja
Skærm inkluderet:	Ingen
Strømforsyning indgangsspænding:	100 - 240 V
Antal installerede processorer:	1
Bus type:	DMI
Processorgeneration:	3rd gen Intel® Core™ i3
Kabinettype:	Lille desktop
Intel® Flex Memory Access:	Ja
Intel® Trusted Execution Teknologi:	Ingen
Intel® Enhanced Halt State:	Ja
Intel® klar video teknologi:	Ingen
Intel® Identity Protection Technology version:	1.00
Intel® Secure Key Technology version:	0.00
Konfliktfri processor:	Ja
Kølingstype:	Aktiv
HDD-størrelse:	2.5 "
Strømforsyning:	90 W
Processor sokkel:	LGA 1155 (Socket H2)
Processor litografi:	22 nm
Thermal Design Power (TDP):	55 W
PCI Express slots version:	2.0
PCI Express-konfigurationer:	1x16, 2x8
Fejlkorrigerende kode understøttet af processor:	Ja
Processor front side bus:	- MHz
Systembus-hastighed:	5 GT/s
Processor driftstilstande:	64-bit
Processor kodenavn:	Ivy Bridge
FSB Paritet:	Ingen
Intel® InTru™ 3D Teknologi:	Ja
Intel® Clear Video HD Teknologi (Intel® CVT HD):	Ja
Intel® Insider™:	Ja
Intel® Sikker Nøgle:	Ingen
Intel® Smart Connect Teknologi:	Ingen
Intel® My WiFi Teknologi (Intel® MWT):	Ja
Intel® Anti-Theft Teknologi (Intel® AT):	Ja
Intel® Rapid Start Teknologi:	Ingen
Intel® Smart Response Teknologi:	Ingen
Intel® Identity Protection Teknologi (Intel® IPT):	Ja
Intel® Quick Sync Video Teknologi:	Ja
Intel® AES Nye Instruktioner (Intel® AES-NI):	Ingen
Intel® Demand Based Switching:	Ingen
Termiske overvågningsteknologier:	Ja
Intel® Dual Display Capable Teknologi:	Ingen
Intel® FDI Teknologi:	Ja
Intel® Rapid Storage Teknologi:	Ingen
Intel® Fast Memory Access:	Ja
Intel® Clear Video Teknologi til MID (Intel® CVT for MID):	Ingen
Processor-pakke størrelse:	37.5 x 37.5 mm
Processor ARK ID:	65693
Hukommelseslayout (slots x størrelse):	- GB
Indbygget grafikadapter basefrekvens:	650 MHz
Indbygget grafikadapter dynamisk frekvens (maks.):	1050 MHz
CPU-multiplikator (bus/kerneforhold):	33
Indbygget grafikadapter-ID:	0x152
Operativsystemets arkitektur:	64-bit
Understøttede instruktionssæt:	AVX, SSE4.1, SSE4.2
Bundkort chipsæt:	Intel® H61 Express
Hukommelseskanaler:	To-kanals
Maksimal grafikadapterhukommelse:	1.692 GB
Tastatur inkluderet:	Ingen
Maksimal intern hukommelse understøttet af processor:	32 GB
Hukommelsestyper understøttet af processor:	DDR3-SDRAM
Hukommelsesurhastigheder understøttet af processor:	1333,1600 MHz
Hukommelsesbåndbredde understøttet af processor (maks.):	25.6 GB/sek.
Tcase:	65.3 °C
Antal understøttede skærme (indbygget grafik):	3
Specifikation for termisk opløsning:	PCG 2011C
Mini PCI ekspres slots:	1
