12. Fasten the Smart Fan to the chassis with the 4 thumbscrews.

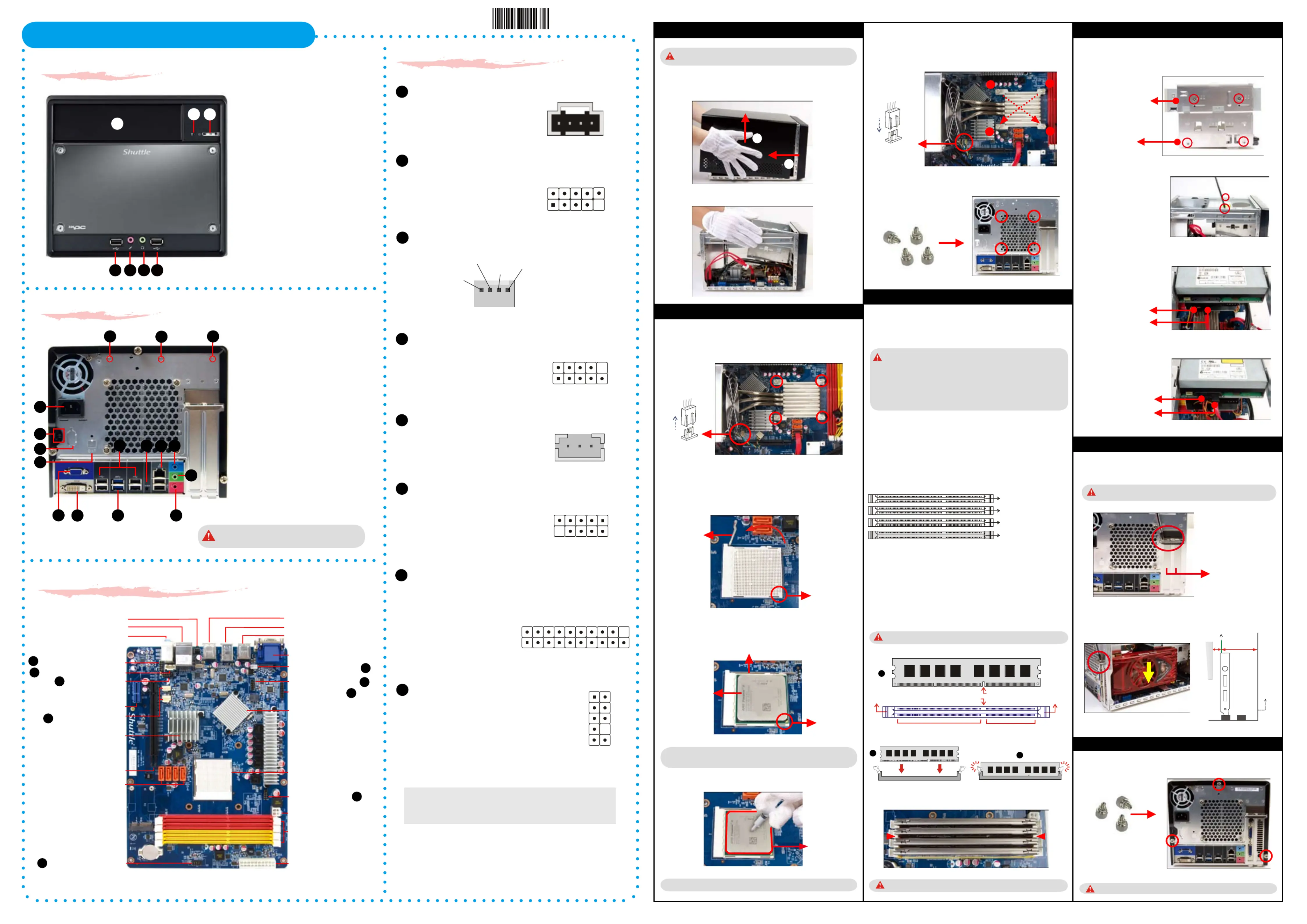

SA76R4 Quick Guide【 English 】

Jumper Settings

Motherboard Illustration



SPDIF-Out Connector

(SPDIF1)

1=Ground

2=VCC

3=SPDIF_Out

Front Panel

Back Panel



Power Button Connector_

(JP4)

A. Begin Installation

1. Unscrew 3 thumbscrews of the chassis cover.

2. Slide the cover backwards and upwards.

3. Unfasten the rack mount screws and remove the rack.

B. CPU and ICE Installation

For safety reasons, please ensure that the power cord is

disconnected before opening the case.

1. Unfasten the ICE fan thumbscrews on the back of the chassis.

2. Unfasten the four ICE module attachment screws and unplug the fan

connector.

1. Unlock the DIMM latch.

2. Align the memory module's cutout with the DIMM slot notch.

Slide the memory module into the DIMM slot.

C. Memory module Installation

3. Check that the latches are closed, and the memory module is firmly installed.

D. Peripheral Installation

1. Unfasten expansion slot bracket screws.

Remove the back panel bracket and put the bracket aside.

E. Accessories Installation

2. Install the PCI Express p1-x16 card into the PCI Express p1-x16 slot.

3. Secure the bracket.

F. Complete

Please load the optimized BIOS values.

Fan Connector

The maximum size acceptable for display card is

267mm x 98mm x 34.6mm

Safety Information

Read the following precautions before setting up a Shuttle XPC.

Laser compliance statement

The optical disc drive in this PC is a laser product.

The drive's classication label is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION： INVISIBLE LASER RADIATION WHEN OPEN.

AVOID EXPOSURE TO BEAM.

CAUTION

Incorrectly replacing the battery may damage this computer.

Replace only with the same or equivalent as recommended by Shuttle.

Dispose of used batteries according to the manufacturer's instructions.

1. Replace the cover and refasten the thumbscrews.

2. Complete.

5. Connect the Serial ATA and power cables to the optical drive.

Serial ATA HDD

Channel A, DIMM1 (Red)

Channel B, DIMM2 (Red)

Channel A, DIMM3 (Yellow)

Channel B, DIMM4 (Yellow)

Make sure that the motherboard supports the memory.

It is recommended that memory of the same capacity, brand, speed,

and chips be used.

(Go to Shuttle's website for the latest memory support list.)

Memory modules have a foolproof design. A memory module can

be installed in only one direction. If you are unable to insert the

memory, switch the direction.

This motherboard provides four DDR3 memory sockets and supports Dual

Technology. After the memory is installed, the BIOS will automatically

detect the specifications and capacity of the memory.

Dual Channel memory mode may double the original memory bandwidth.

You may install varying memory sizes, the system maps the total size of

the lower-sized channel for the dual-channel configuration. Any excess

memory from the higher-sized channel is then mapped for single-channel

operation.

Guidelines for Memory Conguration

Before installing DIMMs, read and follow these guidelines for memory

configuration.

Installing a Memory

DDR3 DIMMs are not compatible to each other or DDR DIMMs.

Be sure to install DDR3 DIMMs on this motherboard. Follow the steps below

to correctly install your memory modules in the memory sockets.

Repeat to install additional memory modules if required.

Cutout

Latch

Notch

DDR3 240-pin 1.5V

48*2=96 pin

72*2=144 pin

A DDR3 memory module has a cutout, so it can only fit in one direction.

10. Screw the ICE module to the mainboard. Note to press down on the

opposite diagonal corner while tightening each screw.

11. Connect the fan connector.

Fan Connector

Follow the steps below to correctly install the CPU into the

motherboard CPU socket.

Serial ATA Cable

Serial ATA Power Cable

The product’s color and specification will depend upon the actually shipping product.

Serial ATA ODD

4. Connect the Serial ATA and power cables to the HDD.

Serial ATA Cable

Serial ATA Power Cable

PCI Express p1-x16 slots

4x 240 pins DDR3 DIMM Slots

Line-Out/Line-In Ports/

MIC Port

Clear CMOS Button

2x USB 2.0 Ports

ATX Power Connector-ATX1

PCI Express p1-x16 Slots

DVI-D Port & VGA Port

AUX IN Connector-AUX_IN1

2x USB 3.0 Ports



4PIN FAN connector_

(CPU Fan,SYS Fan)

SPEED_SENSE

PWM_CTRL

+12V

Ground

CPU FAN , SYS FAN

3 2 1

2 4 6 8 10

2. Place the HDD and optical drive in the rack and secure with screws

from the side.

3. Place the rack in the chassis and refasten the rack.

1. Loosen the purse lock and separate the Serial ATA and power cables.

SPDIF-Out Connector

-SPDIF1

Serial ATA-SATA 1,2,3,4

Power Button Connector

-JP4

USB Header

(USB2,USB3)

1=5V 2=5V

3=USB6- 4=

USB7-

5=USB6+ 6=USB7+

7=GND 8=GND

9=NA 10=GND



AUX IN Connector

(AUX_IN1)

1=CD_IN_L

2=Ground

3=Ground

4=CD_IN_R

4 3 2 1



Com Connector

(COM1)

1=DCD 2=RX

3=TXD 4=DTR

5=Ground 6=DSR

7=RTS 8=CTS

9=-XRI 10=NUUL

9 7 5 3 1

10 8 6 4 2



LPC Header

(JP1)

53R-SA76R3-3001

4PIN FAN connector_

(CPU Fan,SYS Fan)

F1. HDD LED

F2. Power Button / Power LED

F3. 5.25” Bay

F4. USB2.0 Ports

F5. Microphone

F6. Headphone

F4F5

B1. AC Power Socket

B2. Kensington Lock

B3.

Serial Port

Perforation

(Optional)

B4. SPDIF Out Port

(Optional)

B5. VGA Port

B6. DVI-D Port

B7. USB3.0 Ports

B8. Microphone Jack

B9. Line-Out Jack

B10. Line-In Jack

B11. LAN & USB2.0 Ports

B12. Clear CMOS

Button

B13. USB2.0 Ports

B14.

Wireless LAN

Perforation

B10

B14

B11

B14

B12

B13

DVI-D & VGA Ports cannot be used, if the

PCI Express graphics card is installed.

4. Pull up the CPU socket lever to 90-degrees.

6. Spread an even layer of thermal compound on the CPU die.

Note: Failure to correctly align the CPU and socket can result in

damage to the CPU.

Note: Please do not use too much Heatsink compound.

AMD Processor

Triangle Markings

Lever

3. Remove the ICE module from the chassis and put it aside.

5. Match the yellow triangle on a corner of the CPU with the triangle on

the socket corner and gently insert the CPU into the socket and press

down the CPU socket lever.

Triangle Markings

Lever

Thermal Paste

application area

2x USB 2.0 Ports

2x USB 2.0 Ports & 1x LAN

ATX Power Connector-PWR1

One PCI Express p1-x1 Slot

AM3 Socket (941PIN)

ATI SB710 Chipset

ATI RS760 Chipset

USB Header-USB2

LPC Header-JP1

COM Connector-COM1

USB Header-USB3

1=+HD_LED 2=PWR_LED

3=-HD_LED 4=

GND

5=RST_SW 6=PWR_SW

7=GND 8=GND

9=NA 10=GND

1 3 5 7 9

2 4 6 8 10

1 3 5 7 9

11 12 13 14 15 16 17 18 19

1 2 3 4 5 6 7 8 9 10

1=+12V 11=-12V

2=5V 12=+3V_DUAL

3=+5V_DUAL 13=RI-

4=SERIRQ 14=LDRQ-

5=CLK_LPC48M 15=LPC_PME-

6=CLK_LPC33M 16=LAD1

7=SIO_RST- 17=LAD0

8=LFRAME- 18=+3.3V

9=LAD3 19=GND

10=LAD2

FRONT audio connector-JP2



FRONT audio connector_

(JP2)

1=MIC2_L 2=AGND

3=MIC2_R 4=FRONT-JD

5=LINE2-R 6=SENSE1_RETURN

7=FRONT_SENSE 8=NUUL

9=LINE2-L 10=SENSE2_RETURN

VGA Card PCB

Chassis

Cover

5mm

34.6mm

PCI Express p1-x16 slots / PCI

62R-SA76R0-1501

English.Spanish.Korean.

Traditional Chinese.Japanese.

French. German Quick Guide
