Side 1/6

Safety instructions

 The washing machine is heavy - take care when lifting.

 Caution: frozen hoses can crack/burst. Do not install the washing machine outdoors or

in areas exposed to frost.

 The washing machine could be damaged. Do not lift the appliance by protruding

components (e.g. the washing machine door).

 In addition to the instructions provided in this document, special regulations from the

relevant water and electric utility companies may apply.

 If in doubt, have a technician connect the appliance.

 Route hoses and cables in such a way that there is no risk of tripping.

Environmentally-friendly disposal

  Dispose of packaging in an environmentally friendly manner.

 This appliance is labelled in accordance with European Directive 2002/96/EC on

Waste Electrical and Electronic Equipment - WEEE.

The directive provides an EU-wide framework for the return and recycling of used

appliances.

Installation surface

 The machine must be stable so that it does not move around.

 The surface on which it is installed must be firm and level.

 Soft floors/floor coverings are not suitable.

Installation on a pedestal

 The feet of the washing machine be secured with holding brackets *.must

* Order no. WMZ 2200, WX 9756, CZ 110600, Z 7080X0

Installation on a wood joist floor

 If possible, place the washing machine in a corner.

 Screw a water-resistant wooden board (min. 30 mm thick) to the floor.

 The feet of the washing machine be secured with holding brackets *.must

* See above for order no.

Installing the appliance depending on model

Install the appliance before connecting it to the power supply.

Risk of electric shock.

 For models with a continuous appliance covering plate or a square service flap, the

appliance covering plate can be replaced by a metal cover.

Instead of the appliance covering plate, you have a metal cover * fitted by an expert. must

* Order no. WMZ 2043, WZ 20430

 For models with a non-continuous appliance covering plate or a round service flap, the

appliance covering plate .must not be removed

 Only install the washing machine underneath a continuous worktop that is securely

connected to adjacent cabinets.

 Recess width of 60 cm required.

Scope of delivery depending on model

Also required, depending on the connection:

 1 hose clamp Ø 24-40 mm (specialist retailers) to connect to a siphon

a Page 4; water connection

Useful tools

 Spirit level for levelling.

 Spanner with

WAF13: for loosening the transport safety devices and a Page 3

WAF17: for aligning the appliance feet .a Page 5

Hose and cable lengths depending on model

Left-hand connection or Right-hand connection

Note: Using hose clips limits the possible hose lengths.

Available from specialist retailers/the after-sales service:

 Extension for Aqua Stop and cold water inlet hose (approx. 2.50 m).ä

Order no. WMZ2380, WZ10130, CZ11350, Z7070X0

 Longer inlet hose (approx. 2.20 m) for standard model.

Spanner

Mains cable

Water inlet

Elbow

for fixing the drainage

hose in place

Covers

with hose clip

Aqua Stop Aqua Secure/Standardä ä

Water outlet

~140 cm

~95 cm

~120 cm

~130 cm

~100 cm

~135 cm

0 - max. 100 cm

Moisture inside the drum is

due to final testing.

Removing the transport safety devices

 Before using the appliance for the first time, the 4 transport safety

devices must be completely removed and kept safe.

 If you need to transport the appliance at a later date, always refit the

transport safety devices to prevent damage to the machine.

a Page 6.

 Store the screw and sleeve screwed together.

1. Take the hoses (depending on model) out of the holders and the elbow.

Remove the elbow.

2. Unscrew and remove the bolts from all 4 transport safety devices.

3. Take the mains cable out of the holder. Remove the sleeves.

4. Insert the covers. Secure tightly by pressing on the snap-in hook. Insert the hose clip.

5. Secure the hoses in the hose clips.

Water connection depending on model

 Do not immerse the Aqua-Stop safety device in water Risk of electric shock.

(contains an electric valve).

 To prevent leaks or water damage, observe the instructions in this section.

 : only operate the washing machine using cold drinking water.Caution

 Do not connect to the mixer tap of an unpressurised hot-water boiler.

 Do not use a used inlet hose. Only use the inlet hose supplied or one which was

purchased from an authorised specialist retailer.

 If in doubt, have a technician connect the appliance.

Water inlet

Water inlet hose:

Caution: do not kink, squash, modify or cut through

(otherwise its strength is no longer guaranteed).

Optimum water pressure in the supply network: 100-1000 kPa (1-10 bar)

 When the tap is on, the water flow is at least 8 l/min.

 If the water pressure is higher than this, a pressure reducing valve must be installed.

Model: Aqua Stopä

Aqua Secureä

Standard

1. Connect the water inlet hose to the tap.

Caution: only tighten the screw connections by

hand.

2. Open the water tap carefully, checking the leak

tightness of the connection points.

Caution: the screw connection is under mains

water pressure.

Water outlet

Water outlet hose:

Caution: do not kink or pull lengthways.

Height difference between the installation surface and the drain:

0 - max. 100 cm

Outlet into a sink

Caution: secure the drain hose so that it cannot slip out.

Caution: the plug must not block drainage from the sink. During pumping,

check whether the water is draining away quickly enough. The end of the

drain hose must not be immersed in the water that is pumped out! This

would result in the risk of water being sucked back into the washing

machine!

Drainage into a siphon:

Caution: the connection point must be secured with a hose clamp,

Ø 24-40 mm (specialist retailers).

.Outlet into a plastic pipe with rubber bushing or into a drainage pit:

Caution: secure the drain hose so that it cannot slip out.

max.

90°

max.

90°

min.

10 mm

min.

10 mm

3/4

Manufacturer a Instruction manual

0811 / 9000460857

*460857*

Levelling

Intense noise, vibrations and wandering may be the result of incorrect levelling.

Levelling the washing machine with a spirit level

1. Loosen the lock nut using a spanner, by turning it in a clockwise

direction.

2. Change the height by turning the appliance feet.

Caution: all four appliance feet must be firmly on the ground.

The washing machine must not wobble.

Check the levelness of the washing machine with a spirit level and adjust

if necessary.

3. Tighten the lock nut against the housing.

In doing so, hold the foot tight and do not adjust its height.

Caution: the lock nuts on all four appliance feet must be screwed tightly

against the housing.

Electrical connection

ʑThe washing machine must only be connected to an alternating current via a

properly installed earthed socket.

ʑThe power supply and voltage indicated on the washing machine (rating plate)

must be the same.

ʑThe connected load and fuse required are specified on the rating plate.

ʑMake sure that:

 the mains plug fits the socket,

 the cable cross-section is adequate,

 the earthing system is properly installed.

ʑThe mains cable may only be replaced by a qualified electrician (if required).

Replacement mains cables are available from customer services.

ʑDo not use multiple plugs/couplings or extension cables.

ʑIf a residual current circuit breaker is used, only use a type which displays this

symbol: .

Only this symbol guarantees compliance with the currently applicable regulations.

ʑMains plug:

 do not plug in to/pull out of the socket with damp hands.

 when removing the plug from the socket, pull the plug body only, not the cable.

 never pull the plug out during operation.

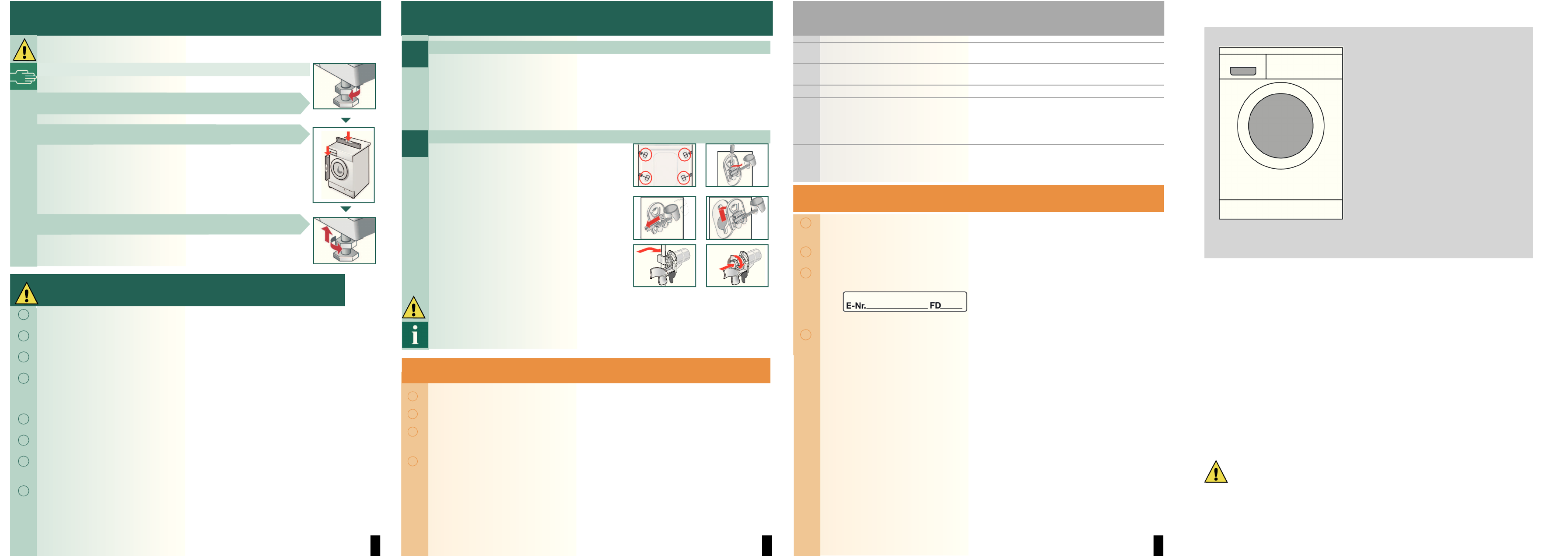

Transportation, e.g. when moving house

Before transporting the washing machine:

1. Turn off the tap.

2. Drain residual detergent solution Maintenance - drain pump.a Instruction manual;

3. Reduce the water pressure in the inlet hose a Instruction manual; Maintenance - filter in

water inlet.

4. Disconnect the washing machine from the power supply.

5. Disconnect the hoses.

Install the transport safety devices:

1. Remove the covers.

2. Insert all 4 sleeves.

Clamp the mains cable to the holders. Insert and

tighten the screws.

After transportation, the transport safety devices must be removed. a Page 3.

To prevent unused detergent from flowing straight into the drain during the next wash:

Pour 1 litre of water into compartment and start the programme.II Empty

Technical specifications

ʑ Dimensions (width x depth x height) 60 x 59 x 85 cm

ʑ Weight 63 - 83 kg depending on model

ʑ Mains connection Nominal voltage 220-240 V, 50 Hz

Nominal current 10 A

Nominal power 2,300 W

ʑ Water pressure 100-1000 kPa (1-10 bar)

Aqua-Stop warranty Only for appliances with Aqua-Stop

In addition to warranty claims against the vendor from the purchase agreement and in

addition to our appliance warranty, we will pay damages under the following conditions:

1. If a fault in our Aqua-Stop system causes water damage, we will reimburse damages caused

to private customers.

2. The liability warranty is valid for the service life of the appliance.

3. A warranty claim is only valid on condition that the appliance fitted with Aqua Stop has been ä

correctly installed and connected according to our instructions. This condition includes the

correct fitting of an Aqua Stop extension (genuine accessory).ä

Our warranty goes not cover defective power cables or fittings between the Aqua-Stop

connection and the tap.

4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured

afterwards by turning off the tap.

The tap only needs to be turned off if you are away from home for a long period, e.g. for

several weeks' holiday.

After-sales service

ʑIf you cannot rectify a fault yourself Instruction manual: What do to if ..., Page 12/13, a

please contact our after-sales service. We can always find a suitable remedy, so that a

technician is not called out unnecessarily.

ʑThe contact details for your nearest after-sales service can be found here or in the After-sales

service directory (depending on the model).

ʑPlease give the after-sales service the product number (E-Nr.) and the production number

(FD) of the appliance.

Product number Production number

This information can be found:

inside the washing machine door* / on the open

service flap* and on the back of the appliance.

*depending on model

ʑYou can rely on the competence of the manufacturer. Please contact us.

This way, you can ensure the repair is carried out by trained service technicians who are

equipped with genuine spare parts.

Washing machine

Contents Page

ʋSafety instructions . . . . . . . . . . . . . . . . . . . . . . 1

ʋEnvironmentally-friendly disposal . . . . . . . . . . 1

ʋInstallation surface. . . . . . . . . . . . . . . . . . . . . . 1

ʋInstalling the appliance . . . . . . . . . . . . . . . . . . 1

ʋScope of delivery. . . . . . . . . . . . . . . . . . . . . . . 2

ʋHose and cable lengths . . . . . . . . . . . . . . . . . 2

ʋRemoving the transport safety devices . . . . . . 3

ʋWater connection . . . . . . . . . . . . . . . . . . . . . . 4

ʋLevelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ʋElectrical connection . . . . . . . . . . . . . . . . . . . . 5

ʋTransportation, e.g. when moving house. . . . . 6

ʋTechnical specifications. . . . . . . . . . . . . . . . . . 6

ʋAqua-Stop warranty . . . . . . . . . . . . . . . . . . . . . 7

Installation

instructions

Do not operate the washing machine until you have read these instructions.

Please also observe the separate instruction manual.

Keep all the documents in a safe place for future reference, or

to pass on to the next owner.

Produkt Specifikationer

Mærke:	Siemens
Kategori:	Vaskemaskine
Model:	WM14S49XEE
Bredde:	600 mm
Dybde:	590 mm
Højde:	840 mm
Produktfarve:	Metallic
Kontroltype:	Buttons,Rotary
Indbygget skærm:	Ja
Skærmtype:	LCD
Strøm:	10 A
Ledningslængde:	1.75 m
Energieffektivitetsklasse (gammel):	A+++
Strømforbrug (typisk):	2300 W
Timer:	Ja
Placering af apparat:	Fritstående
Dørhængsel:	Venstre
Ilægningstype:	Front-læsning
Tilløbsslange, længde:	1.5 m
Tromlekapacitet:	9 kg
Maksimal centrifugeringshastighed:	1400 rpm
Støjniveau (centrifugering):	73 dB
Støjniveau (vask):	50 dB
Forsinket start-timer:	Ja
Vaskeprogrammer:	Hygiene/anti-allergy,Black
Børnesikring:	Ja
Energiforbrug ved vask:	1.25 kWh
Årligt energiforbrug vask:	216 kWh
Tromle volumen:	65 L
Balance system:	Ja
Spin-tørre klasse:	B
Skum kontrol system:	Ja
Restfugtighed:	50 %
Vaskeklasse:	A
Årligt vandforbrug vask:	12100 L
Vandforbrug pr. cyklus:	- L
Forsinket start (maks.):	24 t
AquaStop funktion:	Ja
Udøsslange længde:	1.5 m
Effektkrav:	220 - 240V, 50Hz
Justerbar centrifugeringshastighed:	Ja
