XE02-4677 & XE04-4677 are active heatsinks designed for Intel LGA4677 socket
Please wear ESD gloves to protect the processor and CPU socket before installation process

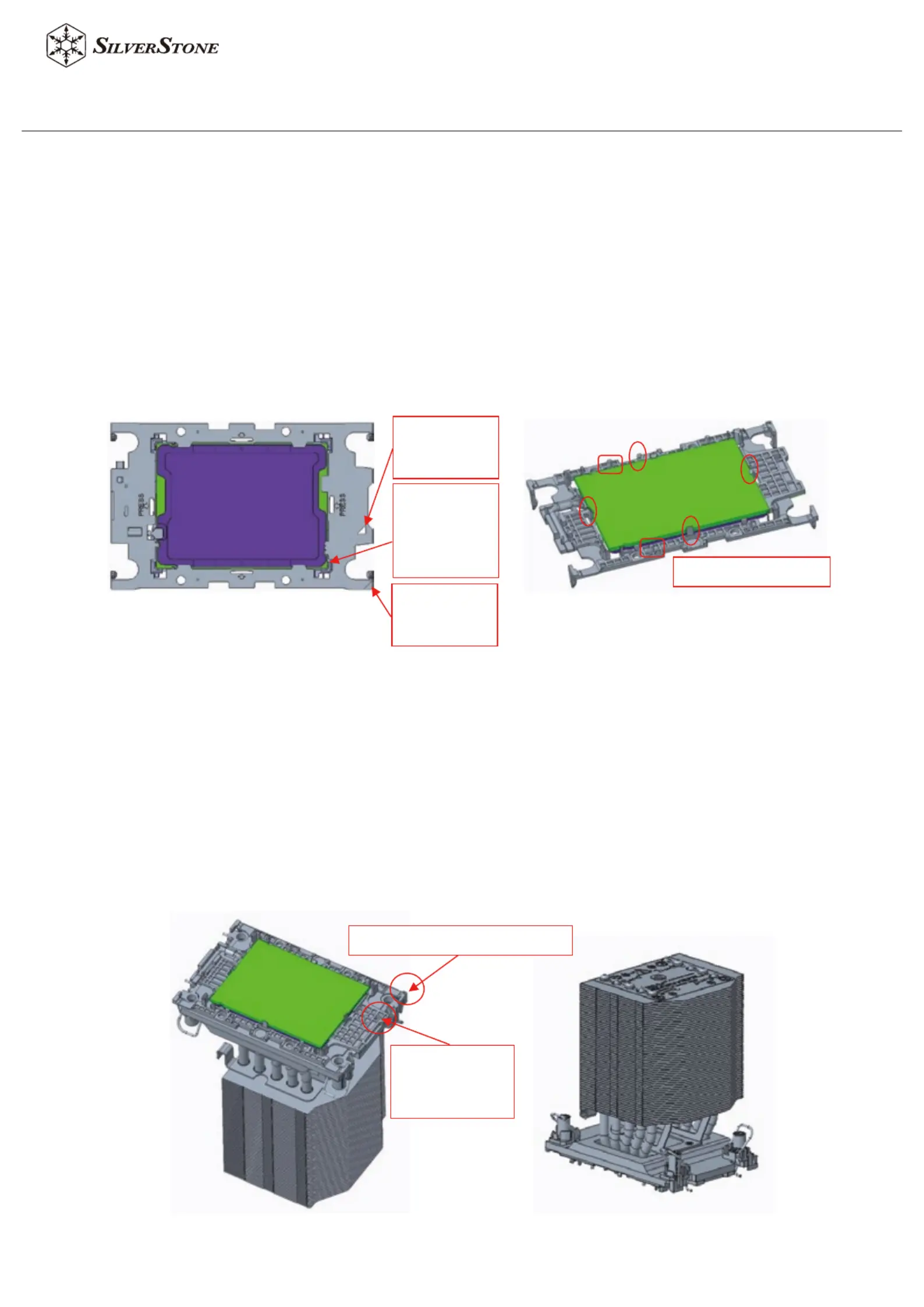

Install the processor first with the plastic carrier. Align the golden color triangle mark with the hollow triangle mark on the
carrier, then align the key on the processor IHS cover and side, push the processor and confirm the 4 clips securely
locked (Figure 1 &2)
Note: the carrier latches must be fully engaged with the keying slots on the edges of the processor and the processor
must be securely seated on the carrier after insertion.
XE04-4677/XE02-4677
CPU Heatsink Assembly Guide
1.
2.
3.
Remove the heatsink from its packaging and remove the protection cover of Thermal Interface Material (TIM). The
required amount of TIM has been pre-applied on the bottom of the heatsink. Inspect the pre-applied TIM for any
damage before use.
Identify processor Pin 1 and onboard socket Pin 1 to decide the heatsink installation direction; for certain motherboards,
the Pin 1 location will be different with CPU1 and CPU2. (Figure 3 & 4)
Note: The complete assembly of processor, carrier, and heat sink is called Processor Heat Sink Loading Module
(PHLM) or Processor Heat Sink Module (PHM).
4.
5.
6.
Figure 5 Figure 6
Figure 7 Figure 8
A Flow d n ir irec�o
Bracket

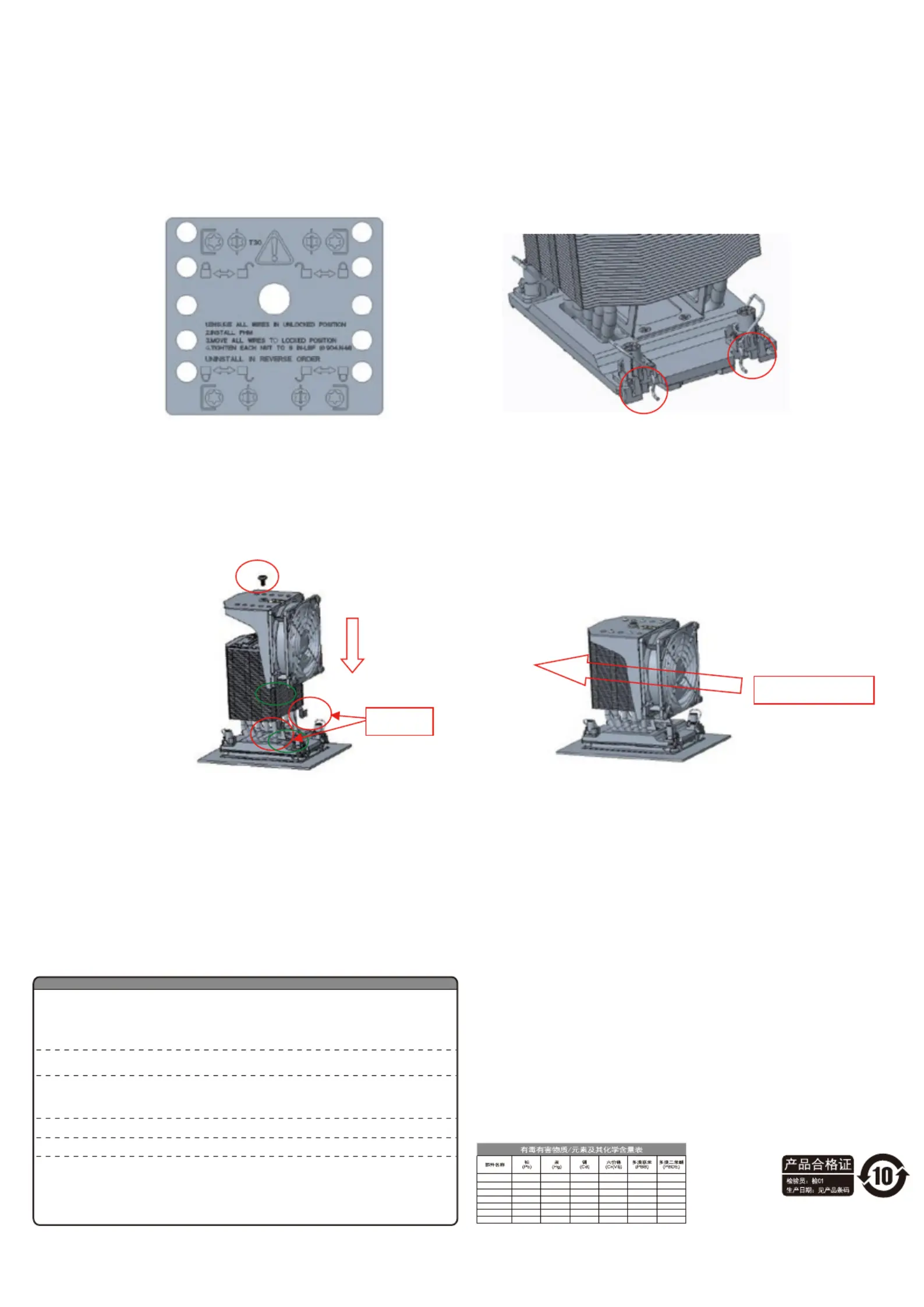

Before assembling PHM on bolster plate, follow the sticker instructions to ensure all wires are in unlocked position.
Install PHM on bolster plate, and move all wires to locked position, then use Torx T30 screwdriver to tighten each nut of
8 LBF-IN (0.904 N-M) (Figure 5 & 6)
7.
For XE04-4677, install the heatsink cooling fan with the fan holder assembly onto the heatsink fin array and make sure
that it is fully secured with the heatsink bracket, then tighten the single locking screw on top of the fan holder assembly
to the heatsink. Lastly, plug in the 4 Pin fan connector to a motherboard fan header.
Warranty Information
This product has a limited 1 year warranty in North America and Australia.
For information on warranty periods in other regions, please contact your reseller or SilverStone authorized
distributor.
本产品自购买之日起，于中国地区（不包含澳门，香港特别行政区）享有一年有限责任保固（部分产品为二年，
三年或五年）。详细保固年限请参照官方网站 www.silverstonetek.com.cn 公布之产品型号为依据。
1. Product component defects or damages resulted from defective production is covered under warranty.
Defects or damages with the following conditions will be fixed or replaced under SilverStone Technology’s
jurisdiction.
a) Usage in accordance with instructions provided in this manual, with no misuse, overuse, or other
inappropriate actions.
b) Damage not caused by natural disaster (thunder, fire, earthquake, flood, salt, wind, insect, animals, etc…)
c) Product is not disassembled, modified, or fixed. Components not disassembled or replaced.
d) Warranty mark/stickers are not removed or broken.
Loss or damages resulted from conditions other than ones listed above are not covered under warranty.
2. Under warranty, SilverStone Technology’s maximum liability is limited to the current market value for the
product (depreciated value, excluding shipping, handling, and other fees). SilverStone Technology is not
responsible for other damages or loss associated with the use of product.
3. Under warranty, SilverStone Technology is obligated to repair or replace its defective products. Under no
circumstances will SilverStone Technology be liable for damages in connection with the sale, purchase,
or use including but not limited to loss of data, loss of business, loss of profits, loss of use of the product or
incidental or consequential damage whether or not foreseeable and whether or not based on breach of
warranty, contract or negligence, even if SilverStone Technology has been advised of the possibility of
such damages.
4. Warranty covers only the original purchaser through authorized SilverStone distributors and resellers and
is not transferable to a second hand purchaser.
5. You must provide sales receipt or invoice with clear indication of purchase date to determine warranty
eligibility.
6. If a problem develops during the warranty period, please contact your retailer/reseller/SilverStone
authorized distributors or SilverStone
. http://www.silverstonetek.com
Please note that: (i) You must provide proof of original purchase of the product by a dated itemized receipt;
(ii) You shall bear the cost of shipping (or otherwise transporting) the product to SilverStone authorized
distributors. SilverStone authorized distributors will bear the cost of shipping (or otherwise transporting) the
product back to you after completing the warranty service; (iii) Before you send the product, you must be
issued a Return Merchandise Authorization (“RMA”) number from SilverStone. Updated warranty
information will be posted on SilverStone’s official website.
Please visit for the latest updates.http://www.silverstonetek.com
Warranty terms & conditions
电机组件
金属结构件
塑胶结构件
线缆/ 连接器
介质/其它
包装材料
辅助材
X
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
NO.G11246660
○：表示该有毒有害物质在该部件
所有均质材料中的含量均在GB
/T 26572 规定的限量要求以下。
本表格依据SJ/T 11364的规定编制
×：表示该有毒有害物质至少在该部
件的某一均质材料中的含量超出
GB/T 26572 规定的限量要求。
Additional info & contacts
For North America (usasupport@silverstonetek.com)
SilverStone Technology in North America may repair or replace defective product with refurbished product that is not
new but has been functionally tested.
Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer.
All products should be sent back to the place of purchase if it is within 30 days of purchase, after 30 days,
customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA
RMA form for end-users” form from the below link and follow its instructions.
http://silverstonetek.com/contactus.php
For Australia only (support@silverstonetek.com)
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Please refer to above “Warranty terms & conditions” for further warranty details.
SilverStone Technology Co., Ltd. 12F No. 168 Jiankang Rd., Zhonghe Dist., New Taipei City 235 Taiwan R.O.C.
+ 886-2-8228-1238 (standard international call charges apply)
For Europe (support.eu@silverstonetek.de)
For China (support@silverstonetek.com.cn)
For all other regions (support@silverstonetek.com)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
