Skil 9206 Manual
Skil
savemaskine
9206
Læs gratis den danske manual til Skil 9206 (36 sider) i kategorien savemaskine. Denne vejledning er vurderet som hjælpsom af 26 personer og har en gennemsnitlig bedømmelse på 4.5 stjerner ud af 13.5 anmeldelser. Har du et spørgsmål om Skil 9206, eller vil du spørge andre brugere om produktet?
Side 1/36
IMPORTANT: IMPORTANT : IMPORTANTE:
Read Before Using Lire avant usage Leer antes de usar
For English Version Version française Versión en español
See page 2 Voir page 13 Ver la página 24
Operating/Safety Instructions
Consignes de fonctionnement/sécurité
Instrucciones de funcionamiento y seguridad
1-877-SKIL999 (1-877-754-5999) www.skil.com
Call Toll Free for
Consumer Information
& Service Locations
Pour obtenir des informations
et les adresses de nos centres
de service après-vente,
appelez ce numéro gratuit
Llame gratis para
obtener información
para el consumidor y
ubicaciones de servicio
9206
9216
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 1
-2-
Work area safety
Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust
or fumes.
Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric
shock.
Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk
of electric shock if your body is earthed or
grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
If operating a power tool in a damp location
is unavoidable, use a Ground Fault Circuit
Interrupter (GFCI) protected supply. Use of
an GFCI reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention
while operating power tools may result in
serious personal injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the
switch is in the off-position before
connecting to power source and / or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energizing power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or a
key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught in
moving parts.
If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
Power tool use and care
Do not force the power tool. Use the
correct power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
!
WARNING
General Power Tool Safety Warnings
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 2
-3-
Safety Rules for Reciprocating Saws
Hold power tool by insulated gripping
surfaces, when performing an operation
where the cutting tool may contact hidden
wiring or its own cord. Cutting tool
contacting a "live" wire may make exposed
metal parts of the power tool "live" and could
give the operator an electric shock.
Use clamps or another practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand
or against your body leaves it unstable and
may lead to loss of control.
Do not drill, fasten or break into existing
walls or other blind areas where electrical
wiring may exist. If this situation is
unavoidable, disconnect all fuses or circuit
breakers feeding this worksite.
Never leave the trigger locked "ON".
Before plugging the tool in, check that the
trigger lock is "OFF". Accidental start-ups
could cause injury.
Keep hands away from cutting area. Do
not reach under the material being cut.
The proximity of the blade to your hand is
hidden from your sight.
Keep hands from between the gear
housing and saw blade holder. The
reciprocating blade holder can pinch your
fingers.
Do not use dull or damaged blades. Bent
blade can break easily or cause kickback.
Before starting to cut, turn tool "ON" and
allow the blade to come to full speed.
Tool can chatter or vibrate if blade speed is
too slow at beginning of cut and possibly
kickback.
Always wear safety goggles or eye
protection when using this tool. Use a
dust mask or respirator for applications
which generate dust.
Secure material before cutting. Never
hold it in your hand or across legs. Small
or thin material may flex or vibrate with the
blade, causing loss of control.
Make certain all adjusting screws and the
blade holder are tight before making a
cut. Loose adjusting screws and holders
can cause the tool or blade to slip and loss of
control may result.
When removing the blade from the tool
avoid contact with skin and use proper
protective gloves when grasping the
blade or accessory. Accessories may be
hot after prolonged use.
Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment
or binding of moving parts, breakage of
parts and any other condition that may
affect the power tool’s operation. If damaged,
have the power tool repaired before use.
Many accidents are caused by poorly
maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
Use the power tool, accessories and tool
bits etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Service
Have your power tool serviced by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 3
-4-
GFCI and personal protection devices like
electrician’s rubber gloves and footwear will
further enhance your personal safety.
Do not use AC only rated tools with a DC
power supply. While the tool may appear to
work, the electrical components of the AC
rated tool are likely to fail and create a hazard
to the operator.
Keep handles dry, clean and free from oil
and grease. Slippery hands cannot safely
control the power tool.
Develop a periodic maintenance schedule
for your tool. When cleaning a tool be
careful not to disassemble any portion of
the tool since internal wires may be
misplaced or pinched or safety guard return
springs may be improperly mounted.
Certain cleaning agents such as gasoline,
carbon tetrachloride, ammonia, etc. may
damage plastic parts.
Risk of injury to user. The power cord must only
be serviced by a Skil Factory Service Center or
Autho rized Skil Service Station.
Some dust created by power
sanding, sawing, grinding,
drilling, and other construction activities
contains chemicals known to cause cancer,
birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and
other masonry products, and
• Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area, and
work with approved safety equipment, such as
those dust masks that are specially designed
to filter out microscopic particles.
Additional Safety Warnings
!
WARNING
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 4
-5-
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Diameter Size of drill bits, grinding wheels, etc.
n0No load speed Rotational speed, at no load
n Rated speed Maximum attainable speed
.../min Revolutions or reciprocation Revolutions, strokes, surface speed,
per minute orbits etc. per minute
0 Off position Zero speed, zero torque...
1, 2, 3, ... Selector settings Speed, torque or position settings.
I, II, III, Higher number means greater speed
Infinitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II construction Designates Double Insulated
Construction tools.
Earthing terminal Grounding terminal
Warning symbol Alerts user to warning messages
Li-ion RBRC seal Designates Li-ion battery recycling
program
Ni-Cad RBRC seal Designates Ni-Cad battery recycling
program
Read manual symbol Alerts user to read manual
Wear eye protection symbol Alerts user to wear eye protection
Symbols
0
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 5
-6-

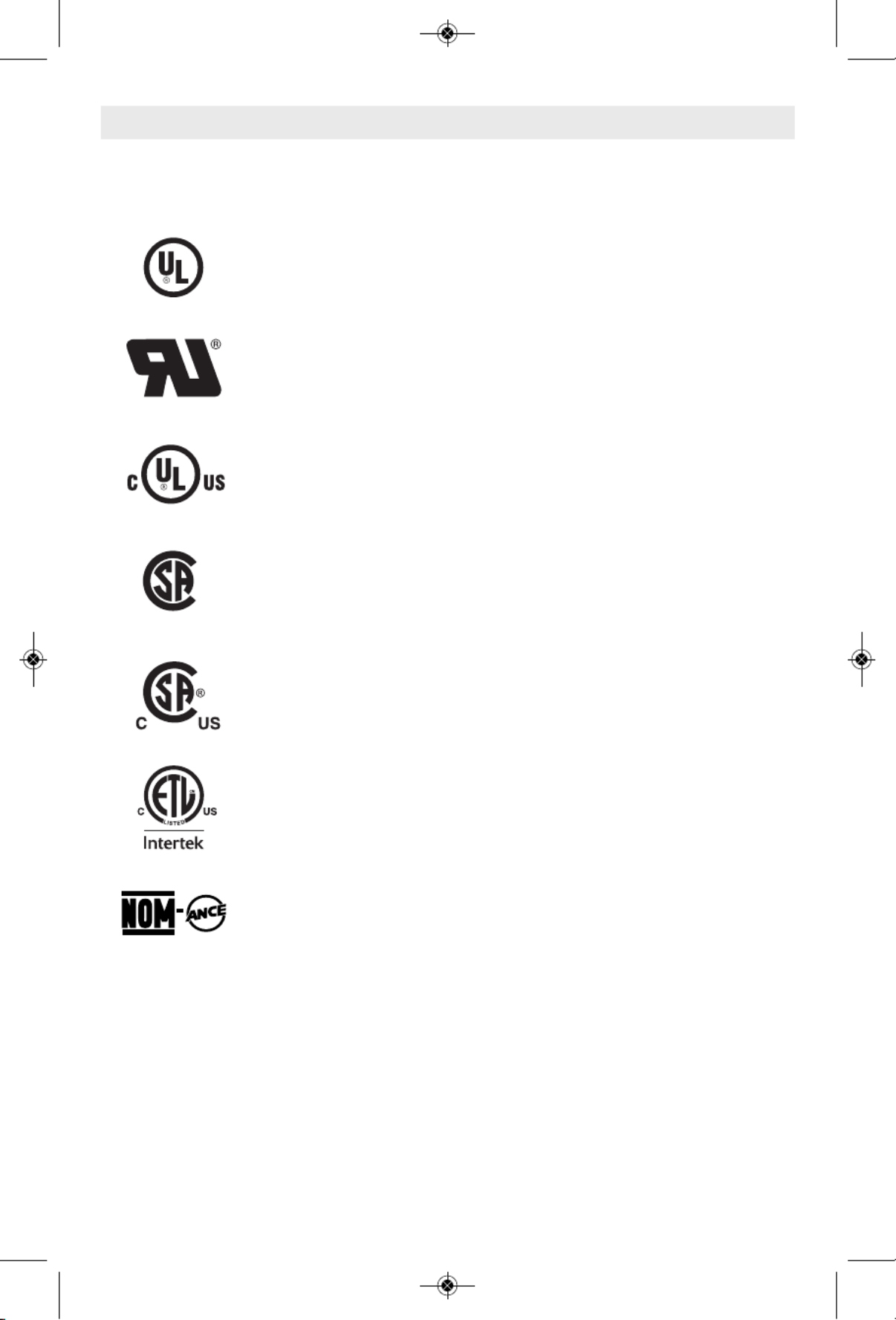

This symbol designates that this tool is listed by Underwriters Laboratories.
This symbol designates that this tool is listed by the Canadian Standards
Association.
This symbol designates that this tool is listed by the Canadian Standards
Association, to United States and Canadian Standards.
This symbol designates that this tool complies to NOM Mexican Standards.
This symbol designates that this tool is listed by the Intertek Testing
Services, to United States and Canadian Standards.
Symbols (continued)
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.
This symbol designates that this tool is recognized by Underwriters Laboratories.
This symbol designates that this tool is listed by Underwriters Laboratories,
to United States and Canadian Standards.
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 6
-7-

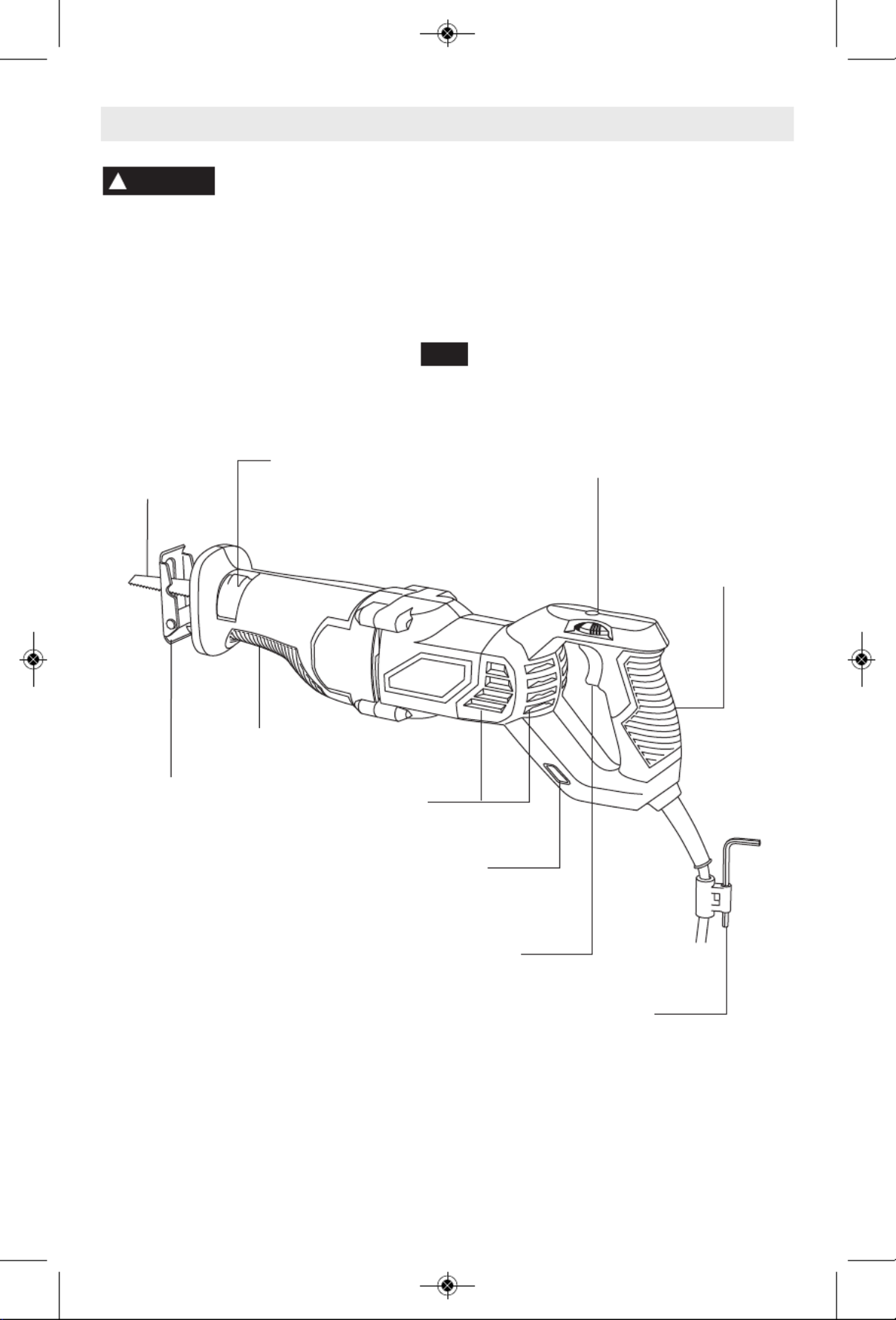

Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Reciprocating Saw
NOTE: For tool specifications refer to the nameplate on your tool.
ADJUSTABLE
FOOTPLATE
RUBBER
BOOT
TRIGGER "ON-OFF" SWITCH
SAWBLADE
VARIABLE
SPEED DIAL
FIG. 1
RUBBERIZED GRIP
(Model 9216 only)
POWER INDICATOR LIGHT
(Model 9216 only)
VENTILATION
OPENINGS
BLADE CLAMP
RELEASE LEVER
HEX WRENCH AND STORAGE
COMPARTMENT
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 7
-8-
Assembly
Preparing the Saw
BLADE SELECTION
No one blade can be efficient on all cutting
jobs. Different materials require specially
designed blades. Since your reciprocating saw
can cut so many materials, many types of SKIL
blades are available. Be sure to use the proper
blade to insure proper cutting performance.
INSTALLING A BLADE
Unplug tool from power
source before changing blade
or making any adjustments.
Pull the blade clamp release lever as far as it
will go to open the tool-less clamp; insert the
blade until it stops (Fig. 2).
To lock the blade release the lever. The
spring-loaded mechanism will lock the clamp
against the blade (Fig. 3).
Push in and pull out on the blade to be sure
the pin in the clamp housing goes through the
hole in the blade to hold the blade securely.
The blade may be inserted with the teeth
facing down or up.
Make sure that the front end
of the blade extends through
the footplate for the entire stroke length. Do
not use specialty blades that are very short or
those with a significant cant. Blade must not
contact footplate. A blade which is too short or
canted could jam inside the foot and snap.
!
WARNING
FIG. 2
!
WARNING
FIG. 3
POWER INDICATOR LIGHT
(Model 9216 only)
When you plug your tool into the power
source, the power indicator light will go “ON”
indicating the tool is receiving power (Fig. 4).
TRIGGER "ON-OFF" SWITCH
TO TURN THE TOOL "ON" squeeze the
trigger switch. TO TURN THE TOOL "OFF",
release the trigger switch, which is spring
loaded and will return to the "OFF" position
automatically (Fig. 4).
Operating Instructions
POWER
INDICATOR
LIGHT
TRIGGER
"ON-OFF"
SWITCH
FIG. 4
BLADE CLAMP
RELEASE LEVER
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 8
-9-

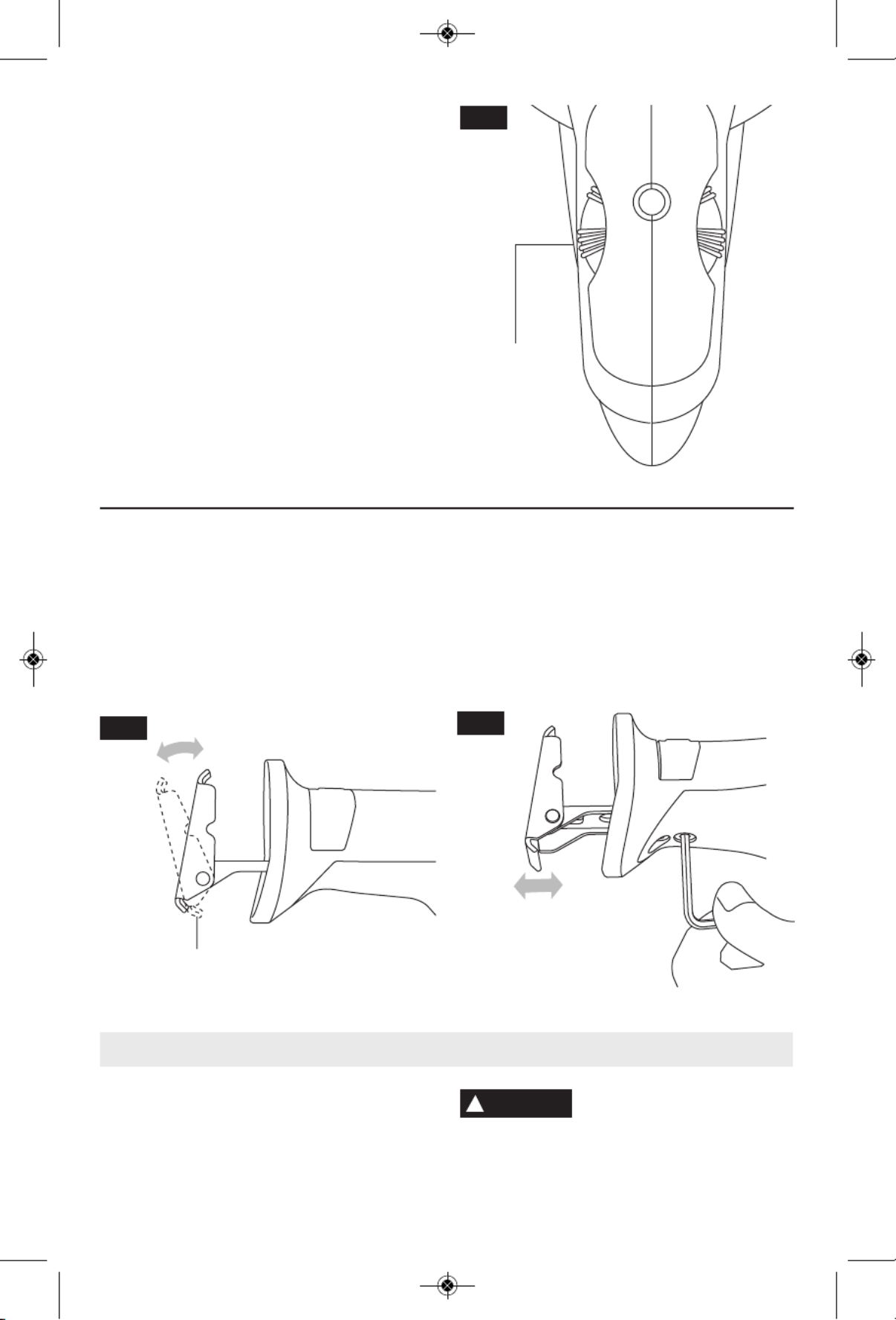

FOOTPLATE ADJUSTMENT
The footplate tilts in order to keep as much of
its surface in contact with the work surface
(Fig. 6). To adjust, hold saw firmly and pivot
footplate to desired position.
The footplate can also be locked at desired
depths to optimize blade life and/or to limit
blade protrusion beyond the end of the
footplate when cutting into large diameter pipe
or into walls.
To adjust the footplate position depth, simply
loosen the two screws in insulated rubber boot
with wrench provided, slide and move the
footplate to the desired position and securely
tighten the screw with the wrench provided
(Fig. 7).
1. Securely clamp the work.
2. Mark the line of cut and grasp the tool with
one hand on the handle and the other
placed on the insulated rubber boot over
the front housing.
Always hold the saw by the
insulated boot on the front
housing. If you saw into a blind area where
live wiring exists, you may be shocked or
electrocuted.
VARIABLE SPEED DIAL
Your tool is equipped with a variable speed
dial. The blade stroke rate may be adjusted
during cutting operation by presetting the dial
on or between any one of the six numbers
(Fig. 5).
Setting SPM rating (strokes per minute)
1-2 Low stroke
3-4 Medium stroke
5-6 High stroke
Higher speed settings are generally used for
fast cutting or when softer cutting materials
such as wood, composite materials, and
plastics. Slower speed settings are generally
used when precision is required or when
cutting harder materials. Materials typically cut
using slower speeds include sheet metal,
conduit, and pipe.
Using the Saw
!
WARNING
ADJUSTABLE
FOOTPLATE
FIG. 6 FIG. 7
4
VARIABLE
SPEED DIAL
FIG. 5
SM 2610013775 05-12_SM 2610013775 05-12 6/26/12 9:08 AM Page 9
POCKET/PLUNGE CUTS
The reciprocating saw can be used to make
plunge cuts into softer material, (for example,
wood or light building materials for walls),
without a starting hole (Fig. 8).
1. Mark the line to be cut clearly on the work.
2. Set the tool with one edge of the footplate
firmly against the material.
3. Place the tip of the blade (not running) on
the line to be cut.
4. Tilt the saw so that the blade clears the
work.
5. Squeeze the trigger switch and carefully
eng age the moving saw bla de i nto the
material.
6. After the blade penetrates through the work,
continue sawing along the marked outline.
FIG. 8
-10-
3. Keep the saw footplate firmly against the
work to minimize counter-force (jumping)
and vibration.
4. Squeeze the trigger to start the tool. Let the
saw reach full speed before starting the cut.
Guide the saw so that the blade will move
along the marked line.
SAWING TIPS
Following a few simple tips will reduce the
wear on the workpiece, the tool and the
operator.
1. Blades cut on the draw or back stroke. On
fine work, such as paneling, fiberglass, etc.,
place the good side of workpiece facing
down.
2. Use the correct saw blade for the material
being cut and keep extra blades on hand to
use when others become dull. Replace
cracked or bent blades immediately.
3. Select the footplate projection settings, as
well as the appropriate cutting speed.
4. To reduce the risk of injury, be sure the
blade always extends beyond the footplate
and work throughout the stroke. Blades
may shatter if the front on the blade hits the
work and/or the footplate.
5. When cutting metal:
- Apply a lubricant for easier, smoother,
faster cutting and longer blade life.
- For non-ferr ous metals, a luminu m,
bronze or brass, use a stick wax on the
blade.
- For ferrous metals, iron and steel, use
machine or cutting oil along the surface
to be cut.
6. When cutting thin metal, "sandwich" the
material between two pieces of scrap wood.
Clamp or put in a bench vise. One piece of
lumber on top of the metal can be used with
adequate clamping. Place your cut lines or
design on the wood.
7. Don’t force the cutting. Let the saw and
blade do the work.
WRONG RIGHT
