SKS Mudrocker SET Manual

SKS Ikke kategoriseret Mudrocker SET

Læs gratis den danske manual til SKS Mudrocker SET (3 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 29 personer og har en gennemsnitlig bedømmelse på 5.0 stjerner ud af 15 anmeldelser. Har du et spørgsmål om SKS Mudrocker SET, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/3

G RMA Y

T20M6M5M4M3

FOX

ÖHLINS

ROCKSHOX

SUNTOUR

T20

ADAPTER

PLATTE/PLATE

FOLIE

FOIL

MUDROCKER

M3 M3

42mm

64mm

76mm

25,8

1.1. 1.2.

2.0.

2.1.

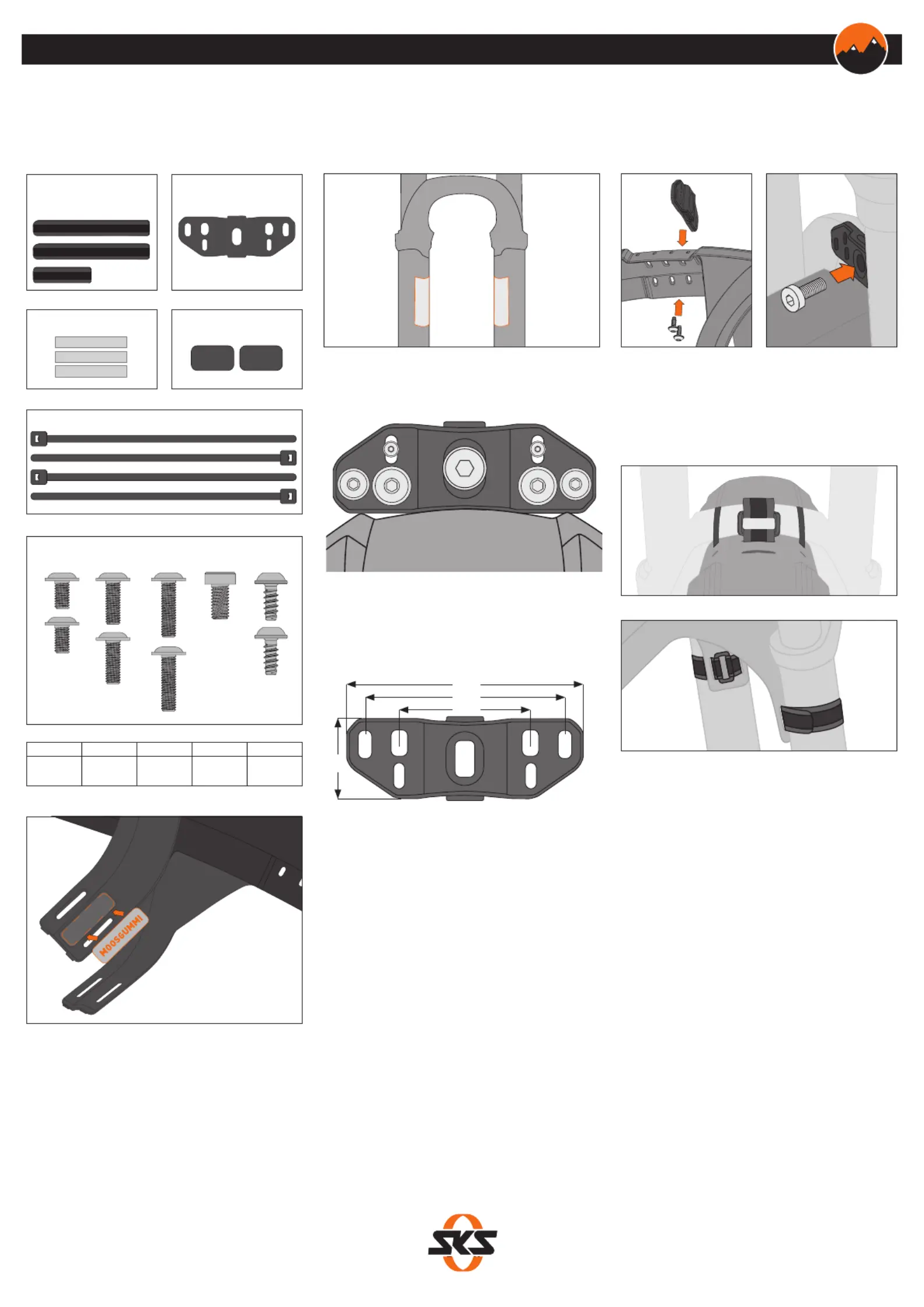

MANUAL MUDROCKER SET: FRONT 12017 ›

MOUNTAIN

GERMANY

Parts

Silicon velcro straps for

tting mudguards

Adapter

Frame protection foil Sponge rubber

Cable tie

Screws

FOX

ÖHLINS

ROCKSHOX

SUNTOUR

T20

ADAPTER

PLATTE/PLATE

Adhere the foam rubber to the mudguard (outer part)

Mounting preparation

Apply the protective frame lm to the down tube.

1.1. Screw the adapter onto the mudguard in keeping with the required

hole pattern. Use the enclosed self-tapping screws for this. (TX20)

1.2. Screw the adapter onto the fork bridge

Mounting on the down tube

2.1. Thread a long strap through and pull it tight.

Alignment for Fox

by means of a hook and loop fasteners or cable binders

2. Fastening possibility

by means of an adapter

1. Fastening possibility

The MUDROCKER FRONT fork adapter has various options for attach-

ment to the fork bridge. Please check in advance whether the existing

bolt-on options match those on your fork. The adapter must be xed at

least with the central M6 screw or 2 off-cemter screws. The adapter can

also be rotated 180 degrees. The minimum distance to the tyre, even at

full travel, must be kept in mind.

GERMANY

EXTENDER

EXTENSION

oder

EXTENDER

MUDROCKER

EXTENDER

EXTENSION

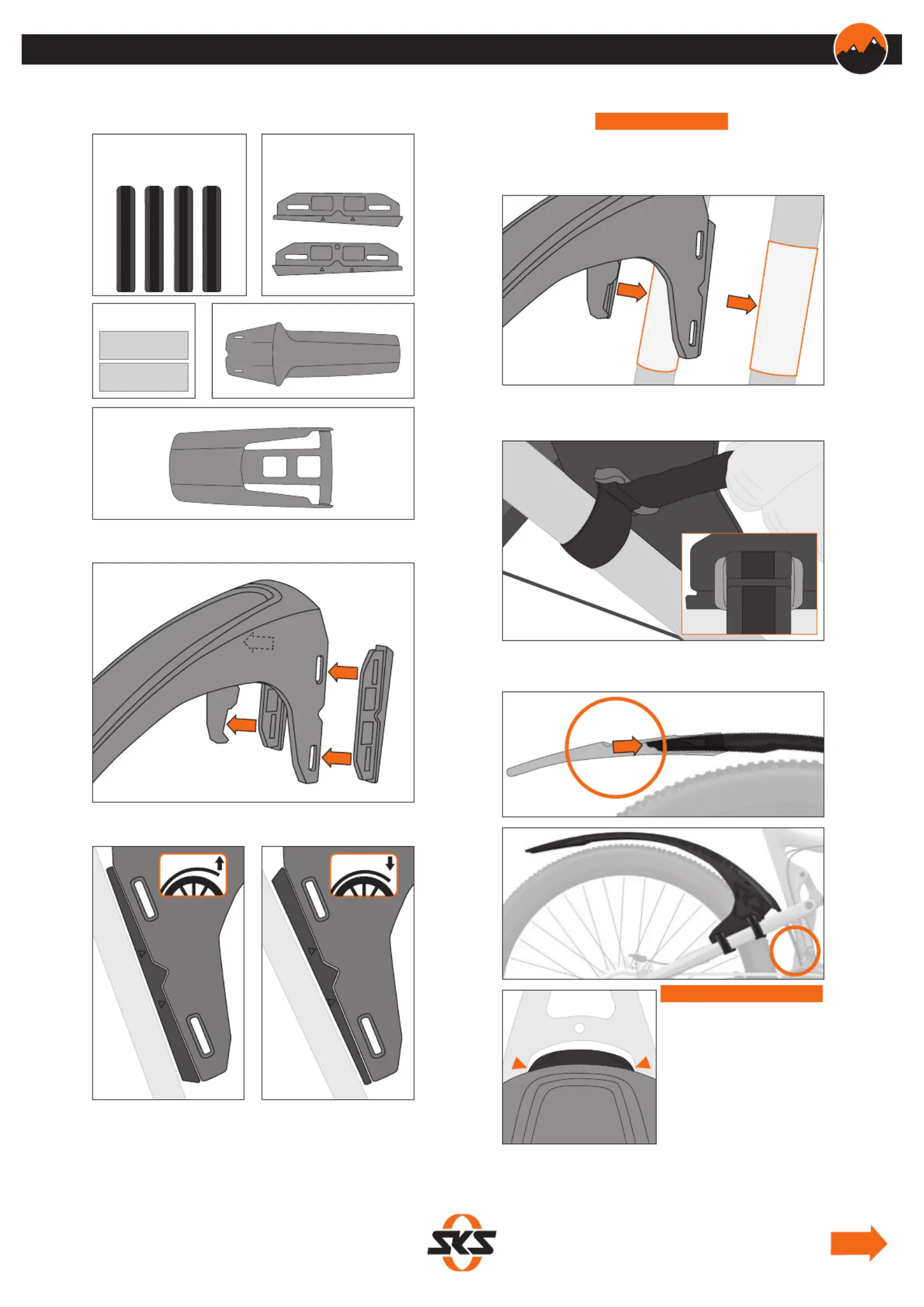

MOUNTING INSTRUCTION MUDROCKER SET: REAR 12017›

MOUNTAIN

PARTS

1.Insert the rubberized wedge into the mudguard.

Frame protection foil

EXTENDER

EXTENSION

1.1. Adjust the space of the mudguard to the tyre. (2 positions possible)

2. Thread the velcro strap with the rubberized side to the frame.

Always retighten the straps before the ride!

End position strap

1.2. Afx the protective lm on the bicycle frame.

(Thoroughly clean the frame before afxing)

ATTENTION!

We strongly recommend to use the frame protection lm.

ATTENTION!

Clamp the extender in the mudguard

and cut it so that it ts between

the seating stays.

Avoid in general the contact

to the seating stays.

Riding in rough terrain, short contacts of the mudguard

and the tyre may occur.

3. Optional
