Side 1/3

ZL-N L-N fault loop impedance

ZL-PE L-PE fault loop impedance

ZL-PE[RCD] L-PE fault loop impedance with RCD

RISO Insulation resistance

RCD IA RCD tripping current

RCD tA RCD tripping time

RCDAUTO Automatic RCD measurements

RX Resistance measurement

RCONT

Resistance measurement with I=±200 mA

1-2-3 Phase sequence

U-V-W Motor rotation direction

RE Resistance-to-earth

Ωm Soil resistivity

ΔU Voltage drop

Lux Illuminance

Touchscreen

Function icons

Back

Save

Show last measurement

Return to main menu

Select item

Show more icons

Add item

Edit item

Remove item

Close menu

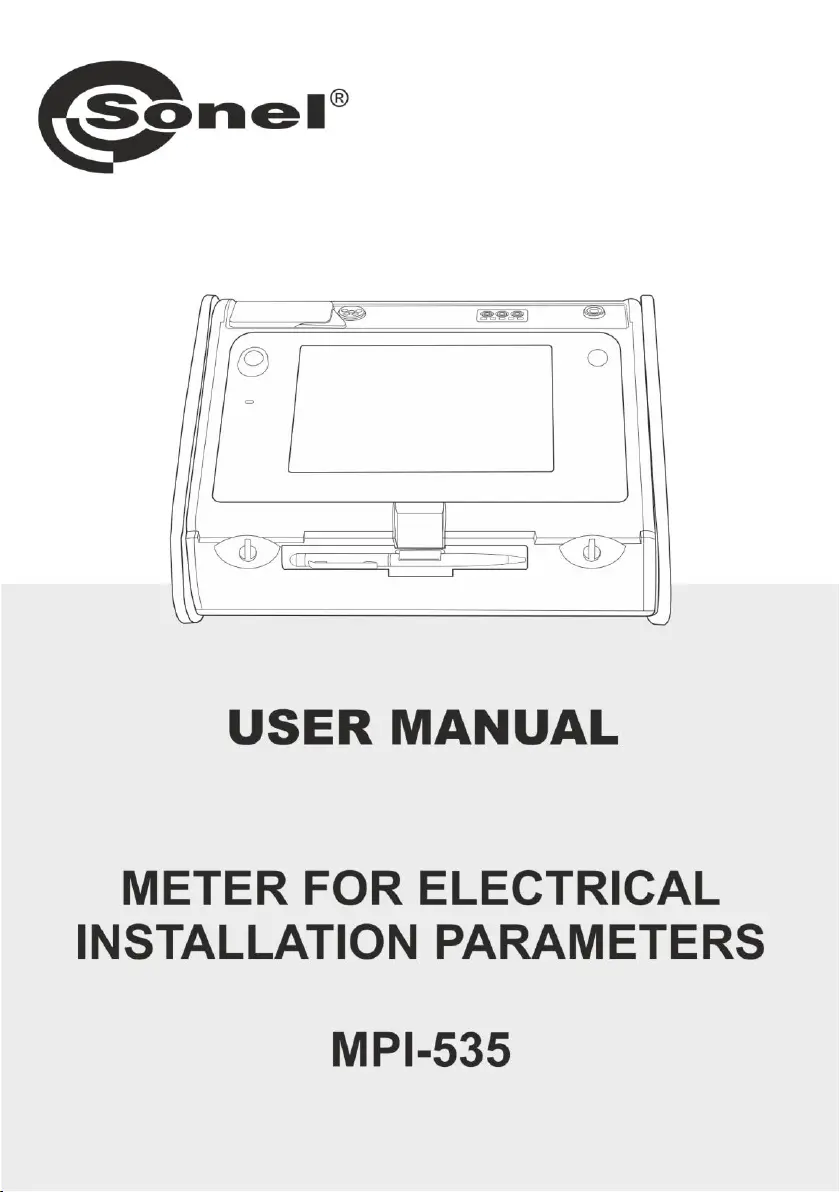

Sonel MPI-535

Meter for Electrical Installation Parameters

v1.00 | 11.01.2021

First steps

Turn on the meter Measure Save to the memory

Auto measurements

Proceeding auto measurements Creating measurement procedures

Connect the meter to the measured circuit.

Select an

appropriate

folder and

measurement

sequence from

the list.

Select

to go to the

sequence

wizard.

After each

selection, the

menu with step

parameters will

be shown.

The procedure

will be available

from the main

menu of au-

to-procedures. To

remove it, select

it with and

choose .

In each setting

eld, enter

the type of

measuring

accessory,

installation pa-

rameters and

other required

data.

Select

to add the

desired

measurement

procedure.

Changing

the order of

the steps is

performed by

using .

Delete the step

by using

icon.

Save the procedure by using icon. A window will be shown

re-questing the name of the procedure.

In the end,

a screen with

a summary of

the measure-

ments will be

displayed.

From the available items select the one, which is to be a part

of the procedure. In addition to standard measurements, the

following are also available:

▪ text message,

▪ visual test.

Press START to run the measurements. Follow the

on-screen instructions.

Find more information

in the user manual

and on our website

www. .pl/ensonel

Main

result

Connect the meter to the measured object.

The measurement will start automatically.

Resistance measurement

Finish the measurement and select .

Go to location you want to save the result in.

Save the result with icon .

Saving a result to the memory

Main

result

Evalu-

ation of

the result

Additional

results

Connect the meter to the measured object.

To run new measurement press START.

The measurement will start automatically.

Enter settings

▪ limit to evaluate the result

R measurement with I=±200 mA

Connect the meter to the measured soil.

Enter settings

▪ measuring voltage

▪ L distance between electrodes

▪ resistivity limit to evaluate the result

Run the measurement with START button.

Main

result

Evalu-

ation of

the result

Additional

results

Connect the meter to the measured circuit.

ZL-L / ZL-N

ZL-PE

Enter settings

▪ test leads length L

▪ basis of calculating Ik current

▪ type and rated current of the circuit breaker

Run the measurement with START button.

Main

result

Evalu-

ation of

the result

Additional

results

Connect the meter to the measured circuit and choose

the measurement mode. Connect the

meter to the

measured

circuit.

RCD IA

RCD tA

Enter settings

▪ residual operating current I

Δn

▪ forced current

▪ waveform of the measuring current

▪ type of the RCD

▪ measuring voltage UL

Enter settings - measurement mode (full / standard) and:

▪ residual operating current I

Δn

▪ a multiplicity of RCD rated current

▪ RCD type / waveform of the measuring current

▪ type of the RCD

▪ measuring voltage UL

Run the measurement with START button.

Run the measurement with START button. Tested RCD

switch must be turned on after each triggering, until

measurements are completed.

Main

result

Evalu-

ation of

the result

Additional

results

Soil resistivity

Fault loop impedance RCD test Auto measurements of RCDs

▪ Connect the meter to the reference point of the tested network,

as for ZL-N measurement.

▪ Press START.

▪ Use setting Zref= --- to reset previous measurement, if it has

not been done yet.

▪ Enter the limit of voltage drop ΔUMAX.

▪ Enter the fuse type, which protects the tested circuit.

▪ Change the setting from Zref to .Z

▪ Connect the meter to the reference point, as for ZL-N measurement.

▪ Press START.

Voltage drop

Eventually,

measured

parameters

are displayed.

The list of

results may be

scrolled on the

screen.

Choose the measurement method.

Enter settings

▪ measuring voltage

▪ measurement method

▪ resistance limit to evaluate the result

Run the measurement with START button.

Main

result

Evalu-

ation of

the result

Additional

results

Resistance-to-earth

The phase sequence is , i.e. the phase correct

sequence is in direction.clockwise

The phase sequence is , i.e. the phase incorrect

sequence is in direction.anticlockwise

Connect the meter to

the measured object.

The check will start

automatically.

Phase sequence

Arrows on the screen rotating to the

left mean that the motor connected to

a 3-phase network will rotate the shaft

to the left.

Connect the meter to the examined

motor.

Vigorously rotate the motor shaft to

the right.

Motor rotation direction

Arrows on the screen rotating to the

right mean that the motor connected

to a 3-phase network will rotate the

shaft .to the right

Choose the measurement method.

Enter settings

▪ measurement method

▪ measuring voltage

▪ duration of the measurement

▪ resistance limit to evaluate the result

Run the measurement with START button.

Main

result

Evalu-

ation of

the result

Main

result

Evalu-

ation of

the result

Additional

results

Enter settings

▪ illuminance limit to evaluate the result

Connect measuring probe to the meter.

Main

result

Evalu-

ation of

the result

Additional

results

Insulation resistance Illuminance
