About the Manuals

Safety Regulations (supplied)

The Safety Regulations describes the secure usage of camera. Be sure to read it.

Installation Manual (this document)

This Installation Manual describes the names and functions of parts and controls

of the Network Camera, gives connection examples and explains how to set up

the camera. Be sure to read the Installation Manual before operating.

The illustrations in this Installation Manual show the SNC-VM600 as an example.

The Audio cable, I/O cable, Power input cable and BNC cable are not supported

for SNC-EM600/EM630/EM601/EM631.

SNC easy IP setup Guide (stored in the CD-ROM)

User’s Guide/Application Guide (Web)

The User’s Guide describes how to set up the camera and how to control the

camera via a Web browser.

After installing and connecting the camera correctly, operate referring to this

User’s Guide.

Using the software

The supplied CD-ROM includes the setup program for assigning an IP address.

The information for how to set up an IP address is also included in the disc in PDF

format.

User’s Guide and Application Guide can be downloaded from the disc, or the

following URL:

http://www.sony.net/ipela/snc

Using the CD-ROM manual

The manual can be read on a computer with Adobe Reader installed.

You can download Adobe Reader free from the Adobe website.

1 Open the index.html file in the CD-ROM.

2 Select and click on the manual that you want to read.

Note

If you have lost or damaged the CD-ROM, you can purchase a new one from your

Sony dealer or Sony service counter.

Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated in the

United States and/or other countries.

SNC-VM600/VM600B/VM630/VM601/VM601B/VM631

SNC-EM600/EM630/EM601/EM631

SNC-VM600/VM600B/VM630/VM601/VM601B/VM631

Assigning the IP address

Assign the IP address using the setup program in the supplied CD-ROM.

For details on how to set up the IP address, see SNC easy IP Setup Guide.

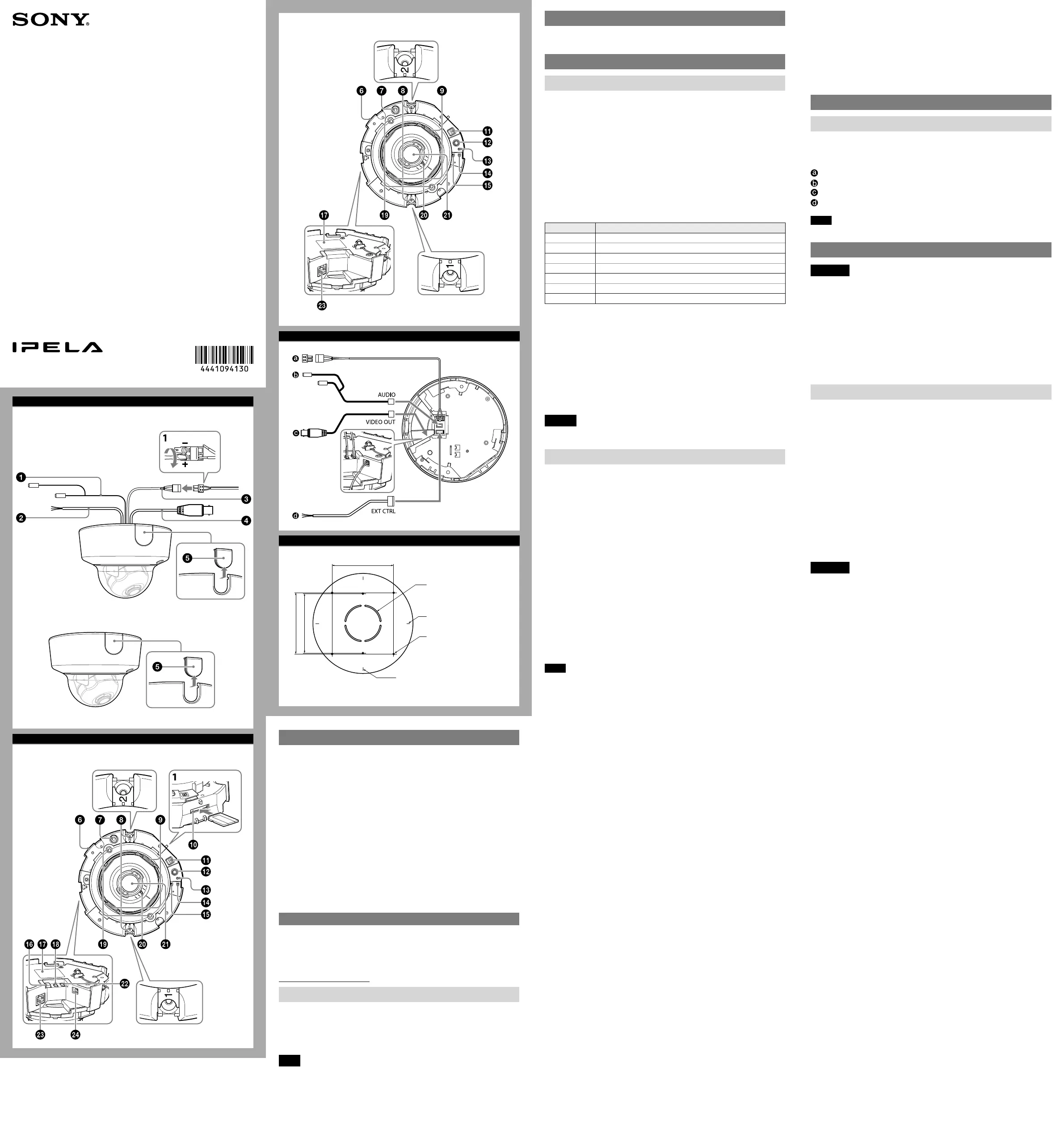

Location and Function of Part

Side 

Cables , ,  and  are not connected when the unit comes from the

factory.



Audio cable (supplied)

The connector with the longer cable (SP) is used for the line output connector,

and the shorter cable (MIC) is used for the microphone/line input connector.

SP terminal (minijack, monaural) 

Connect a commercially available speaker system with a built-in amplifier.

MIC terminal (minijack, monaural) 

Connect a commercially available microphone. This jack supports plugin-

power microphones (rated voltage: 2.5 V DC).



I/O (Input/Output) cable (supplied)

This cable is provided with two sensor inputs and two alarm outputs.

The wires of the cable control the following signals.

Color of wire Name

Red Sensor In 1+

White Sensor In 2+

Black Sensor In – (GND)

Yellow Alarm Out 1+

Brown Alarm Out 1–

Green Alarm Out 2+

Blue Alarm Out 2–

For details on each function and required settings, see the User’s Guide.

For the wiring, see “Connecting the I/O cable.”



Power input cable (supplied)

Connect this cable to a 24 V AC or 12 V DC power supply system.

You can screw an extension cable in the connector tip attached at the end of the

cable. (-1)



BNC cable (supplied)

Outputs a composite video signal.



Wiring cover

When you wire indoors, remove this cover and feed the cables through it.

Caution

Take care not to trap the cables between the camera and the ceiling or the wall. If

the cable is trapped, it may cause a fire or electric shock due to breaking.

Inside 

Items , , ,  and  are not supported for SNC-EM600/EM630/EM601/

EM631.



Camera unit



MONITOR output jack

Connect this jack to a video input connector of a video monitor. You can adjust

the camera or lens while looking at the image on the video monitor. After

adjusting the camera or lens, disconnect the cable.



Camera unit mounting screws (2 positions)

Make sure to tighten the screws securely when installing the camera.



Camera head fixing screw (tilt)

Firstly, loosen the screw and point the camera head in the desired direction, then

tighten the screw to secure in place.



SD card slot

This slot is used for optional SD memory cards.

Image data in the camera can be recorded to a memory card by inserting it into

the slot.

When inserting, point the contact area at the rating label side (referring to the

illustration), and be sure to insert it completely. (-1)

This unit is only compatible with SD and SDHC memory cards.

Note

For inquiries regarding verified SD memory cards, contact your authorized Sony

dealer.



NTSC/PAL switch

Switching the video output.

After setting the switch, reboot the camera unit.



ZOOM/FOCUS switch

Use this switch to adjust lens’ zoom and focus. Slide the switch lever to select the

desired function.

[W] WIDE: Zoom out

[T] TELE: Zoom in

[N] NEAR: Focus on a nearby subject

[F] FAR: Focus on a distant subject

Hold down the center of the ZOOM/FOCUS switch for a moment to focus

automatically.



Reset switch

To reset the camera to the factory default settings, hold down this switch with a

point and supply the power to the camera.



NETWORK indicator (Green/Orange)

The indicator lights up or flashes when the camera is connected to the network.

The indicator is off when the camera is not connected to the network.



POWER indicator (Green)

When the power is supplied to the camera, the camera starts checking the

system. If the system is normal, this indicator lights up.



AC / DC IN (power input) connector

Connect the supplied power input cable to this connector.



Rating Label

This label shows the name of device and its electric rating.



AUDIO connector

Connect the supplied audio cable to this connector.



Camera head fixing screw (pan)

Firstly, loosen the screw and point the camera head in the desired direction, then

tighten the screw to secure in place.



 mark

Indicates the image direction.



Lens



EXT CTRL (external control input/output) connector

Connect the supplied I/O cable to this connector.

SNC-EM600/EM630/EM601/EM631

Unit: mm (inches)

85.7 (3

/8)

83.5 (3

/32)

Hole for connecting cables

ø50 (2)

Horizontal mark

Hole for installing the

bracket

Vertical mark

85.7 (3

/8)

4-441-094-13(1)

Printed in China

Network Camera

SNC-VM600/VM600B/VM630

SNC-VM601/VM601B/VM631

SNC-EM600/EM630/EM601/EM631

Installation Manual

Before operating the unit, please read this manual thoroughly and

retain it for future reference.



LAN network port (RJ-45)

Connect a network cable (UTP, category 5) to this port to communicate with a

network or PoE* system.

For details on connection, see the Instruction Manual of the power supply

equipment.

(*PoE stands for Power over Ethernet. It is pursuant to IEEE802.3af.)



VIDEO OUT (video output) connector

Connect the supplied BNC cable to this connector.

Preparations

Connecting the Supplied Cables to the Camera 

Compatible models: SNC-VM600/VM600B/VM630/VM601/VM601B/VM631

Before installation, connect the supplied cables to the camera as required for

your usage and wire them.

Connect the cables to the connectors on the camera unit.

Power input cable: to AC/DC IN connector

Audio cable

BNC cable

I/O cable

Note

Do not pull on any cables forcefully, as a connection may become loose.

Installation

WARNING

If you attach the camera in the height such as the wall or the ceiling, etc.,



entrust the installation to an experienced contractor or installer.

If you install the camera on the ceiling, ensure that the ceiling is strong



enough to withstand the weight of the camera plus the bracket and then

install the camera securely. If the ceiling is not strong enough, the camera may

fall and cause serious injury.

To prevent the camera from falling, make sure to attach the supplied wire



rope.

If you attach the camera to the ceiling, check periodically, at least once a year,



to ensure that the connection has not loosened. If conditions warrant, make

this periodic check more frequently.

Deciding the Installation Location of the Camera 

After deciding the direction in which the camera will shoot, make the required

hole (ø 50 mm (2 inches)) for the connecting cables using the supplied template.

Then decide the two or four mounting hole positions to install the bracket.

Mounting screws

The supplied bracket is provided with ø 4.5 mm (

/16 inch) mounting holes. Install

the bracket on a ceiling or wall with screws through two or four mounting holes:

two 83.5 mm (3

/32 inches)-pitched holes or four 85.7 mm

/8 inches)-pitched holes. The required mounting screws differ depending on

the installation location and its material. (Mounting screws are not supplied.)

Steel wall or ceiling: Use M4 bolts and nuts. (Hexagon head bolt should not be

used.)

Wooden wall or ceiling: Use M4 tapping screws. The panel thickness must be

15 mm (

/8 inch) or more.

Concrete wall: Use anchors, bolts and plugs suitable for concrete walls. (Head

shape of M4 bolt: Pan head screw or hexagon head bolt should not be used.)

Junction box: Use screws to match the holes on the junction box. (Head shape

of screw: ø 7 mm (

/32 inch) Height 4 mm (

/16 inch) or less)

WARNING

The required mounting screws differ depending on the installation location and

its material. If you do not secure the camera with the appropriate mounting

screws, the camera may fall off.

(continued on the reverse side)

Produkt Specifikationer

Mærke:	Sony
Kategori:	Ikke kategoriseret
Model:	SNC-VM630
Vekselstrømsindgangsspænding:	24 V
Højde:	108 mm
Vægt:	760 g
Produktfarve:	Hvid
Kompatible hukommelseskort:	SD
Wi-Fi:	Ingen
Formfaktor:	Kuppel
Understøttede videotilstande:	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Relativ luftfugtighed ved opbevaring (H-H):	20 - 95 %
Format til analogt signal:	NTSC, PAL
Ethernet LAN-porte (RJ-45):	1
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Understøttede videoformater:	H.264, M-JPEG
Understøttede lydformater:	AAC
Driftstemperatur (T-T):	-10 - 50 °C
Maksimal opløsning:	1920 x 1080 pixel
Understøttede grafikopløsninger:	720 x 480,720 x 576,1024 x 576 (WSVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),640 x 480 (VGA)
Forbindelsesteknologi:	Ledningsført
Certificering:	VCCI, UL, FCC, CISPR
Kabelteknologi:	10/100Base-T(X)
Understøttede netværksprotokoller:	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP, IPv6, HTTPS, SNMP
Strømkilde type:	PoE
Monteringstype:	Loft
Diameter:	148 mm
Indbygget kortlæser:	Ja
Indbygget HDD:	Ingen
Understøttet placering:	Indendørs
Mikrofonindgang:	Ja
Hvidbalance:	Auto, Fluorescent, Lamp, Manual
Sensortype:	CMOS
Samlet antal megapixels:	2.14 MP
Optisk zoom:	3 x
Digital zoom:	2 x
Grænseflade:	BNC
Progressiv scanning:	Ja
Strøm over Ethernet (PoE):	Ja
Dag/nat funktion:	Ja
Minimumsbelysning:	0.05 Lux
Optisk sensorstørrelse:	1/2.9 "
Zoom kapacitet:	Ja
Nattesyn:	Ingen
Billedhastighed:	60 fps
Bevægelsessensor (video):	Ja
Brændviddeområde:	3 - 9 mm
Kameraets lukkerhastighed:	1 - 1/10000 sek./side
Signal/støjforhold:	50 dB
Minimum processor:	Intel Core i7 (2.8GHz)
Minimum RAM:	2048 MB
Objektivets synsvinkel, vandret:	105.2 °
Objektivets synsvinkel, lodret:	57 °
