4-474-024-11(1)
© 2013 Sony Corporation
Printed in China
In-Ceiling Bracket
YT-ICB630
Installation Instructions
WARNING
This installation should be made by a qualified service person and
ˎ
should conform to all local codes.
Ensure that the installation location is strong enough to support a
ˎ
load of over 60 kg before installing the camera securely; otherwise
the camera may fall and cause serious injury. If they are not strong
enough, the camera may fall and cause serious injury.
If you install the camera at a height, check periodically, at least once
ˎ
a year, to ensure that the connection has not loosened. If conditions
warrant, perform this periodic check more frequently.
Notes
Use the supplied screws for the installation. Using screws other than those
ˎ
supplied may seriously damage the inside of the camera.
Avoid using or storing the unit in a place subject to strong vibration or shock.
ˎ
Overview
YT-ICB630 is a kit for use with the network camera SNC-WR600/WR630 series.
It is used when the body of the camera is embedded in the ceiling, or with
gypsum boards and such where the material used in the ceiling is too fragile to
hold ordinary screws.
Install the camera on the ceiling with the thickness from 10 mm to 35 mm (
13
/
32
~
1
7
/
16
inches) inclusive.
YT-ICB630 can be used with YT-LD124C/LD124S.
Note
YT-ICB630 (In-ceiling kit) is for indoor use. It cannot be used for installation
outdoors.
Installing
1
Make a ø235 ± 2 mm (9
3
/
8
±
3
/
32
inches) hole in the ceiling.
Use the supplied template.
Use the four slotted holes on the template to decide the center position of
the camera.
2
Fix the in-ceiling bracket to the ceiling with an anchor bolt (anchor bolts are
not supplied).
Make sure that the fixing plates on both sides of the bracket are in the
lengthwise position (factory default), and install the bracket in the hole in
the ceiling. ()
The hole in the bracket shows the front side of the camera.
Adjust the direction when attaching the in-ceiling kit as necessary.
3
Tighten the left and right screws of the bracket. The bracket should grip the
ceiling.
As you tighten the screws clockwise, the upright fixing plates swing
outward and open. When you tighten the screws further, the fixing plates
swing lower and grip the ceiling. ()
Ensure that the fixing plates are gripping the ceiling firmly.
Note
Torque the screws to 1.0 N•m (10 kgf•cm) or less to tighten them. Tightening
the screws too much may cause damage to the in-ceiling bracket.
4
Connect the cable to the ceiling unit of the camera.
For details, see the Installation Manual of the camera.
5
Insert the ceiling unit into the bracket.
Align the mark on the ceiling unit with the hole in the bracket.
Match the protrusions of the bracket with the holes in the ceiling unit.
Make sure that the protrusions fit the holes.
Align the holes in the ceiling unit with the screw holes in the bracket.

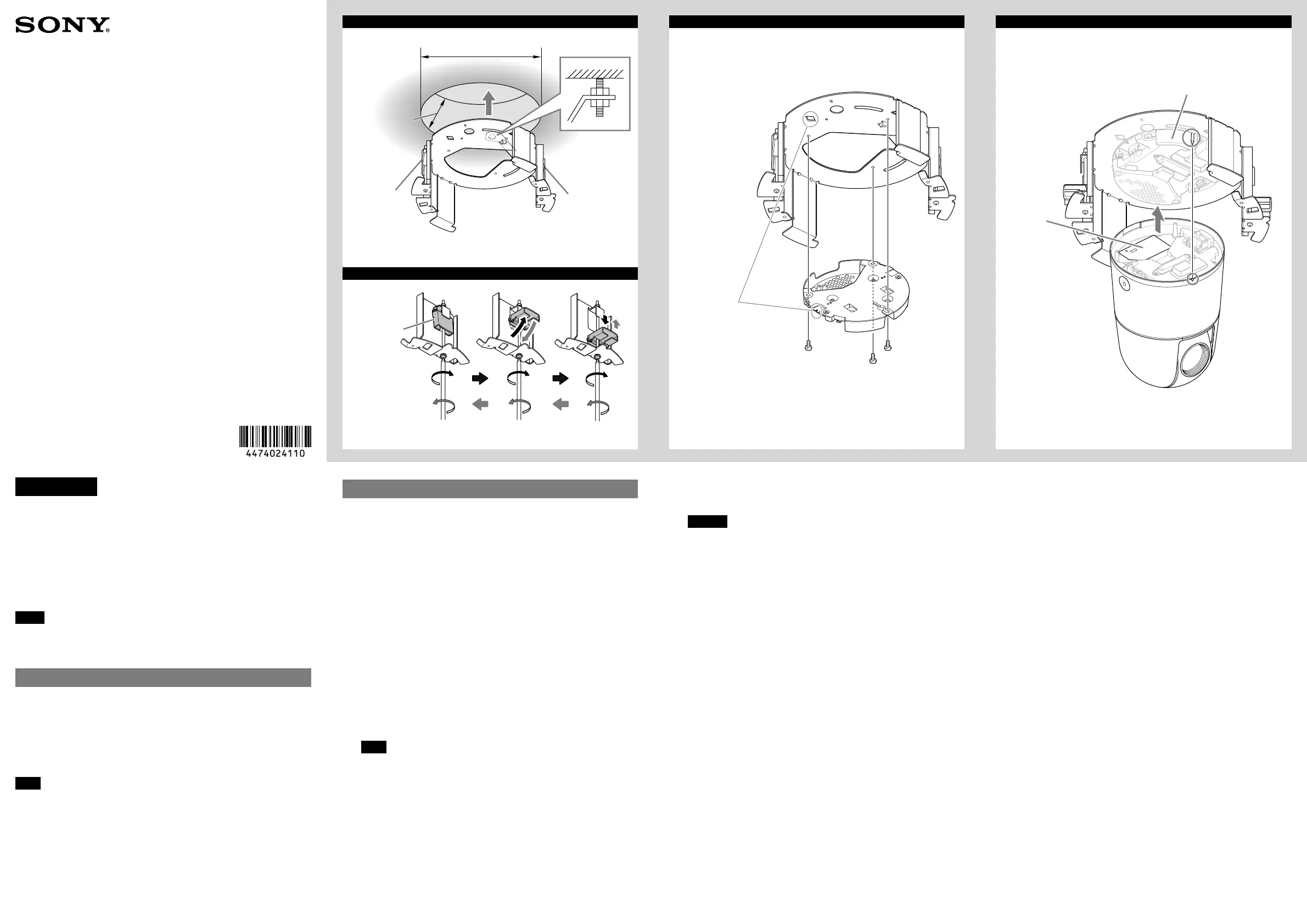

A
ø233 to 237 (9
1
/4 to 9
3
/8) hole
Ceiling
Fixing plate
10 to 35
(
13
/32 to 1
7
/16)
Fixing plate
Unit: mm (inches)
B
Fixing plate
Installation
Removal
C
Align the marks
M4 supplied screws
D
Align the marks
Ceiling unit
Rating Label
6
Using the supplied M4Ï10 screws, attach the ceiling unit of the camera
to the in-ceiling bracket. ()
Warning
Always fix with the supplied screws. Using screws other than those supplied
may cause the camera to fall, which may cause serious injury.
7
Insert the camera into the ceiling unit until you hear a click. ()
For details, see the Installation Manual of the camera.
8
Attach the cover (supplied). ()
Place the cover over the in-ceiling bracket and turn the cover clockwise
to fix it.
When installing the cover, match the right protrusion (square type) on
the cover with the notch in the bracket. Then turn the cover clockwise
until the left protrusion (round type) meets the notch.
Secure the cover with screws.
To install the dome cover (YT-LD124C/LD124S; sold separately), see the
supplied manual of YT-LD124C/LD124S.
(continued on the reverse side)
Removing
1
Hold the cover and then, remove the screws on the cover.
2
Remove the cover by turning it counter-clockwise and the cover down
vertically.
If it can not be turned, turn the cover while pushing both side ( a).
3
Remove the camera from the ceiling unit.
For details, see the Installation Manual of the camera.
4
Loosen the screws and remove the ceiling unit from the bracket.
5
Remove the cable connecting to the ceiling unit.
For details, see the Installation Manual of the camera.
6
Loosen the left and right screws of the bracket by turning them counter-
clockwise until the fixing plates are in the lengthwise position.
7
Loosen the anchor bolt and remove the bracket from the ceiling.
Notes
Do not attempt to further loosen the left and right screws of the In-Ceiling
ˎ
Bracket when the fixing plates are in a closed position. Damage may be
incurred if the fixing plates forcefully press against the upper part of the In-
Ceiling Bracket.
Hold the bracket and ceiling unit while loosening screws. Otherwise the bracket
ˎ
and ceiling unit may fall.
Specifications
Mass Approx. 990g (2 lb 3 oz) (including cover)
Dimensions See .
Supplied accessories Template (1), M4Ï10 screws (3), Installation
Instructions (1 set)
Optional accessories Dome cover (clear) YT-LD124C
Dome cover (smoked) YT-LD124S

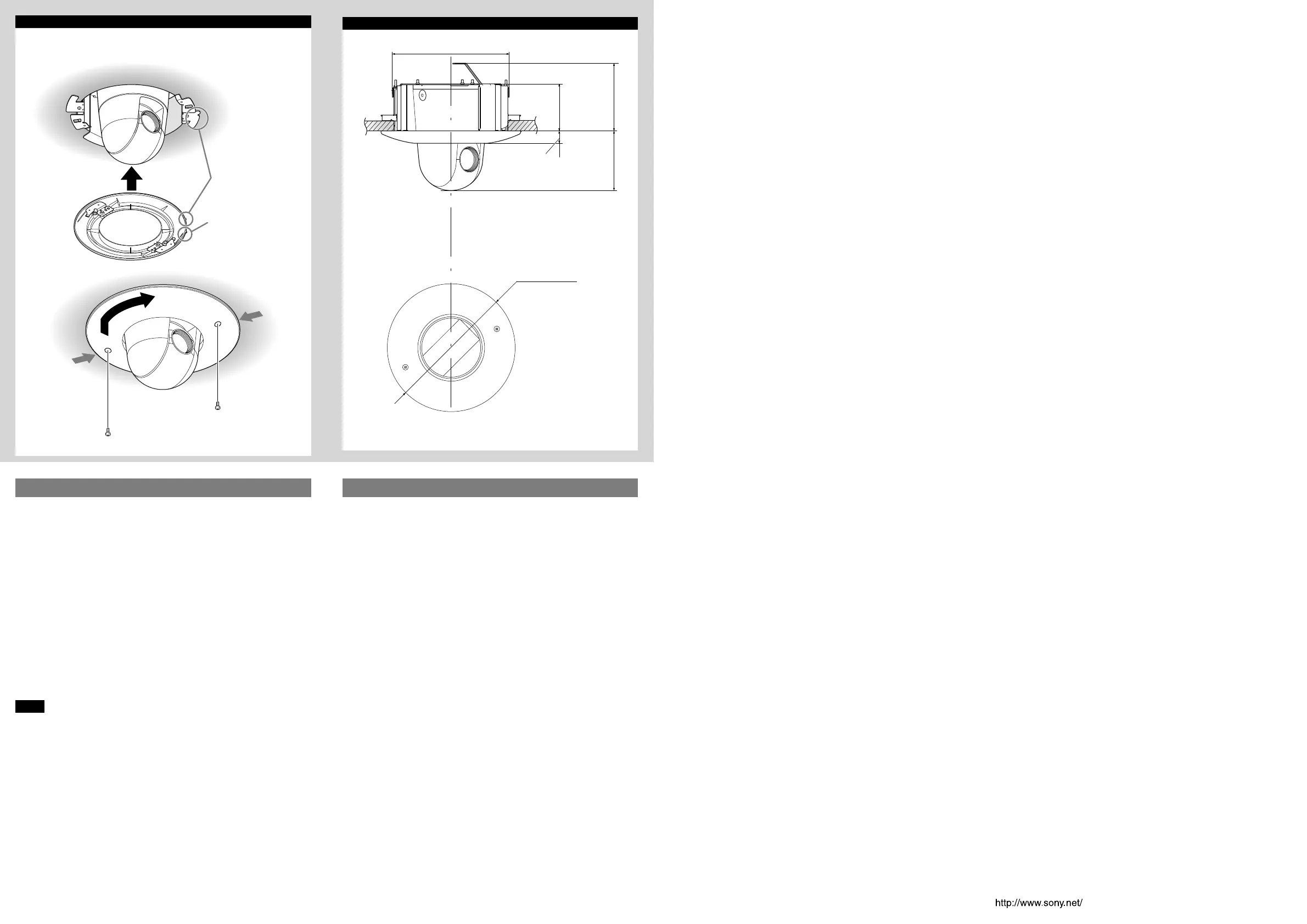

E
Align the marks
Protrusion (round type)
a
a
F
225.7 (9)
ø270 (10
3
/4)
90 (3
5
/8)
131 (5
1
/4)
23.8 (
15
/16)
115.1 (4
5
/8)
225.7
Unit: mm (inches)
