INSTRUCTIONS FOR MODELS
92-CD5XX-03
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
customerservice@speakman.com
www.speakman.com
CD521
CD522
CD523
HELPFUL TOOLS & SUPPLIES:
TOOLS AND SUPPLIES
Adjustable
Wrench
Slip Joint
Wrench
Thread Seal
Tape
Aerator
Wrench
(included)
Phillips
Screwdriver
Safety
Glasses
Plumber’s
Putty
Hex Key
Wrench
(included)
Level
Warranty information can be found at:
www.speakman.com
WARRANTY
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
MAINTENANCE
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• This faucet has an operating range of 20-80 psi.
1

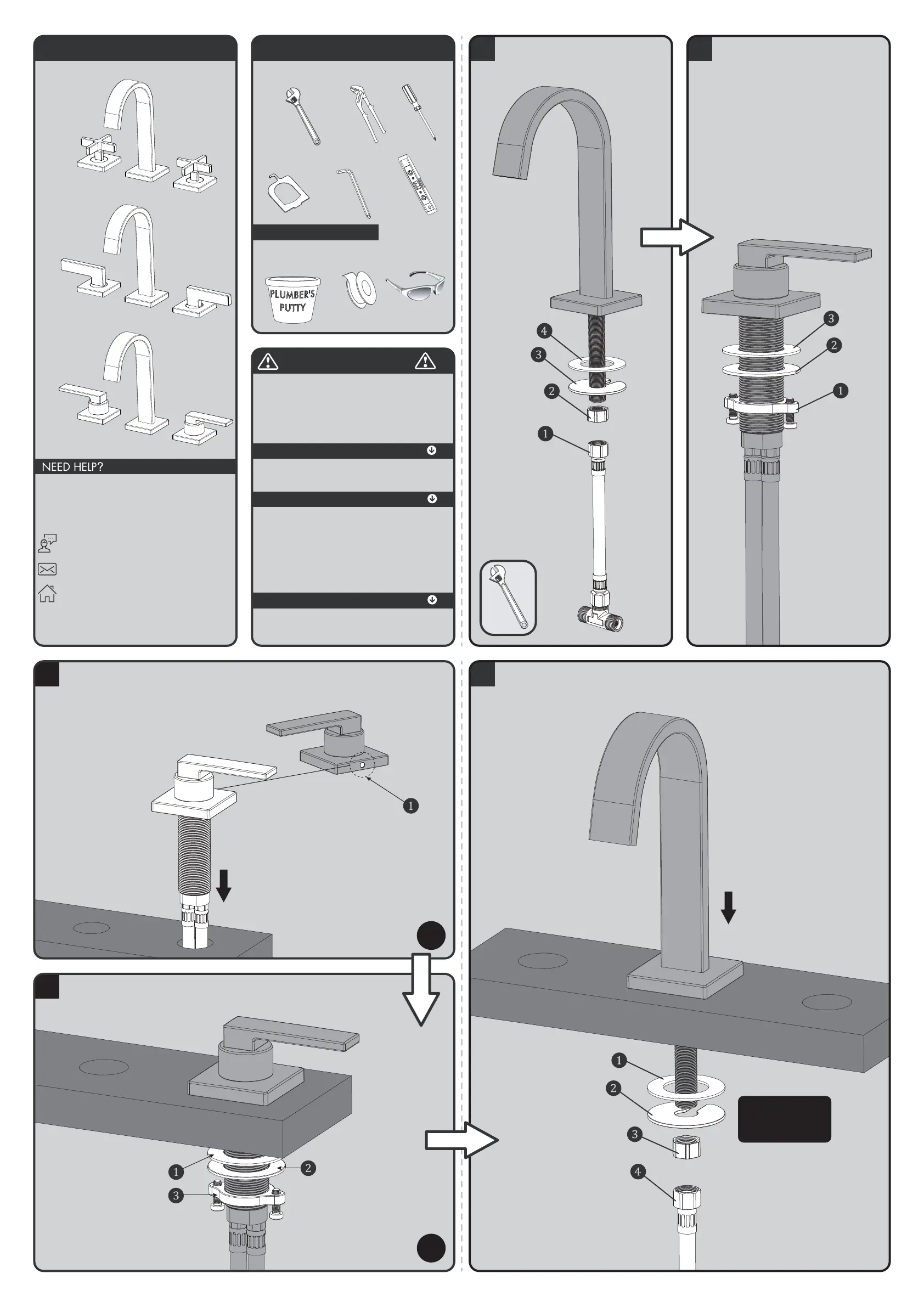

Remove Inlet Hose Assembly (1), Mounting
Nut (2), Metal Washer (3), and Rubber
Washer (4) from Spout.
2
Remove Mounting Nut (1), Metal Washer
(2), and Rubber Washer (3) from Cold
Endbody Assembly. Repeat process for Hot
Endbody Assembly
3
The “COLD” and “HOT” Endbody Assemblies are clearly marked. Place COLD Endbody
Assembly through the appropriate hole in the counter top. Align Endbody Assembly so the
Rubber Access Plug (1) is facing the rear. Repeat process for the HOT Endbody Assembly.
X2
4
From below, reinstall the Endbody Rubber Washer (1), Metal Washer (2), and Mounting
Nut (3). Loosely assemble at this time. Repeat process for the HOT Endbody Assembly.
X2
5
Place Spout Assembly through the center hole of counter top. From below, reinstall the Spout
Rubber Washer (1), Metal Washer (2), and Mounting Nut (3). Loosely assemble at this time.
Reinstall Inlet Hose Assembly (4)
NOTE:
Opening within the Metal
Washer (2) should face
towards the rear.
