Intensifier T® Series HD-TVI 1080p 2MP Indoor Dome Camera
Wall/Ceiling Mount, UTC, 2BNC out for TVI & CVBS, Dual voltage
CVC6246T – 2.8~12mm auto iris varifocal lens, black housing
CVC6246TW – 2.8~12mm auto iris varifocal lens, white housing
SPECIFICATIONS
Image Sensor.................. 1/3” Progressive Scan CMOS, 2MP
Minimum Illumination....... 0.001 lux (Sens-up X32)
Effective Pixels................ 1984 (H) x 1105 (V)
Total Pixels...................... 2000 (H) x 1121 (V)
Scanning System............ Progressive
S/N Ratio......................... More than 50dB
Output Resolution............ 1920x1080 @ 30fps
Video Output.................... 1.0Vp-p / 75 Ohms
Electronic Shutter............ Auto / Manual (1/30 – 1/30,000 sec.)
Day / Night....................... Auto / Color / BW / External
Test Monitor Output......... CVBS (BNC out in Yellow)
Communication............... UTC (up the coax)
Power............................. 12VDC / 24VAC
Power Consumption........ 150mA (DC), 2W (AC)
Operating Temperature.... -4° F – 122° F
Unit Dimensions.............. 3.82” (H) x 5.47” (Dia.)
Unit Weight...................... 1.54 lbs
Certifications.................... FCC, RoHS
Signal Distance............... Up to 1600 feet
(depending on coax quality)*
• Full HD resolution over coax (HD-TVI)
• Supports up to Full HD 1080p @ 30fps
• True WDR operation
• Superior low-light performance
• Amplify existing light with no distance limitation
• PRESET (Indoor/Outdoor/Lowlight/Hallway/Lobby/Elevator)
• 3-axis for wall and ceiling mounting
• Full OSD operation thru on-board control and UTC (up the coax)
• Additional 960H analog output (BNC out in Yellow)
• Signal distance up to 1600 feet*
• 12VDC/24VAC dual voltage operation
• 5 year warranty
OSD MENU TREE
EXPOSURE
• B/W • EXTERN
• LOW • MIDDLE • HIGH
• SHARPNESS • GAMMA • MIRROR
• FLIP
DAY / NIGHT
WHITE BAL.
SPECO DNR
EXIT
• BRIGHTNESS
• SHUTTER
BACKLIGHT
• HLC• BLC
• WDR
• AUTO
• AWB • COLOR GAIN
• ACE • DEFOG
SYSTEM
• COM. • IMAGE RANGE
• COLOR SPACE
• FRAME RATE
• INTENSIFY • AGC
• COLOR
• PRIVACY
LENS
MOTION
• OUTPUT
• LANGUAGE
• COLOR BAR • RESET
• CAMERA TITLE
• FREQ
LENS : as this item uses DC lens, please stay with ‘DC’ mode.
EXPOSURE : Adjusts exposure settings.
BRIGHTNESS : Adjusts image brightness. (0~ 20)
SHUTTER : Auto / Manual Shutter can be selectable
- AUTO : Shutter can be selectable automatically.
- FLICKER(Flicker Less) : Selects this when picture flickering.
- Manual : Controls the shutter speed manually from 1/30 ~1/30000
INTENSIFY : Sets the desired multiple of the digital exposure length.
(OFF/x2 ~ x32)
AGC(Auto Gain Control): Adjusts the AGC level. (0~10)
OSD MENU Details

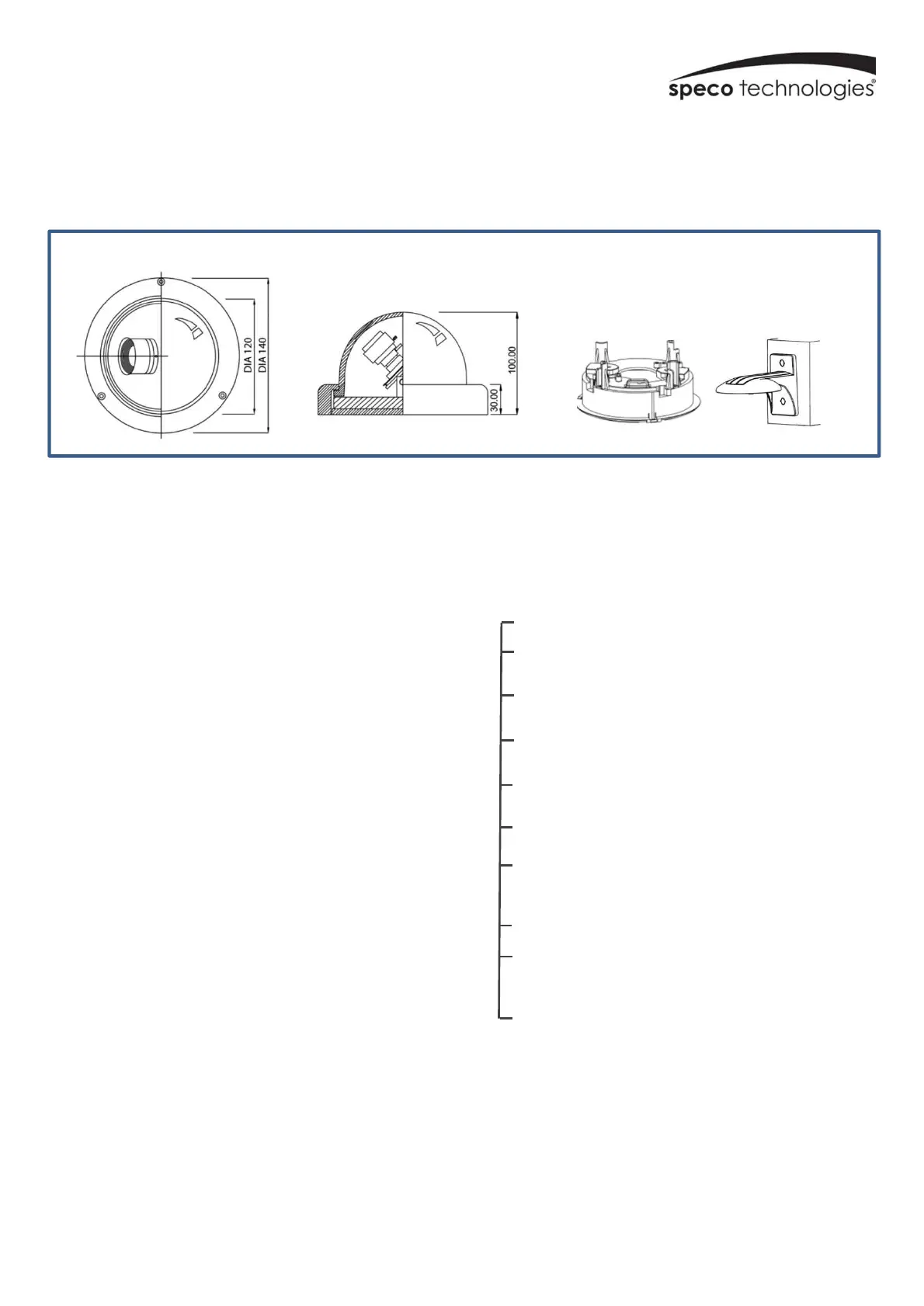

Side View
Top View
Optional Accessories
DFM1
(Tile Ceiling Flush Mount)
CVCWMINDT
(Indoor Wall Mount)
Unit : mm
PRESET MODE
• INDOOR
• OUTDOOR
• LOW LIGHT • LOBBY• HALLWAY • ELEVATOR
MAIN SETUP
