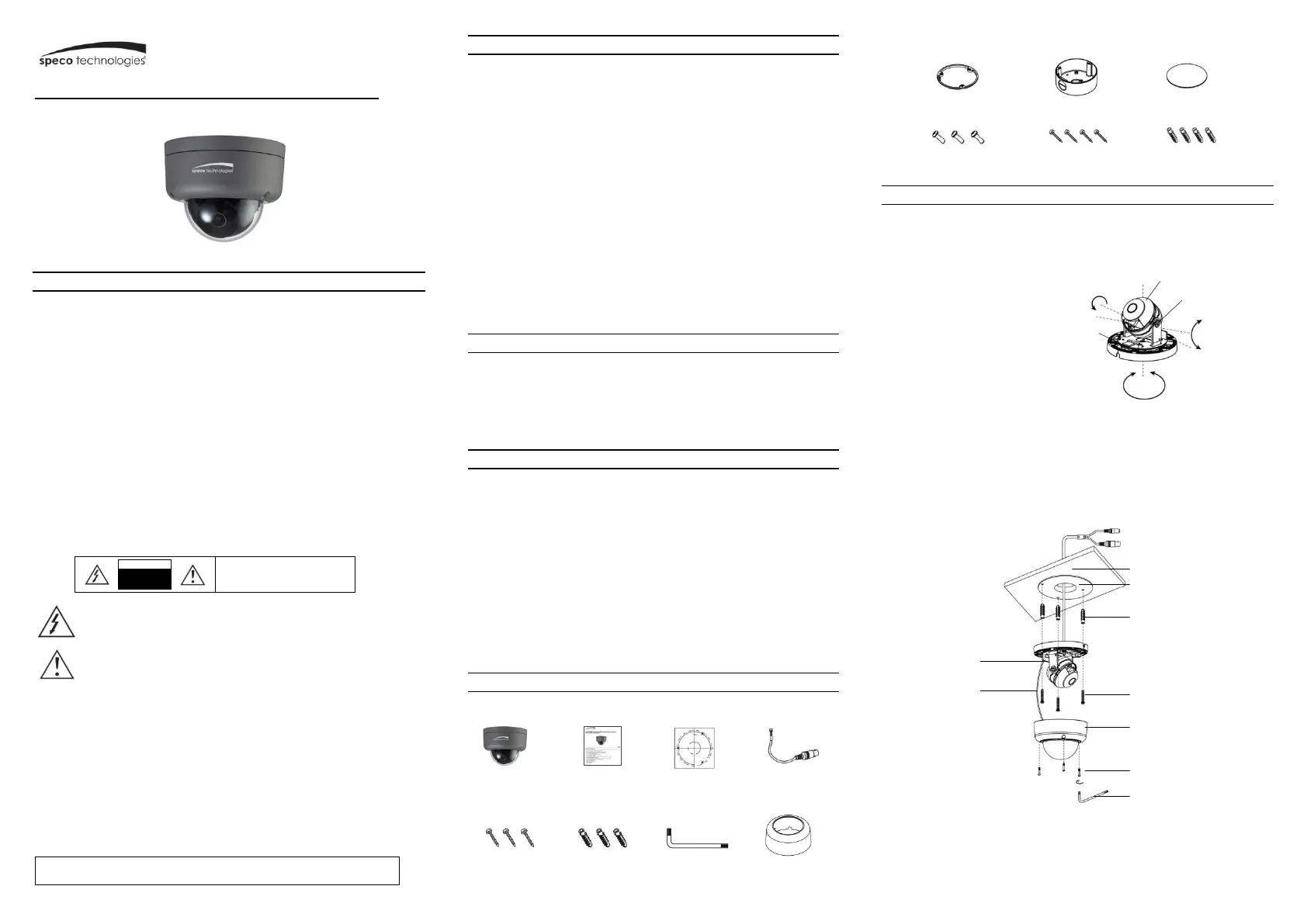

HD-TVI 2MP Ultra Intensifier® Vandal Dome Camera

QUICK INSTALLATION GUIDE

 Special features

 Sony 1/2.8" 2.1MP STARVIS CMOS Sensor

 Supports image resolution up to 1920 x 1080P @ 30fps

 Max. Transmission distance: 985ft over Coaxial cable

 Ultra low light performance

 F = 0.95, 3.6mm 2Megapixel Fixed Lens

 TVI / CVBS (EXT) Output

 Supports WDR, Defog, 2D / 3D DNR, Slow Shutter control (Sense-Up)

 Privacy Masking up to 16 areas

 Full OSD operation through on board control and UTC (up the coax)

 Dynamic Motion Detection (4separable areas)

 Supports 5 Languages

 Perfect 3-Axis Mechanism

 12VDC operation

 IP67 compliant

DEAR CUSTOMERS!

By selecting this product, you have decided to use a professional device that

guarantees highest quality and reliability. We would like to thank you very much for

your confidence and kindly ask you to read the following instructions carefully before

installation and operation in order to take full advantage of all quality features

regarding this product.

INFORMATION

This equipment has been tested and found to comply with limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his own expense.

WARNING

Changes or modifications not expressly approved by the manufacturer could void

the user’s authority to operate the equipment.

CAUTION – To prevent electric shock and risk of the fire hazards

 Do NOT use power source other than that specified.

 Do NOT expose this appliance to rain or moisture.

1. Precautions

 Please read the manual carefully before the installation in order to make use the

camera to be set up correctly and to have the best picture quality.

 Please keep the manual in good condition for your future reference and service

application.

 Installation and services should only be carried out by an authorized personnel

according to local safety regulations.

 If any liquid or solid matter gets into the housing, immediately disconnect the camera

from power supply and have it checked by your authorized dealer before reusing.

 Avoid installing the camera at extremely hot or cold places.

 If you are not a certified person, never try to dismantle the camera.

To avoid electric shock, never remove the screws or covers. There are no parts inside

that need maintenance by the user. All maintenance should be carried out by qualified

personnel.

 Avoid installing the camera at a place of high humidity.

 Avoid installing the camera at the place exposed to gas or oil.

 Keep the top glass of the lens always clean in order to obtain the best picture quality

all the time. Be careful not to be stained by fingerprint.

 Don't face the camera directly toward sunlight or sunlight reflecting area.

CMOS may go defective at this condition.

 Please give a special attention to keep the unit from dangerous drop or external shock

during the process of transportation or handling.

 Never try to touch the camera in wet hand. It may cause an electric shock.

 Do not expose the camera to radioactivity. It causes a serious damage on the CMOS.

2. Limitation of liability

This publication is provided “AS IS” without warranty of any kind, either express or

implied, including but not limited to, the implied warranties of merchantability, fitness for

any particular purpose, or non-infringement of the third party's right.

This publication could include technical inaccuracies or typographical errors.

Changes are added to the information herein, at any time, for the improvements of this

publication and / or the corresponding product(s).

3. Disclaimer of warranty

In no event shall seller be liable to any party or any person, except for replacement or

reasonable maintenance of the product, for the cases, including but not limited to below :

(1) Any damage and loss, including without limitation, direct or indirect, special,

consequential or exemplary, arising out of or relating to the product.

(2) Personal injury or any damage caused by inappropriate use or negligent operation of

the user.

(3) Unauthorized disassemble, repair or modification of the product by the user.

(4) Inconvenience or any loss arising when images are not displayed, due to any reason

or cause including any failure or problem of the product.

(5) Any problem, consequential inconvenience, or loss or damage, arising out of the

system combined by the devices of third party.

(6) Any claim or action for damages, brought by any person or organization being

photogenic subject, due to violation of privacy with the result of that surveillance-

camera's picture, including saved data, for some reason, becomes public or is used

for the purpose other than surveillance.

4. Package

- Junction Box

5. Installation

5-1. Adjust Pan, tilt and Rotation and the View Angle

- Pan, Tilt, Rotate (3-Axis mechanism) makes easy to monitor the desired view。

 Panning axis can be adjusted 360°

 Tilting axis can be adjusted 0° ~ 90°

 Rotating axis can be adjusted

between +180° (clockwise)

and -180° (counter-clockwise)

Do not rotate more 180° as this

might cause the internal cables to

twist and disconnect or break.

- How to adjust the View Angle

a. Panning 360 degree

Turn the pan base right or left to adjust the pan angle.

b. Tilting 90 degree

Loosen the tilt lever on the right or left side of the camera board.

Control the camera tilt angle and fasten the tilt lever again.

c. Rotation 180 degree

Grasp the front side of the camera board and turn it right or left to set the exact

angle of image.

5-2. How to install on the Ceiling

① Paste a Drilling Template on the ceiling. (or wall)

② Drill screw points which will be done for installation.

Fix the plastic anchors in the holes. (in case of masonry ceiling or wall)

③ Mount the camera set by using Tapping Screws with Ø 4 provided.

④ Set the position and angle of the cameras to a desired direction and assemble the dome

cover.

The lighting flash with an arrowhead symbol, within an equilateral triangle

is intended to alert the user to the presence of non-insulated dangerous

voltage within the product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

This installation should be made by a qualified service person and should conform to

all local codes.

CAUTION

TO REDUCE THE RISK OF ELECTRLC SHOCK,

DO NOT REMOVE THE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

RISK OF ELECTRLC

SHOCK

DO NOT OPEN

CAUTION

HiD8

Camera x 1

Manual x 1

Extra Video

output x 1

Tapping screws x 3

Plastic anchor x 3

Drilling template x 1

Torx Wrench x 1

BNC Female for TVI

Ceiling Tile

Drilling template

Plastic Anchor (3EA)

Tapping Screw

Ø 4 x 1.18in (3EA)

Dome Cover

Ass'y

Torx Screw

Ø 3 x 0.59 (3EA)

Torx L-Wrench

Safety Wire

Camera Ass'y

DC Power Jack

The front side of the

camera

Tilt lever

Tilt 90˚

Rotate

180˚

Pan 360˚

Pan base

Top Rubber x 1

Junction Box x 1

Sponge x1

Screw PH

(M4 x 0.47in) x 3

Tapping Screws

(Ø 4 x 1.18in) x 4

Plastic Anchor x 4

Chameleon

Cover x 1
