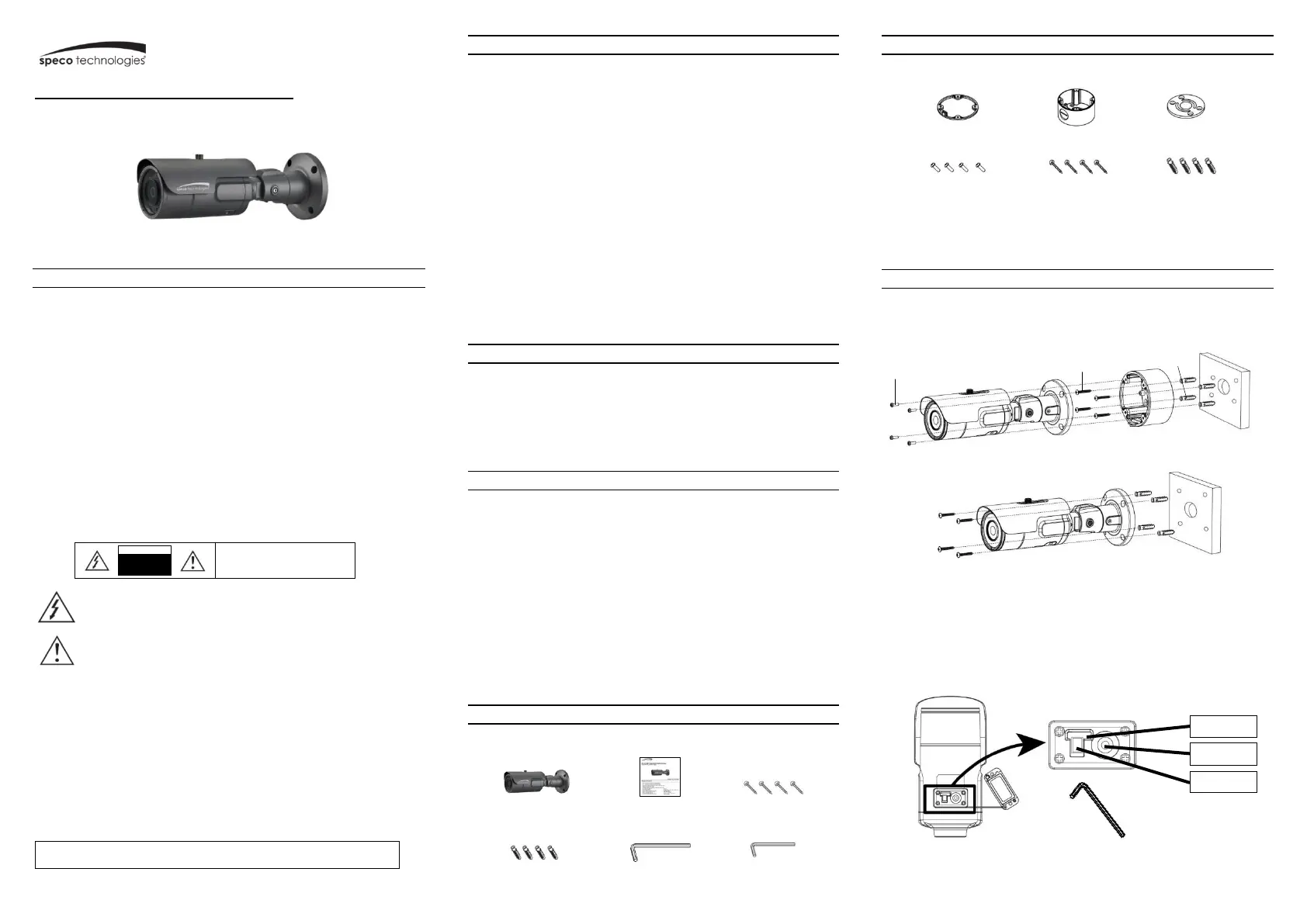

HD-TVI 2MP Intensier® Bullet Camera

QUICK INSTALLATION GUIDE

 Special features

 Sony 1/2.9 inch 2.1MP Exmor CMOS Sensor

 2.7 ~ 12mm Motorized Zoom & Focus Control

 Supports image resolution up to 1920 x 1080P 30fps @

 Wide Dynamic Range (15fps)

 Full OSD operation through on-board control and UTC

 2D & 3D noise reduction

 SENS- (Digital Slow Shutter) UP

 Privacy masking (16zone)

 Dynamic Motion Detection (4zone)

 Defog

 Surge Protect (DC 2KV / Video 3 KV)

DEAR CUSTOMERS!

By selecting this product, you have decided to use a professional device that

guarantees highest quality and reliability. We would like to thank you very much for

your condence and kindly ask you to read the following instructions carefully before

installation and operation in order to take full advantage of all quality features

regarding this product.

INFORMATION

This equipment has been tested and found to comply with limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his own expense.

WARNING

Changes or modications not expressly approved by the manufacturer could void

the user’s authority to operate the equipment.

CAUTION –To prevent electric shock and risk of the re hazards

 Do NOT use power source other than that specied.

 Do NOT expose this appliance to rain or moisture.

1. Precautions

 Please read the manual carefully before the installation in order to make use the

camera to be set up correctly and to have the best picture quality.

 Please keep the manual in good condition for your future reference and service

application.

 Installation and services should only be carried out by an authorized personnel

according to local safety regulations.

 If any liquid or solid matter gets into the housing, immediately disconnect the camera

from power supply and have it checked by your authorized dealer before reusing.

 Avoid installing the camera at extremely hot or cold places.

 If you are not a certied person, never try to dismantle the camera.

To avoid electric shock, never remove the screws or covers. There are no parts inside

that need maintenance by the user. All maintenance should be carried out by qualied

personnel.

 Avoid installing the camera at a place of high humidity.

 Avoid installing the camera at the place exposed to gas or oil.

 Keep the top glass of the lens always clean in order to obtain the best picture quality

all the time. Be careful not to be stained by ngerprint.

 Don't face the camera directly toward sunlight or sunlight reecting area.

CMOS may go defective at this condition.

 Please give a special attention to keep the unit from dangerous drop or external shock

during the process of transportation or handling.

 Never try to touch the camera in wet hand. It may cause an electric shock.

 Do not expose the camera to radioactivity. It causes a serious damage on the CMOS.

2. Limitation of liability

This publication is provided “AS IS” without warranty of any kind, either express or

implied, including but not limited to, the implied warranties of merchantability, tness for

any particular purpose, or non-infringement of the third party's right.

This publication could include technical inaccuracies or typographical errors.

Changes are added to the information herein, at any time, for the improvements of this

publication and / or the corresponding product(s).

3. Disclaimer of warranty

In no event shall seller be liable to any party or any person, except for replacement or

reasonable maintenance of the product, for the cases, including but not limited to below :

(1) Any damage and loss, including without limitation, direct or indirect, special,

consequential or exemplary, arising out of or relating to the product.

(2) Personal injury or any damage caused by inappropriate use or negligent operation of

the user.

(3) Unauthorized disassemble, repair or modication of the product by the user.

(4) Inconvenience or any loss arising when images are not displayed, due to any reason

or cause including any failure or problem of the product.

(5) Any problem, consequential inconvenience, or loss or damage, arising out of the

system combined by the devices of third party.

(6) Any claim or action for damages, brought by any person or organization being

photogenic subject, due to violation of privacy with the result of that surveillance-

camera's picture, including saved data, for some reason, becomes public or is used

for the purpose other than surveillance.

4. Package

- Junction Box

5. Installation

5-1. How to install on the Wall

 Wall_Junction Box

 Wall

① Drill four screw holes on the wall plate to x four plastic anchors (supplied) in the holes.

② Fix the plastic anchors in the holes.

③ Position the bracket on the screw points.

④ Fix the bracket by tightening the screws.

5- OSD cap detailed description 2.

 Open the Closing Cap and fasten the Closing Cap well.

The lighting ash with an arrowhead symbol, within an equilateral triangle

is intended to alert the user to the presence of non-insulated dangerous

voltage within the product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

This installation should be made by a qualied service person and should conform to

all local codes.

CAUTION

TO REDUCE THE RISK OF ELECTRLC SHOCK,

DO NOT REMOVE THE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

RISK OF ELECTRLC

SHOCK

DO NOT OPEN

CAUTION

HTINT70TA

Screw PH

M4 x 0.47in (4EA)

Tapping screw

Ø 4 x 1.18in (4EA)

Plastic anchor

(4EA)

Camera x 1

Manual x 1

Tapping screws x 4

Plastic anchor x 4

L-Wrench ( 16in) x 1 0.

L-Wrench ( in) x 1 0.10

Top Rubber x 1

Junction Box x 1

Sponge x1

Screw PH

(M4 x 0.47in) x 4

Tapping Screws

(Ø 4 x 1.18in) x 4

Plastic Anchor x 4

 Tool-free 3-Axis

 IP67 Weatherproof

 12VDC / 24VAC Dual Input

 Built-in Heater

Closing Cap

F/W Writing Pin

OSD Switch

CVBS

L-Wrench (0.10in)

Closing Cap Open

5. Installation

5-3. Tool-free 3-Axis mounting mechanism

① Panning 360˚

Slightly loosen Pan Bracket nut then

adjust pan of the camera and

tighten the Bracket nut.

② Tilt 0˚ ~ 100˚

Slightly loosen Tilt bolt then

adjust tilt of the camera and

tighten the bolt rmly.

③ Rotation 360˚

Slightly loosen Tilt bolt then adjust rotation of the camera

and tighten the bolt rmly.

5-4 Application of TVI output .

6. Function and operation

6-1. On Screen Display (On Board Control and UTC)

PRESET MENU

INDOOR / OUTDOOR / LOW LIGHT / HALLWAY / LOBBY / ELEVATOR

SETUP

LENS

MANUAL

EXPOSURE

BRIGHTNESS

SHUTTER

INTENSIFY

AGC

RETURN

WHITE BAL

AUTO

AWB

AWC-SET

MANUAL

BACKLIGHT

WDR

BLC

HLC

OFF

DAY&NIGHT

COLOR

B/W

AUTO

DNR

LOW

MIDDLE

HIGH

RETURN


SHARPNESS

ACE

GAMMA

DEFOG

COLOR GAIN

RETURN

MIRROR

FLIP

MOTION

OFF

SYSTEM

ANALOG HD

COLOR BAR

RESET

FRAME RATE

LANGUAGE

RETURN

FREQ

CAM TITLE

IMAGE RANGE

CAM TITLE

COLOR SPACE

HEATER

EXIT

7. Troubleshooting

If there are problems in operating, please refer to the checklist below.

If the problem persists, please contact the agent where this product is purchased.

8 Dimension (mm) .

9 Specications.

MODEL

HTINT70TA

Image sensor

Sony 1/2.9 inch 2.1MP Exmor CMOS Sensor

Total Pixel

2001(H) x 1121(V) 2.24M Pixels

Eective Pixels

1985(H) x 1105(V) 2.19M Pixels

Scanning system

Progressive scan

Video output

1920 x 1080 25p / 30p

Output

TVI / CVBS

S/N ratio

More than 52dB (AGC OFF / Weight ON)

Min. Illumination

0.01Lux

Privacy Mask

ON / OFF (16 zone)

Motion Detection

ON / OFF (4 zone)

NEG.Image

ON / OFF

Mirror / Flip

ON / OFF

White Balance

AUTO / AWB / AWB - SET / MANUAL

Shutter Speed

AUTO / MANUAL / FLICKER

Sens- up

AUTO / OFF (Selectable Limit p2-x2 ~ x32)

Backlight

OFF / HLC / BLC / WDR

2D / 3DNR

OFF / LOW / MIDDLE / HIGH

Gain Control

0 ~ 10 (Level adjustable)

Day & Night

AUTO / COLOR / B&W

Sharpness

0 ~ 10 (Level adjustable)

WDR

NORMAL / ROI

Lens Shading

ON / OFF

Defog

ON / OFF

Language

ENG, CHN, CHN(S), JPN, KOR

Lens

2.7 ~ 12mm DC Iris Varifocal MFZ Lens

Power Source

12VDC / 24VDC

Operating current

24 1200mA 10%(12VDC) / ±mA±10%(24VAC)

Operating

Temperature

-40F ~ 140F

Storage

Temperature

-40F ~ 140F

Operating Humidity

0%RH ~ 90%RH

Measurement ( ) in

Ø 98 x 10.3 Including Bracket .5

Weight(Approx. lbs)

2.31lbs (Camera Only)

 Speci cations are subject to change without prior notice for better improvement. fi

Problems

Troubleshooting

Nothing appears on

the screen.

 Please check that the power cord and line connection

between the camera and monitor are xed properly.

 Please check that you have properly connected Video cable to

the camera Video output jack.

The dim image

on the screen.

 Is lens stained with dirt? Clean your lens with soft, clean cloth.

 Set the monitor to proper condition.

 If the camera is exposed to too strong light, change the

camera position.

 Please check if the power supply is within the specication &

cables.(Due to the voltage drop with distance and gauges,

L will light poor) ed

The dark image

on the screen.

 Adjust the contrast feature of the monitor.

 If there is an intermediate device, set the 75Ω / Hi-Z properly.

(Please check the impedance)

The camera is not

working properly,

and the body of the

camera is hot.

 Please check if the power supply is regulated and is within the

standard requirement of the products.

Color is not correct.

 Please check the setting of White Balance setup.

The screen is

ickering.

 Please check if the camera is facing directly towards sunlight

or uorescent light.

Coaxial

5C / 3C

TVI DVR

Monitor

Panning

360˚

Tilt

0°100°

Rotation

360°

Rotation

Tilt

Pan

L-Wrench

220104_SPECO_TVI

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

FCC Responsible Party :

Speco Technologies

200 New Highway

Amityville, NY 11701

www.specotech.com

Produkt Specifikationer

Mærke:	Speco Technologies
Kategori:	Videokamera
Model:	HTINT70TA

Har du brug for hjælp?

Hvis du har brug for hjælp til Speco Technologies HTINT70TA stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Videokamera Speco Technologies Manualer

Speco Technologies AGL Manual

15 August 2024

Speco Technologies CVC627MT Manual

14 August 2024

Speco Technologies SPPOEO Manual

14 August 2024

Speco Technologies CVC637T Manual

14 August 2024

Speco Technologies H2AB2 Manual

14 August 2024

Speco Technologies CVC620WPT Manual

13 August 2024

Speco Technologies CVC637TW Manual

13 August 2024

Speco Technologies V5B2M Manual

13 August 2024

Speco Technologies VLDT4G Manual

12 August 2024

Speco Technologies HTINT70TA Manual

12 August 2024

Videokamera Manualer

Nyeste Videokamera Manualer

Panasonic NV-GS27 Manual

14 September 2025

Panasonic NV-GS500E Manual

13 September 2025

Xblitz Night 2 Manual

13 September 2025

Fantec BeastVision XHD Manual

12 September 2025

Sony DCR-IP220 Manual

11 September 2025

E-flite C-Go 1 Manual

10 September 2025

Insta360 GO Ultra Manual

9 September 2025

Sony CCD-TRV208E Manual

9 September 2025

Laserliner PipeControlMobile-Camera Manual

9 September 2025

FLIR Si2-PD Manual

8 September 2025
