Page 1HX851E
HX851E
Floating Marine Transceiver with GPS
Owner’s Manual
HX851EPage 2
TABLE OF CONTENTS
QUICK REFERENCE GUIDE ........................................................................................................ 4
1 GENERAL INFORMATION .................................................................................................... 7
1.1 INTRODUCTION ......................................................................................................... 7
2 ACCESSORIES ...................................................................................................................... 8
2.1 PACKING LIST ........................................................................................................... 8
2.2 OPTIONS ..................................................................................................................... 8
3 ABOUT THIS RADIO ............................................................................................................ 9
3.1 ABOUT THE VHF MARINE BAND ........................................................................... 9
3.2 EMERGENCY (CHANNEL 16 USE) ............................................................................ 9
3.3 CALLING ANOTHER VESSEL (CHANNEL 16) ...................................................... 10
3.4 OPERATING ON CHANNEL 13 ............................................................................. 11
3.5 OPERATING ON CHANNEL 67 ............................................................................. 11
4 GETTING STARTED ............................................................................................................ 12
4.1 RADIO CARE ............................................................................................................ 12
4.2 BATTERIES AND CHARGERS ............................................................................... 12
4.3 CONNECTING A CHART PLOTTER TO THE CD-38 ......................................... 16
4.4 BELT CLIP INSTALLATION REMOVAL ................................................................. 17
5 CONTROLS AND SWITCHES ............................................................................................ 18
6 BASIC OPERATION ............................................................................................................ 22
6.1 PROHIBITED COMMUNICATIONS ......................................................................... 22
6.2 INITIAL SETUP ......................................................................................................... 22
6.3 RECEPTION .............................................................................................................. 22
6.4 TRANSMISSION ....................................................................................................... 23
6.5 DISPLAY MODE SETUP ........................................................................................... 24
6.6 INTERNATIONAL, USA, AND CANADA CHANNELS ........................................... 25
6.7 SIMPLEX/DUPLEX CHANNEL USE ....................................................................... 25
6.8 SCANNING ................................................................................................................ 26
6.9 DUAL WATCH ........................................................................................................... 28
6.10 PRESET CHANNELS (0 ~ 9): INSTANT ACCESS ................................................. 28
6.11 STROBE OPERATION ............................................................................................. 29
7 DIGITAL SELECTIVE CALLING ........................................................................................ 30
7.1 GENERAL .................................................................................................................. 30
7.2 MARITIME MOBILE SERVICE IDENTITY (MMSI) ................................................ 30
7.3 DSC DISTRESS ALERT .......................................................................................... 32
7.4 ALL SHIPS CALL ..................................................................................................... 36
7.5 INDIVIDUAL CALL .................................................................................................... 38
7.6 CALL WAITING DIRECTORY .................................................................................. 43
7.7 GROUP CALL ........................................................................................................... 45
7.8 POSITION REQUEST .............................................................................................. 50
7.9 POSITION REPORT ................................................................................................. 55
7.10 GEOGRAPHIC CALL ................................................................................................ 58
7.11 DSC TRANSMISSION TEST ................................................................................... 59
8 RADIO SETUP ..................................................................................................................... 60
8.1 DISPLAY .................................................................................................................... 60
8.2 DIMMER .................................................................................................................... 61
8.3 CONTRAST ............................................................................................................... 61
8.4 LAMP ......................................................................................................................... 62
8.5 PRIORITY CHANNEL ............................................................................................... 62
8.6 SCAN TYPE .............................................................................................................. 63
8.7 SCAN MEMORY ....................................................................................................... 63
8.8 SCAN RESUME ....................................................................................................... 64
8.9 KEY BEEP ................................................................................................................ 64
8.10 CHANNEL NAME ..................................................................................................... 65
8.11 LED SETUP .............................................................................................................. 66
Page 7HX851E
1 GENERAL INFORMATION
1.1 INTRODUCTION
The HX851E is a Submersible Floating 6-Watt portable two way marine trans-
ceiver with a 12 channel internal GPS. The UK version of the HX851E has all
allocated USA, International, or Canadian channels. It has emergency chan-
nel 16 which can be immediately selected from any channel by pressing the
[16/9] key.
The HX851E includes the following features: Memory Scanning, Priority Scan-
ning, easy-to-read large LCD display, EEPROM memory back-up, Battery Life
displayed on LCD, and a transmit Time-Out Timer (TOT).
The HX851E transmitter provides a full 6 Watt of transmit power and is select-
able to 5, 2.5, and 1 Watt to assist the user in ensuring maximum battery life.
The HX851E has the capability of Digital selective Calling with Distress call
including GPS position, All Ship Urgency and Safety, Individual, Group and
Position Request and Position Report calls.
In addition, the HX851E has navigation features which include Waypoint en-
tering (store up to 200 waypoints), Navigation to a waypoint, Navigation to a
DSC Position request, Luminescent Glow in the Dark gasket and a water en-
abled SOS strobe light.
The HX851E also supports ATIS mode which is used in the inland waterways
of Europe. Please contact your local PTT administration or Marine Authority to
obtain your ATIS number.
Page 13HX851E
DO NOT INCINERATE: Do not dispose of any battery in a fire or incinerator.
The heat of fire may cause battery cells to explode and/or release dangerous
gases.
Battery Maintenance
For safe and proper battery use, please observe the following:
Battery packs should be charged only in non-hazardous environments;
Use only STANDARD HORIZON-approved batteries;
Use only a STANDARD HORIZON, (a Marine Division of VERTEX
STANDARD) approved charger. The use of any other charger may
cause permanent damage to the battery.
Follow charging instructions provided with the chargers.
Keep the battery contacts clean.
Battery Storage
Store the batteries in a cool place to maximize storage life. Since batteries are
subject to self-discharge, avoid high storage temperatures that cause large
self-discharge rates. After extended storage, a full recharge is recommended.
Battery Recycling
DO NOT PLACE USED BATTERIES IN YOUR REGULAR TRASH!
LI-ION BATTERIES MUST BE COLLECTED, RECYCLED OR DISPOSED
OF IN AN ENVIRONMENTALLY SOUND MANNER.
The incineration, land filling or mixing of Li-ion batteries with the municipal
solid waste stream is PROHIBITED BY LAW in most areas.
Return batteries to an approved Li-ion battery recycler. This may be where you
purchased the battery.
Contact your local waste management officials for other information regarding
the environmentally sound collection, recycling and disposal of Li-ion batteries.
HX851EPage 14

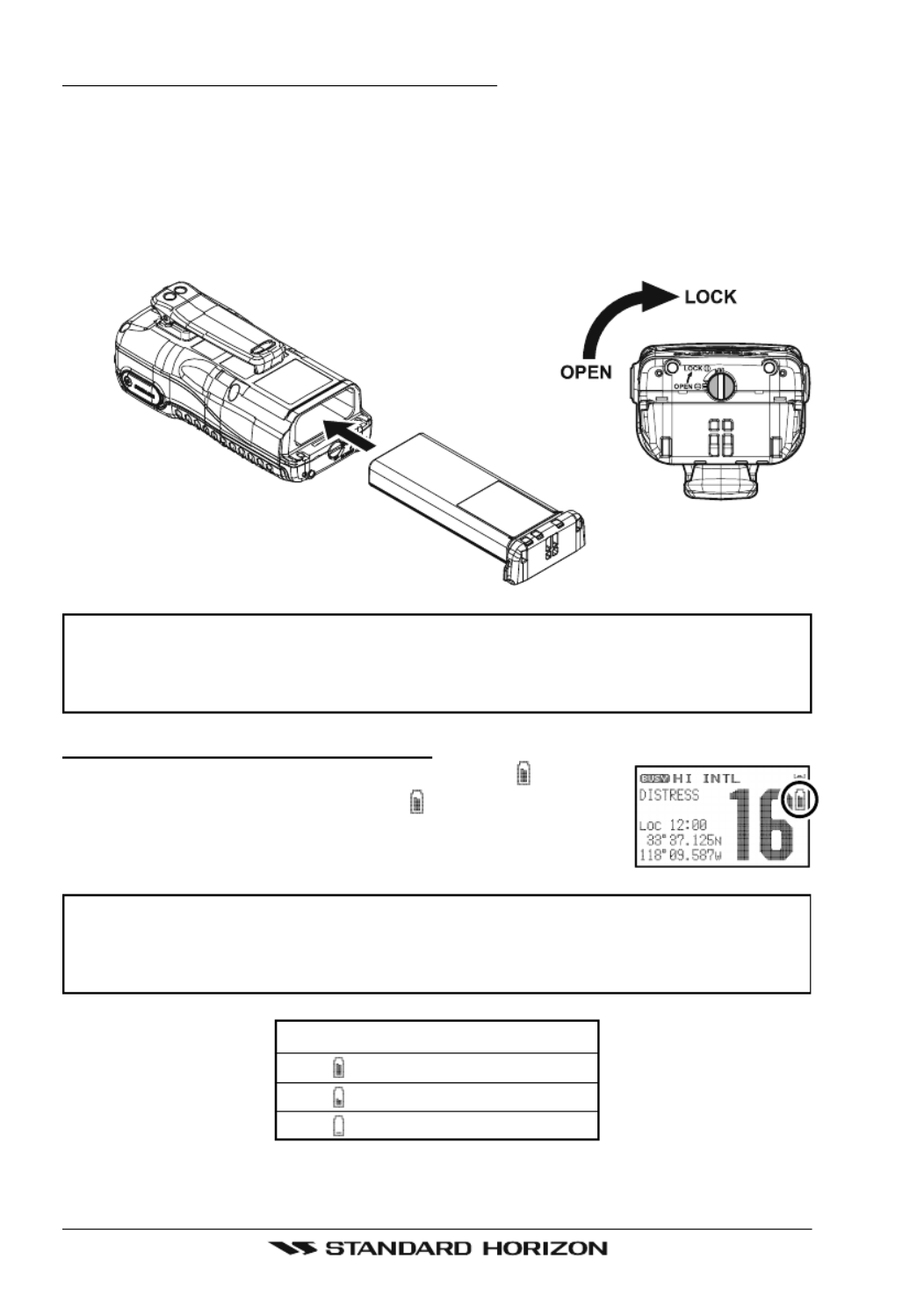

4.2.2 BATTERY INSTALLATION/REMOVAL
1. To install the battery pack, insert the battery pack into the bottom of the
transceiver, then turn the Battery Pack Lock on the bottom of the trans-
ceiver to the “LOCK” position with a coin.
2. To remove the battery pack, turn the transceiver off, turn the Battery Pack
Lock to the “OPEN” position with a coin, then slide out the battery from the
transceiver.
NOTE
The battery lock must be set to “LOCK” position to ensure water integ-
rity and from the battery coming loose.
4.2.3 BATTERY LIFE INFORMATION
When the battery charge is almost depleted, a “ ” icon will
appear on the display. When the “ ” icon appears, it is
recommended that you charge the battery soon.
NOTE
When the FBA-38 Alkaline Battery Case is used, the battery icon does
not display correctly.
No Icon : Full Battery
: Low Battery
: Battery is very low
: Prepare to charge the Battery
