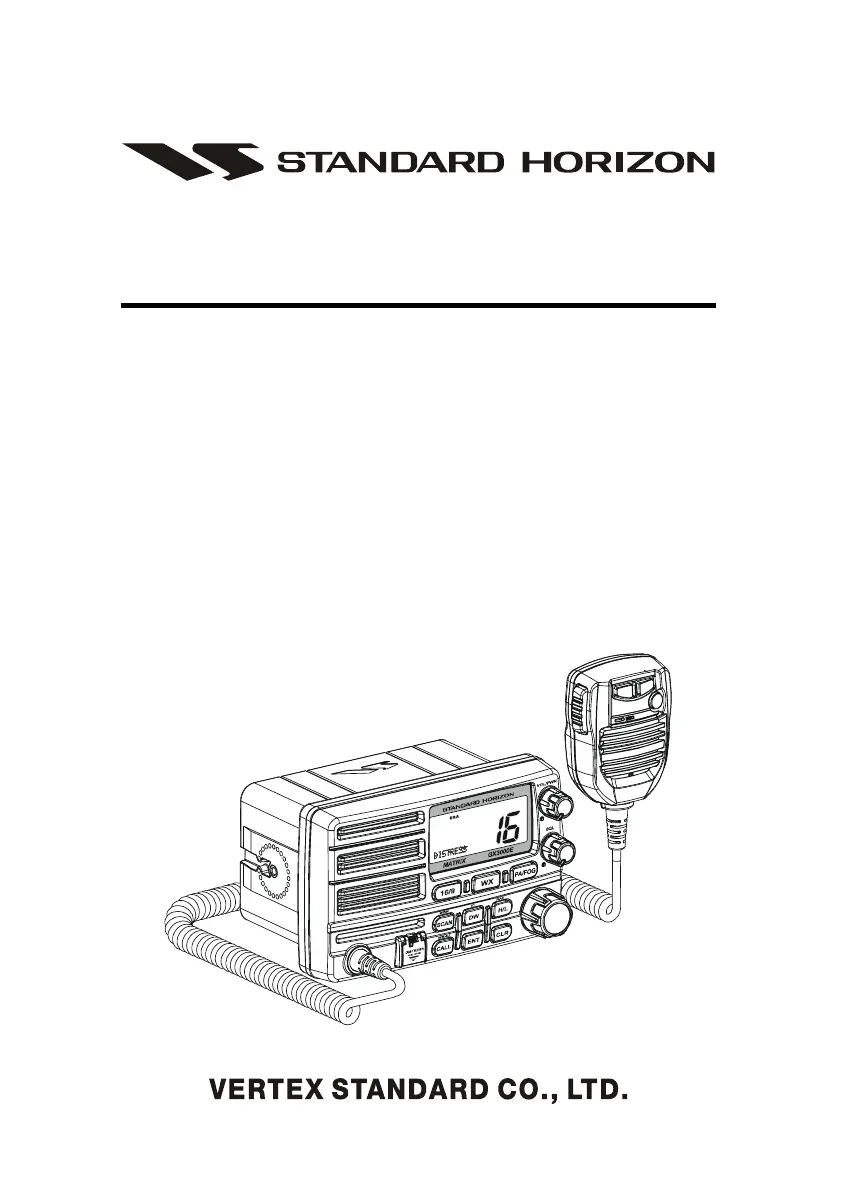

Page 1GX3000E

MATRIX GX3000E

25 Watt VHF/FM

ITU Class D DSC Marine Transceiver

Owner's Manual

Waterproof construction

Commercial grade ITU Class D DSC VHF

Independent Channel 70 receiver built-in for continuous DSC watching

30 W Loud Hailer with listen back and 4 fog horns, Bells & Whistles

Capable of connecting 2 optional enhanced CMP25 RAM+ second sta-

tion remote microphone or VH-310 Handset

Intercom between radio and second station microphone

DSC position request and send functions with compatible STANDARD

HORIZON GPS Chart plotters

Versatile user-programmable scanning, priority scan and Dual Watch

One-button access to Channel 16 and 9

Oversized rotary channel knob, backlit display and keys.

Navigation information shown on display when optional GPS connected

Unique Receive Audio Tone Control

GX3000EPage 2

TABLE OF CONTENTS

1 GENERAL INFORMATION ............................................................................................................... 4

2 PACKING LIST ................................................................................................................................. 4

3 OPTIONS ........................................................................................................................................... 4

4 INSTALLATION NOTE ...................................................................................................................... 5

5 GETTING STARTED ......................................................................................................................... 6

5.1 ABOUT VHF RADIO .............................................................................................................. 6

5.2 SELECTING AN ANTENNA .................................................................................................. 6

5.3 COAXIAL CABLE ................................................................................................................... 7

6 INSTALLATION ................................................................................................................................. 8

6.1 LOCATION ............................................................................................................................... 8

6.2 MOUNTING THE RADIO ...................................................................................................... 8

6.2.1 Supplied Universal Mounting Bracket .......................................................................... 8

6.2.2 Optional MMB-84 Flush Mount Bracket ...................................................................... 9

6.3 ELECTRICAL CONNECTIONS ............................................................................................ 10

6.4 ACCESSORY CABLE .......................................................................................................... 11

6.5 CHECKING GPS CONNECTIONS ..................................................................................... 12

6.6 CHANGING THE GPS TIME.............................................................................................. 12

6.7 CHANGING THE TIME LOCATION ................................................................................... 13

6.8 CHANGING COG TO TRUE OR MAGNETIC ................................................................. 14

6.9 RECEIVER AUDIO TONE CONTROL ............................................................................... 15

6.10 OPTIONAL ENHANCED RAM+ SECOND STATION MIC

AND/OR VH-310 HANDSET INSTALLATION ...................................................................... 16

7 CONTROLS AND INDICATORS .................................................................................................... 18

8 BASIC OPERATION ....................................................................................................................... 24

8.1 RECEPTION .......................................................................................................................... 24

8.2 TRANSMISSION ................................................................................................................... 24

8.3 TRANSMIT TIME-OUT TIMER (TOT) ................................................................................. 24

8.4 SIMPLEX / DUPLEX CHANNEL USE ................................................................................. 25

8.5 USA, CANADA, AND INTERNATIONAL MODE ................................................................. 25

8.6 NOAA WEATHER CHANNELS ........................................................................................... 25

8.6.1 NOAA Weather Alert .................................................................................................... 25

8.6.2 NOAA Weather Alert Testing ...................................................................................... 26

8.7 EMERGENCY (CHANNEL 16 USE) ..................................................................................... 26

8.8 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) ........................................................ 27

8.9 MAKING TELEPHONE CALLS ........................................................................................... 27

8.10 OPERATING ON CHANNELS 13 AND 67 .................................................................... 28

8.11 DUAL WATCH (TO PRIORITY CHANNEL) ...................................................................... 28

8.12 SCANNING ......................................................................................................................... 29

8.12.1 Selecting the Scan Mode .............................................................................................. 29

8.12.2 Memory Scanning (M-SCAN) ...................................................................................... 29

8.12.3 Priority Scanning (P-SCAN) ........................................................................................ 23

8.13 FOG / PA OPERATION ...................................................................................................... 31

8.13.1 Operating the PA HAIL mode ...................................................................................... 31

8.13.2 Operating the FOG HORN mode ................................................................................ 31

8.14 NAVIGATION INDICATION ............................................................................................... 32

8.15 INTERCOM OPERATION .................................................................................................. 32

8.15.1 Communication ............................................................................................................ 33

8.15.2 Calling ........................................................................................................................... 33

8.16 VOICE SCRAMBLER ........................................................................................................ 34

9 DIGITAL SELECTIVE CALLING .................................................................................................... 35

9.1 GENERAL .............................................................................................................................. 35

9.2 MARITIME MOBILE SERVICE IDENTITY (MMSI) .............................................................. 35

9.2.1 What is an MMSI? .......................................................................................................... 35

9.2.2 Programming the MMSI ................................................................................................ 36

9.3 DSC DISTRESS ALERT ...................................................................................................... 37

9.3.1 Tansmitting a DSC Distress Alert ................................................................................ 37

9.3.2 Receiving a DSC Distress Alert .................................................................................. 39

9.3.3 Distress Relay ................................................................................................................ 39

9.4 ALL SHIPS CALL ................................................................................................................. 40

9.4.1 Transmitting an All Ships Call ..................................................................................... 40

9.4.2 Receiving an All Ships Call ......................................................................................... 41

9.5 INDIVIDUAL CALL ................................................................................................................ 42

9.5.1 Setting up the Individual / Position Call Directory .................................................... 42

9.5.2 Setting up Individual Ringer ........................................................................................ 43

9.5.3 Setting up Individual / Group Call Ringer ................................................................... 44

9.5.4 Transmitting an Individual Call .................................................................................... 45
