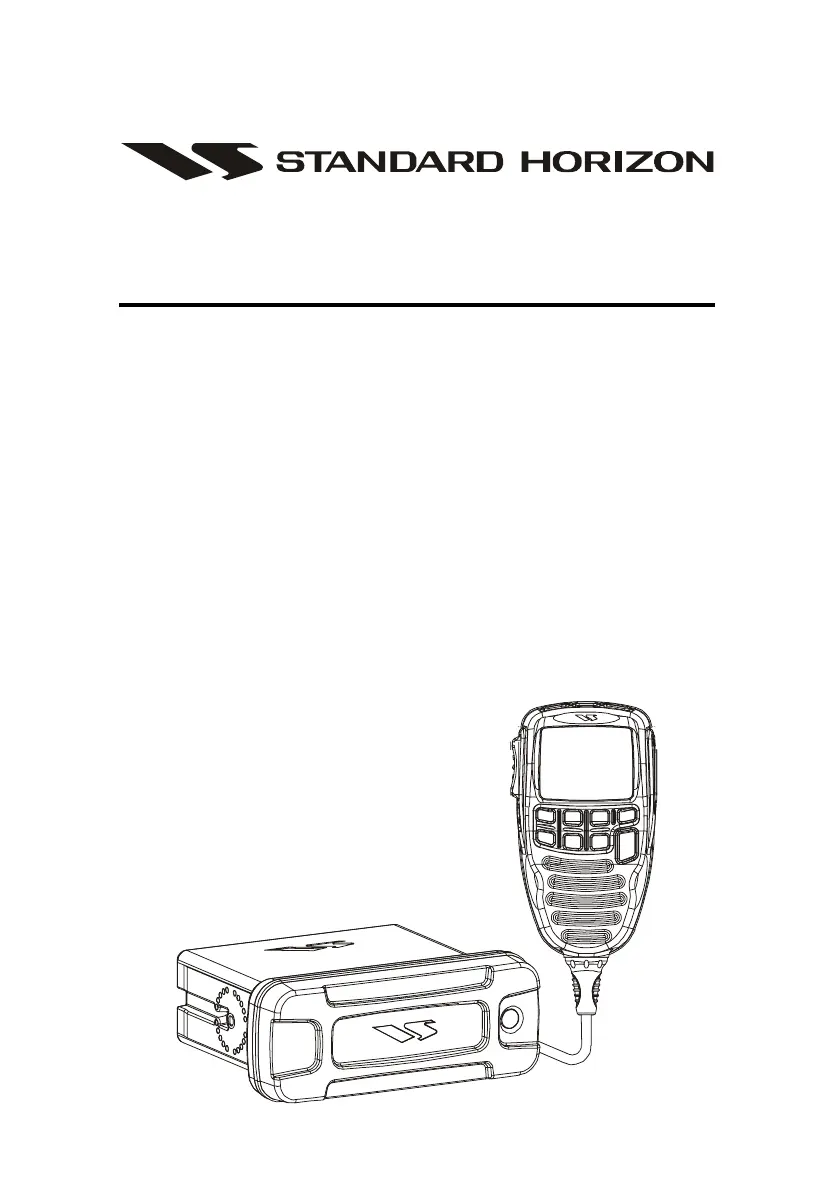

Page 1Phantom PS1000

PHANTOM Series PS1000

25 Watt VHF/FM

Marine Transceiver

Owner's Manual

Hide away black box VHF specifically designed for vessels with

limited mounting space

Supplied with a enhanced RAM+ remote control microphone

RTCM SC-101 DSC Distress call with your exact position

DSC position request/send function and NMEA data input/output

to connect to GPS Plotter

DSC Group call feature included

Channel Name, GPS Time or GPS Position Repeating shown on

the display

One-button access to Channel 16 and 9

NOAA Weather Alert

Versatile User-programmable Scan, Priority Scan and Dual Watch

Access to all US, Canadian and International Channels

3 year waterproof warranty

with GPS connected

Phantom PS1000Page 2

TABLE OF CONTENTS

1 GENERAL INFORMATION ...................................................................................... 4

2 PACKING LIST ........................................................................................................ 4

3 OPTIONS ................................................................................................................. 4

4 SAFETY / WARNING INFORMATION ...................................................................... 5

5 FCC RADIO LICENSE INFORMATION ................................................................... 6

6 FCC NOTICE ........................................................................................................... 7

7 GETTING STARTED ................................................................................................ 8

7.1 ABOUT VHF RADIO ...................................................................................... 8

7.2 SELECTING AN ANTENNA ........................................................................... 8

7.3 COAXIAL CABLE ............................................................................................ 9

8 INSTALLATION ...................................................................................................... 10

8.1 LOCATION ..................................................................................................... 10

8.2 ELECTRICAL CONNECTIONS ..................................................................... 10

8.3 CMP25 RAM+ MICROPHONE INSTALLATION ............................................ 11

8.4 ACCESSORY CABLE ................................................................................... 12

8.5 CONNECTION OF GPS WITH NMEA OUTPUT ...................................... 13

8.6 CHECKING GPS CONNECTIONS .............................................................. 13

8.7 CHANGING THE GPS TIME ....................................................................... 14

8.8 CHANGING COG TO TRUE OR MAGNETIC ........................................... 15

8.9 CHANGING GPS INFORMATION TO VESSEL POSITION OR COG .... 15

8.10 OPTIONAL MMB-84 FLUSH MOUNT INSTALLATION .............................. 16

9 CONTROLS AND INDICATORS ............................................................................ 18

9.1 PHANTOM PS1000 TRANSCEIVER ............................................................ 18

9.2 CMP25 RAM+ MICROPHONE ...................................................................... 20

10 BASIC OPERATION .............................................................................................. 22

10.1 RECEPTION .................................................................................................. 22

10.2 TRANSMISSION ............................................................................................ 22

10.3 TRANSMIT TIME-OUT TIMER (TOT) .......................................................... 22

10.4 SIMPLEX / DUPLEX CHANNEL USE .......................................................... 23

10.5 USA, CANADA, AND INTERNATIONAL MODE .......................................... 23

10.6 NOAA WEATHER CHANNELS .................................................................... 23

10.6.1 NOAA Weather Alert ............................................................................ 23

10.6.2 NOAA Weather Alert Testing ............................................................... 24

10.7 EMERGENCY (CHANNEL 16 USE) ............................................................ 24

10.8 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) ................................ 25

10.9 MAKING TELEPHONE CALLS .................................................................. 26

10.10 OPERATING ON CHANNELS 13 AND 67 .............................................. 26

10.11 DUAL WATCH (TO CHANNEL 16) ........................................................... 26

10.12 SCANNING .................................................................................................. 27

10.12.1 Selecting the Scan Type ...................................................................... 27

10.12.2 Memory Scanning (M-SCAN) ............................................................. 27

10.12.3 Priority Scanning (P-SCAN) ................................................................ 28

10.13 NAVIGATION INDICATION ....................................................................... 29
