Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 16, 2023 4:13 PM

Product ID

1M25-U3-M2-ADAPTER

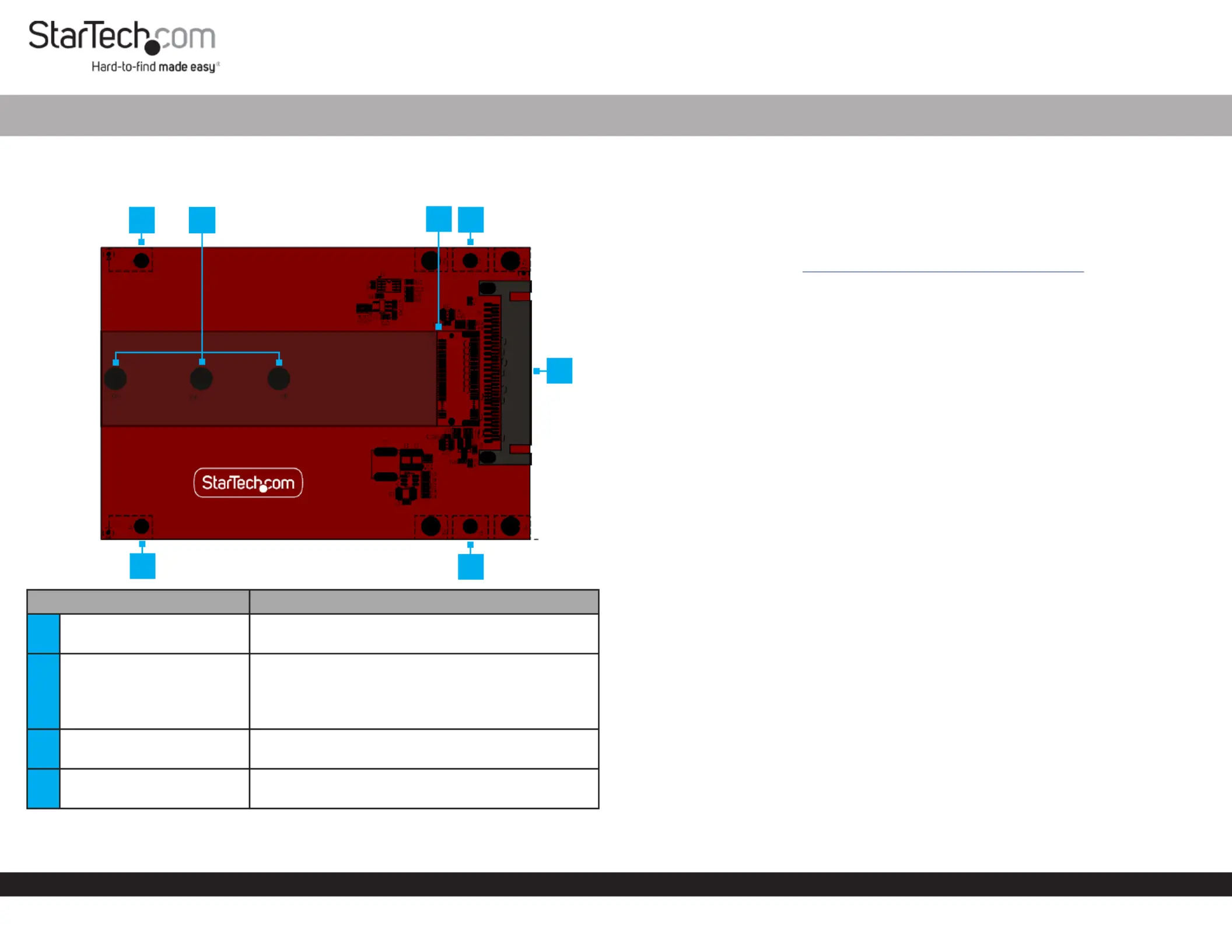

Component Function

1M.2 to U.3 Adapter

Mounting Holes

• Secure the M.2 to U.3 Adapter to the Computer

Case’s Drive Mounting Bay

Stando, Stando

Installation Screw, and

Drive Mounting Screw

• Secure an to theM.2 Storage Device M.2 to U.3

Adapter

• Compatible (NVMe): 2242, 2260, PCIe M.2 SSDs

and 2280 drives

3M.2 Connector • Connect a to the M Keyed M.2 Storage Device

M.2 to U.3 Adapter

4U.3 Connector • Connect the to aM.2 to U.3 Adapter U.3 Host

Controller

M.2 NVMe to U.3 (SFF-TA-1001) Adapter

Requirements

• U.3 (SFF-TA-1001) Enabled Computer x 1

• M.2 NVMe Drive x 1

Note: The M.2 to U.3 Adapter does not support SATA M.2 Drives

For the latest product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/1M25-U3-M2-ADAPTER

Package Contents

• M.2 to U.3 Adapter x 1

• Quick-Start Guide x 1

Installation

Warning: Circuit Boards can be damaged by static electricity. Ensure that the

Installer Computer Case is properly grounded before opening the or touching

the . The should wear an when M.2 to U.3 Adapter Installer Anti-Static Strap

installing any computer component. If an is not available, Anti-Static Strap

discharge any built-up static electricity by touching a large Grounded Metal

Surface M.2 to U.3 Adapter for several seconds. Only handle the by its edges and

do not touch the gold connectors.

Install the M.2 NVMe Storage Device

1. Place the next to the and note the M.2 Drive Adapter Drive Installation Holes

that match the length of the . If the and M.2 Drive Standos Installation Screws

are already installed in the correct position, proceed to step 6.

2. On the front of the use to hold the in place M.2 to U.3 Adapter, Pliers Stando

while using a to remove the located on the back Phillips Head Screwdriver Screw,

of the . Adapter

3. Use the to remove the on the front of the Phillips Head Screwdriver Screw M.2 to

U.3 Adapter.

4. Remove the .Stando

5. Install the in the that matches the length of the Stando Drive Installation Hole

Drive.

6. Gently slide the into the corresponding M.2 Drive Connector M.2 Connector,

located on the and press the down toward the adapter M.2 to U.3 Adapter, Drive

until the is properly seated.Drive

Note: The on the is and only ts M.2 Connector Adapter M Keyed M Keyed M.2

Storage Devices.

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

6. Replace the from the that was removed in .Cover Computer Step 2

7. Reconnect all of the that were disconnected in .Peripheral Devices Step 1

8. Reconnect the to the rear of the .Power Cable Computer

9. Power on the and connected .Computer Peripheral Devices

7. Replace the , removed in , and tighten using a Stando Installation Screw Step 2

Philips Head Screwdriver.

8. Insert the through the and into the and Drive Mounting Screw Drive Slot Stando

use the to tighten the , securing Phillips Head Screwdriver Drive Mounting Screw

the in place.Drive

Install the M.2 to U.3 Adapter

Note: The M.2 to PCIe Adapter requires a U.3 (SFF-TA-1001) interface and will not work

with a U.2 (SFF-8639) interface on the host computer. To conrm if the interface is U.3 or

U.2, please consult the computer manufacturer’s documentation.

1. Turn o the and disconnect the and any Computer Power Cable Peripheral

Devices that are connected (e.g. printers, external hard drives, etc.).

2. Remove the from theCover Computer Case.

Note: Consult the documentation that came with the for details about how Computer

to do this safely.

3. Locate an available in the .U.3 (SFF-TA-1001) Connector Host Computer

4. Use a and the included to Phillips Head Screwdriver Drive Mounting Screws

secure the to an available in the .M.2 to U.3 Adapter Drive Bay Computer

Note: Consult the documentation that came with the for details about drive Computer

bay locations.

5. Gently connect the to the available M.2 to U.3 Adapter U.3 (SFF-TA-1001)

Connector.
