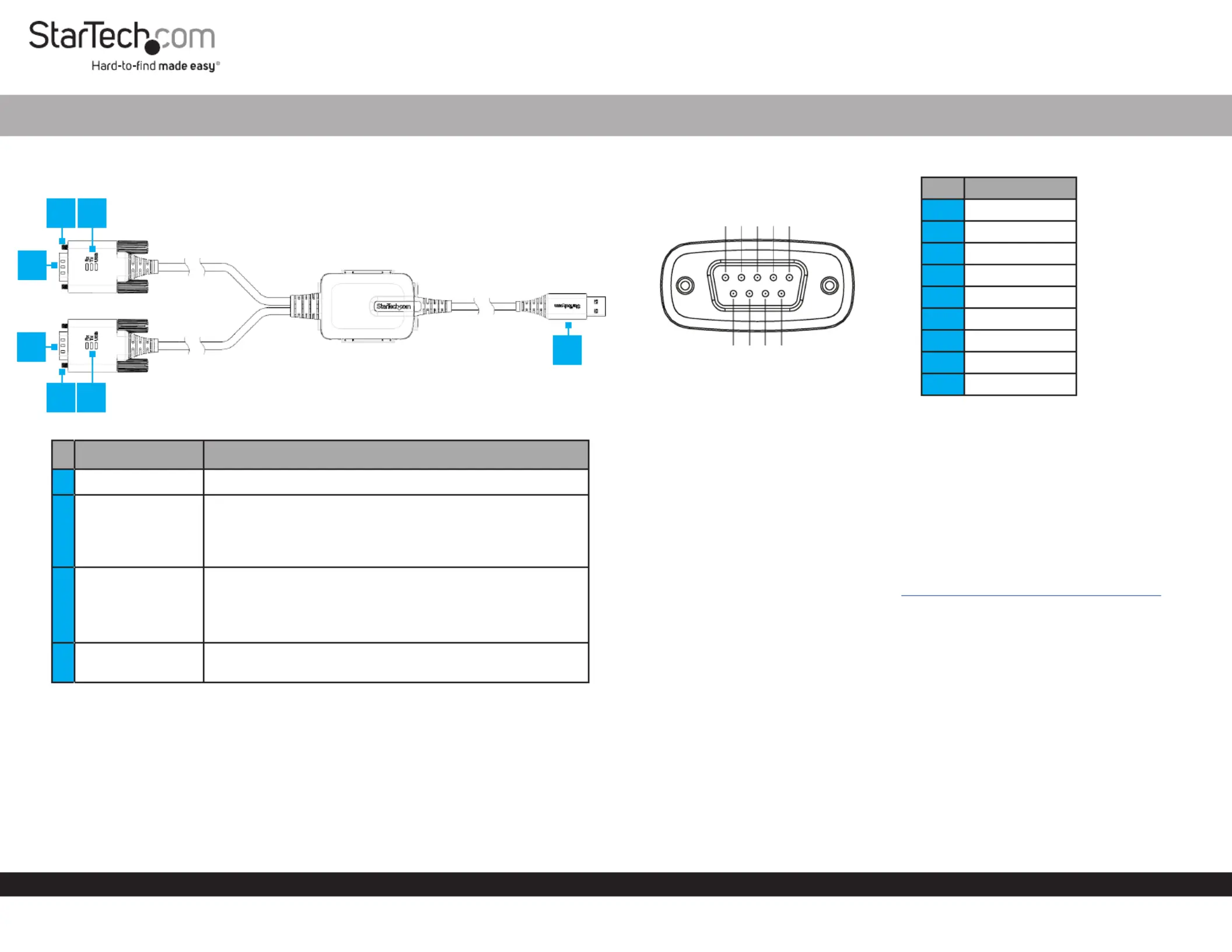

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: October 4, 2023

Product ID

2P6FFC-USB-SERIAL

Component Function

1Serial Port DB9 • Connect to a Serial Peripheral Device

2DB9 Screws

• Used to secure the to the Serial DB9 Port Serial

Peripheral Device

• The included can be installed for DB9 Nuts

compatibility with or Serial Peripheral Devices Cables

3LED Indicators

• Data Receive LED: Green Flashes to indicate activity

• Data Transmit LED: Yellow Flashes to indicate activity

• USB LED: BlueSolid to indicate driver has been

installed, and USB connection enumerated

4USB Type A Port

• Connect the to an available USB to Serial Adapter

USB-A Port

6ft (2m) FTDI USB-A to 2-Port RS232 DB9 Serial Adapter Cable - M/M

Pinout Diagram

Package Contents

• 2-Port USB to Serial Adapter x 1

• Mounting Bracket x 1

• DB9 Nuts x 4

• Quick-Start Guide x 1

Requirements

• USB Type-A Enabled Computer x 1

For the latest drivers/software, product information, technical specications, and

declarations of conformance, please visit: www.StarTech.com/2P6FFC-USB-SERIAL

Installation

(Optional) Mount the USB Serial Adapter

Note: Before mounting the make sure that the surface you are USB Serial Adapter

mounting to is strong enough to support the weight of the .USB Serial Adapter

1. Determine the and placement for the .Mounting Surface USB Serial Adapter

2. Mount the included to the desired using the Mounting Bracket Mounting Surface

appropriate (e.g., wood screws) through the two Mounting Hardware Mounting

Bracket Holes.

Note: The Mounting Bracket is designed to t M4 Flat Head Screws

3. Press the rmly into the until it clicks into USB Serial Adapter Mounting Bracket

place.

Pin RS-232

1DCD

2RXD

3TXD

4DTR

5GND

6DSR

7RTS

8CTS

9RI

54321

9876

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Verify Driver Installation

Windows

1. Navigate to the .Device Manager

2. Under , right-click and click .Ports (COM & LPT) COM Port Properties

3. Conrm that the is installed and working as expected.Driver

macOS

1. Navigate to .System Information

2. Expand the section and click .Hardware USB

3. Conrm that appears in the list. COM Port

Install the Driver and Adapter

Note: Drivers should install automatically in most supported operating systems. If they

do not, please complete the following steps:

1. Navigate to: www.StarTech.com/2P6FFC-USB-SERIAL

2. Click the tab.Drivers/Downloads

3. Under , download the appropriate for your operating Driver(s) Driver Package

system.

Windows

1. Right-click the downloaded le and extract the contents with .Extract All

2. Browse the Windows folder and run the le.Setup

3. Follow the on-screen instructions to complete the installation.

4. Connect the to an available USB-A port.USB to Serial Adapter

macOS

1. Double-click the downloaded le.

2. Open the folder that matches your and run the le inside the macOS Version Installer

folder.

3. Follow the on-screen instructions to complete the installation.

4. Connect the to an available USB-A port.USB to Serial Adapter

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	2P6FFC-USB-SERIAL
Bredde:	45 mm
Dybde:	4000 mm
Højde:	20 mm
Vægt:	280 g
Brugervejledning:	Ja
Produktfarve:	Black, Grey
Pakkevægt:	290 g
Pakkedybde:	155 mm
Pakkebredde:	225 mm
Pakkehøjde:	55 mm
Opbevaringstemperatur (T-T):	-40 - 80 °C
Driftstemperatur (T-T):	-40 - 80 °C
LED-indikatorer:	Ja
Kabellængde:	4 m
USB version:	2.0
Bæredygtighedscertifikater:	RoHS
Kompatible operativsystemer:	Windows 7, 8/8.1, 10, 11\nWindows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022\nmacOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0\nLinux 4.15.x+- LTS Versions\nChrome OS
Hovedkassen højde (udvendigt):	250 mm
Hovedkassens længde (udvendigt):	330 mm
Hovedkassens bredde (udvendigt):	585 mm
Produkter pr. hovedkasse (udvendigt):	40 stk
Overholdelse af bæredygtighed:	Ja
Stik 1:	USB-A
Stik 2:	2 x DB-9 RS-232
Stik 1 køn:	Hanstik
Stik 2 køn:	Hanstik
Baud hastighed:	921.6 Kbit/s
Data-bits:	7, 8
Stop bits:	1, 2
Dataoverførselshastighed:	0.48 Gbit/sek.
Relativ luftfugtighed:	0 - 95 %
Stik 1 formfaktor:	Lige
Stik 2 formfaktor:	Lige
Chipsæt:	FTDI - FT2232H
Kabel kappemateriale:	Termoplastisk elastomer (TPE)
FIFO (først ind, først ud):	4048 B
Paritetsbit:	Even, Mark, N,Odd, Space
