Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: September 29, 2023

Product ID

2S232422485-PC-CARD

PS74ADF-SERIAL-CARD

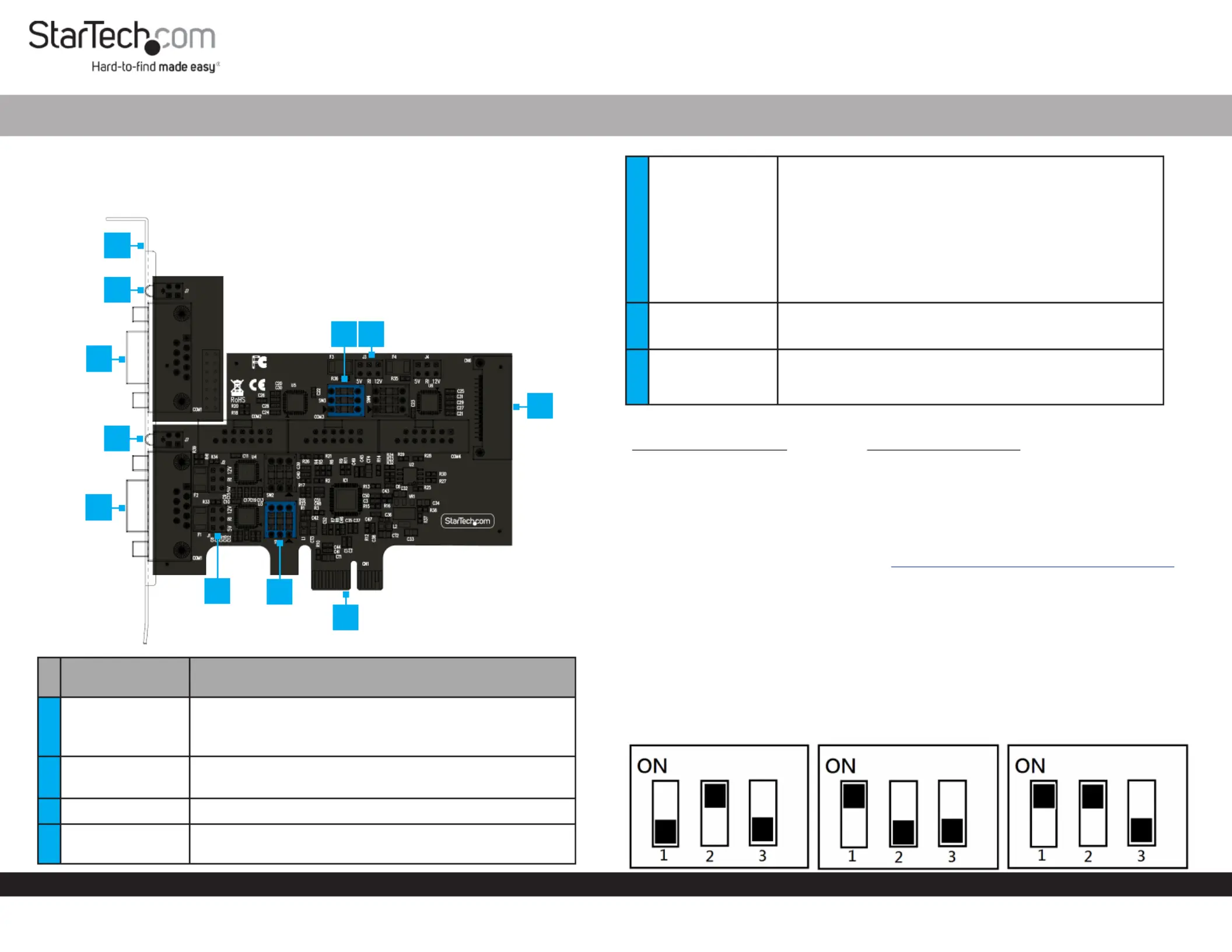

Port/LED/

Connector Function

1Bracket

• Secures the card to the Host Computer Case

• The comes pre-installed Full Prole Bracket

• The is included Low Prole Bracket

2Activity LEDs • Data Receive LED: GreenFlash to show activity

• Data Transmit LED: YellowFlash to show activity

3DB9 Serial Ports • Connect Serial Peripheral Devices

4Serial Mode

Switch

• Change the between , , DB9 Serial Ports RS-232 RS-422

or RS-485

PCIe p1-x1 RS232/422/485 Serial Card - Low-Prole Brackets Included

5J1/J2/J3/J4

Jumper

• Optional: Used to change the of Voltage Output DB9

Pin 9

• RI DB9 Pin 9disables power on . This is the default

setting.

• 12V SATA Power Connector draws power from the

( 12VOutputs )

• 5V SATA Power Connector draws power from the

( 5VOutputs )

6PCIe p1-x1

Connector • Insert into a on thePCI Express Slot Host Computer

7SATA Power

Connector

• Optional: Connect an available SATA Power Connector

from the to provide power over Host Power Supply

DB9 Pin 9

Package Contents

2S232422485-PC-CARD:

• Serial Card x 1

• Low-Prole Bracket x 2

• Ribbon Cable x 1

• Quick-Start Guide x 1

Requirements

For the latest requirements, please visit: www.StarTech.com/2S232422485-PC-CARD

• Computer with an available PCI Express Slot (x1, x4, x8, or x16)

Installation

DIP Switch Settings

To change the between , , and , use the DB9 Serial Ports RS-232 RS-422 RS-485

respective located on the . enables/Serial Mode Switch Serial Card Dip Switch 3

disables a , used for impedance matching between the 120 Ω Termination Resistor

Tx+/Tx- and Rx+/Rx- (RS-422/RS-485 4-wire) and D+/D- (RS-485 2-wire) lines. The

purpose is to prevent reections on the line that may cause signal errors.

RS-232 RS-485 (Half-Duplex) RS-422/485 (Full-Duplex)

*2S232422485-PC-CARD shown above

PS74ADF-SERIAL-CARD:

• Serial Card x 1

• Low-Prole Bracket x 4

• Ribbon Cable x 3

• Quick-Start Guide x 1

Linux

1. Navigate to: www.StarTech.com/2S232422485-PC-CARD

2. Click the tab.Drivers/Downloads

3. Under , download the for the Linux .Driver(s) Driver Package Operating System

4. Follow the that was extracted.Linux Driver Installation Guide

Verify Driver Installation

Windows

1. Navigate to the .Device Manager

2. Under , right-click and Ports (COM & LPT) AX99100 PCIe to High Speed Serial Port

click .Properties

3. Conrm that the is installed and working as expected.Driver

Verify Driver Installation (Linux)

1. Run from the command line.lsmod | grep r8125

2. Verify that the is present in the command line. Driver

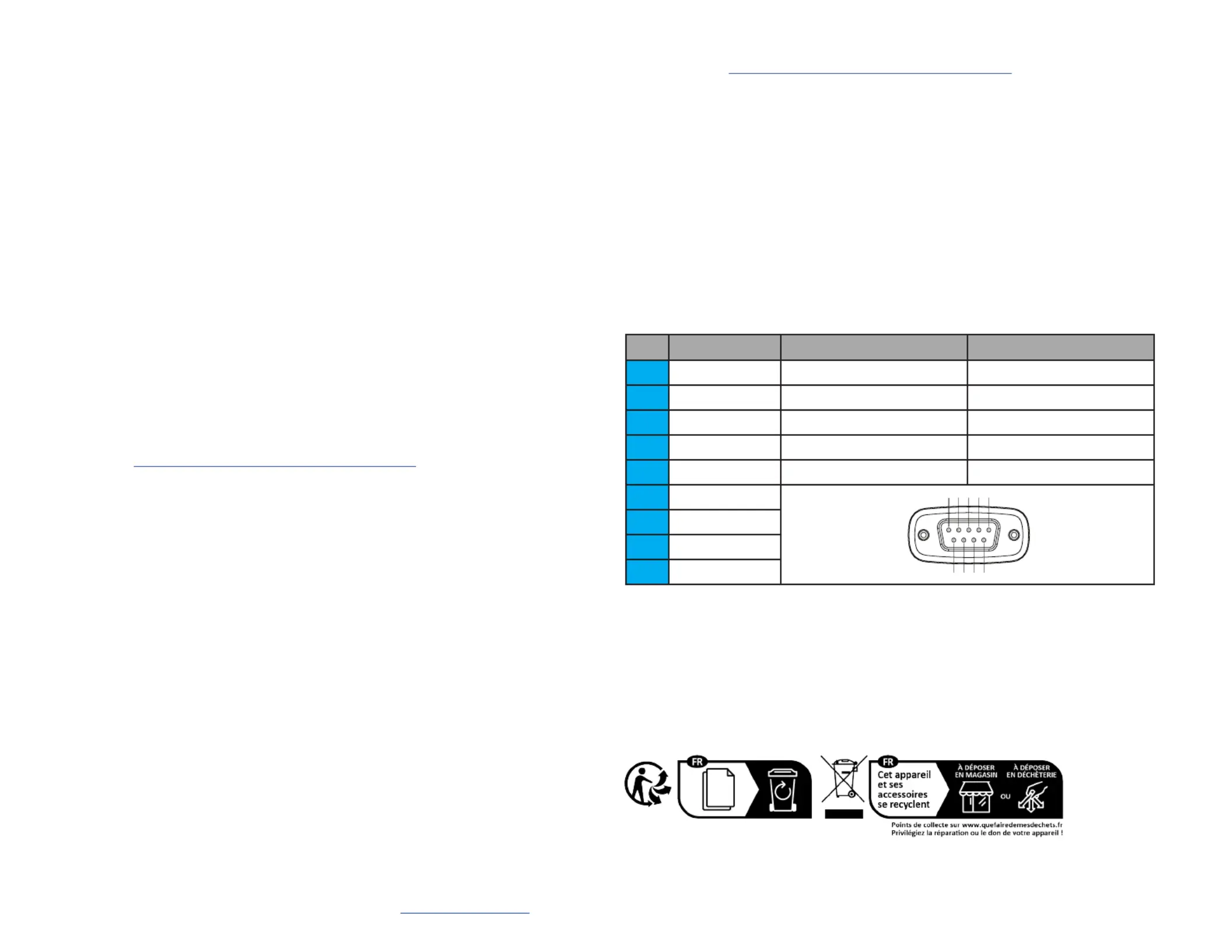

DB9 Pin Out

Pin RS-232 RS-422/RS-485 (4 Wire) RS-485 (2 Wire)

1DCD TXD- -(485)

2RXD TXD+ +(485)

3TXD RXD+ X

4DTR RXD- X

5GND GND GND

6DSR

7RTS

8CTS

9RI/PWR

Install the Card

Note: If the is to be installed into a or PCIe Card Small Form Factor Low-Prole

Desktop Full-Prole Bracket, it’s required to replace the pre-installed with the included

Low-Prole Brackets DB9 Serial Ports Ribbon Cables. The that use will need to be

installed on the separate .Low-Prole Brackets

1. Turn o the and disconnect the and any Computer Power Cable Peripheral

Devices that are connected (e.g. printers, external hard drives, etc.).

2. Remove the from the .Cover Computer Case

Note: Consult the documentation that came with the computer for details about how

to do this safely.

3. Locate an open and remove the corresponding from PCIe Slot Metal Cover Plate(s)

the rear of the . In most instances, the is attached Computer Case Metal Cover Plate

to the rear of the with a single . Save this Computer Case Phillips Head Screw

Phillips Head Screw for the next step.

4. Gently insert the into the open and fasten the to Serial Card PCIe Slot Bracket(s)

the rear of the , using the from .Computer Case Phillips Head Screw Step 4

5. (Optional) Connect from the to the SATA Power Computer Power Supply SATA

Power Connector Serial Card, located on the rear of the .

6. Replace the from the that was removed in . Cover Computer Step 2

7. Reconnect all of the that were disconnected in .Peripheral Devices Step 1

8. Reconnect the to the rear of the .Power Cable Computer

Install the Driver

Windows

1. Navigate to: www.StarTech.com/2S232422485-PC-CARD

2. Click the tab.Drivers/Downloads

3. Under , download the for Windows .Driver(s) Driver Package Operating System

4. Open the and locate the corresponding folder for theDriver Package Windows

Version.

5. Execute the to install the driver.Setup File

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .

www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related

documents are the property of their respective holders. PHILLIPS® is a registered trademark of Phillips Screw Company in the

United States or other countries.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

54321
