Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 17, 2021

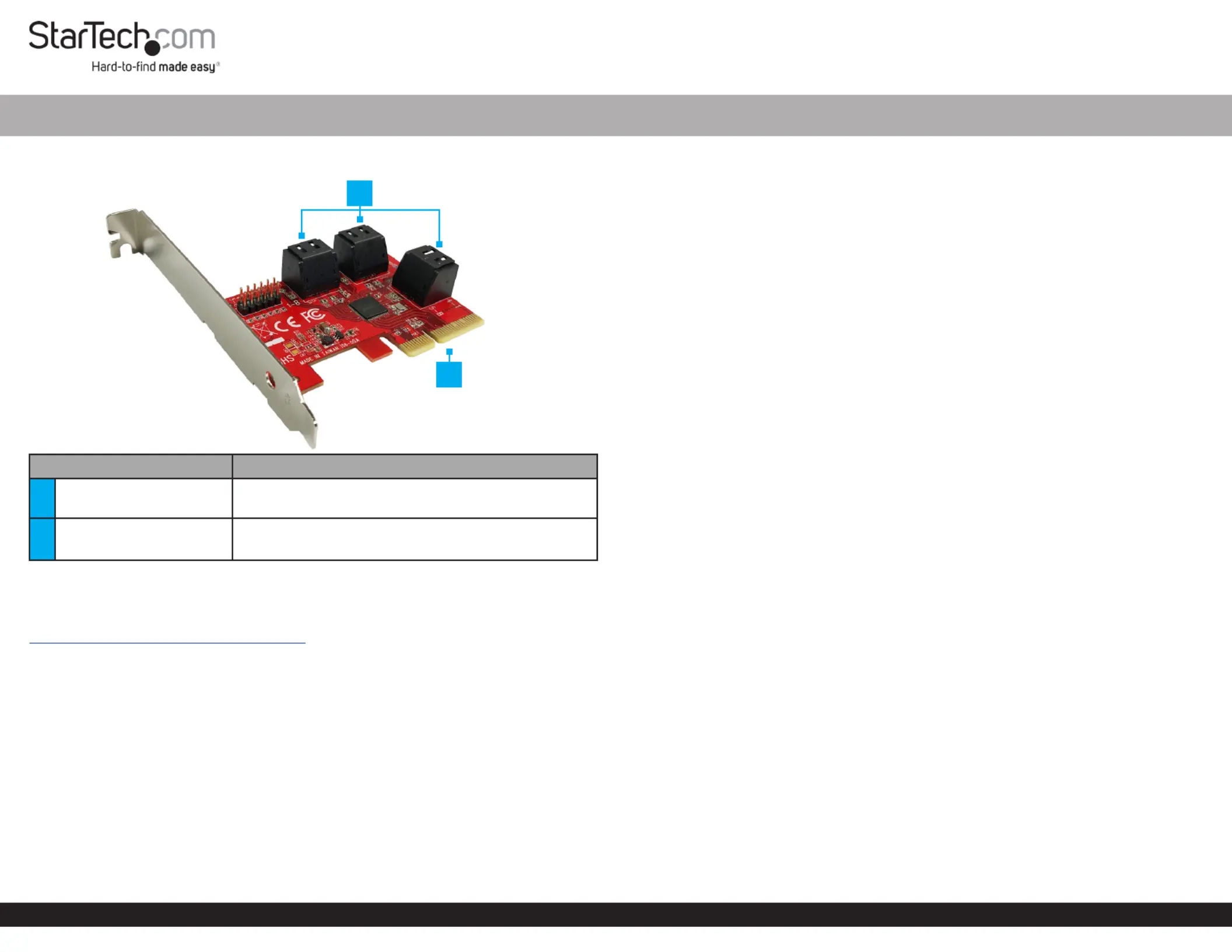

Product Diagram (6P6G-PCIE-SATA-CARD)

Front View

Port Function

1SATA Ports x 6 • Connect to the SATA Stoage Devices PCIe SATA

Card SATA Cable using a

2PCIe p1-x4 Connector • Connect the to the in PCIe SATA Card PCIe Slot

the Computer

Product Information

For the latest product information, technical specications, manuals, and Declarations

of Conformance, please visit:

www.startech.com/6P6G-PCIE-SATA-CARD.

Package Contents

• PCIe SATA Card x 1

• Full-Prole Bracket (Installed) x 1

• Low-Prole Bracket x 1

• Quick-Start Guide x 1

Requirements

• Computer with an available PCIe slot (x4/8/16)

• Phillips Head Screwdriver

• SATA Cables

6 Port SATA 6Gbps PCIe Controller Card

Hardware Installation

Warning: PCIe Cards can be damaged by static electricity. Make sure that the

Installer Computer Case is properly grounded before they open the or touch the

PCIe SATA Card. The should wear an when installing any Installer Anti-Static Strap

computer component. If an is not available, discharge any built-up Anti-Static Strap

static electricity by touching a large for several seconds. Grounded Metal Surface

Only handle the by its edges and do not touch the gold connectors. PCIe SATA Card

Installing the Low-Prole Bracket

By default the is attached to the . Depending on Full-Prole Bracket PCIe SATA Card

the system conguration it may be necessary to remove the to Full-Prole Bracket

replace with the (included).Low-Prole Bracket

1. Remove the 2x securing the , using a Phillips Head Screws Full-Prole Bracket

Phillips Head Screwdriver.

2. Remove the and replace with the Full-Prole Bracket Low-Prole Bracket

(included).

3. Install the 2x removed in step 1 and tighten, using a Phillips Head Screws Phillips

Head Screwdriver.

Installing the Card

1. Turn o the and any that are connected Computer Peripheral Devices

(e.g. printers, external hard drives, etc.).

2. Unplug the from the rear of the and disconnect any Power Cable Computer

Peripheral Devices that are connected.

3. Remove the from the . Cover Computer Case

Note: Consult the documentation that came with the for details about Computer

how to do this safely.

4. Locate an open (x4/8/16) and remove the corresponding PCIe Slot Metal Cover

Plate Computer Case Metal Cover Plate from the rear of the . In most instances, the

is attached to the rear of the with a single . Computer Case Phillips Head Screw

Save this for the next step. Phillips Head Screw

5. Gently insert the into the open (x4/8/16) and fasten the PCIe SATA Card PCIe Slot

Bracket Computer Case Phillips Head Screw to the rear of the , using the from

step 4.

6. Connect a maximum of 6 to the of the SATA Storage Devices SATA Ports PCIe

SATA Card SATA Cables. using

7. Replace the from the that was removed in step 3.Cover Computer

8. Reconnect all of the that were disconnected in step 2.Peripheral Devices

9. Reconnect the to the rear of the .Power Cable Computer

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders. PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other

countries.

Warranty Information

This product is backed by a 2-year warranty.

For further information on product warranty terms and conditions, please refer to .

www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
