Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 9, 2022 12:07 PM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

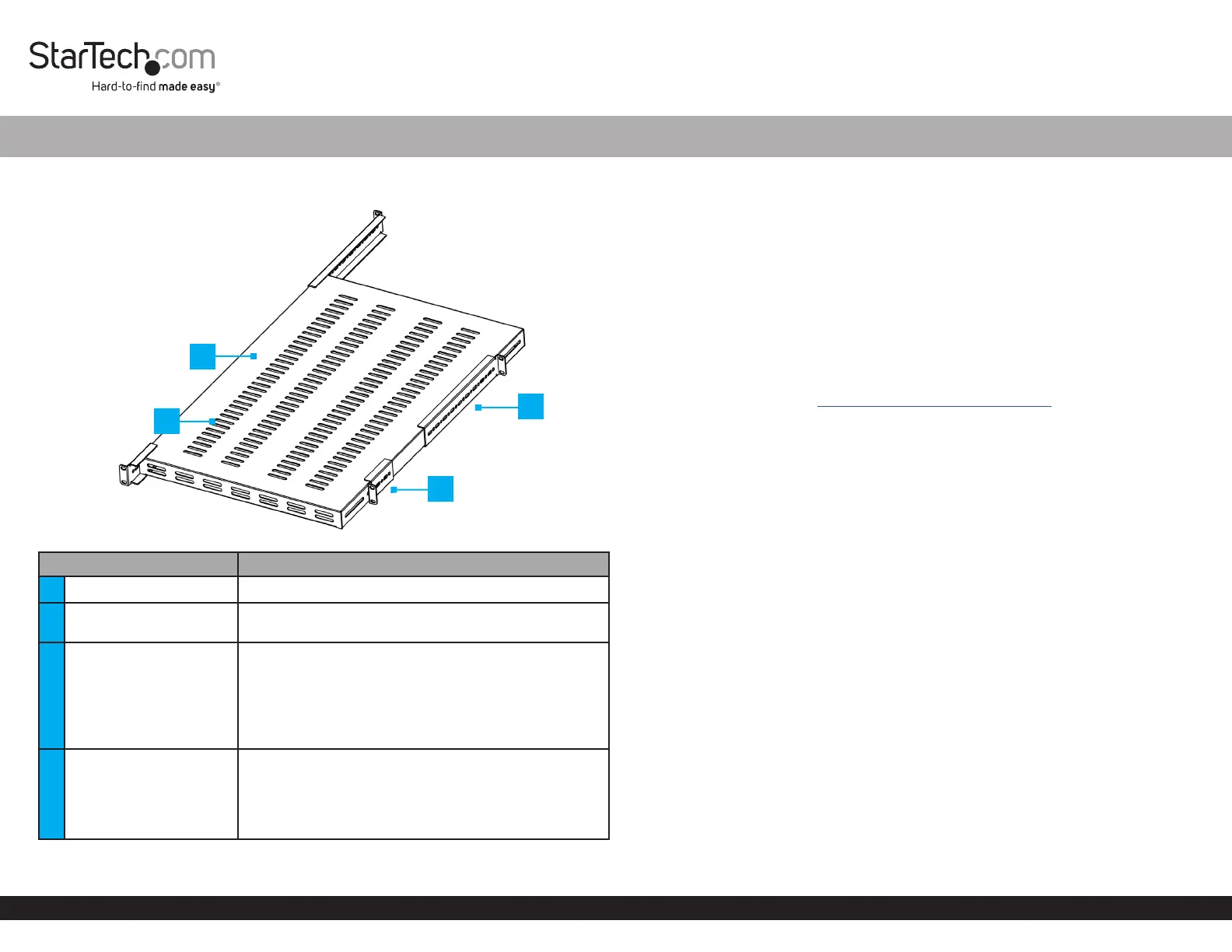

Product Diagram

ADJSHELFHDV2

Component Function

1Shelf Surface • Mount the server rack equipment

2Ventilation Holes • Promote air ow for the mounted equipment. The

dimensions are 1.6 x 0.25 in (40 x 6.5 mm)

3Front Mounting Brackets

• Fasten to the of the rack or Shelf Front Posts

cabinet

• Holes on the sides of the allow Mounting Brackets

for . (x 4)Depth Adjustment M6x12 mm Screws

secure the to the desired depth Mounting Brackets

• Allows for up to 5.7 in (146.9 mm ) depth adjustment

4Rear Mounting Brackets

• Fasten to the of the rack or cabinetShelf Rear Posts

• Holes on the sides of the allow Mounting Brackets

for . (x 4)Depth Adjustment M6x12 mm Screws

secure the to the desired depthMounting Brackets

• Allows for up to 13 in (332.1 mm) depth adjustment

1U 4-Post Vented Adjustable Mounting Depth Heavy Duty Shelf - 27.5 in Depth

Package Contents

• 1U Shelf Body x 1

• Front Mounting Brackets x 2

• Rear Mounting Brackets x 2

• M6x12 mm Screws x 8

• M6 Cage Nuts x 8

• M6 Plastic Washers x 8

• Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specications, and declarations

of conformance, please visit: www.StarTech.com/ADJSHELFHDV2

• For square cage holes, M6 cage nuts are included. For M6 threaded holes, no cage

nuts are needed. Refer to the manufacturer of the rack to determine the mounting

hole type

• Phillips head screwdriver

• Cage nut tool (Optional)

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before assembling and using this product.

Before adding equipment to this product, ensure this product has been properly

mounted.

Never operate this product if parts are missing or damaged.

Ensure the weight of the equipment does not exceed the weight capacity of this

product. If the weight capacity is exceeded, personal injury or damage to the

equipment is possible. This product can support the following weight: up to 330 lb

(150 kg). The maximum supported weight is only possible when all four mounting

brackets are properly mounted to all posts on a four post rack.

Arrange your equipment in the rack in descending order of weight. The lightest

equipment is installed at the top of the rack, and the heaviest is on the bottom.

Installation

1. Locate a suitable location in the rack or cabinet to mount the . The Shelf Shelf

requires of . 1U Space

To mount the shelf leveled, ensure the mounting brackets are mounted on the same U

height number. To determine this, most four posts racks or cabinets have labeled front

and rear posts.

*Product may vary from image

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or

symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are

for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or

an endorsement of the product(s) to which this manual applies by the third-party company in question. StarTech.

com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names

and/or symbols contained in this manual and related documents are the property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a lifetime warranty. For further information on product warranty terms and conditions,

please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors,

employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product

exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental

or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not

apply to you.

Safety Measures

• Read the entire manual and ensure the instructions are fully understood before assembling and/or using this

product.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Mesures de sécurité

• Lisez tout le manuel et assurez-vous que vous comprenez les instructions avant de commencer à assembler et utiliser

ce produit.

安全対策

• 最初に取扱説明書を最後まで読み、本製品の組み立て方をすべて理解してから組み立て作業を始めて下さい。

Misure di sicurezza

• Leggere l’intero manuale e assicurarsi di aver compreso tutte le istruzioni prima di iniziare ad assemblare e a utilizzare

questo prodotto.

Säkerhetsåtgärder

• Läs hela manualen och se till att du förstår instruktionerna innan du börjar montera och använda produkten.

2. Determine the of the on the rack. The Depth Mounting Posts Adjustable Mounting

Depth Shelf of the is from 19.5 in (495 mm) to 38.3in (974 mm).

3. Use a to the of the andPhillips Head Screwdriver Loosen Screws Front Rear

Mounting Brackets Mounting Bracket uses Two so they can slide freely. Each

Screws.

4. (Optional) Remove all the (x 8) of the and if Screws Front Rear Mounting Brackets

the adjustment requires dierent on the sides of the Depth Adjustment Holes Shelf.

5. Adjust the and to achieve the same Front Rear Mounting Brackets Mounting

Depth Mounting Posts Screws Front as the of the rack. Next, secure the (x 8) of the

and with a . Rear Mounting Brackets Phillips Head Screwdriver

6. (Optional) Install the (x 8) into the appropriate (x 8) M6 Cage Nuts Cage Nut Holes

on the chosen on the of the rack. U Height Number Mounting Posts

Use a cage nut tool if available or your preferred installation method to install the

M6 Cage Nuts.

7. Place the (x 8) onto the (x 8). M6 Plastic Washers M6 Screws

8. Place the into the rack in the chosen . the Shelf U Height Number Align Mounting

Holes Front Mounting Posts Front Mounting Bracketsof the of the rack with the .

Keep supporting the weight of the shelf.

9. Use a to install the and fasten the Phillips Head Screwdriver M6x12 mm Screws

Front Mounting Brackets Front Mounting Poststo the of the rack. Ensure the

M6x12 mm Screws are properly tightened.

10. Repeat for the . Step 8 Rear Mounting Brackets

11. (Optional) Make minor depth adjustments to the and Front Rear Mounting Brackets

as needed.
