Side 1/29

Manual Revision: 05/17/2019

User Manual

Vertical Dual Monitor Stand - Aluminum

SKU#: ARMDUOVS

For the latest information and specications visit

www.startech.com/ARMDUOVS

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Compliance Statements

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and

other protected names and/or symbols of third-party companies not related in

any way to StarTech.com. Where they occur these references are for illustrative

purposes only and do not represent an endorsement of a product or service

by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com

hereby acknowledges that all trademarks, registered trademarks, service marks,

and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements

• Product installation and/or mounting should be completed by a certied

professional as per the local safety and building code guidelines.

• Cables (including power and charging cables) should be placed and routed

to avoid creating electric, tripping or safety hazards.

Mesures de Sécurité

• L’installation et/ou le montage du produit doit être réalisé par un

professionnel certié et dans le respect des normes locales et du code de

construction local.

• Les câbles (y compris les câbles d’alimentation et de chargement) doivent

être placés et acheminés de façon à éviter tout risque électrique, de chute ou

de sécurité

安全対策

• 製品の設置やマウントは、使用地域の安全ガイドラインおよび建築基準に

従い、有資格の専門業者が行うようにしてください。

• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し

を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう

にしてください。

Misure di Sicurezza

• L’installazione e/o il montaggio dei prodotti devono essere eseguiti da un

tecnico professionale certicato che conosca le linee guida locali sulle norme

edilizie e sulla sicurezza.

• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati

e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o

pericoli per la sicurezza.

Säkerhetsåtgärder

• Installation och/eller montering får endast göras av behöriga yrkespersoner

och enligt gällande lokala förordningar för säkerhet och byggnormer.

• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så

sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.

iii

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Make sure to assemble this product according to the instructions. Failure to

do so might result in personal injury or property damage.

• Make sure that the weight of the monitors doesn’t exceed the weight

capacity of this product. If you exceed the weight capacity, you might

experience personal injury or damage to the equipment. This product can

support the following weight: 17.6 lb. (8 kg) per monitor mount.

• Never operate this product if parts are missing or damaged.

Varningsmeddelanden

• Se till att du monterar produkten i enlighet med instruktionerna. Om du inte

gör det kan skada på person eller egendom uppstå.

• Se till att skärmens vikt inte överstiger produktens viktkapacitet. Om

viktkapaciteten överstigs kan skada på person eller utrustning uppstå. Denna

produkt har stöd för följande vikter: 8 kg per skårm.

• Använd aldrig produkten om delar saknas eller är skadade.

Avertissements

• Assemblez ce produit conformément aux instructions. Si vous ne respectez

pas ces instructions, vous risquez de vous blesser ou d’endommager

l’équipement.

• Vériez que le poids du moniteur ne dépasse pas la capacité pondérale du

produit. Si vous dépassez la capacité pondérale, vous risquez des blessures

corporelles ou des dommages matériels. Ce produit peut supporter 8 kg par

’ecran.

• N’utilisez pas ce produit si des pièces sont endommagées ou manquantes.

Warnhinweise

• Montieren Sie dieses Produkt gemäß den Anweisungen. Anderenfalls kann

dies zu Verletzungen von Personen oder Schäden an Eigentum führen.

• Das Gewicht des Monitors darf die zulässige Traglast des Produkts nicht

übersteigen. Wenn die Traglast überschritten wird, kann dies zu Verletzungen

von Personen oder Schäden an Geräten führen. Dieses Produkt ist für

folgendes Gewicht geeignet: 8 kg per monitor.

• Das Produkt darf nicht bedient werden, wenn Teile fehlen oder beschädigt

sind.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Dichiarazioni di Avvertenza

• Assemblare il prodotto rispettando le istruzioni. Il mancato rispetto delle

istruzioni potrebbe causare danni a persone o proprietà.

• Vericare che il peso del monitor non superi la capacità di supporto del

prodotto. In caso di superamento della capacità di supporto potrebbero

vericarsi danni a persone o apparecchiature. Il prodotto è in grado di

supportare i seguenti pesi: 8 kg per monitor.

• Non utilizzare il prodotto in presenza di parti mancanti o danneggiate.

Mensagens de Aviso

• Certique-se de que monta este produto de acordo com as instruções.

O incumprimento pode resultar em ferimentos pessoais ou danos de

propriedade.

• Certique-se de que o peso do monitor não excede a capacidade de peso

deste produto. Se exceder a capacidade de peso, pode sofrer ferimentos

pessoais ou danos no equipamento. Este produto pode suportar o seguinte

peso: 8 kg por monitor.

• Nunca opere este produto se faltarem peças ou estas estiverem danicadas.

Advertencias de Uso

• Asegúrese de ensamblar este producto según las instrucciones. De lo

contrario, pueden producirse lesiones personales o daños de propiedad.

• Asegúrese de que el peso del monitor no exceda la capacidad de carga de

este producto. Si se excede dicha capacidad se podrían producirse lesiones

personales o daños al equipo. Este producto tiene capicidad para el siguiente

peso: 8 kg por monitor.

• Nunca opere o ponga en funcionamiento este producto si faltan piezas o hay

daños en las mismas.

Waarschuwingen

• Zorg dat dit product volgens de instructies in elkaar wordt gezet. Indien dit

niet goed gebeurt kan lichamelijk letsel of materiële schade ontstaan.

• Zorg dat het gewicht van het scherm de maximale capaciteit van dit product

niet overschrijdt. Als u de gewichtscapaciteit overschrijdt, kan persoonlijk

letsel of schade aan de apparatuur ontstaan. Dit product ondersteunt het

volgende gewicht: 8 kg per monitor.

• Gebruik dit product nooit als er onderdelen ontbreken of beschadigd zijn.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

注意

• 必ず取扱説明書に従って本製品の組み立てを行って下さい。取り扱いを誤

った場合に、傷害を負う恐れや物的損害が発生する恐れがあります。

• 取り付けるモニターの重量が、本製品で定められた最大積載重量を超えな

いようにして下さい。最大積載重量をオーバーした場合、傷害を負う恐れや

モニターや本製品に損害が発生する恐れがあります。本製品は、モニター1

台あたり10kgまで支持できます。

• 本製品で使用している部品の一部が紛失していたり損傷している状態で使

用するのは絶対に止めて下さい。

Table of Contents

Compliance Statements ........................................................................i

Safety Statements ..................................................................................ii

Warning Statements ..............................................................................iii

Product Information ..............................................................................1

Package Contents .....................................................................................................................................1

Product Diagram ....................................................................................................................................... 2

Product Dimensions ................................................................................................................................. 3

Technical Specications ..........................................................................................................................4

Requirements ............................................................................................................................................. 5

Assembly .................................................................................................6

Attach the Cable-Management Hooks.............................................................................................. 6

Attach the Lower Column ...................................................................................................................... 7

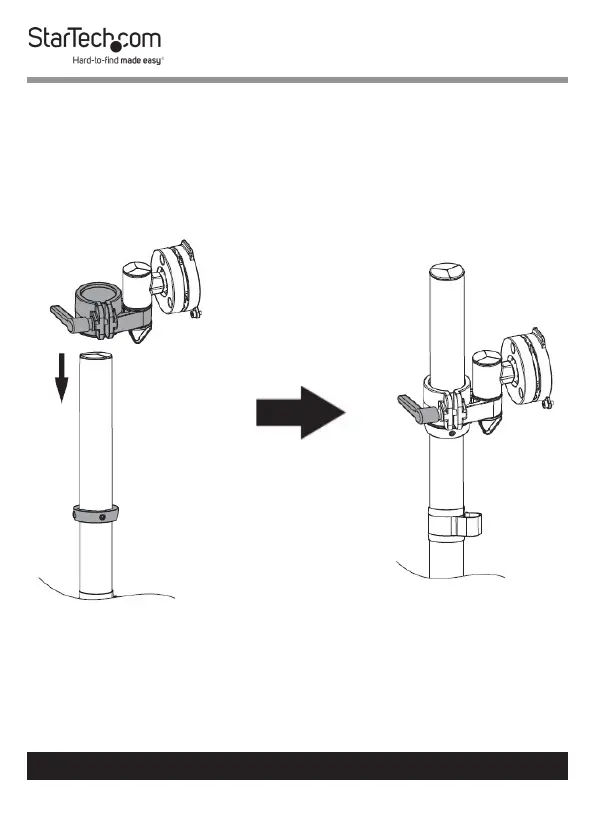

Attach the Lower VESA Mount ............................................................................................................. 8

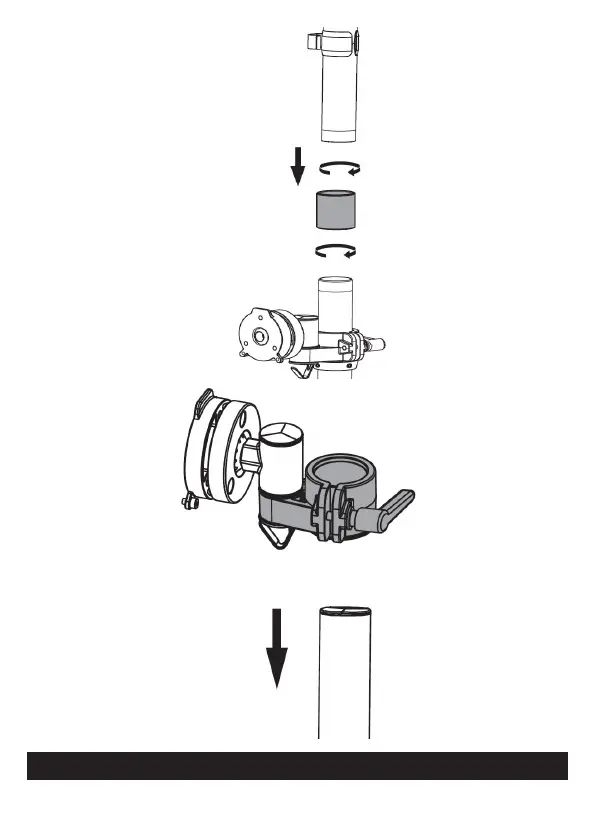

Attach the Upper VESA Mount ............................................................................................................. 8

Attach the Monitors ................................................................................................................................. 11

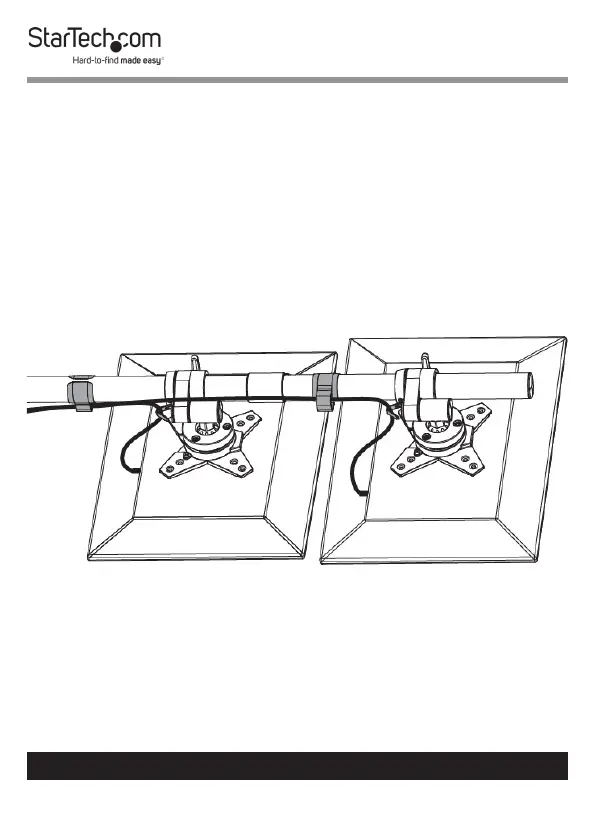

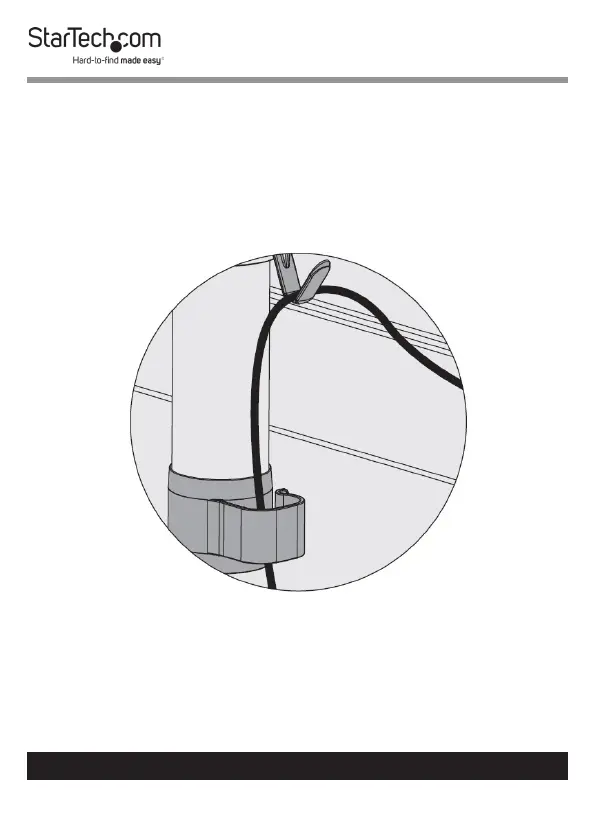

Cable Management .................................................................................................................................. 15

Monitor Placement ................................................................................................................................... 15

Operation ................................................................................................16

Adjust the Monitor Height ..................................................................................................................... 16

Adjust the Swivel .......................................................................................................................................17

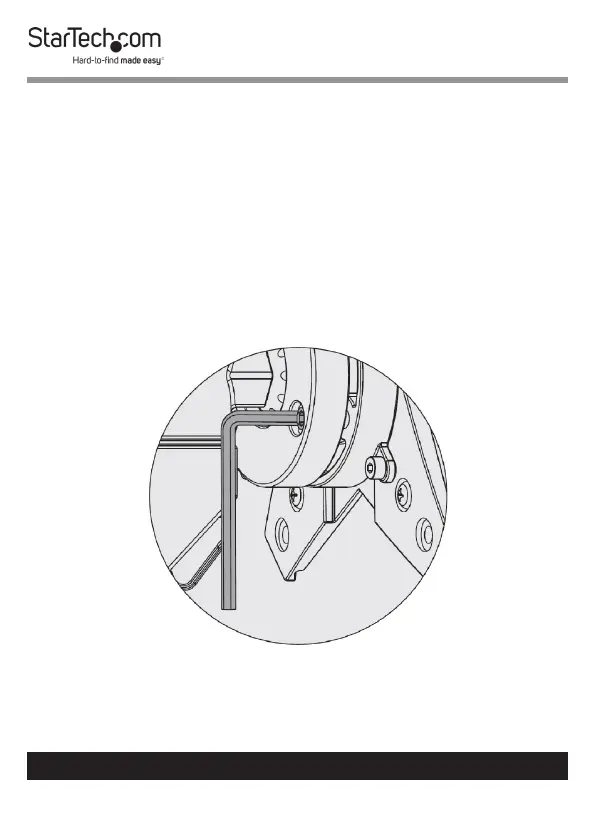

Adjust the Tilt and Rotation ................................................................................................................... 18

Quickly Removing a VESA Mount ........................................................................................................ 19

Quickly Attaching a VESA Mount ........................................................................................................20

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

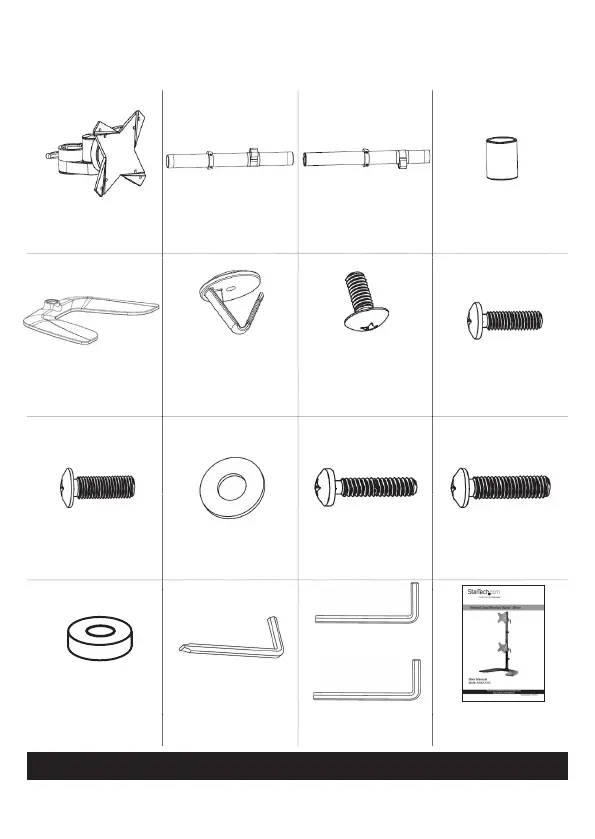

Package Contents

VESA Mounts x 2 Lower Pole x 1 Upper Pole x 1 Pole Connector

x 1

Base x 1

Cable-

Management

Hooks x 2

Cable-

Management

Hook Screws x 2

M4 x 14 Screws

x 8

M5 x 14 Screws

x 8

Washers x 8 M4 x 30 Screws

x 8

M5 x 30 Screws

x 8

Spacers x 16

3 mm Hex Key

with Screwdriver

Tip x 1

3 mm Hex Key

x 1

4 mm Hex Key

x 1

User Manual x 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Diagram

VESA Mount

Upper Pole

Cable-Management Clip

Pole Connector

Lower Pole

Cable-Management Clip

Base

Height-

Adjustment

Knob

Height-

Adjustment

Knob

Cable-Management Hook

Collar

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

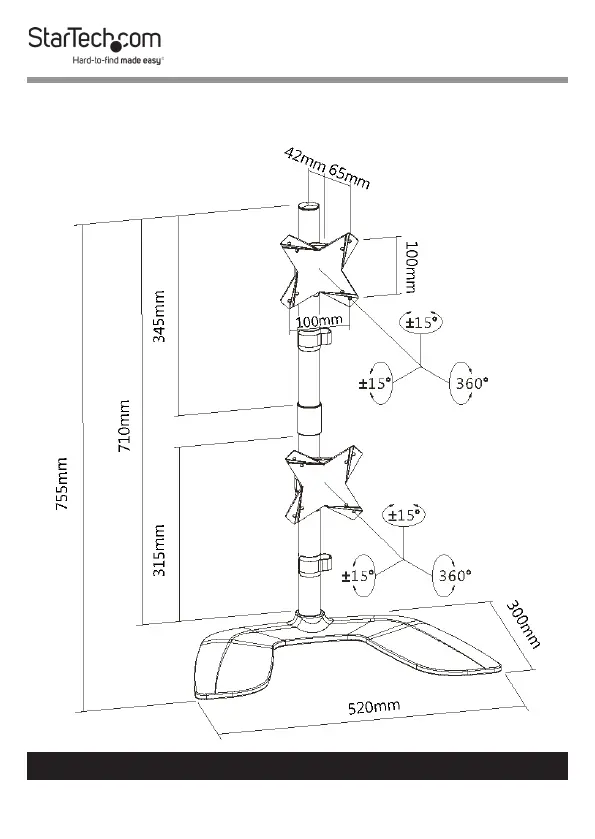

Product Dimensions

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Technical Specications

Type of Measurement Measurement

VESA Mounting Hole Pattern

75x75

100x100

Weight Capacity

Up to 17.6 lb. (8 kg)

Per Monitor

Tilt

+15 to -15

Maximum Screen Size

27” (686 mm)

Rotate

360

Swivel

+15 to -15

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Requirements

For the latest requirements, please visit www.StarTech.com/

ARMDUOVS.

• Two Monitors

Note: Both Monitors must conform to the size, weight, and

VESA pattern requirements (see Technical Specications).

• Phillips Head Screwdriver

• (Optional) Two People for Installation

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Assembly

Warning! Make sure that the weight of the Monitors does

not exceed the weight capacity of this product. If you exceed

the weight capacity, you might experience personal injury or

damage to the product.

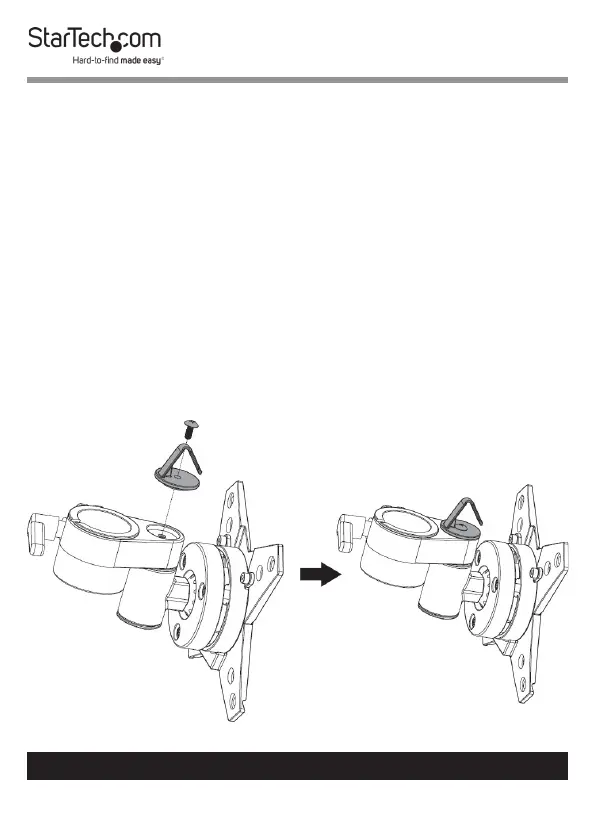

Attach the Cable-Management Hooks

1. Place the two VESA Mounts upside down on your Desk.

2. Place the Cable-Management Hooks onto the

corresponding circular indentations on the VESA Mounts.

3. Insert the Cable-Management Hook Screws through the

Cable-Management Hooks and into the VESA Mounts.

(Figure 1)

Figure 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

4. Tighten the Cable-Management Hook Screws using a

Phillips Head Screwdriver.

Note: There is a slight indentation in the Cable-Manage-

ment Hooks that allows you to t a Phillips Head Screw-

driver into the heads of the Cable-Management Hook

Screws.

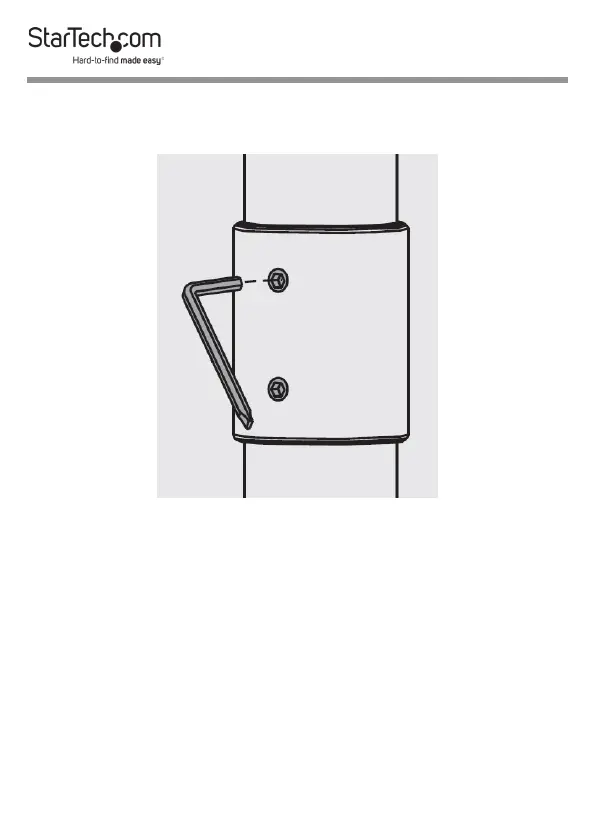

Attach the Lower Column

1. Loosen the Hex Screws that are located on the Base using

the 3 mm Hex Key.

2. Screw the Lower Pole onto the Base.

3. Tighten the Hex Screws that are located on the Base using

the 3 mm Hex Key. (Figure 2)

Figure 2

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attach the Lower VESA Mount

1. Loosen the Height-Adjustment Knob on one of the VESA

Mounts.

2. Slide one VESA Mount over the Lower Pole. (Figure 3)

Note: Do not tighten the Height-Adjustment Knob yet.

Attach the Upper VESA Mount

1. Loosen the Hex Screws on the Pole Connector using the 3

mm Hex Key.

Figure 3

2. Connect the Lower Pole to the Upper Pole using the Pole

Connector: Screw the Pole Connector onto the Lower Pole.

(Figure 4)

3. Screw the Upper Pole into the Pole Connector. (Figure 5)

4. Tighten the Hex Screws on the Pole Connector using the 3

mm Hex Key.

5. Loosen the Height-Adjustment Knob on the second VESA

Mount.

6. Slide the second VESA Mount over the Upper Pole.

(Figure 6)

Note: Do not tighten the Height-Adjustment Knob yet.

Figure 4

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Figure 5

Figure 6

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Attach the Monitors

ARMDUOVS is designed to be used with Monitors that are the

same size and weight. If you attach Monitors that are dierent

sizes and weights to the ARMDUOVS, you do so at your own

risk.

To accommodate dierent Monitor designs, ARMDUOVS

comes with four sets of Screws that are dierent lengths and

diameters.

To select the appropriate Screws for the type of Monitors that

you are using, complete the following:

• Determine whether the Monitor’s VESA Mounting Hole

Patterns are ush or inset. Inset mounts may require the

use of the Spacers.

• Determine the depth of the Mounting Holes on the

Monitors.

• Determine the diameter of the Mounting Holes on the

Monitors.

1. Loosen the two Flat-Head Screws on each of the Collars,

using the 3 mm Hex Key with Screwdriver Tip. (Figure 7)

Figure 7

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

2. Place the two Monitors screen side down, on a at, bare

surface. Ensure that the Monitors are stacked, with the top

of the lower Monitor touching the bottom of the upper

Monitor. This will ensure a seamless t.

3. Lift, tilt, and place the entire Monitor Mount Assembly over

the two Monitors.

4. Adjust the two VESA Mounts, up or down the Upper or

Lower Poles, so that the Mounting Holes on the VESA

Mount align with the VESA Mounting Hole Pattern on the

back of your Monitors. (Figure 8)

5. Position four of the Washers over the holes on each of the

VESA Mounts. (Figure 9)

Figure 8

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

8. Use a Phillips Screwdriver to tighten all of the Screws.

Warning! Do not over-tighten the Screws. If you encounter

resistance while you’re tightening the Screws, stop tighten-

ing. Failure to do so could result in damage to the Monitors.

9. Tighten the Height-Adjustment Knob on each of the VESA

Mounts. (Figure 10)

Note: The Height-Adjustment Knob has a ratchet feature.

Freely rotate the Height-Adjustment Knob by pulling it

away from the VESA Mount and rotating it to the desired

position.

10. Slide the Collars up the Lower and Upper Poles so that

each Collar sits ush with the corresponding VESA Mount.

11. Tighten the two Flat-Head Screws that are located on each

Collar, using the 3 mm Hex Key with Screwdriver Tip.

Figure 10

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Cable Management

1. Connect the Power and Video Cables to each Monitor.

2. Route the Power and Video Cables through the Cable-

Management Hooks.

3. Route the Power and Video Cables through the Cable-

Management Clips. (Figure 11)

Monitor Placement

Warning! Lifting the Monitor Mount Assembly is a two-

person job. Do not attempt to complete this task by yourself.

Tipping hazard! ARMDUOVS is free-standing and when

you attach Monitors to it, you increase the tipping hazard.

Figure 11

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. With Two People: Lift the Monitor Mount Assembly into an

upright position.

2. Position the Monitor Mount Assembly on the desired

location of your Desk.

3. Connect the Video Cables from each Monitor into your

Computer, Laptop, or Docking Station.

4. Connect the Power Cables from each Monitor to an AC

Electrical Outlet.

Operation

Adjust the Monitor Height

Warning! Adjusting the Monitor height is a two-person job.

Do not attempt to complete this task by yourself.

1. Person one: hold the Monitor in place.

2. Person two: Loosen the two Flat-Head Screws on each of

the Collars using the 3 mm Hex Key with Screwdriver Tip.

3. Person two: Loosen the Height-Adjustment Knob on each

of the VESA Mounts.

4. Person one: Adjust the height of the Monitor to the desired

viewing height.

5. Person two: Adjust both Collars so that each Collar sits

ush with the VESA Mounts. Tighten the two Flat-Head

Screws on each of the Collars, using the 3 mm Hex Key

with Screwdriver Tip.

Note: Do not over-tighten these Screws.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

6. Person two: Tighten the Height-Adjustment Knob on each

of the VESA Mounts.

Adjust the Swivel

ARMDUOVS comes ready for swivel adjustments. Your Monitors

can easily be adjusted by swivelling the Monitors from

side to side. To increase or reduce the tension for the swivel

adjustment, follow these steps:

1. Remove the Cap located on the VESA Mount to reveal the

4 mm Hex Screw. The Cap is located above the Cable-

Management Hook. (Figure 12)

2. Loosen the 4 mm Hex Screw.

3. Swivel the Monitor to the desired position.

4. Tighten the 4 mm Hex Screw using the 4 mm Hex Key.

Note: Do not over-tighten the 4 mm Hex Screws.

Figure 12

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

5. Return the Cap to its original position.

Adjust the Tilt and Rotation

ARMDUOVS comes ready for tilt and rotation adjustments.

Your Monitors can easily be adjusted by tilting the Monitors

forwards or backwards, or side to side. You can also rotate your

Monitors from portrait to landscape view. To increase or reduce

the tension for the tilt and rotation adjustments, follow these

steps:

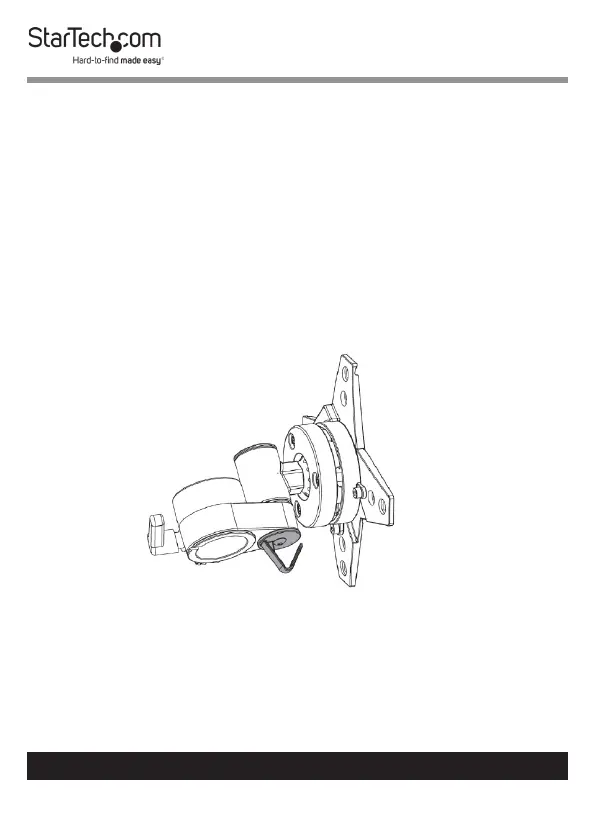

1. Loosen the three Hex Screws on the rear of the VESA

Mounts using the 3 mm Hex Key. (Figure 13)

Figure 13

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

2. Slide the VESA Mount up to remove it from the VESA

Mount Holder. (Figure 15)

Figure 15

Quickly Attaching a VESA Mount

1. Align the VESA Mount with the VESA Mount Holder and

slide the VESA Mount down aligning the Hex Screw Hole

on the VESA Mount with the Hex Screw Hole on the VESA

Mount Holder.

2. Insert the two Hex Screws through the Hex Screw Holes on

the VESA Mount Holder and into the Hex Screw Holes on

the VESA Mount.

3. Using the 3 mm Hex Key, tighten the Hex Screw.

Warranty Information

This product is backed by a ve-year warranty.

For further information on product warranty terms and conditions, please refer

to www.startech.com/warranty.

Limitation of Liability

In no event shall it be the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ocers, directors, employees or agents) for any damages (whether

direct or indirect, special, punitive, incidental, consequential, or otherwise), loss

of prots, loss of business, or any pecuniary loss, arising out of or related to the

use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or

consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Flad panel støtte
Model:	ARMDUOVS
Bredde:	290 mm
Dybde:	515 mm
Højde:	754 mm
Vægt:	4700 g
Brugervejledning:	Ja
Produktfarve:	Sort, sølv
Pakkevægt:	5300 g
Pakkedybde:	555 mm
Pakkebredde:	340 mm
Pakkehøjde:	160 mm
Husmateriale:	Aluminium, Plastic
Certificering:	REACH, CE
Monteringstype:	Skrivebord
Harmoniseret systemkode (HS):	85299097
Bæredygtighedscertifikater:	RoHS
Hovedkassen højde (udvendigt):	340 mm
Hovedkassens længde (udvendigt):	575 mm
Hovedkassens bredde (udvendigt):	360 mm
Højdejustering:	Ja
Drejevinkel område:	-15 - 15 °
Hældningsvinkelområde:	-15 - 15 °
Produkter pr. hovedkasse (udvendigt):	2 stk
Montering:	Fritstående
Rotationsvinkel:	360 °
Maksimal vægtkapacitet:	16 kg
Skruer inkluderet:	Ja
Maksimal skærmstørrelse kompatibilitet:	27 "
Antal understøttede skærme:	2
Minimal skærmstørrelse kompatibilitet:	13 "
Montering interface kompatibilitet (min.):	75 x 75 mm
Montering interface kompatibilitet (maks.):	100 x 100 mm
Antal skruer:	34
VESA-beslag inkluderet:	Ja
Nøgletype:	Sekskantnøgle
Nøgle inkluderet:	Ja
Antal spændeskiver inkluderet:	8
Antal afstandsstykker inkluderet:	16
