Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 10/28/2015

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x HDMI/VGA/mDP/Composite Table Surface Access Switch

• 1x Universal Power Adapter (NA/EU/UK/AU)

• 1x DieCut Outline

• 1x Instruction Manual

System Requirements

For Installation

• Table Surface for installation

• HDMI-enabled Display Device w/ HDMI Cable (i.e. television, projector)

• Network Host Device w/ Ethernet Cable (Router/Switch)

For Operation

• Video Input Device (HDMI/VGA/Composite/mDP) and/or Network

Interface Device

• (Optional) 1x Battery Powered Mobile Device (for Charge Port)

BOX4HDECP

HDMI®/VGA/mDP/Composite Table Surface Access Switch

*actual product may vary from photos

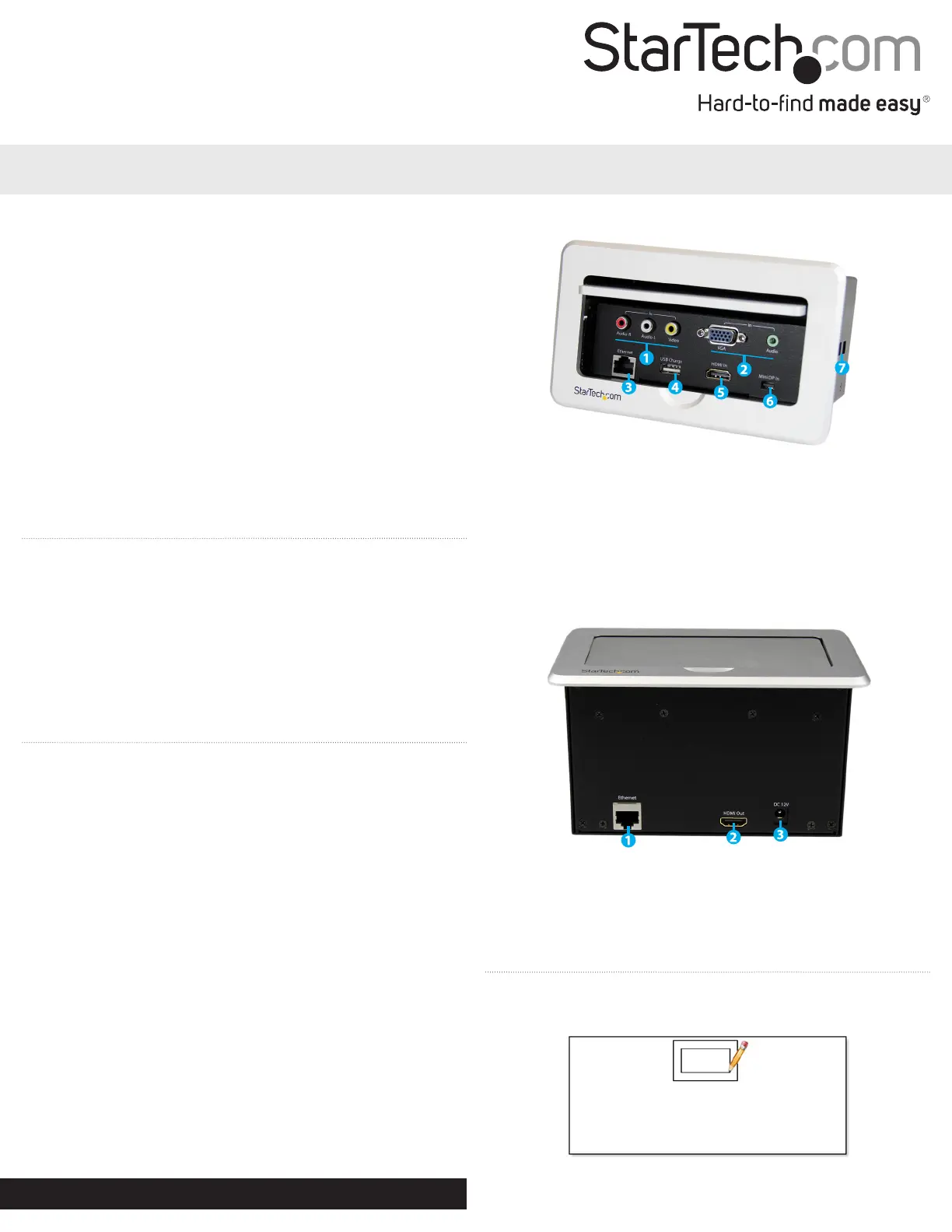

Front View

1. Composite Input Port

2. VGA Video Input Port +3.5mm Audio Input Port

3. Ethernet Input Port

4. USB Charge Port

5. HDMI Audio/Video Input

6. Mini DisplayPort Audio/Video Input Port

7. Mounting Bracket Support

Side View

1. Ethernet Output Port

2. HDMI Output Port

3. Power Adapter Port

Hardware Installation

1. Using the included die cut outline, trace the inner rectangle on

the table surface in your desired location.

For full operating instructions and specications, please visit:

www.StarTech.com/BOX4HDECP

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Note: Automatic switching enables the BOX4HDECP to

automatically select your attached video source. Please only connect

one video source at a time.

USB Charge Port Operation

The USB Charge Port is a battery charging port capable of charging

mobile devices faster than they typically would through a standard

USB port.

1. As required connect your battery powered mobile device to the

USB Charge Port using a USB cable (not included).

2. Disconnect your battery powered mobile device once the device

has completed charging.

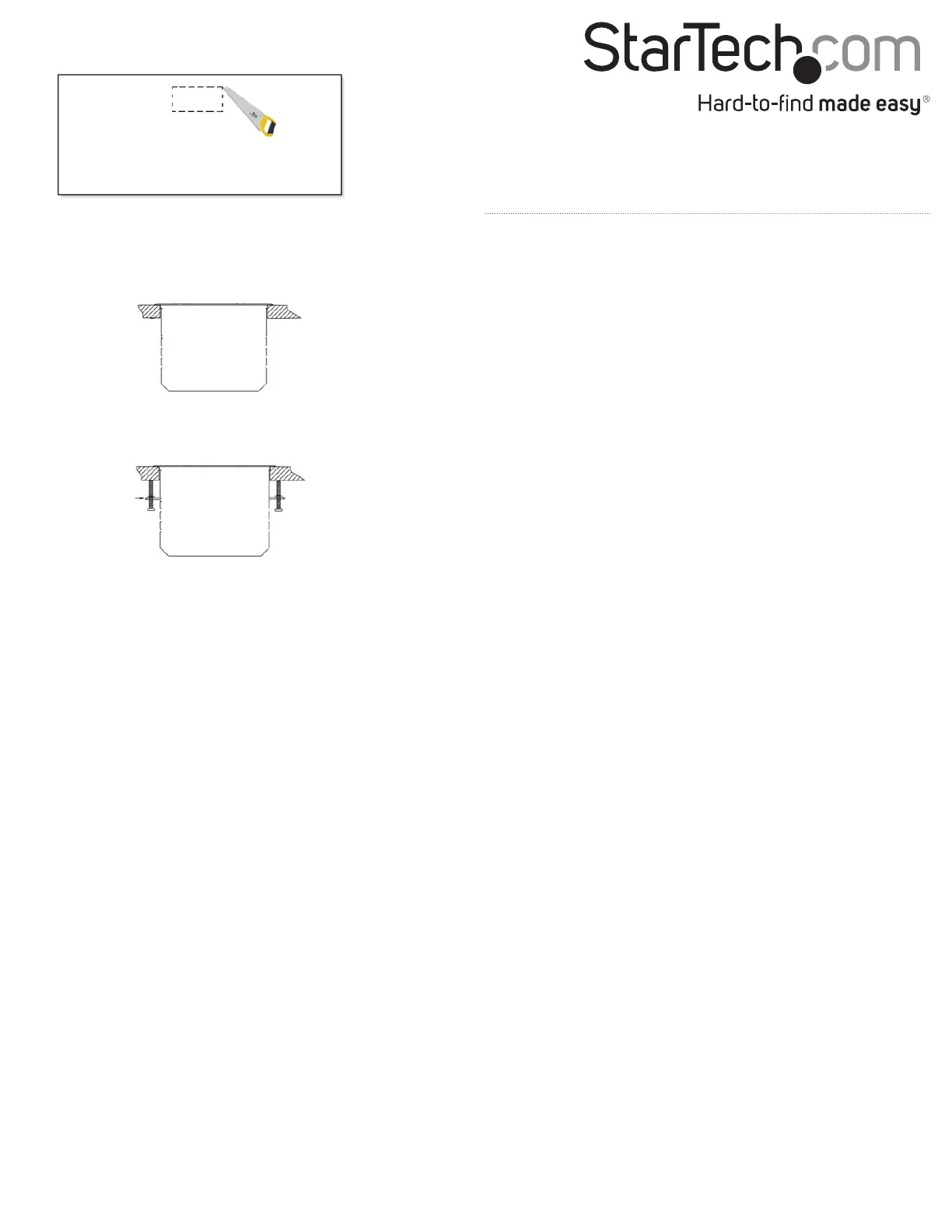

2. Carefully cut the rectangle out of the table surface.

3. Slide the BOX4HDECP into the rectangular hole in your table

surface.

Note: StarTech.com is not responsible for any undesired damage

to your table surface.

4. Under the table surface, slide each of the mounting brackets into

a mounting bracket slot on either side of the BOX4HDECP.

5. Using an HDMI cable (not included), connect your HDMI-enabled

Video Display Device to the HDMI audio/video output port on the

BOX4HDECP.

6. Using an Ethernet cable (not included), connect your

Network host device to the side Ethernet pass-through port

on the BOX4HDECP.

7. Using the included Power Adapter, connect the power adapter

port on the BOXHDECP to an available power outlet.

Hardware Operation

1. As required connect your audio/video source device(s) to any

available audio/video input port (HDMI / VGA+3.5mm Audio /

Composite / Mini DisplayPort) using the required cabling (not

included).

2. As required connect your Network interface device to the top

Ethernet pass-through port using an Ethernet cable

(not included).

Note: Attached Ethernet cable should not exceed 60m.

3. Your audio/video input source will now display on your

HDMI-enabled Video Display Device.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	BOX4HDECP
Bredde:	100 mm
Dybde:	170 mm
Højde:	100 mm
Vægt:	1131 g
Brugervejledning:	Ja
Produktfarve:	Black, Grey
Pakkevægt:	1750 g
Pakkedybde:	235 mm
Pakkebredde:	160 mm
Pakkehøjde:	190 mm
Understøttede videotilstande:	1080p, 720p
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	10 - 85 %
Ethernet LAN-porte (RJ-45):	2
Ethernet LAN:	Ja
Driftstemperatur (T-T):	0 - 40 °C
Maksimal opløsning:	1920 x 1080 pixel
Indgangsspænding for vekselstrømsadapter:	100 - 240 V
Udgangsspænding for vekselstrømsadapter:	12 V
Hurtig start guide:	Ja
Sammensat videoindgang:	1
Certificering:	FCC, CE, REACH
AC-adapter inkluderet:	Ja
Bæredygtighedscertifikater:	RoHS
Indgangsspænding:	100 - 240 V
Lydindgang:	3.5 mm, 2 x RCA
Maksimal videoopløsning:	1920 x 1080 pixel
Vekselstrømsadapterens udgangsstrøm:	2 A
Strømstiktype:	Type N
VGA (D-Sub) indgangsporte:	1
Antal HDMI-indgangsporte:	1
Output-grænseflade:	HDMI
Antal HDMI-udgangsporte:	1
Maksimal kabellængde:	15.2 m
Antal USB 2.0 type-A-porte:	1
Inkluderede strømstik typer:	AU, EU, NA, UK
Ekstern strømforsyning:	Ja
Understøttelse af lyd:	Ja
USB pass-through:	Ingen
