Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: April 21, 2022 2:00 PM

Transmitter

Side A Side B

Product ID

C15012-USB-EXTENDER

1-Port USB 2.0 Over Cat5/Cat6 Extender - 490 ft. (150 m)

Component Function

USB-B Host Port

(Transmitter)

• Connect to a USB-A Port on a Host

Computer

• USB 2.0 (480 Mbps)

RJ-45 Output

(Transmitter)

• Connect the Transmitter to the Receiver

using a Cat5e/Cat6 Cable

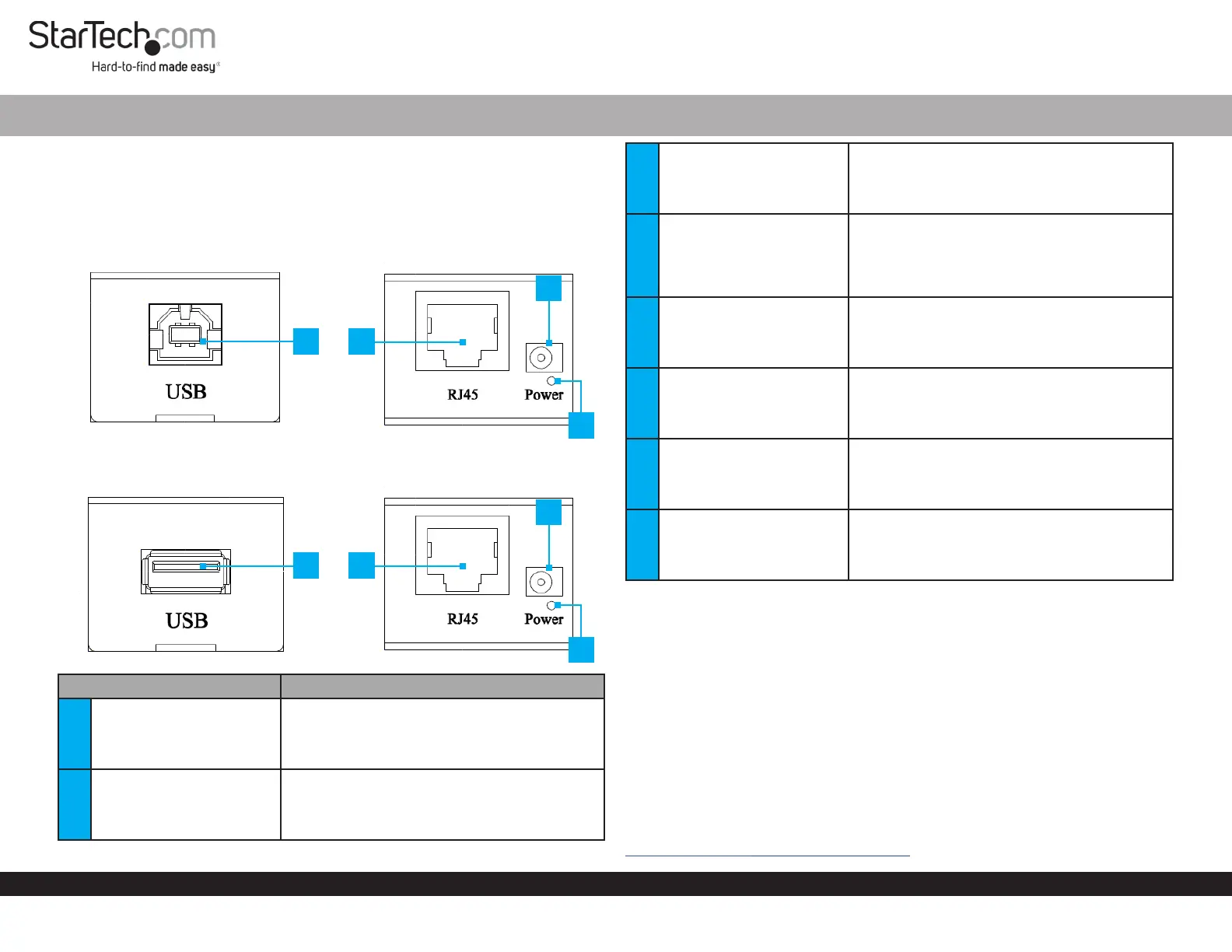

Product Diagram

DC 5V Power Port

(Transmitter)

*NOT REQUIRED

• Used to connect the Transmitter to a Power

Source. A local power source is not required,

as the Transmitter is powered by the USB

Host Computer

Power LED

(Transmitter)

• Indicates if the Transmitter is receiving

power

• Solid Green = Receiving Power

• O = Not Receiving Power

USB-A Peripheral Port

(Receiver)

• Connect a Remote USB-A Peripheral

• USB 2.0 (480Mbps)

• Supports up to 5 V/0.5 A (2.5 W) Power

RJ-45 Input

(Receiver)

• Connect the Receiver to the Transmitter

using a Cat5e/Cat6 Cable

DC 5V Power Port

(Receiver)

• Connect the Receiver to a Power Source,

using the Universal Power Adapter

Power LED

(Receiver)

• Indicates if the Receiver is receiving power

• Solid Green = Receiving Power

• O = Not Receiving Power

Package Contents

• USB Over Cat5/Cat6 Transmitter x 1

• USB Over Cat5/Cat6 Receiver x 1

• 2 ft (61 cm) USB-A to USB-B Host Cable x 1

• Universal Power Adapter (North America) x 1

Requirements

• Computer (local) with a USB-A Port

• USB peripheral device (remote) with Required Cabling

• Cat5/Cat6 Cabling. Up to 490 ft (150 m)

For the latest drivers, manuals, product information, technical specications, and

declarations of conformance, please visit:

www.StarTech.com/C15012-USB-EXTENDER

Receiver

Side A Side B

5 6

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a 2-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Installation

Note: While both the Transmitter (local) and Receiver (remote) feature a 5V DC Power

Port, the Transmitter is powered by the Host Computer (local) and an additional local

power source is not required. The included Universal Power Adapter is intended for the

Receiver (remote).

Transmitter (Local)

1. Connect the USB-B Host Port located on the Transmitter to a USB-A Port on the

Host Computer, using the included 2 ft (61 cm) USB-A to USB-B Host Cable.

2. Connect an RJ-45 Terminated Cat5e/Cat6 Cable (up to 490 ft. / 150 m) to the

RJ-45 Output Port, located on the Transmitter.

Note: The cable should not go through any networking equipment (e.g. router, switch,

etc.).

The Ethernet cable must follow the EIA/TIA-568-A or B Standard.

Receiver (Remote)

3. Connect the USB Peripheral Device to the USB-A Peripheral Port located on the

Receiver.

4. Connect the other side of the RJ-45 terminated Cat5e/Cat6 Cable (connected to the

Transmitter in Step 2) to the RJ-45 Input Port, located on the Receiver.

5. Connect the included Universal Power Adapter from an AC Electrical Outlet to the

5V DC Power Port located on the Receiver.

6. The Host Computer (local) will recognize the connected device as USB Peripheral

Device (remote).

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	C15012-USB-EXTENDER
Type:	Konsol sender & modtager
Bredde:	67 mm
Dybde:	32 mm
Højde:	25 mm
Vægt:	173 g
Produktfarve:	Sort
Pakkevægt:	173 g
Pakkedybde:	194 mm
Pakkebredde:	220 mm
Pakkehøjde:	60 mm
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Strømforbrug (typisk):	15 W
Driftstemperatur (T-T):	0 - 50 °C
Husmateriale:	Metal
Kabler inkluderet:	USB Type-A til USB Type-B
DC-in-stik:	Ja
LED-indikatorer:	Strøm
Strømkilde type:	DC
Udgangsspænding:	5 V
Udgangsstrøm:	3 A
AC-adapter inkluderet:	Ja
Bæredygtighedscertifikater:	CE, RoHS
Indgangsspænding:	100 - 240 V
Hovedkassen højde (udvendigt):	278 mm
Hovedkassens længde (udvendigt):	400 mm
Hovedkassens bredde (udvendigt):	400 mm
Plug and play:	Ja
Indgangsstrøm:	0.6 A
Maksimal overførselsafstand:	150 m
Produkter pr. hovedkasse (udvendigt):	12 stk
Strømstiktype:	Type H
Antal RJ-45-porte:	2
Dataoverførselshastighed:	480 Mbit/s
Antal USB 2.0 Type-B porte:	1
Understøttede kabeltyper:	Cat5e, Cat6
Antal USB 2.0 type-A-porte:	1
