Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: November 27, 2019 1:38 PM

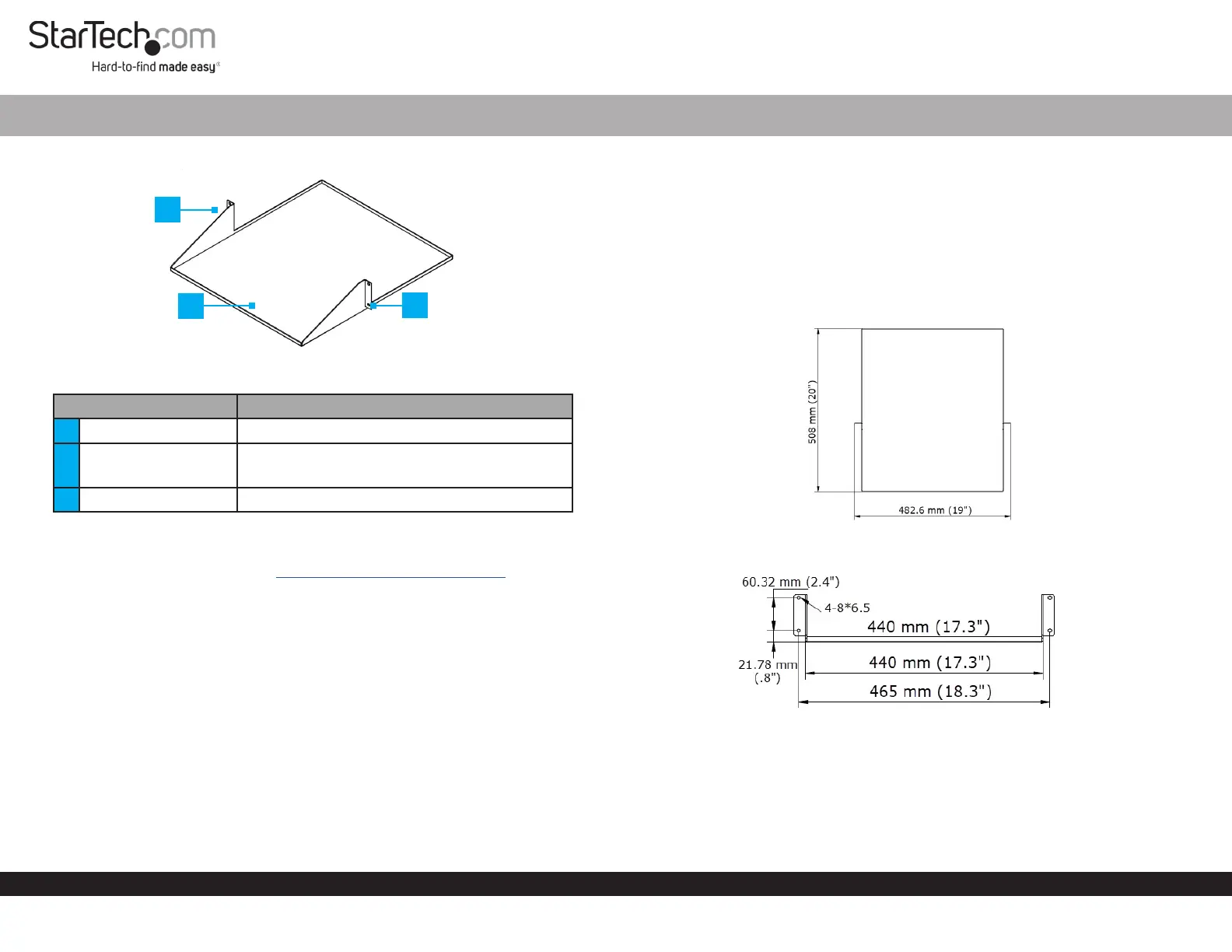

Product Diagram (CABSHF2POST2)

Component Function

1 Mounting Bracket • Used to mount the Shelf within a Rack.

2 Shelf

• Used to support equipment within a Rack.

• Maximum weight capacity = 75 lb (34 kg).

3 Mounting Holes • Used to secure the Shelf to a Rack.

Requirements

For the latest requirements, please visit www.startech.com/CABSHF2POST2

• (Optional) Cage Nut Tool x 1

• Phillips Head Screwdriver x 1

Installing the Shelf in a Rack

1. Determine the location within the Rack that you want to install the Shelf.

Note: The Shelf requires 2U of free space to mount within a Rack.

2. If the Rack you are using has Square Mounting Holes, insert the M6 Cage Nuts (2

per Mounting Rail) into the Square Mounting Holes on the Mounting Rails. Insert

one side of the M6 Cage Nut (included) into the Square Mounting Hole and push the

other side into the Square Mounting Hole, until it locks into place.

Note: Use a Cage Nut Tool if you are having issues installing the M6 Cages Nuts into

the Rack.

2-Post Rack Shelf with 20 Inch Depth

3. Align the Mounting Holes on the Bracket with the M6 Cages Nuts (2 per

Mounting Rail) installed in step 2.

4. Insert an M6 Screw (2 per Mounting Rail) through a M6 Plastic Washer (included)

and through the Mounting Holes on the Bracket and into the M6 Cage Nut.

5. Using a Phillips Head Screwdriver tighten the M6 Screws, being careful not to

over-tighten.

Product Dimensions

Top

Front

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	CABSHF2POST2
Type:	Stativhylde
Bredde:	482.6 mm
Dybde:	508 mm
Højde:	88 mm
Vægt:	5400 g
Produktfarve:	Sort
Pakkevægt:	5600 g
Pakkedybde:	550 mm
Pakkebredde:	540 mm
Pakkehøjde:	110 mm
Husmateriale:	Stål
Materiale:	Stål
Certificering:	REACH
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Hovedkassen højde (udvendigt):	585 mm
Hovedkassens længde (udvendigt):	570 mm
Hovedkassens bredde (udvendigt):	560 mm
Produkter pr. hovedkasse (udvendigt):	5 stk
Maksimal vægtkapacitet:	34 kg
Overholdelse af branchestandarder:	EIA/ECA-310-E
Skruer inkluderet:	Ja
Indre bredde:	436 mm
Forbedret kabelstyring:	Ingen
Rackkapacitet:	2U
Antal skruer:	4
Møtrikker inkluderet:	Ja
Antal spændeskiver inkluderet:	4
Antal møtrikker:	4
