Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: November 27, 2019 1:42 PM

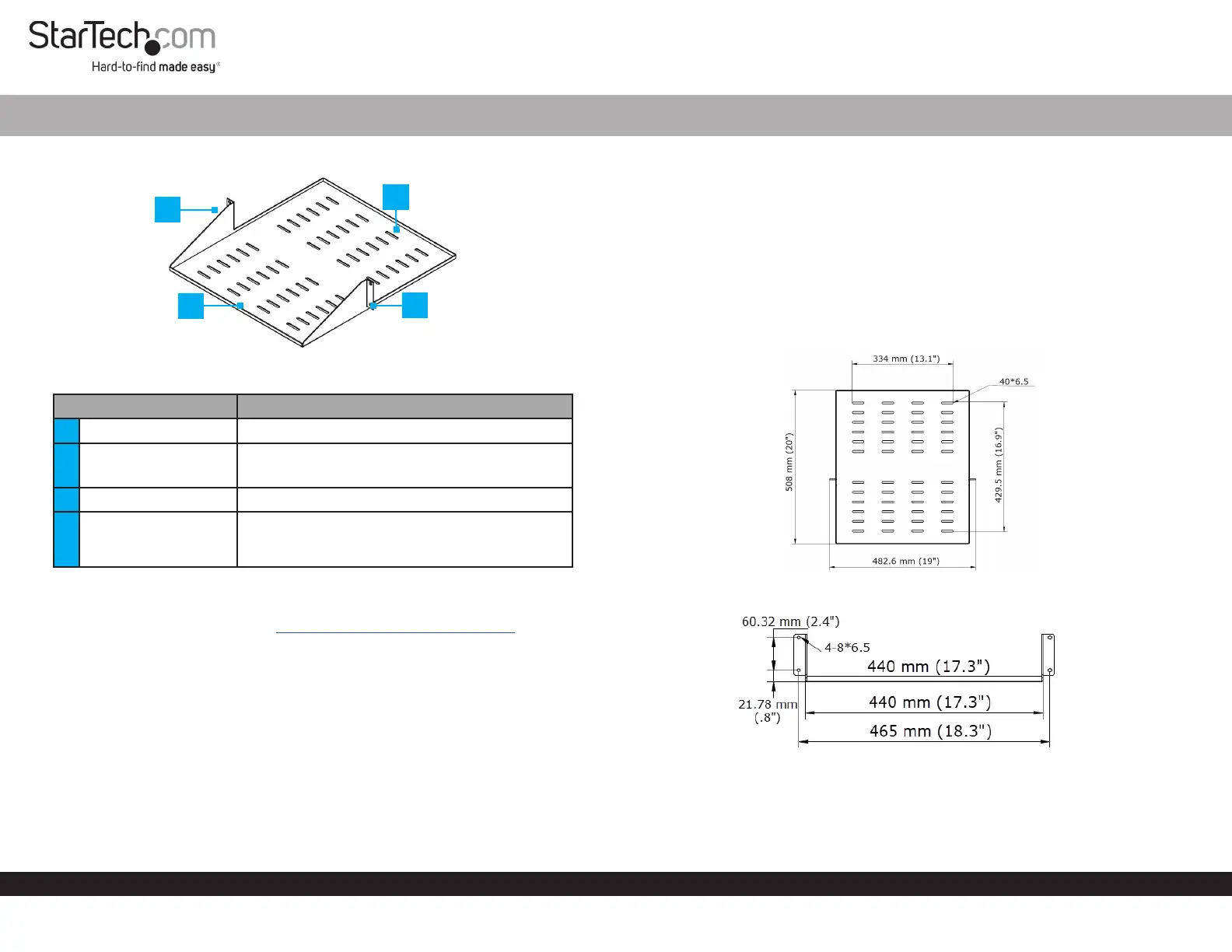

Product Diagram (CABSHF2POSTV2)

Component Function

1 Mounting Bracket • Used to mount the Shelf within a Rack.

2 Shelf

• Used to support equipment within a Rack.

• Maximum weight capacity = 75 lb (34 kg).

3 Mounting Holes • Used to secure the Shelf to a Rack.

4 Air Vents

• Used to allow air to pass through the Air Vents,

providing cooling for the equipment on the

Shelf.

Requirements

For the latest requirements, please visit www.startech.com/CABSHF2POSTV2

• (Optional) Cage Nut Tool x 1

• Phillips Head Screwdriver x 1

Installing the Shelf in a Rack

1. Determine the location within the Rack that you want to install the Shelf.

Note: The Shelf requires 2U of free space to mount within a Rack.

2. If the Rack you are using has Square Mounting Holes, insert the M6 Cage Nuts (2

per Mounting Rail) into the Square Mounting Holes on the Mounting Rails. Insert

one side of the M6 Cage Nut (included) into the Square Mounting Hole and push the

other side into the Square Mounting Hole, until it locks into place.

2-Post Rack Shelf with 20 Inch Depth

Note: Use a Cage Nut Tool if you are having issues installing the M6 Cages Nuts

into the Rack.

3. Align the Mounting Holes on the Bracket with the M6 Cages Nuts (2 per

Mounting Rail) installed in step 2.

4. Insert an M6 Screw (2 per Mounting Rail) through a M6 Plastic Washer (included)

and through the Mounting Holes on the Bracket and into the M6 Cage Nut.

5. Using a Phillips Head Screwdriver tighten the M6 Screws, being careful not to

over-tighten.

Product Dimensions

Top

Front

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	CABSHF2POSTV2
Type:	Stativhylde
Bredde:	483 mm
Dybde:	508 mm
Højde:	88 mm
Vægt:	3800 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Pakkevægt:	5300 g
Pakkedybde:	550 mm
Pakkebredde:	545 mm
Pakkehøjde:	110 mm
Husmateriale:	Stål
Certificering:	REACH, CE
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Hovedkassen højde (udvendigt):	570 mm
Hovedkassens længde (udvendigt):	670 mm
Hovedkassens bredde (udvendigt):	575 mm
Produkter pr. hovedkasse (udvendigt):	5 stk
Maksimal vægtkapacitet:	34 kg
Overholdelse af branchestandarder:	EIA/ECA-310-E
Skruer inkluderet:	Ja
Rackkapacitet:	2U
Antal skruer:	4
Brugbar bredde:	436 mm
Skruetype:	M6
Spændeskiver inkluderet:	Ja
Burmøtrikker inkluderet:	Ja
Antal burmøtrikker:	4
Antal spændeskiver inkluderet:	4
