Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: June 22, 2022 4:16 PM

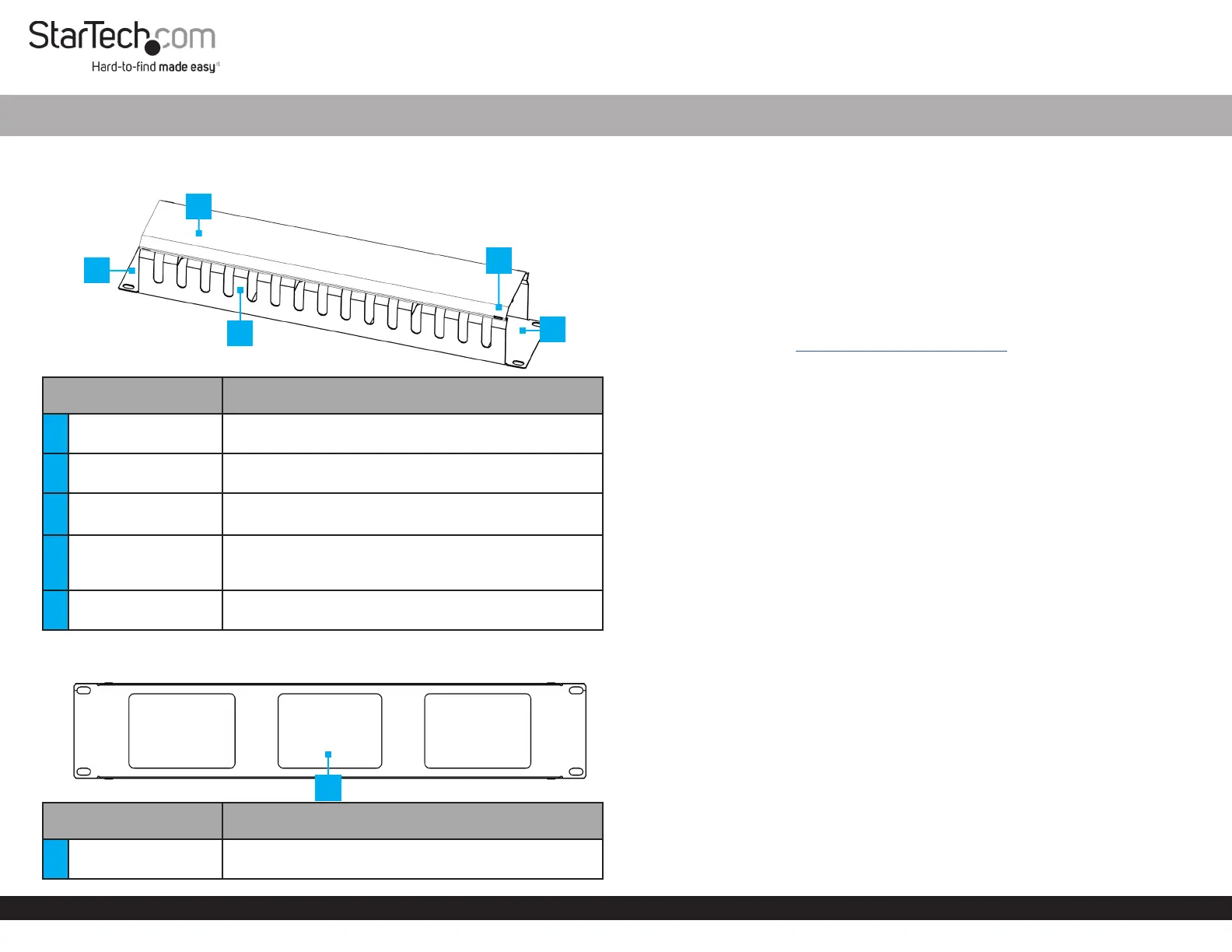

Product Diagram (CMDUCT2U2)

Front View

Component Function

1 Mounting Ears

• Secures the Duct Cable Management Panel to the

rack

2 Duct Cover

• Keeps cables out of the way, and it can be removed for

installation or upgrades

Cable Management

Fingers

• Allows cables to be inserted and held in place

• Available along the length on both sides

4 Duct Cover Latches

• Each corner of the Duct Cable Management Panel

has a latching mechanism that keeps the Duct Cover

in place

5 Cable Path

• Allow the inserted cables to run o to the side of the

Duct Cable Management Panel

Rear View

Component Function

1 Pass-through Holes

• Insert the cables through the Pass-through Holes as

needed

2U Horizontal Finger Duct Cable Management Panel for Racks - Includes Cover

Package Contents

• Horizontal Cable Duct x 1

• M6x12 mm Screws x 4

• M6 Cage Nuts x 4

• M6 Plastic Washers x 4

• Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.startech.com/CMDUCT2U2

• Phillips head screwdriver

• Cage nut tool (Optional)

Installation

1. Determine the U Height Number or Mounting Location on the Posts of the rack

where to install the Duct Cable Management Panel.

2. Install the M6 Square Cage Nuts (x 4) onto the Square Cage Nut Holes on the

chosen U Height Number. Use a Cage Nut Tool if available or your preferred

installation method.

3. Align the Mounting Ears with the previously inserted M6 Square Cage Nuts on the

rack posts.

4. Insert the M6 Plastic Washers (x 4) onto the M6x12 mm Screws (x 4). Use a Phillips

Head Screwdriver to install the M6x12 Screws (x 4) and fasten the Duct Cable

Management Panel to the Mounting Posts of the rack.

Operation

1. Insert the cables through the Cable Management Fingers and the Pass-through

Holes at the rear. Organize as desired.

2. Latch and secure the Duct Cover using the Duct Cover Latches (x 4).
