Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 05/26/2014

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x 2U Horizontal Cable Manager (for CMPNL2U) or 1x 2U Combo

Cable Manager (for CMPNL2UC)

• 24x Cable Clamps

• 4x 5/8” #10-32 UNF Screws

• 4x #10-32 UNF Cage Nuts

• 4x 5/8” #12-24 UNC Screws

• 4x #12-24 UNC Cage Nuts

System Requirements

• Open Frame server rack (2 or 4 post)

CMPNL2U / CMPNL2UC

2U Horizontal Finger Duct and D-Ring Hook Rack Cable Manager

2U Horizontal Finger Duct and Vertical / Horizontal D-Ring Hook Rack Cable Manger

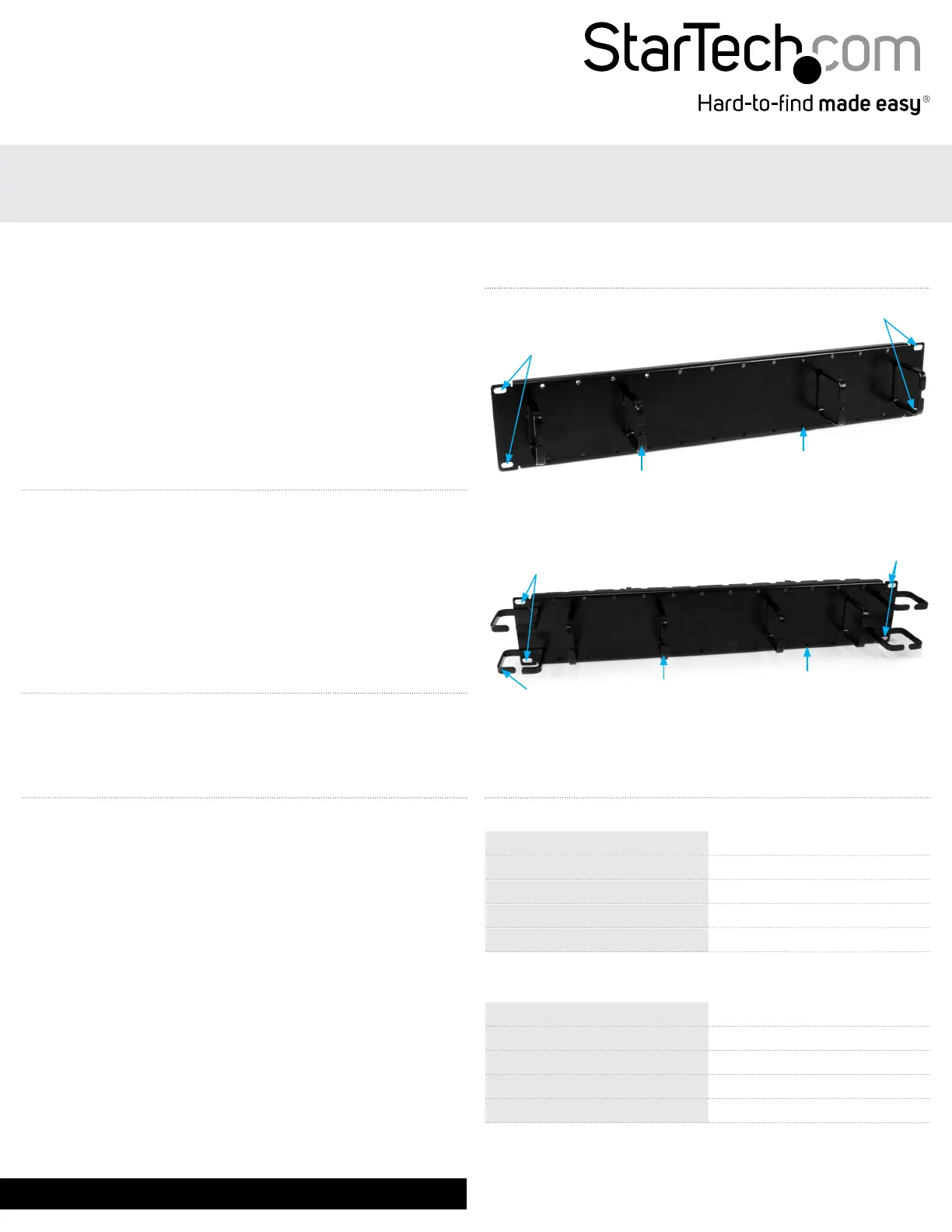

Product Diagram

CMPNL2U

CMPNL2UC

Installation

1. Determine the location on the rack where you wish to install the

cable manager; an open 2U space is required.

2. Depending on the rack type, insert the four provided #10-32

or #12-24 cage nuts on opposite posts at equal height levels/

positions.

3. Align the cable managers mounting points with the cage nuts on

the rack.

4. Using the four provided #10-32 or #12-24 screws and a

screwdriver, secure the cable manager to the rack.

5. Insert the provided Cable clamps into the front Cable Clamp

mounting points as desired.

6. Insert and organize your cables as desired.

Specications

CMPNL2U

U Height 2U

Color Black

Enclosure Type Steel

Dimensions (WxDxH) 482 x 102 x 88 mm

Product Weight 1400g (49.42 oz)

CMPNL2UC

U Height 2U

Color Black

Enclosure Type Steel

Dimensions (WxDxH) 516 x 102 x 88 mm

Product Weight 1540g (54.36 oz)

Mounting Point

Horizontal

D-Ring Hook

Cable Clamp

Mounting Point (x24)

Mounting Point

Vertical

D-Ring Hook

Horizontal

D-Ring Hook

Cable Clamp

Mounting Point (x24)

Mounting Point

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	CMPNL2UC
Type:	Kabelbakkepanel
Bredde:	516 mm
Dybde:	102.2 mm
Højde:	88.1 mm
Vægt:	1500 g
Produktfarve:	Sort
Pakkevægt:	1948.4 g
Pakkedybde:	563 mm
Pakkebredde:	126 mm
Pakkehøjde:	108 mm
Husmateriale:	Stål
Certificering:	CE
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Skruer inkluderet:	Ja
Rackkapacitet:	2U
