Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 18, 2019

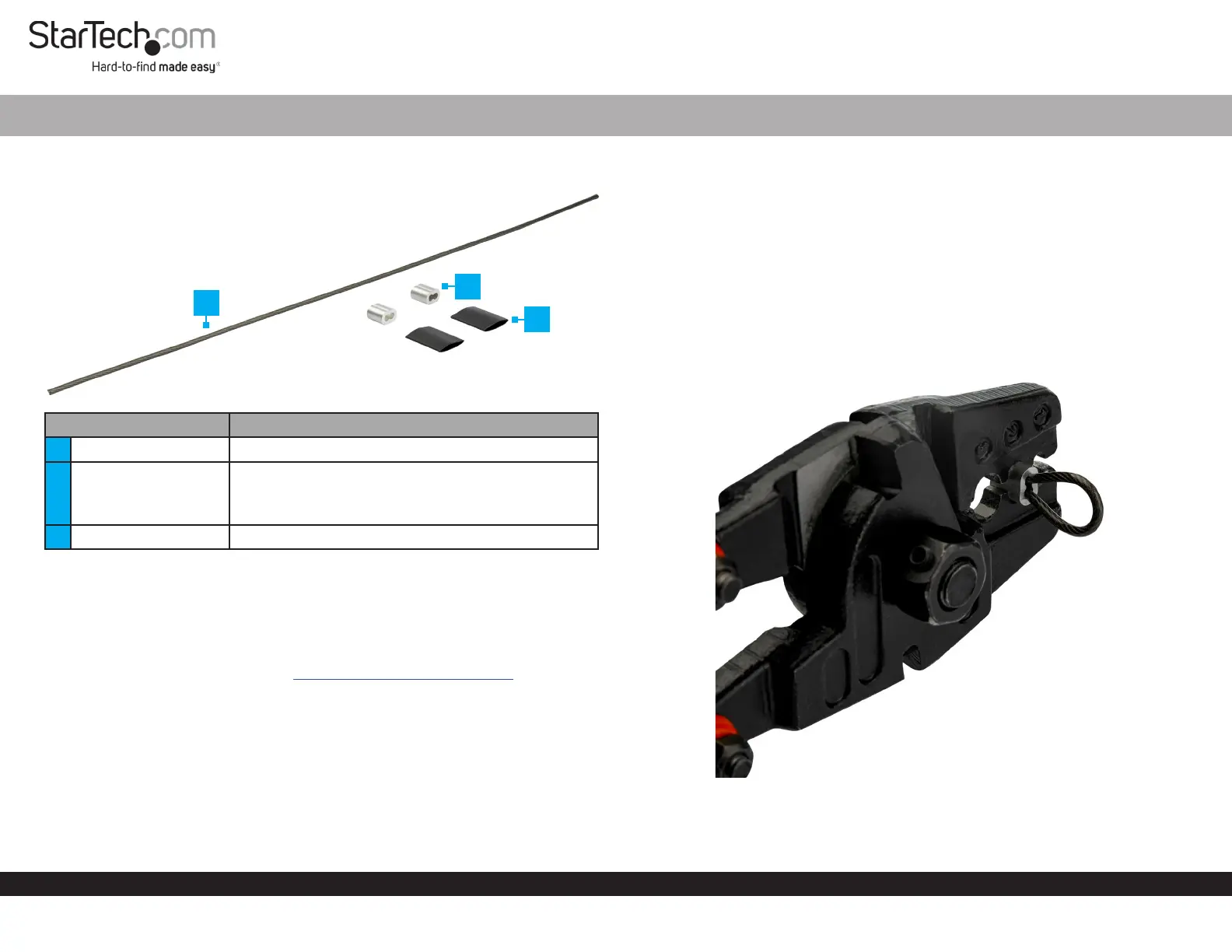

Product Diagram (CONNLOCKPK)

Part Function

1 Steel Cable Tether • Tether A/V Cables to A/V Adapters

2 Aluminum Ferrule

• Create a loop by routing the Steel Cable Tether

through each opening

• Crimp to secure the Steel Cable Tether loop

3 Heat Shrink Tubing • Shrink around the crimped Aluminum Ferrules

Requirements

• Swaging Tool x 1

• (Optional) Heat Gun x 1

• (Optional) Wire Cable Cutter x 1

For the latest requirements please visit: www.startech.com/CONNLOCKPK.

Installation

1. (Optional) Thread the Heat Shrink Tubing onto the center of the Steel Cable

Tether.

Note: This step is necessary if you plan to utilize the Heat Shrink Tubing.

2. Thread the Aluminum Ferrules onto each end of the Steel Cable Tether.

3. Wrap one end of the Steel Cable Tether around the A/V Cable.

Connectivity Lock - Steel Cable Tether

4. Route the working end of the Steel Cable Tether back into the second hole in the

Aluminum Steel Ferrule.

5. Cinch the Steel Cable Tether until it ts snugly around the A/V Cable.

Note: Do not cinch the Steel Cable Tether down all the way. Cinch the Steel Cable

Tether until it is no longer possible to slip the loop over the connectors of the AV

Cable.

6. Crimp the Aluminum Steel Ferrule in the appropriate tting of a Swaging Tool.

(Figure 1)

Note: It may be necessary to crimp the Aluminum Steel Ferrule a few times to create

a strong and circular shaped crimp.

7. Wrap the other end of the Steel Cable Tether around the cable portion of the A/V

Adapter.

Figure 1

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes

only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to

which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related

documents are the property of their respective holders.

Warranty Information

This product is backed by a ve-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

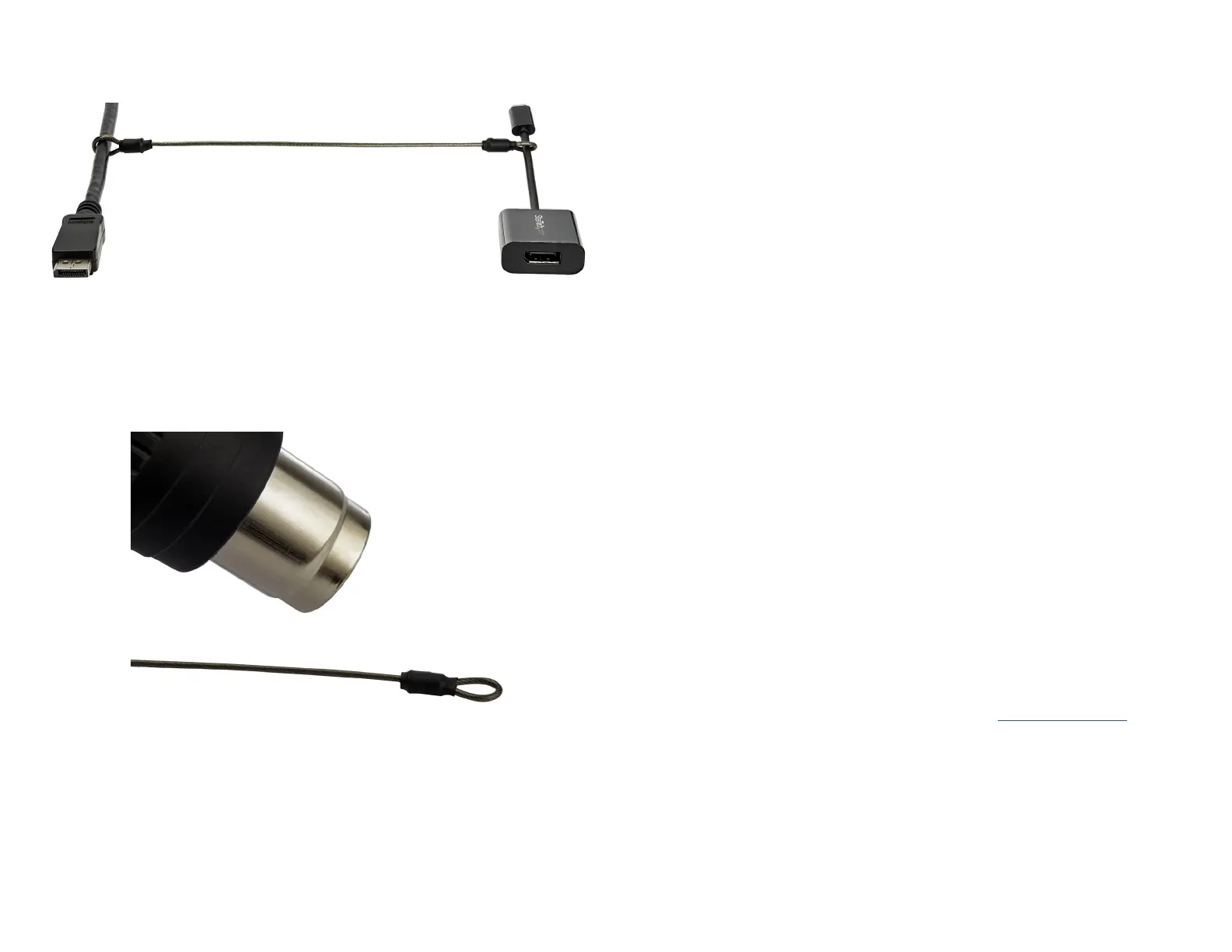

8. Repeat steps 4 to 6 to secure the Connectivity Lock to the cable portion of the A/V

Adapter. (Figure 2)

9. (Optional) Slide the Heat Shrink Tubing over the crimped Aluminum Ferrules.

10. (Optional) Apply heat to the Heat Shrink Tubing using a Heat Gun. Always keep

the Heat Gun moving to ensure the heat is evenly distributed over the Heat Shrink

Tubing. (Figure 3)

Note: Apply just enough heat to shrink the Heat Shrink Tubing. Excessive heat will

melt the nylon sheath that covers the Steel Cable Tether.

Removal

• Cut both ends of the Steel Cable Tether using a Wire Cable Cutter.

Note: Ensure the cut is made close to the Aluminum Steel Ferrule to prevent any

damage to the Cables.

Figure 2

Figure 3

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	CONNLOCKPK10
Type:	Kabeltilslutning
Bredde:	2.2 mm
Højde:	2.2 mm
Vægt:	29 g
Antal pr. pakke:	10 stk
Produktfarve:	Sort
Pakkevægt:	73 g
Pakkedybde:	200 mm
Pakkebredde:	220 mm
Pakkehøjde:	5 mm
Certificering:	REACH, TAA
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Formål:	Gulv
Hovedkassen højde (udvendigt):	220 mm
Hovedkassens længde (udvendigt):	490 mm
Hovedkassens bredde (udvendigt):	437 mm
Længde:	0.3 m
Produkter pr. hovedkasse (udvendigt):	160 stk
Antal varmekrympeslanger:	20 stk
Antal samleringe:	20 stk
