Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 8, 2019 3:44 PM

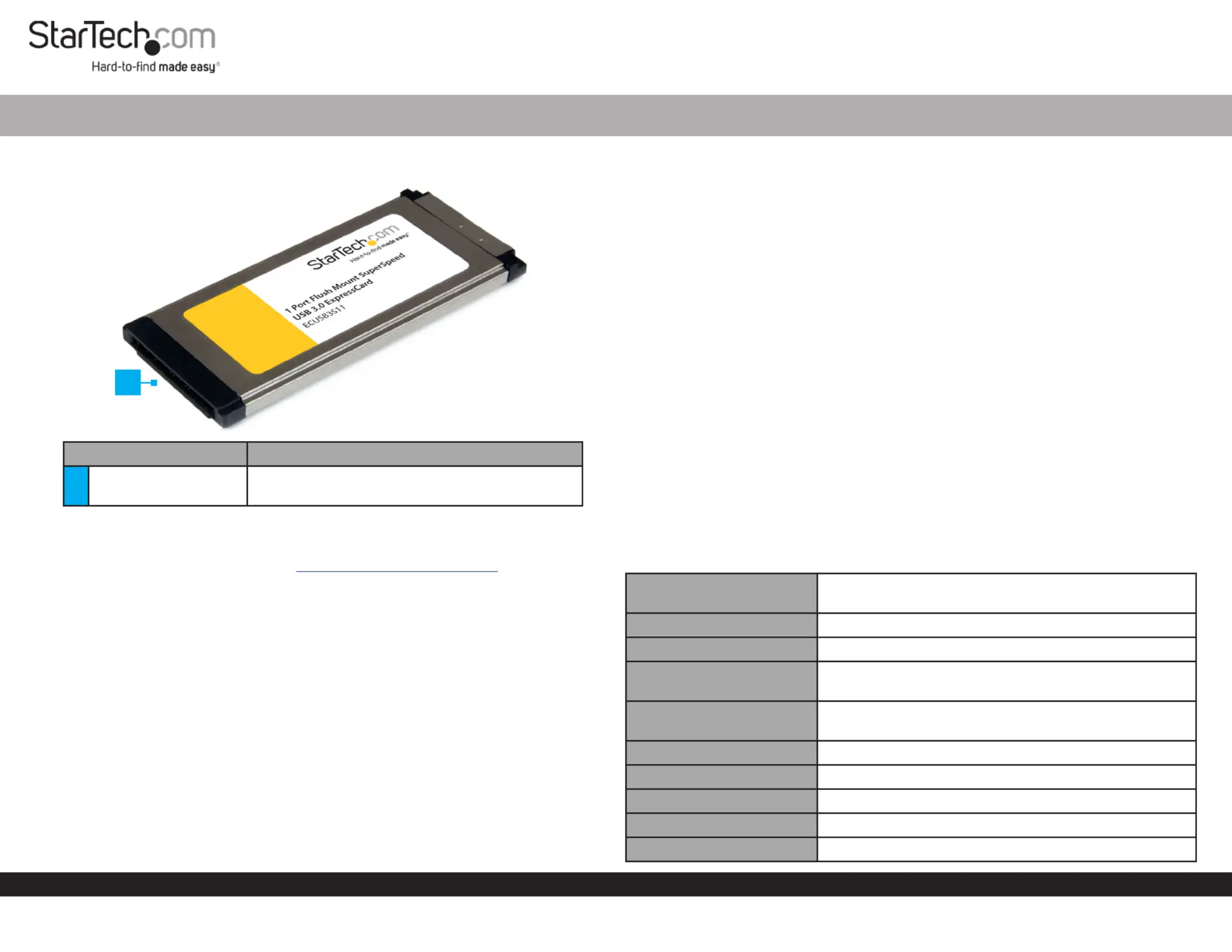

Product Diagram (ECUSB3S11)

Component Function

1Express Card Port

• Used to connect the to the Express Card Host

Computer’s Express Card Slot.

Requirements

For the latest requirements, please visit . www.startech.com/ECUSB3S11

• An available ExpressCard port

• Microsoft® Windows® XP, Vista, 7, or 8 / Server 2003, or Server 2008 R2

Installation

Hardware installation

Note: Turning the computer o to insert/remove is not necessary as ExpressCard

they are hot-pluggable.

1. Slide the (card label side up) into an on the ExpressCard Port Express Card Slot

Host Computer.

2. Push the into the , until it clicks and locks into Express Card Express Card Slot

place.

3. To eject the , simply push the card further into the slot until it clicks, Express Card

and then release and it will then be automatically ejected from the slot.

1 Port Flush Mount SuperSpeed USB 3.0 ExpressCard

Notes: Some t loosely into an This has the ExpressCard/34 ExpressCard/54 Slot.

potential to cause movement and can result in accidental disconnection. A snap-on 34

mm to 54 mm stabilizer bracket is included for such installations.

Optional: For some high-powered USB 3.0 devices, additional power may be required.

Connect the USB to DC adapter cable from a USB port on the computer system to the

DC plug on the card. This will provide additional power to the USB 3.0 port.

Driver Installation

Windows XP/Server 2003/Vista/7/Server 2008 R2/8

1. Insert the included into the . Driver CD Host Computer’s CD/DVD Drive

Note: If the wizard appears on the screen, select or Found New Hardware Cancel

close the window and do not install the drivers.

2. The will automatically launch, click to display the contents on the . If not, CD CD

open ( in XP) and double-click on the . Computer My Computer CD/DVD

3. Enter the folder , then and click the le . USB 3.0 Host NEC Setup.exe

4. This should launch the driver Installation wizard. Continue through the wizard and

once complete, all the necessary drivers will be installed.

Specications

Bus Interface

ExpressCard 2.0 USB 3.0 base specication 1.0 Intel xHCI

specication 0.95

Form Factor “Slim” ExpressCard/34 (34mm)

Chipset ID NEC/Renesas µPD720202

Connectors

1 x USB 3.0 type A female

1 x DC Power female (type A)

Maximum Data Transfer

Rate

USB 3.0: 5Gbps*

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -10°C ~ 85°C (14°F ~ 185°F)

Humidity 5% ~ 95% RH

Dimensions (LxWxH) 75mm x 34mm x 5mm

Weight 17.5g

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a three-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	ECUSB3S11
Bredde:	34 mm
Dybde:	75 mm
Højde:	5 mm
Vægt:	24 g
Brugervejledning:	Ja
Produktfarve:	Sort, sølv
Pakkevægt:	108 g
Pakkedybde:	131 mm
Pakkebredde:	162 mm
Pakkehøjde:	32 mm
Opbevaringstemperatur (T-T):	-10 - 85 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	1
Driftstemperatur (T-T):	0 - 50 °C
Kabler inkluderet:	USB
Certificering:	CE, FCC, TAA, REACH
Harmoniseret systemkode (HS):	84733020
Bæredygtighedscertifikater:	RoHS
Understøttede Linux-operativsystemer:	Ja
Værtsgrænseflade:	ExpressCard
Intern:	Ingen
Drivere inkluderet:	Ja
Understøttede operativsystemer til servere:	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Monteringsbeslag inkluderet:	Ja
Output-grænseflade:	USB 3.2 Gen 1 (3.1 Gen 1)
Understøtter UASP:	Ja
Dataoverførselshastighed (maks.):	5 Gbit/sek.
Chipsæt:	Renesas/NEC - µPD720202
