Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 07/26/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 2 x Ethernet over Coax converter box

• 2 x Universal Power Adapter (NA/UK/EU)

• Instruction Manual

System Requirements

• 10/100/1000Mbps compatible Ethernet network/equipment

• Coaxial cabling (RG-59/6/7/11)

• Available AC power outlet at converter box locations

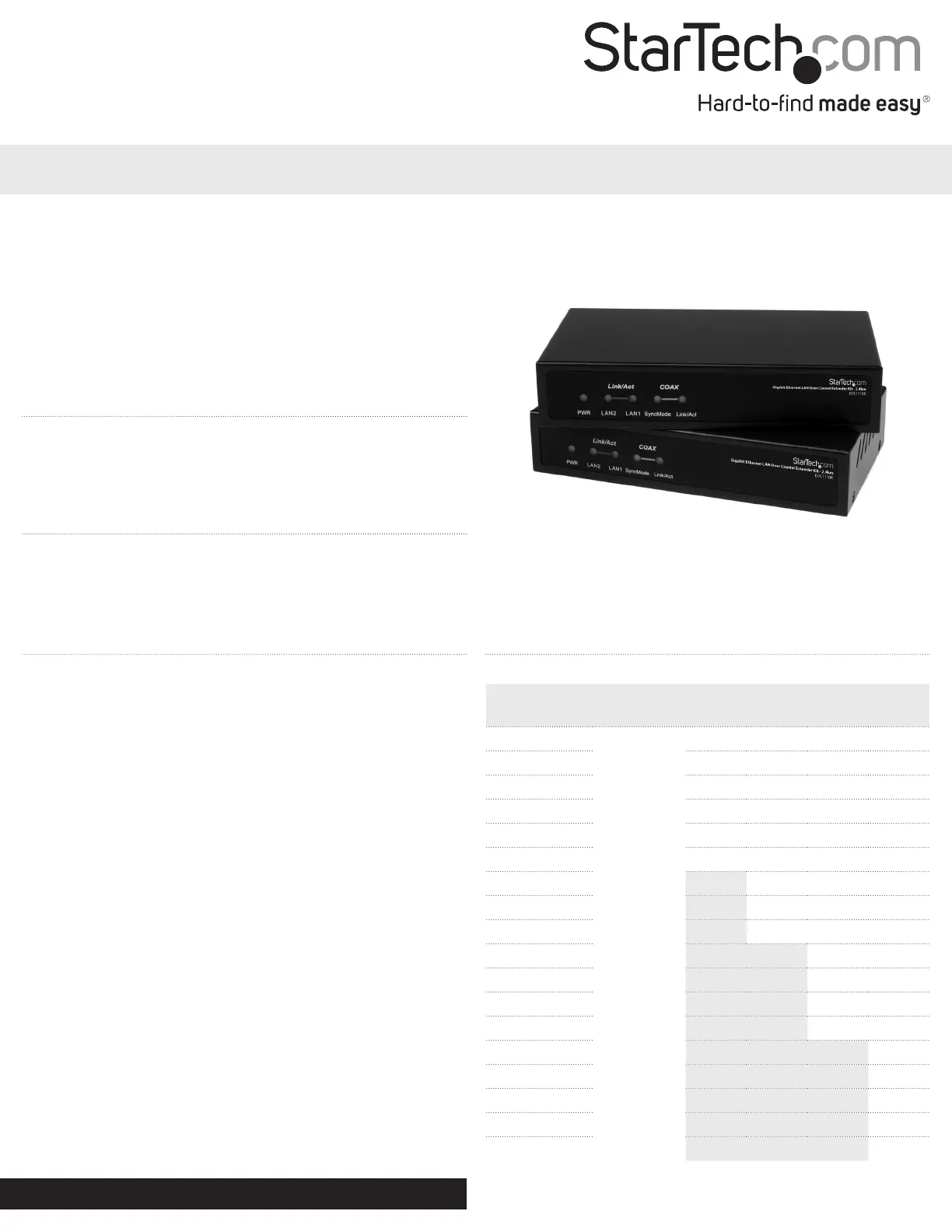

EOC1110K

Gigabit Ethernet LAN Over Coaxial Extender Kit - 2.4km

*actual product may vary from photos

Installation

Hardware Installation

NOTE: Both of the converter boxes in the EOC1110K kit are identical,

so they can be installed at either end, in any order.

1. At one of the locations for the converter box, connect an RJ45

Ethernet cable from the existing Ethernet network or computer

network adapter to the “LAN” port on the converter box.

2. Connect the coax cable to the “Link” F-Connector on the converter.

OPTIONAL: If also transmitting analog cable TV signals over the

coax line, connect the CATV F-Connector to a TV or TV receiver.

Digital cable TV signals are not supported.

3. Connect the included power adapter. The power LED should

light up solid. The LAN Link/Act LED should light up solid when

successfully connected to an Ethernet device on the “LAN” port.

4. Setup the other converter boxes by following the same Steps 1~4

5. Once both units are setup, they should be able to automatically

locate one another over the coax cabling. The Coax Link and Sync

LEDs should stay solid once communication is established. The

Coax Link LED will ash during communication.

6. The devices plugged into the “LAN” ports should now be able to

communicate with one another freely.

Driver Installation

No driver or software installation is required for these converters on

any connected computer systems.

Cable Lengths

Maximum bandwidth (Mbps) based on coaxial cable type and length.

Distance RF

Bandwidth RG-59 RG-6 RG-7 RG-11

100m ~ 700m

< 30MHz

144 144 144 144

800m 128 144 144 144

900m 112 144 144 144

1000m 96 128 144 144

1100m 80 128 144 144

1200m 64 112 128 144

1300m 80 128 144

1400m 80 128 144

1500m 64 112 144

1600m 96 128

1700m 80 128

1800m 80 128

1900m 64 112

2000m 112

2100m 96

2200m 80

2300m 80

2400m 64

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Transmission Standards ITU G.9954, IEEE802.3, IEEE802.3u,

IEEE802.3x, IEEE802.3ab

Connectors (per unit)

2 x F-Connector female

1 x RJ45 female

1 x DC Power

LEDs (per unit)

1 x Power

1 x LAN Link/Activity

1 x Coax Link/Activity

1 x Coax Sync
