Side 1/2

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/23/2011

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x Fiber Media Converter

• 1 x Power Adapter

• 1 x Instruction Manual

System Requirements

• Multi Mode ber cable

• Cat5e or better UTP Ethernet cable

• Gigabit network infrastructure

• Available AC electrical outlet

ET91000LC / ET91000LCGB / ET91000LCEU

ET91000SC

Gigabit Multi Mode Fiber/Ethernet Media Converter

Installation

1. Connect the ber network cable to the LC connector on the ber

media converter. Using UTP Ethernet cable, connect the cable to

the RJ45 jack.

2. Set the Auto/Force switch on the media converter, to turn

auto negotiate on or o. If set to Force, set the Duplex

switch (full/half) according to the specications of your

networking equipment.

3. The following example illustrates the connection scheme

when connecting from a 1000Base-T Ethernet port of a hub/

switch to a 1000Base-SX/LX port of another hub/switch,

through the ber media converter:

4. The following example illustrates the connection scheme

when connecting from a 1000Base-T Ethernet port on a hub/

switch to a 1000BASE-T Ethernet Network Interface Card

(NIC) in a computer through the ber media converter:

DIP Switch Conguration

Full/ Half:

The Fiber and UTP Duplex will be congured in Full duplex or Half

duplex.

NOTE: This switch includes an “Auto Reset” function so the power-

reset is not necessary when any modication is made here.

LBT:

Loop-back test and get remote side status:

(OFF = Not Active, ON = Active).

NOTE: If the local side loop-back test is active, then LEDs (except

PWR) will all blink rapidly and refresh to display the remote side

status.

LLF:

Link Loss Forwarding (OFF = Not active, On = Active)

Auto/Force:

Auto negotiate duplex mode, or force Full/Half via DIP switches.

LED Conguration

LED Name Status Description

PWR Power

ON Unit is powered

OFF Unit is not powered

Blink LBT mode enabled

Full Duplex Mode ON Fiber side Full Duplex Mode

OFF Half Duplex Mode

FX Fiber Link

ON Fiber link is detected

OFF Fiber link is not detected

Blink Fiber activity

LBT

Loop-back

Test/Get CPE

status

Blink Mode enabled

OFF Mode disabled

LLF Link Loss

Forwarding

ON Mode enabled

OFF Mode disabled

TX Ethernet Link

ON UTP link is detected

OFF UTP link is not detected

Blink UTP activity

*ET91000LC shown

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

ET91000LC /

ET91000LCGB /

ET91000LCEU

ET91000SC

Connectors

1 x RJ45 Ethernet

2 x LC Fiber

1 x DC Power

1 x RJ45 Ethernet

2 x SC Fiber

1 x DC Power

Fiber Type Multi Mode

Optical Wavelength 850nm

Maximum Distance 550m

Duplex Modes Full/Half

Power Adapter 12VDC, 500mA, center positive

Enclosure Material Metal

Supported Standards IEEE 802.3ab, IEEE 802.3z

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -10°C ~ 70°C (14°F ~ 158°F)

Humidity 10% ~ 90% RH

Dimensions 123.0mm x 86.0mm x 20.0mm

Weight 690g

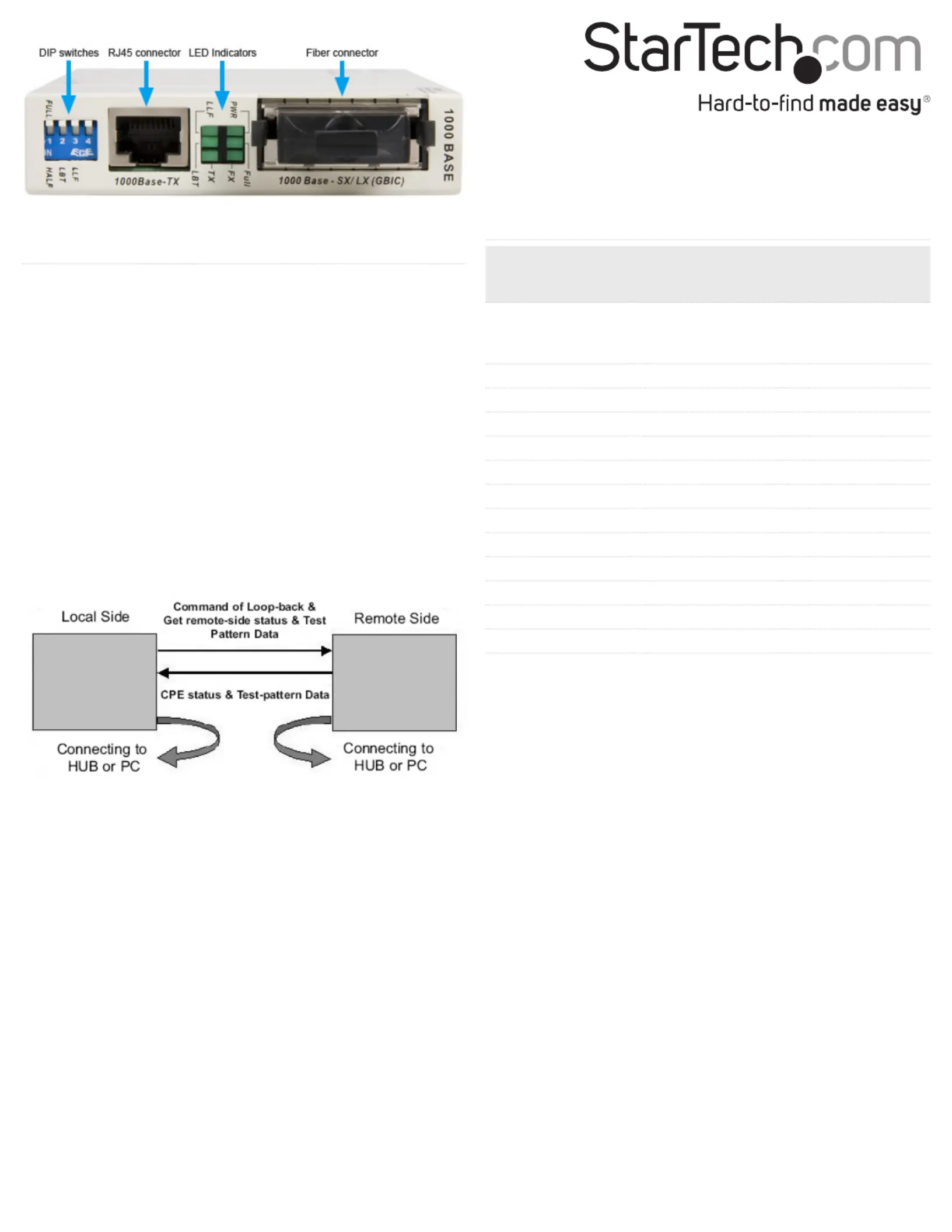

Loop-back Testing (LBT) & Get CPE status

This ber media converter incorporates a Fiber Loop-back Testing

feature which allows the system to conrm whether or not the ber

or Ethernet circuit loop is complete. The local-side unit will send out

a detect message which includes both command and test-pattern

data to the remote-side unit and request for an answer. When the

remote-side unit receives the message, it will attempt to recognize

the command.

After the remote-side unit recognizes the command message, it

will deliver the received test-pattern data back to the local-side

unit, completing the circuit loop, and enabling the rack mount unit

to easily monitor the remote side unit(s). The remote side status

message includes the ber-side link and duplex status, the UTP-side

link, duplex, speed, power, transmission and ber failure status.

Please note that while Loop-back testing is in process, the ber

side transmission will be halted. If the local-side cannot access the

remote-side while in Loop-back Testing mode, only the power LED

will ash (rapidly):

*ET91000SC shown
