Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 11/03/2017

For the most up-to-date information, please visit: www.startech.com

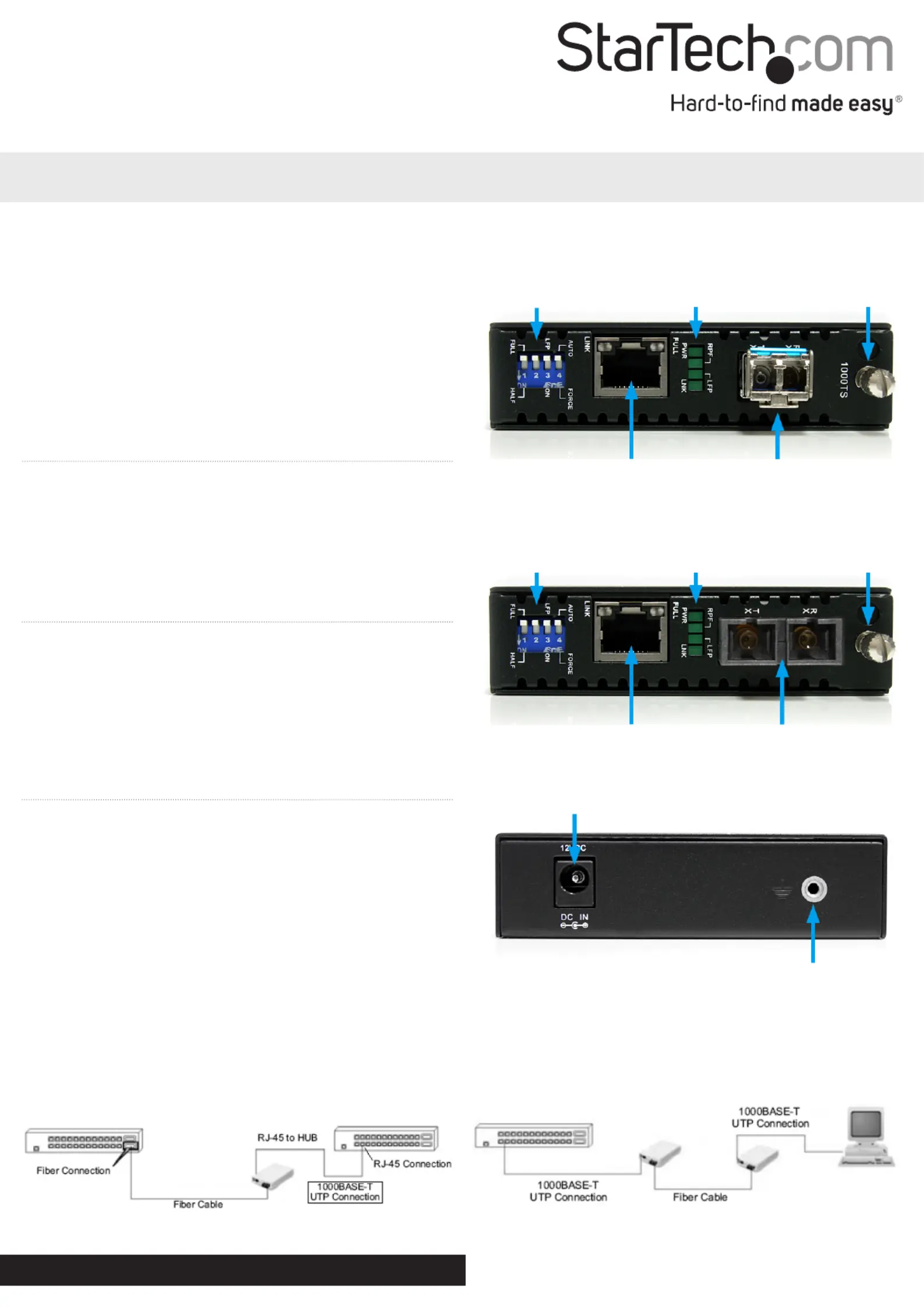

Rear View (ET91000LC2 / ET91000SC2)

ET91000LC2 / ET91000SC2

Gigabit Ethernet to Multi Mode LC/SC Fiber Media Converter - 550m

Packaging Contents

• 1 x Fiber Media Converter

• 1 x Universal Power Adapter

• 4 x Power Adapter Plugs (NA/UK/EU/AU)

• 1 x Grounding Screw

• 1 x Instruction Manual

System Requirements

• 1000BASE-T compatible Ethernet network equipment

• RJ45 terminated UTP Cat5e or better Ethernet cable

• 1000BASE-SX compatible ber optic network equipment

• LC or SC terminated multi mode ber optic cable

• Available AC electrical outlet

Installation

1. Make sure the DIP switches are set appropriately for your network

conguration (see “DIP Switch Settings“ section for details).

2. Connect the ber optic network cable from a computer/switch/

media converter to the LC/SC connector on the media converter.

NOTE: When connecting the ber cable, make sure to connect the

Tx (transmit) terminal on one end, with the Rx (receive) terminal on

the other end.

3. Connect a UTP Ethernet cable, from a computer/switch to the

RJ45 jack on the media converter.

4. Connect the power adapter to the media converter.

5. The following example illustrates the connection scheme when

connecting from a 1000BASE-T Ethernet port of a hub/switch to

a 1000BASE-SX port of another hub/switch, through the ber

media converter:

6. The following example illustrates the connection scheme

when connecting from a 1000BASE-T Ethernet port on a hub/

switch to a 1000BASE-T Ethernet Network Interface Card (NIC)

in a computer through the ber media converter:

Dip Switch LED Indicators

Card Release

Thumbscrew

RJ45 Ethernet

connector

LC Duplex Fiber

connector

DC Power connector

Ground point (optional)

*actual product may vary from photos

ET91000LC2

Dip Switch

LED Indicators

Card Release

Thumbscrew

RJ45 Ethernet connector

SC Duplex Fiber

connector

ET91000SC2

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they

occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

LED Status

LED Name Status Description

PWR Power

ON Unit is powered

OFF Unit is not powered

RPF

Remote

Power Failure

ON Remote Power Fail

OFF Remote Power Normal

LNK Fiber Link

ON Fiber link is detected

OFF Fiber link is not detected

Blink Fiber activity

LFP

Link Fault

Pass-through

ON LFP Mode enabled

OFF LFP Mode disabled

DIP Switch Settings

Full/ Half:

Ethernet Duplex mode will be congured for Full or Half.

LFP:

Link Fault Pass-through will pass a link failure to the Ethernet

side, if a link failure is encountered on the ber side and vice

versa. Otherwise, the Ethernet side will continue to show no

link failures, even if the ber side has no link.

(OFF = Not active, On = Active)

Auto/Force:

Auto negotiate duplex mode, or force Full/Half via

DIP switches.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	ET91000SC2
Bredde:	90 mm
Dybde:	150 mm
Højde:	25 mm
Vægt:	562 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	766 g
Pakkedybde:	138 mm
Pakkebredde:	205 mm
Pakkehøjde:	89 mm
Opbevaringstemperatur (T-T):	-10 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Ethernet LAN-porte (RJ-45):	1
Strømforbrug (typisk):	4 W
Driftstemperatur (T-T):	0 - 60 °C
Husmateriale:	Stål
Forbindelsesteknologi:	Ledningsført
Certificering:	CE, FCC
Udgangsspænding:	12 V
Udgangsstrøm:	1.6 A
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
Indgangsspænding:	115 - 230 V
Intern:	Ingen
Maksimal dataoverførselshastighed:	2000 Mbit/s
Indgangsstrøm:	0.36 A
Fiber optisk strømstik:	SC
Maksimal overførselsafstand:	550 m
Bølgelængde:	850 nm
Ekstern strømadapter:	Ja
Ethernet-grænsefladetype:	Gigabit Ethernet
Gennemsnitstid mellem fejl (MTBF):	65000 t
Strømstiktype:	Type M
Auto MDI/MDI-X:	Ja
Fibertilstandsstruktur:	Multitilstand
Duplex system:	Full, Half
Bølgelængde-division multipleksing (WDM):	Ingen
