Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/17/2016

For the most up-to-date information, please visit: www.startech.com

ET91000SFP2 / ET91000SFP2C

Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot

Packaging Contents

ET91000SFP2

• 1 x Fiber Media Converter

• 1 x Universal Power Adapter (NA/EU/UK)

• 1 x Grounding Screw

• Instruction Manual

System Requirements

• MSA Compliant Gigabit SFP Module

• 1000BASE-T compatible Ethernet network equipment

• RJ45 terminated UTP Cat5e or better Ethernet cable

• Available AC electrical outlet

ET91000SFP2C

• 1 x Fiber Media Converter

• Instruction Manual

Installation

1. Make sure the DIP switches are set appropriately for

your network conguration (see “DIP Switch Settings“

section for details).

2. Insert a compatible SFP module into the open SFP slot.

3. Connect a ber optic network cable from a computer /

switch / media converter to the inserted SFP connector

on the media converter.

NOTE: When connecting the ber cable to your installed SFP

module, make sure to connect the Tx (transmit) terminal on one end,

with the Rx (receive) terminal on the other end.

4. Connect a UTP Ethernet cable from a computer/switch

to the RJ45 jack on the media converter.

5. Connect the power adapter to the media converter.

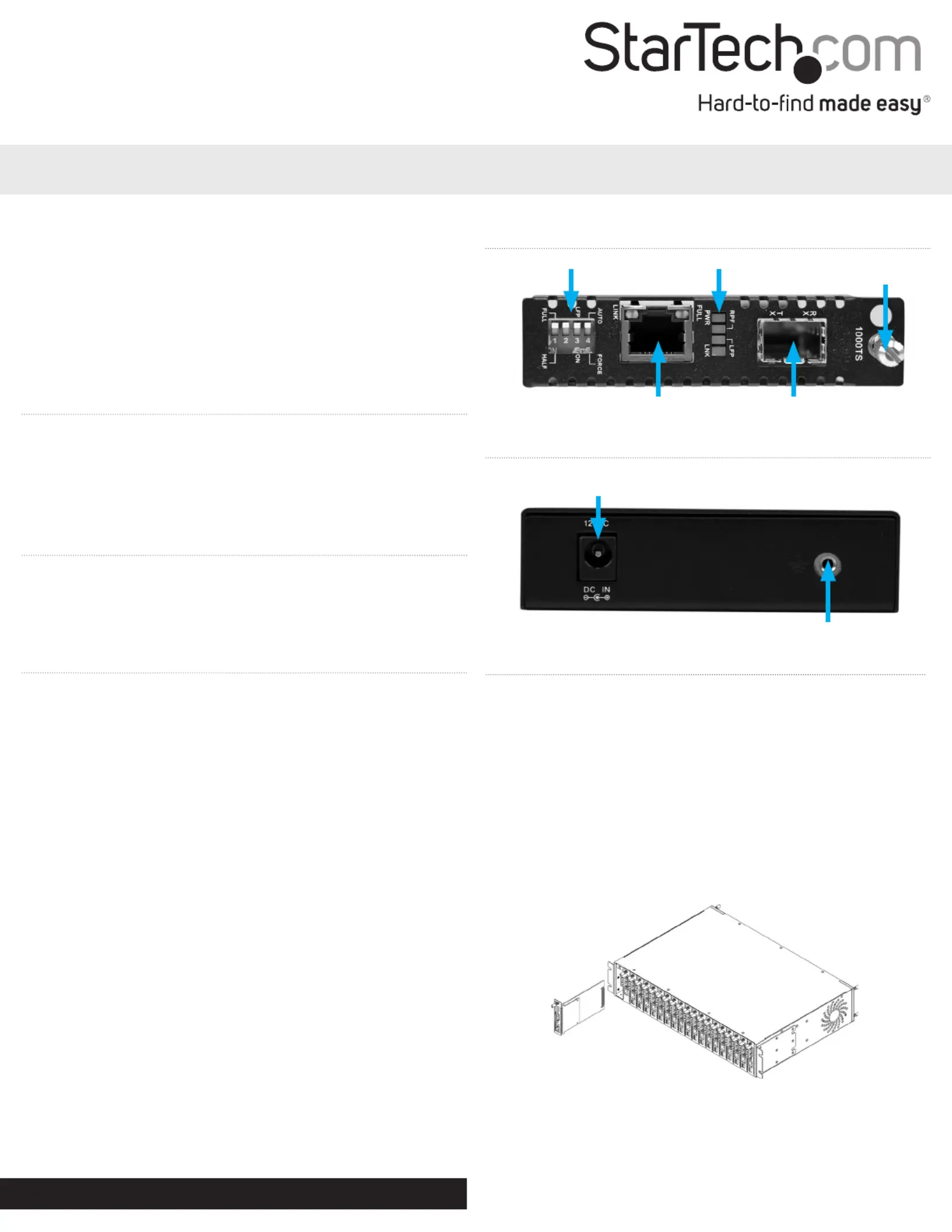

Front

RJ45 Ethernet Connector

Dip Switch LED Indicators

SFP Slot

Rear

Thumb Screw

Release

DC Power Connector

Ground Point(Optional)

Installation into ETCHS2U Chassis

The ETCHS2U chassis supports the full line of StarTech.com ET series

2 media converters, which can be installed in a mixed fashion to suit

your environment. The cards are designed to be hot-swappable,

meaning the chassis need not be powered o in order to remove or

insert a card.

1. If the chassis slot was previously unused, loosen the screw at the

top of the slot to remove the cover plate

2. Align the card with the desired slot of the chassis and gently slide

the card into the groove to seat the power connection

3. Re-tighten the captive screw to hold the card in place

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

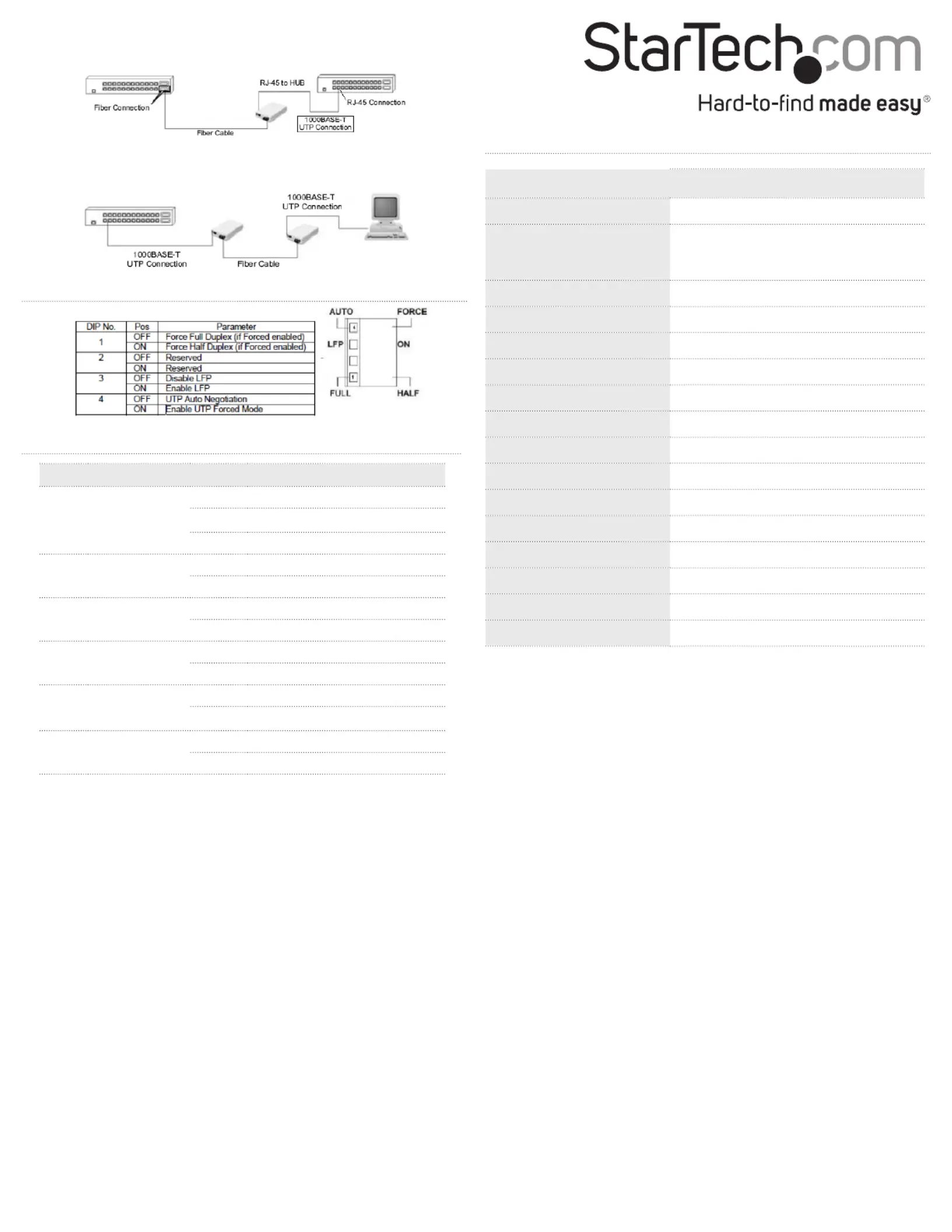

The following example illustrates the connection scheme when connecting from a

1000BASE-T Ethernet port of a hub/switch to a 1000BASE-SX/LX port of another hub/switch,

through the ber media converter:

The following example illustrates the connection scheme when connecting from a

1000BASE-T Ethernet port on a hub/switch to a 1000BASE-T Ethernet Network Interface

Card (NIC) in a computer through the ber media converter:

DIP Switch Settings

Specications

ET91000SFP2/ ET91000SFPC
