Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: July 6, 2022 2:57 PM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

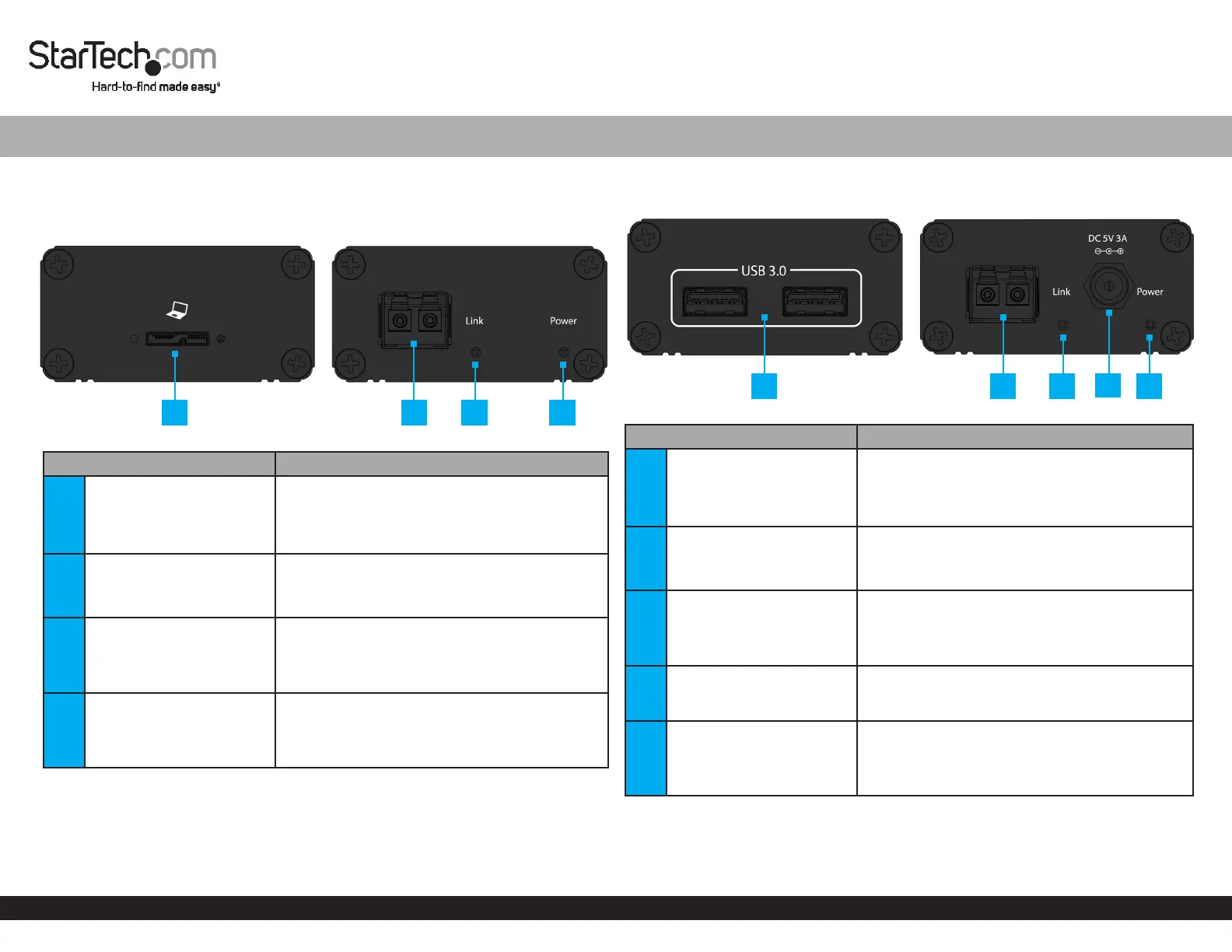

Product Diagram (F35023-USB-EXTENDER)

Transmitter

Front Back

Component Function

1 USB Micro-B Host Port

• Used to connect the USB Extender Over Fiber

to a Host Computer

• USB 3.2 Gen 1 (5 Gbps)

• Backward compatible with USB 2.0 and 1.1

2 SFP Fiber Slot

• Multimode LC connector

• For ber cable up to 1148 ft (350 m)

Note: Not to be used with network equipment

3 Link LED

• Indicates if the Link is established between

Transmitter and Receiver

• Solid blue = Link

• O = No Link

4 Power LED

• Indicates if the Host Computer is supplying

power

• Solid blue = Power

• O = No Power

2-Port USB 3.2 Gen 1 Extender Over Multimode Fiber - 5Gbps - Up to 350m

Receiver

Front Back

Component Function

1 2x USB-A Peripheral Ports

• Connect USB-A Peripheral devices

• USB 3.2 Gen 1 (5 Gbps)

• Backward compatible with USB 2.0 and 1.1

• Supports up to 5 V and 0.9 A (4.5 W)

2 SFP Fiber Slot

• Multimode LC connector

• For ber cable up to 1148 ft (350 m)

Note: Not to be used with network equipment

3 Link LED

• Indicates if the Link is established between

Transmitter and Receiver

• Solid blue = Link

• O = No Link

4 DC Power Port

• Connect the USB Extender Over Fiber to

a Power Source using the included Power

Adapter (5 V and 3 A)

5 Power LED

• Indicates if the included Power Adapter is

supplying power

• Solid blue = Power

• O = No Power

*Product may vary from image

3 5

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes

only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to

which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks,

registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related

documents are the property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com

Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Package Contents

• Local Extender x 1

• Remote Extender x 1

• USB Type A to USB Micro B Cable For Host Connection x 1

• Power Adapter x 1

• Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specications, and declarations

of conformance, please visit: www.StarTech.com/F35023-USB-EXTENDER

• Computer with a USB-A Port

• USB peripheral device with required USB-A cables

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood

before using this product.

Never operate this product if parts are missing or damaged.

Installation

Transmitter (Local Extender)

1. Connect the USB Micro B Host Port to a USB-A Port on the Host Computer, using

the included USB Type A to USB Micro B Cable.

No drivers are needed for the USB Extender Over Fiber.

2. Connect a LC to LC Multimode Fiber Cable to the SFP Fiber Slot located on the

Transmitter.

The ber cable should not go through any networking equipment (e.g. router, switch,

etc.).

Receiver (Remote Extender)

1. Connect the other side of the LC to LC Multimode Fiber Cable (connected to the

Transmitter) to the SFP Fiber Slot, located on the Receiver.

2. Connect the included Power Adapter to an Electrical Outlet and into the DC

Power Port of the Receiver.

3. Connect a USB Peripheral Device to any of the two USB-A Peripheral Ports on the

Receiver.

Some USB peripheral devices may need drivers to nish their installation.
