Quick-start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 03/09/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/HSB1SATSASBA.

Package contents

• 1 x backplane

• 2 x keys

• 4 x drive-mounting screws

• 1 x quick-start guide

Requirements

• 5.25” drive bay

• 3.5” SATA or SAS hard drive

Requirements are subject to change. For the latest requirements,

please visit www.StarTech.com/HSB1SATSASBA.

HSB1SATSASBA

3.5” SATA/SAS Hard Drive Backplane for 5.25” Bay - Trayless, Hot-Swap

*actual product may vary from photos

Introduction

The HSB1SATSASBA trayless hard drive backplane supports 3.5”

SATA I/II/III or SAS I/II hard drives and ts a 5.25” bay. The lock and

key security feature helps to secure your hard drive by preventing

unauthorized access. The HSB1SATSASBA includes mounting screw

holes that you can use to connect an optional 40 mm fan to dissipate

any generated heat.

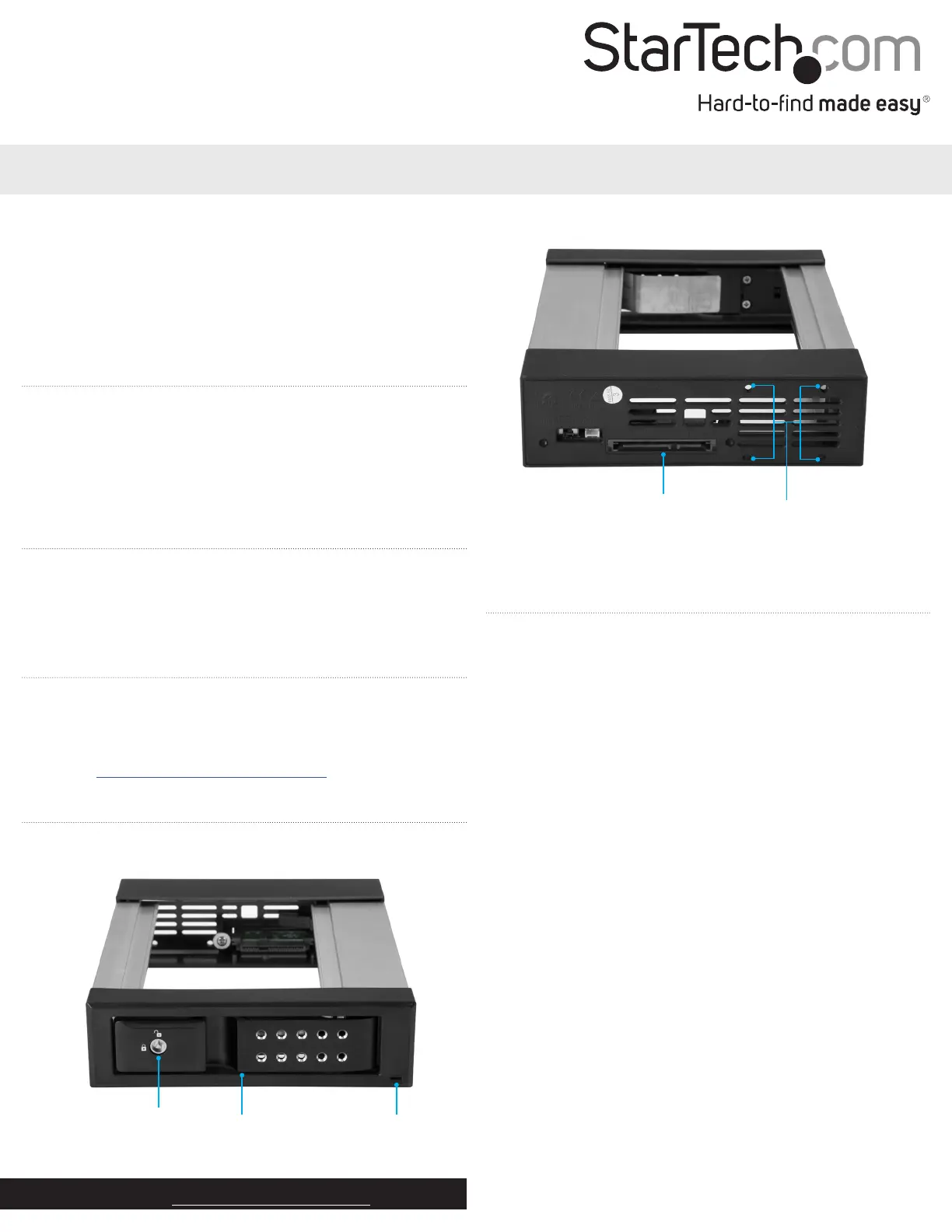

Product diagram

Front view

Back view

Security lock Power and activity LEDDoor

SATA or SAS connector Mounting holes

for optional fan

Install the backplane

Warning! Always handle storage devices with caution. Make sure

that you’re properly grounded by wearing an anti-static strap when

you install any computer component. If an anti-static strap isn’t

available, touch a large, grounded metal surface for several seconds

to discharge any built-up static electricity.

1. Turn o your computer and any devices or peripherals that are

connected to it.

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your

computer.

4. Open your computer case. For more information about how

to do this, consult the documentation that came with your

computer system.

5. Remove the cover of an empty drive bay.

6. Insert the backplane into the empty drive bay slot, making sure

that the screw holes on the backplane are aligned with the holes

in the drive bay.

7. Use the provided screws to secure the backplane to the drive

bay.

8. Connect the SATA or SAS power and data cables to the SATA or

SAS connector on the backplane.

9. Place the cover back onto your computer case.

10. Reconnect the power cable to the back of your computer.

11. Reconnect any devices or peripherals that were connected to

your computer.

12. Turn on your computer.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a one-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Install a hard drive

Warning! Drives should be handled carefully, especially when

you transport them. If you’re not careful with your drives, you may

experience lost or corrupted data.

1. Open the door on the backplane.

2. Position the hard drive so that the label faces upwards and the

rear panel of the hard drive is aimed towards the inside of the

computer.

3. Gently push the drive into the backplane until the door begins to

close.

4. Close the door on the backplane and make sure that it clicks shut.

5. To lock the drive in the backplane, insert the provided key into the
