Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 12/12/2014

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x RS232 Serial to TTL Converter

• 1x Instruction Manual

The IC232TTL converts an RS232 serial signal (-12 to +12V) to a

Transistor-Transistor-Logic (TTL) signal (0 to +5V).

• Transmission Distance: limited to 5 meters

• Transmission Rate: 300bps to 115.2kbps

RS232 / DB-9 Female

System Requirements

• Available RS232 DB-9 Serial Device / Port

• Available TTL DB-9 TTL Device / Port

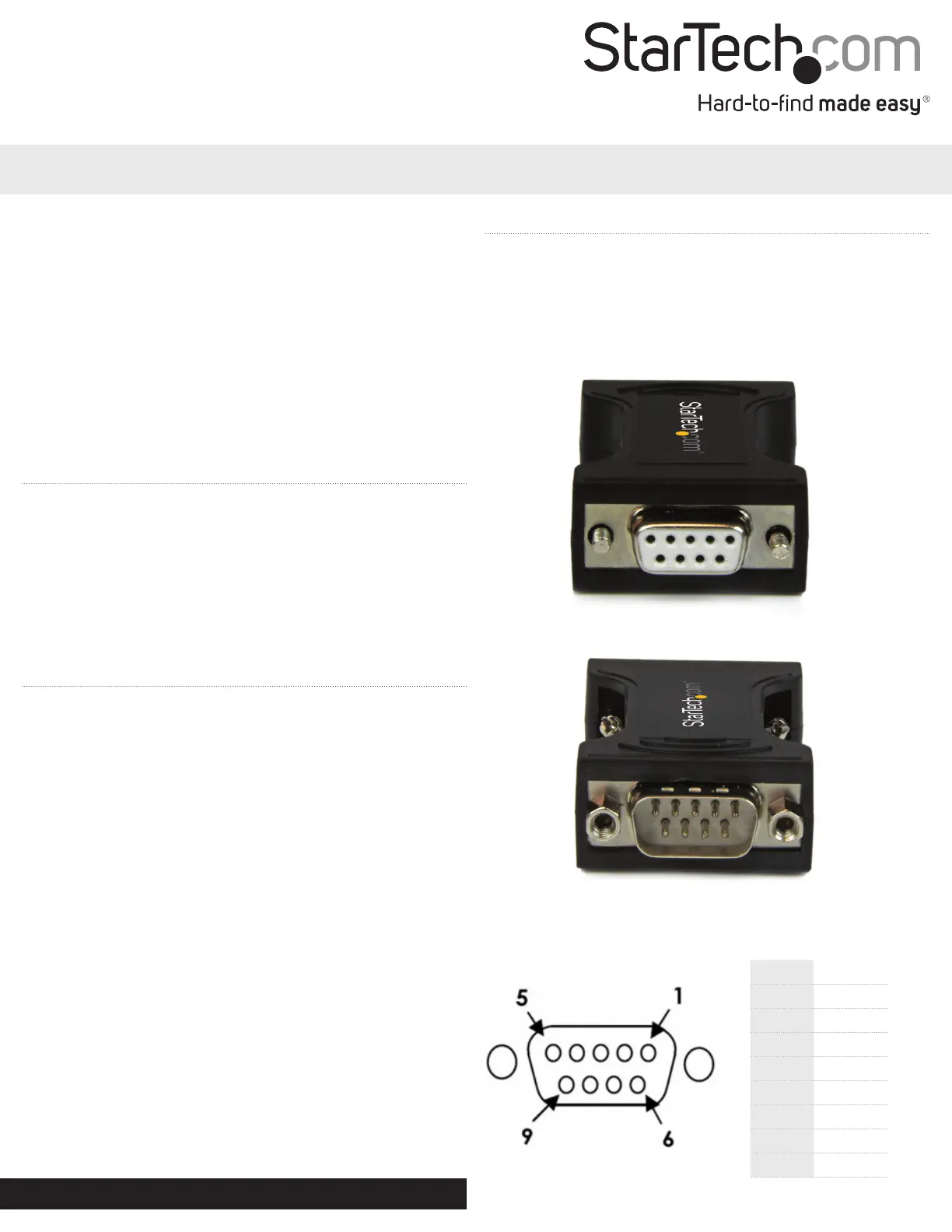

Product Overview

IC232TTL

RS232 Serial to TTL Converter

*actual product may vary from photos

TTL / DB-9 Male

RS232 Pinout (DB-9 Female)

Pin 1

Pin 2 TXD

Pin 3 RXD

Pin 4

Pin 5 GND

Pin 6

Pin 7

Pin 8

Pin 9

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

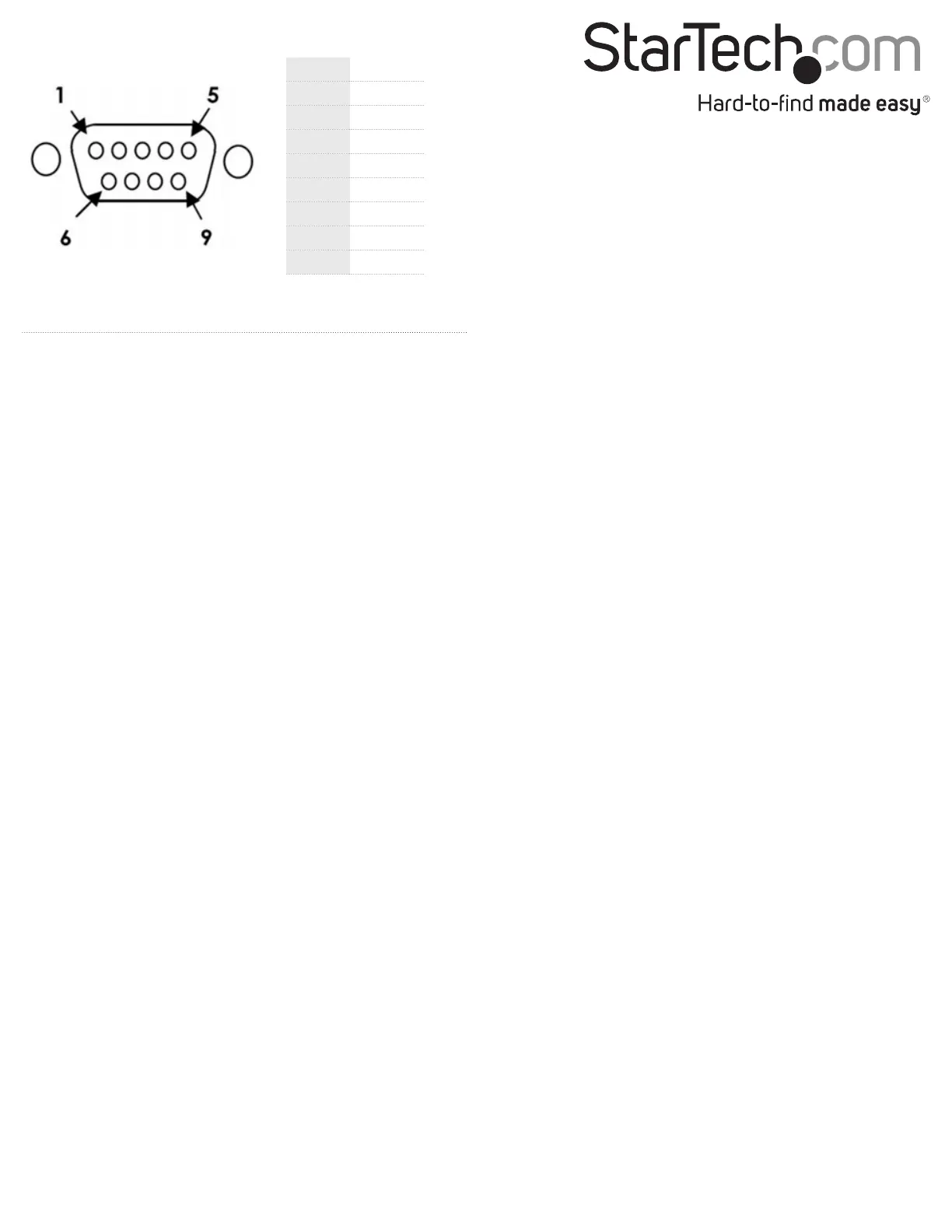

TTL Pinout (DB-9 Male)

Pin 1 RXD

Pin 2 TXD

Pin 3

Pin 4

Pin 5 GND

Pin 6 5V

Pin 7

Pin 8

Pin 9

Installation and Operation

1. Connect the RS232 DB-9 Female connector on the adapter to your

RS232 DB-9 connector on your serial device/port.

2. Connect the TTL DB-9 Male connector on the adapter to your TTL

DB-9 connector on your TTL device/port.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	IC232TTL
Vægt:	25 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	81 g
Pakkedybde:	171 mm
Pakkebredde:	142 mm
Pakkehøjde:	32 mm
Opbevaringstemperatur (T-T):	-40 - 85 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Driftstemperatur (T-T):	-40 - 85 °C
Husmateriale:	Plast
Dimensioner (BxDxH):	34 x 63 x 15 mm
Certificering:	CE, FCC
Værtsgrænseflade:	RS-232
Stik 1:	DB-9
Stik 2:	DB-9
Overholdelse af branchestandarder:	RS232, TTL, EIA/TIA
Baud hastighed:	115.2 Kbit/s
Data-bits:	7, 8
Stik køn:	Hanstik/Hunstik
Output-grænseflade:	TTL
Maksimal kabellængde:	5 m
Chipsæt:	CD4093
Paritetsbit:	Even, Mark, Odd, Space, N
