Instruction manual

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 03/22/2018

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/ICUSB234854I.

Package contents

• 1 x USB serial hub

• 1 x USB-B with screw lock to USB-A cable

• 1 x DIN rail kit

• 1 x instruction manual

Requirements

• USB-enabled computer with an available USB 2.0 port

• Any of the following operating systems:

• Microsoft Windows® 10, 8/8.1, 7

• Microsoft Windows Server® 2012, 2008, 2003

• macOS High Sierra (10.13), Sierra (10.12) El Capitan (10.11),

Yosemite (10.10), Mavericks (10.9)

• Linux® kernel 3.5 to 4.11.x, LTS versions only

• Phillips type screwdriver

Operating system requirements are subject to change. For the latest

requirements, please visit www.StarTech.com/ICUSB234854I.

ICUSB234854I

4-Port Industrial USB to Serial Adapter Hub - RS-232/RS-422/RS-485

DIN Rail and Wall Mountable

*actual product may vary from photos

Product diagram

1. RS-232/422/485 ports

2. Power LED

3. Power adapter port

4. USB 2.0 host port

5. Port send/receive LED

6. Port mode LED

Pinouts

RS-232 mode RS-485 2-wire

mode

RS-422/RS-485

4-wire mode

Congure port settings

The serial adapter hub supports four dierent modes (RS-232, RS-

422, RS-485 2-wire, and RS-485 4-wire) with dierent power and

termination options. You can set the mode and settings for each

individual port by adjusting the jumpers inside the serial adapter

hub’s housing. To access the jumpers, open the access panel on the

back of the housing using a Phillips type screwdriver to remove the

two screws.

Jumper groups for each port

Each port has its own set of jumpers that enable you to assign the

settings for each individual port.

Port 1 Port 2 Port 3 Port 4

Installation

Notes:

• You may need to restart your computer during the software

installation process. Be sure to save any unsaved material before

you install the software.

• Congure your port settings before installing the USB serial hub.

1. Download the latest software from the StarTech.com website:

www.StarTech.com/ICUSB234854I.

2. The software that corresponds with your operating system will be

compressed in a .zip folder. Download and extract the contents

of that folder to a location on your computer that’s easy to access,

such as your or folder. Desktop Downloads

3. Open the folder that corresponds with your specic operating

system and launch the installer le.

4. Follow the on-screen prompts to complete the installation, and if

instructed to do so, restart your computer.

5. Connect each of your serial devices to the port you’ve congured

for their connection.

6. Connect the USB-A to USB-B cable to the USB 2.0 port on the USB

serial hub and to a USB port on your computer.

7. (Optional) If you require AUX power (fully loaded) connect your

power adapter to an AC outlet, then connect the Power adapter

port to the USB serial hub.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders. Phillips is a

registered trademark of the Phillips Screw Company in the United States and other countries. Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries. Windows® is a registered

trademark of Microsoft Corporation in the United States and/or other countries. macOS is a trademarks of Apple Inc., registered in the U.S. and other countries.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Jumper group settings cont’d

Terminations Use the Terminations jumper group to

dene which of your send and receive

communication pins are on and o for

each port.

Notes:

• Because RS-232 utilizes dierent

communication pins and additional

signals can cause interference, it’s

recommended that all terminators

be set to o in RS-232 mode.

• While standard terminations for

each mode are recommended, your

termination requirements may vary

depending on your application

and the specic device you’re

communicating.

Both RX+/

RX- and TX+/TX-

terminators are

disabled

(Terminators for

RS-232 mode)

(default)

TX+/TX-

terminators are

enabled

(Standard

terminators for

RS-485 2-wire

mode)

RX+/RX-

terminators are

enabled

Both RX+/

RX- and TX+/TX

terminators are

enabled

(Standard

terminators for

RS-422 and

RS-485 4-wire

mode)

ON OFF

About the LED indicators

The adapter features two sets of LED indicators for each port:

• The Port mode LEDs illuminate solid to indicate what mode each

port is set to.

• The Port send/receive LEDs blink to indicate that data is being sent

or received.

485-2

485-4

422

232

+5V

AUX

RX+

RX-

TX+

TX-

Mode group Power group

Terminators group

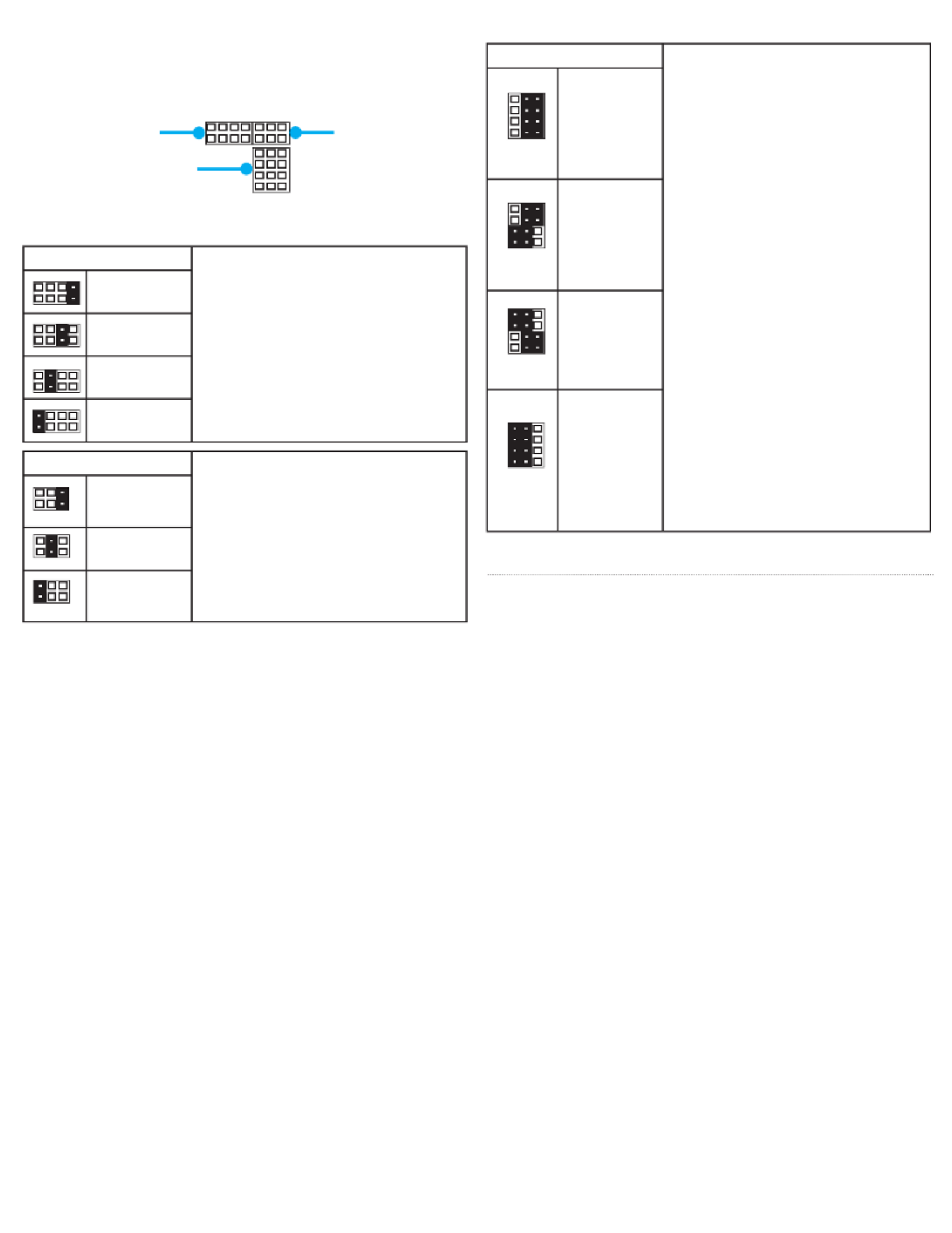

Jumper group settings

There are three settings that you can dene for each port: Mode,

Power and Termination. Each setting has its own jumper group used

to dene each port set.

The tables below outline the available settings for each jumper

group.

Mode (COM Standard) Use the Mode jumper group to dene

the serial communication standard each

port uses.

Note: If the mode is set to RS-232 it’s

important to set all terminations to

the o position (see Jumper group

settings, Terminations for details).

RS-232

(default)

RS-422

RS-485

4-wire

RS-485

2-wire

Power (Pin-9) Use the Power jumper group to dene

the pin-9 power requirements for each

port.

Note: AUX outputs power consistent

with the power adapter (not included)

connected to the Power adapter port on

the USB to serial hub.

AUX

power adapter

on pin-9

+5V DC

on Pin-9

No power / RI

on pin-9

(default)

ON OFF

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	ICUSB234854I
Bredde:	116 mm
Dybde:	128 mm
Højde:	25 mm
Vægt:	382 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	598 g
Pakkedybde:	240 mm
Pakkebredde:	165 mm
Pakkehøjde:	55 mm
Opbevaringstemperatur (T-T):	-20 - 85 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Driftstemperatur (T-T):	0 - 55 °C
Husmateriale:	Stål
Kabler inkluderet:	USB
LED-indikatorer:	Strøm
Udgangsspænding:	12 V
Udgangsstrøm:	1 A
Harmoniseret systemkode (HS):	84719000
Bæredygtighedscertifikater:	CE, RoHS
Understøttede Mac-operativsystemer:	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Understøttede Linux-operativsystemer:	Ja
Hovedkassen højde (udvendigt):	280 mm
Hovedkassens længde (udvendigt):	420 mm
Hovedkassens bredde (udvendigt):	410 mm
Værtsgrænseflade:	USB 2.0 Type-B
Plug and play:	Ja
Produkter pr. hovedkasse (udvendigt):	15 stk
Overholdelse af bæredygtighed:	Ja
Strømstiktype:	Type N
Understøttede operativsystemer til servere:	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
RS-232-porte:	4
Baud hastighed:	921.6 Kbit/s
Data-bits:	7, 8
Stop bits:	1, 2
Dataoverførselshastighed:	- Mbit/s
Porte, antal:	4
Beskyttelse ved overspænding:	Ja
Hub-grænseflader:	Seriel
Chipsæt:	FTDI - FT4232H
Paritetsbit:	Even, Mark, N,Odd, Space
DIN skinnesæt inkluderet:	Ja
