Introduction

Thank you for purchasing a StarTech.com Compact

Flash to IDE Embedded Card Reader. This product

allows you to connect a compact flash memory card

to a 3.5” IDE Host Interface. After installation, the

host PC will be able to read an inserted Compact

Flash as a standard IDE hard disk.

Features

• Voltage selection for +3.3V or +5.0V compact flash

• On-board LED indicators for power-on and

compact flash access

• Fully compatible with Flash Type I, Type II, and

Micro-drive

• Driverless Hardware, will work with any system that

supports IDE interface

Before You Begin

System Requirements

• An available 40-way (2.54mm) standard IDE

connector

• A +5V floppy disk drive power connector

Basic Setup

Connecting the card reader to the computer

1. Shut down all power connected to the computer as

well as all devices connected to the computer

peripherally. As an added step to ensure safe

installation, unplug the power supply to the

computer.

2. Remove the computer cover. For more detailed

instruction on how to perform this step, please refer

to the documentation that was included with your

computer at the time of purchase.

3. Insert the IDE2CFINT into an available 40-way IDE

connector.

4. Connect the +5V floppy disk drive power

connector (4) to the floppy drive power source.

5. Replace the top of the computer case, as well as

the power cord.

(If your flash card is ready to be installed, skip to

Using the Card Reader - step 3)

Using the Card Reader

Note: This adaptor does not support hot insertion of

CF cards.

1. Make sure the computer is powered down.

2. Open the computer case.

3. Gently insert the desired Compact Flash Card into

the provided socket, using the guide rails to ensure

the pins on the reader are properly aligned with the

card. Note: If the Flash Card is not properly

aligned, you risk causing permanent damage to the

card as well as to the reader.

4. Once the flash card is secured, replace the cover

on the computer casing.

Upon powering the computer back on, the flash card

should be detected as an IDE hard drive.

By default, the IDE2CFINT is set to act as a Master

drive. As such, ensure that this is reflected accurately

from within your system BIOS. To change the

IDE2CFINT to act as a Slave drive, adjust the

jumper located on JP3 to pins 2 and 3, making the

necessary adjustments to your BIOS settings.

D f

LED 1 - Card detect indicator

LED 2 - Memory Access activity indicator

LED 3 - Power-on indicator

Warranty and Support

Compact Flash to IDE Embedded Card

Reader

IDE2CFINT

Revised: 22 December 2005 (A)

Support, Warranty Information, and Regulatory Compliance Statement

If you ever need help with your product, visit and access our com-www.startech.com/support

prehensive selection of online tools, documentation, and downloads. This product is backed by a

one-year warranty. In addition, StarTech.com warrants its products against defects in mater ials

and workmanship for the periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent products at our discre-

tion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products

from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability: In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any

pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for

the product. Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement may not

apply to you.

FCC Compliance Statement: This equipment has been tested and found to comply with the lim-

its for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

• Consult the dealer or an experienced radio/TV technician for help.

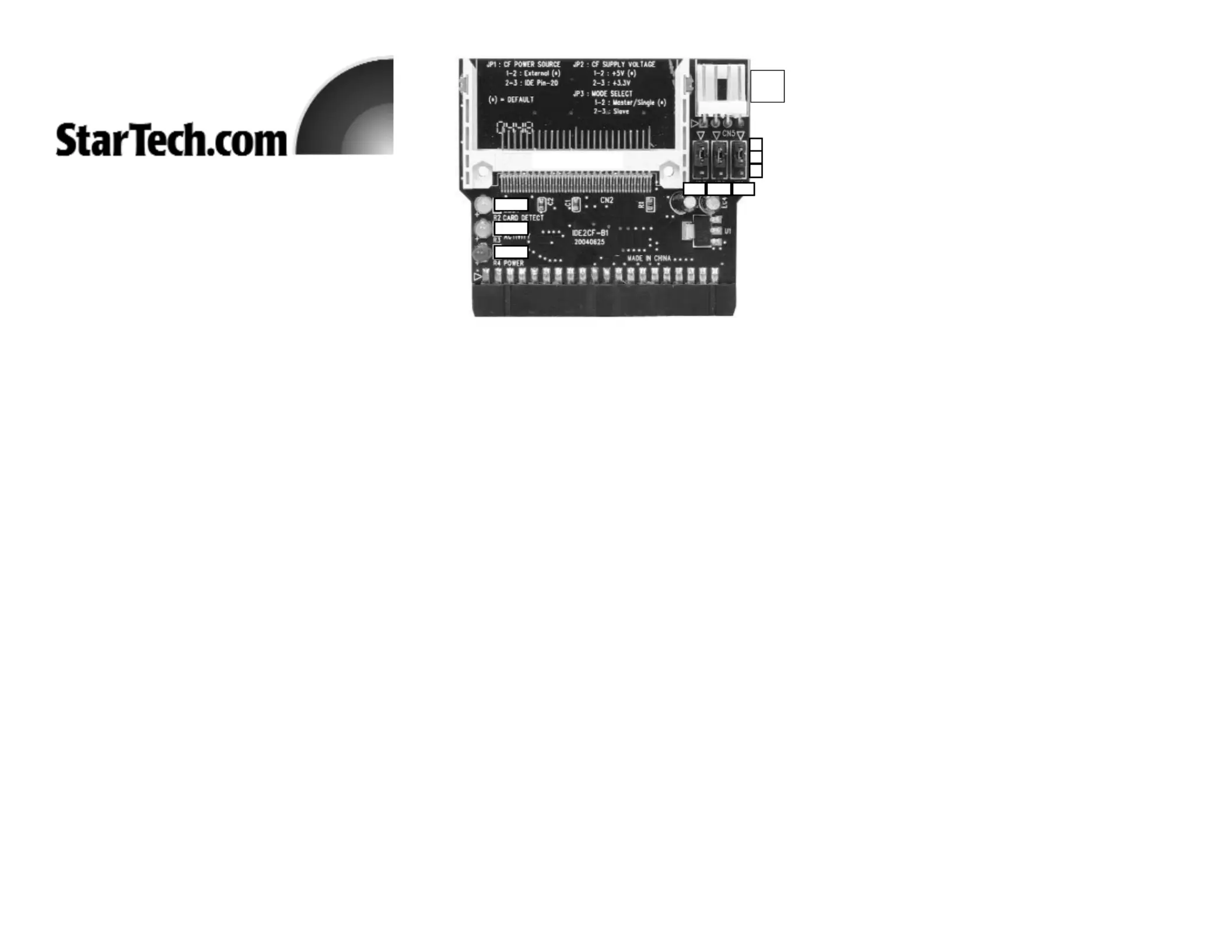

Power

JP1JP2JP3

LED 1

LED 3

LED 2

Flash Card Socket
