Side 1/2

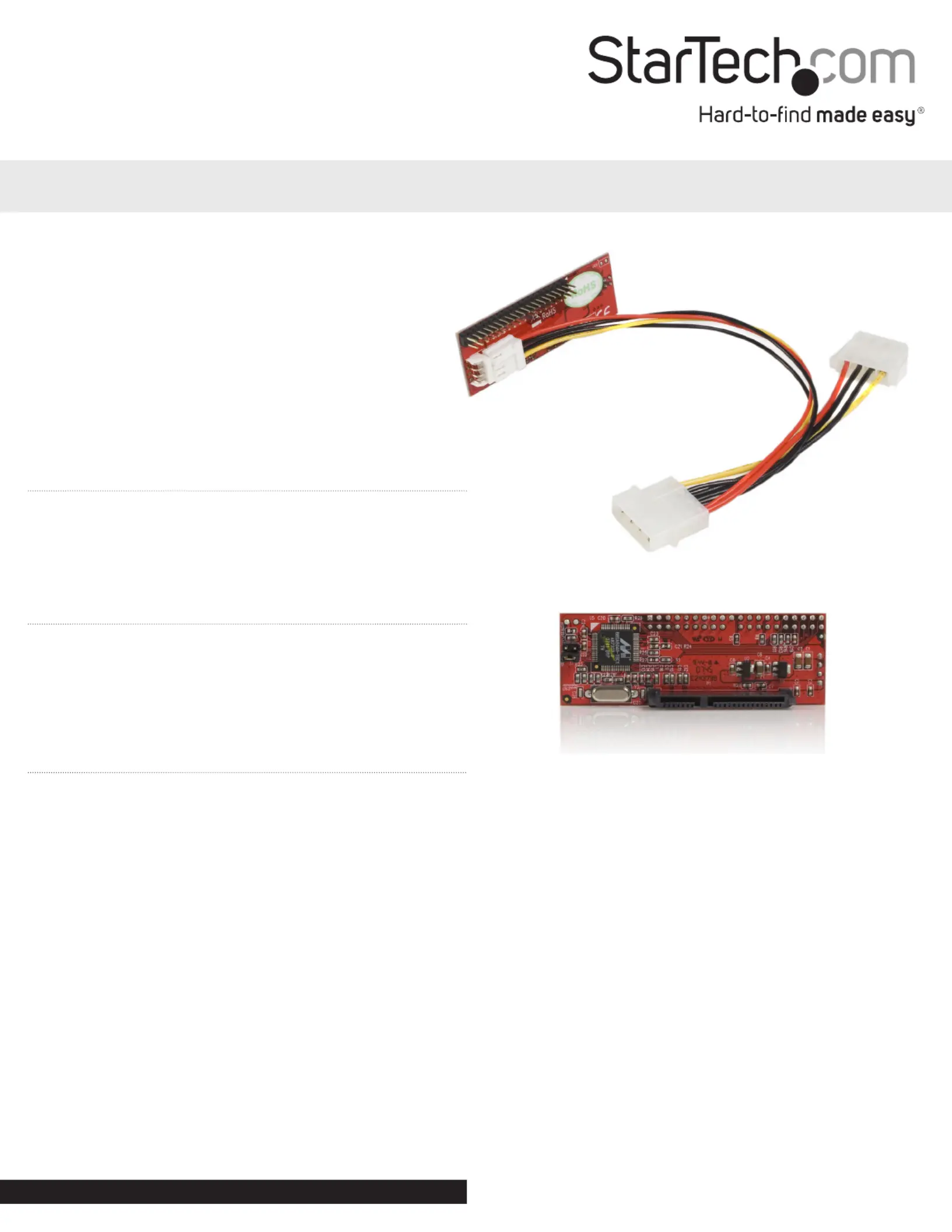

40 Pin Male IDE to 2.5in/3.5in SATA Converter

IDE2SAT

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l’utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l’uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1 x IDE to SATA adapter

• 1 x Power Cable (1 x LP4 to 1x LP4 + 1 x SP4)

• 1 x Instruction Manual

System Requirements

• Host computer with an available IDE connection

• A SATA drive (DVD, DVD-RAM, CD-RW etc.)

• A 40-pin IDE drive cable

Installation

Please note: If you wish to use the installed SATA drive as a bootable

device, please ensure it is designated to operate in Master mode.

1. Power down the host computer.

2. Open the computer chassis, and ensure that the drive is fastened

to the chassis as you would any installed hard drive. For further

information, please refer to the documentation that accompanied

the computer or computer chassis at the time of purchase.

3. Using the jumper (marked J3) provided on the circuit board,

select the mode under which the SATA drive that is being

installed will operate (S for Slave, M for Master - turn the circuit

board over for designation markings).

4. Connect the SATA drive to the circuit board using the designated

SATA power and data ports, by inserting the connector provided

by the circuit board into the ports provided by the drive.

5. Connect the lone LP4 power connector to the computer power

supply. Connect the SP4 power connector provided by the power

connector to the power connector on the IDE2SAT power port.

6. Connect the IDE connector on the IDE2SAT circuit board to an

available IDE port on the motherboard, using a 40-pin IDE cable

(not included). Please note the orientation of PIN 1, marked on

the circuit board with a small arrow.

7. Replace the chassis cover, and power on the host computer.

Please make any adjustments as necessary within the system

BIOS. Please refer to the documentation that accompanied the

computer system or mother board purchase, for information on

how to designate the Master and Slave drives, as well as boot

sequence.

*actual product may vary from photos

Instruction Manual

Manual Revision: 01/26/2012

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names & Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of

third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body

of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and

other protected names and/or symbols contained in this manual and related documents are the property of their

respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions.

If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of

online tools, documentation, and downloads.

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted,

following the initial date of purchase. During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant

its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees

or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise),

loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Host Connector

40-pin IDE male

4-pin SP4 ﬂoppy power male

Device Connector

7+15-pin SATA female

Chipset

Marvell 88SA8052

LBA Support

48-bit

Bus Compatibility

SATA 1.5/3.0 Gb/s

ATA/33/66/100/133

IDE Modes

Master/Slave/Cable Select*

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	IDE2SAT
Bredde:	20 mm
Dybde:	75.5 mm
Højde:	23 mm
Vægt:	15 g
Brugervejledning:	Ja
Produktfarve:	Rød
Pakkevægt:	100 g
Pakkedybde:	218 mm
Pakkebredde:	158 mm
Pakkehøjde:	47 mm
Opbevaringstemperatur (T-T):	-25 - 80 °C
Relativ luftfugtighed ved drift (H-H):	15 - 90 %
Driftstemperatur (T-T):	5 - 50 °C
Kabler inkluderet:	SATA
Materiale:	Plastic, Steel
Certificering:	CE, TAA, REACH
Bæredygtighedscertifikater:	RoHS
Værtsgrænseflade:	IDE
Intern:	Ja
Output-grænseflade:	SATA
Dataoverførselshastighed (maks.):	0.133 Gbit/sek.
Chipsæt:	Marvell - 88SA8052
Antal interne SATA-porte:	1
SATA revision:	1.0
