Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 2, 2020 2:55 PM

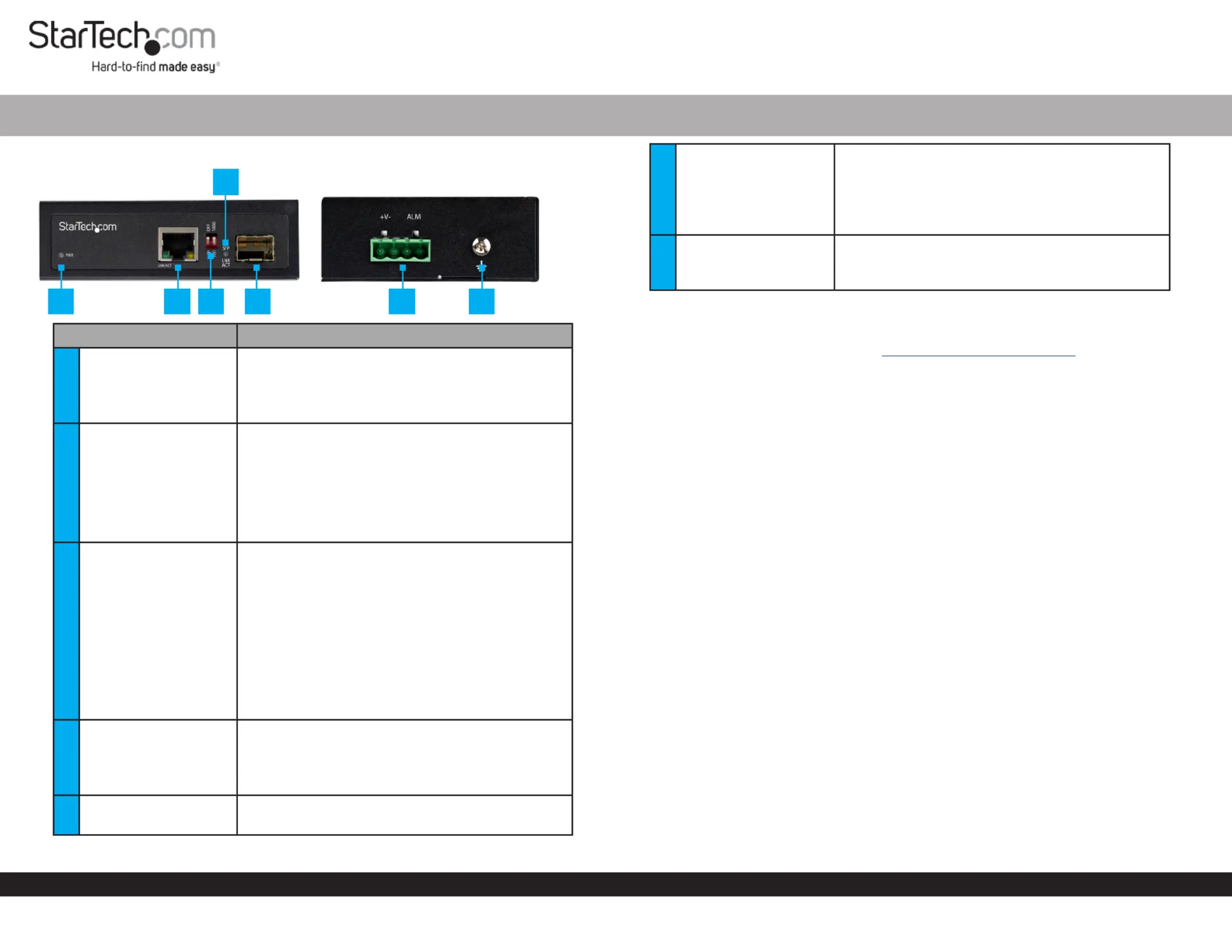

Product Diagram (IMC1GSFP)

Component Function

1PWR LED

• An external is Green: DC Power Source

detected.

• An external is not O: DC Power Source

detected.

2RJ45 Port

• Connect a to the Network Device Media

Converter.

Green LED:

• A is detected.On: Network Device

• The is Flashing: Media Converter

transmitting/receiving data.

3DIP Switch

DIP 1:

• Enables Link Fault Pass Through (LFP) On:

function. LFP highlights link failures, by forcing

a link down between both connections during

a link failure.

• Disables LFP function (default).O:

DIP 2:

• Sets SFP speeds to 1000Mbps (default).On:

• Sets SFP speeds to 100Mbps.O:

4SFP LED

• Indicates that a link is detected on the Green:

SFP.

• Indicates that data is being Flashing:

transmitted or received.

5SFP Slot

• Connect an (100/1000BASE-X) to the SFP

Media Converter.

Industrial RJ45 to Open SFP Media Converter | 1000 Mbps (1G)

64-Pin Terminal Block

• Connect an external (12-56V DC Power Source

DC Input) to the .Media Converter

• Connect an alarm or warning circuit to the

relay (ALM) connection. The relay is triggered if

the loses power.Media Converter

7Ground Screw

• Connect a ground connection to the Ground

Screw DC Power Source when connecting a to

the .Media Converter

Requirements

For the latest requirements, please visit www.startech.com/IMC1GSFP

• Network Equipment (ex. Router, Network Switch) x 1

• MSA-Compliant 100/1000BASE-X SFP Transceiver Module x 1

• RJ45 Terminated UTP/STP CAT5e (or better) Network Cable x 1

• Terminated Fiber Optic Cable (dependent on SFP Module) x 1

• DC Power Source x 1

• Phillips Head Screwdriver x 1

• Small Flat Head Screwdriver x 1

• Alarm or Warning Circuit x 1

Powering the Media Converter

Connecting and installing the must be completed by a 4-Wire Terminal Connector

licensed Electrician.

Notes: Make sure that you turn o the power source before connecting the power wire

to the .Media Converter

Do not exceed the recommend power source voltage as it may result in personal or

product damage.

1. Using a , loosen the two screws (+V-) on the Small Flat Head Screwdriver 4-Wire

Terminal Connector (included).

2. Connect the from a (12 - 56V DC), or the provided Power Wires DC Power Source

Barrel Power Connector Adapter Terminal Block Connectors to the proper on

the . The terminals are marked on the Media Converter Media Converter’s Casing

(connect the positive wire to V+ and the negative wire to V-).

3. (Optional) Using a , loosen the two screws (ALM) on Small Flat Head Screwdriver

the .4-Wire Terminal Connector

1 2

3 5 6

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

3. Using a , tighten the . Be careful not to Phillips Head Screwdriver Mounting Screws

over-tighten the .Mounting Screws

4. Clip the onto a , securing the .DIN Rail Bracket DIN Rail Media Converter

Wall Mounting

It is recommended that you use when wall mounting the Wall Studs Media

Converter.

1. Align the (x 2) with the (x 4) on the side of the Mounting Brackets Mounting Holes

Media Converter.

2. Insert the (x 4) through each of the and into Mounting Screws Mounting Brackets

the .Media Converter

3. Align the on the wall in the position you want to mount the Media Converter

Media Converter.

4. Using a mark o both of the on theWriting Utensil Mounting Holes Media

Converter.

5. Using a draw a line connecting the two , making sure that Level Mounting Holes

the line is level.

6. Align the on the with the Mounting Holes Media Converter Mounting Hole

Marks.

7. Insert the (x 2) through the and into the .Mounting Screws Mounting Holes Wall

8. Using a tighten the until the Phillips Head Screwdriver Mounting Screws Media

Converter Wall is securely fastened to the .

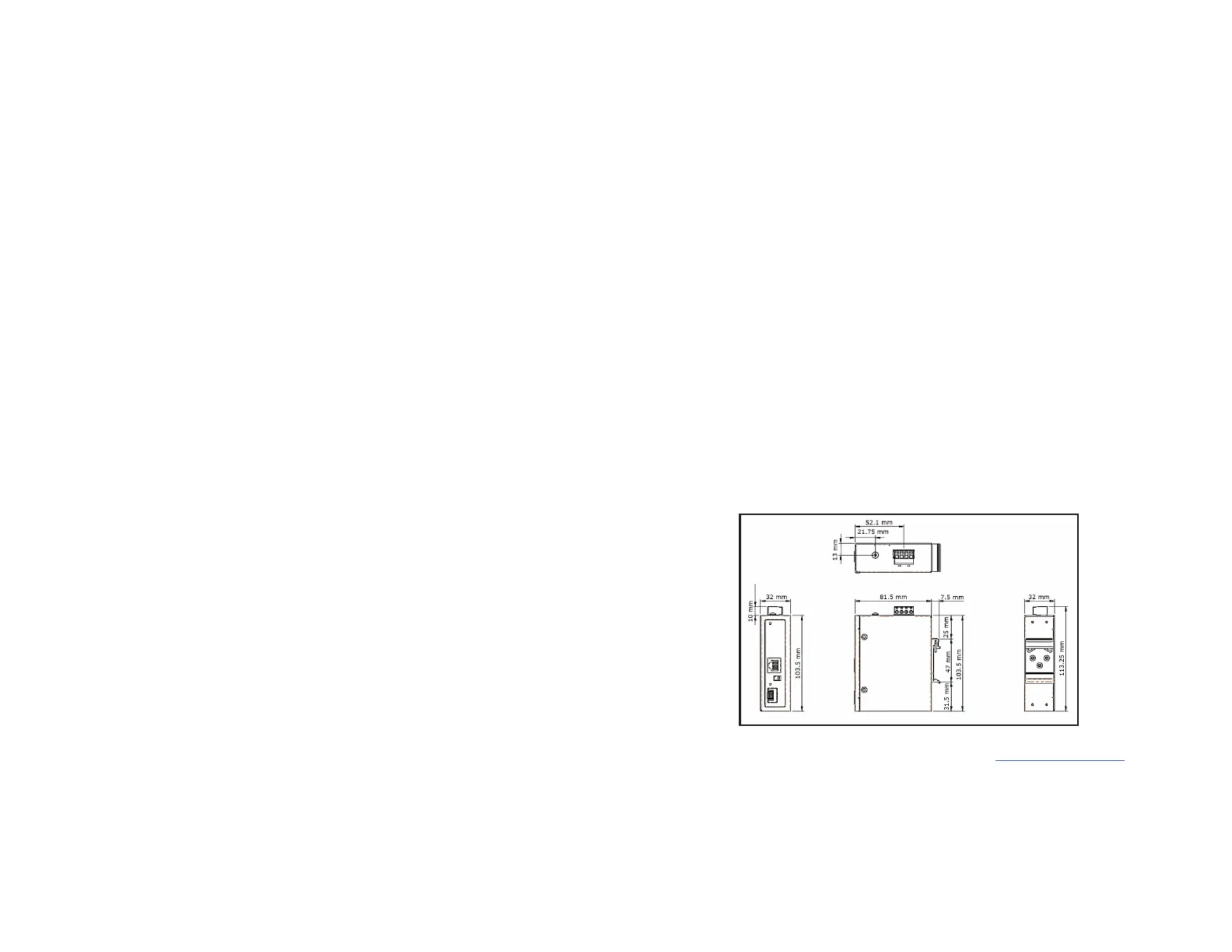

Product Dimensions

4. (Optional) Connect the from an or to the Relay Wires Alarm Warning Circuit 2 ALM

Relay Pins Terminal Block Connector on the .

5. Using the , tighten the four screws on the Small Flat Head Screwdriver 4-Wire

Terminal Connector.

6. Insert the in the on the 4-Wire Terminal Connector 4-Wire Terminal Block Media

Converter.

7. Using a , loosen the on the Phillips Head Screwdriver Ground Screw Media

Converter.

8. Connect the from an to the Ground Wire Earth Ground Connection Ground Screw

on the . Media Converter

9. Using the , tighten the to secure thePhillips Head Screwdriver Ground Screw

Grounding Wire Media Converter.to the

(Optional) Barrel Connector

• Connect a from a Type N (OD: 5.5 mm, ID: 2.5 mm) Barrel Connector Universal

Power Adapter Terminal Block to Barrel Power Connector Adapter. to the

Connecting the Media Converter

1. Connect a to the on the and the other CAT5e/6 Cable RJ45 Port Media Converter

end to an RJ45 port on a .Network Device

2. Insert an (sold separately) into the MSA-Compliant SFP Transceiver Module SFP

Slot Media Converter on the .

3. Remove the from the and connect the appropriate cable Dust Cover SFP Module

(CAT5e/6 or Fiber).

Mounting

DIN Rail Mounting

1. Align the (x 1) with the (x 4) on the side of the DIN Rail Brackets Mounting Holes

Media Converter.

2. Insert the (x 3) through the and into the Mounting Screws DIN Rail Bracket Media

Converter.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	IMC1GSFP
Kode for international beskyttelse (IP):	IP30
Bredde:	81.5 mm
Dybde:	104 mm
Højde:	32 mm
Vægt:	144 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	386 g
Pakkedybde:	162 mm
Pakkebredde:	211 mm
Pakkehøjde:	64 mm
Opbevaringstemperatur (T-T):	-40 - 85 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Ethernet LAN-porte (RJ-45):	1
Driftstemperatur (T-T):	-40 - 75 °C
Husmateriale:	Aluminium
Forbindelsesteknologi:	Ledningsført
Netværksstandarder:	IEEE 802.3, IEEE 802.3x
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	CE, RoHS
Indgangsspænding:	12 - 56 V
Hovedkassen højde (udvendigt):	225 mm
Hovedkassens længde (udvendigt):	345 mm
Hovedkassens bredde (udvendigt):	355 mm
Intern:	Ingen
Maksimal dataoverførselshastighed:	1000 Mbit/s
Fiber optisk strømstik:	SFP
Maksimal overførselsafstand:	- m
Bølgelængde:	- nm
Produkter pr. hovedkasse (udvendigt):	10 stk
Strøm over Ethernet (PoE):	Ingen
Gennemsnitstid mellem fejl (MTBF):	569265 t
Strømstiktype:	Type N
Auto MDI/MDI-X:	Ja
Jumbo Frames support:	Ja
Jumbo rammer:	9000
DIN-skinne montering:	Ja
Understøttede kabeltyper:	Cat6
Fiberkanal porte:	1
Fibertilstandsstruktur:	Multi-mode, Single-mode
Duplex system:	Fuld
