Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: November 6, 2021 12:28 AM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Product ID

M2-USB-C-NVME-SATA

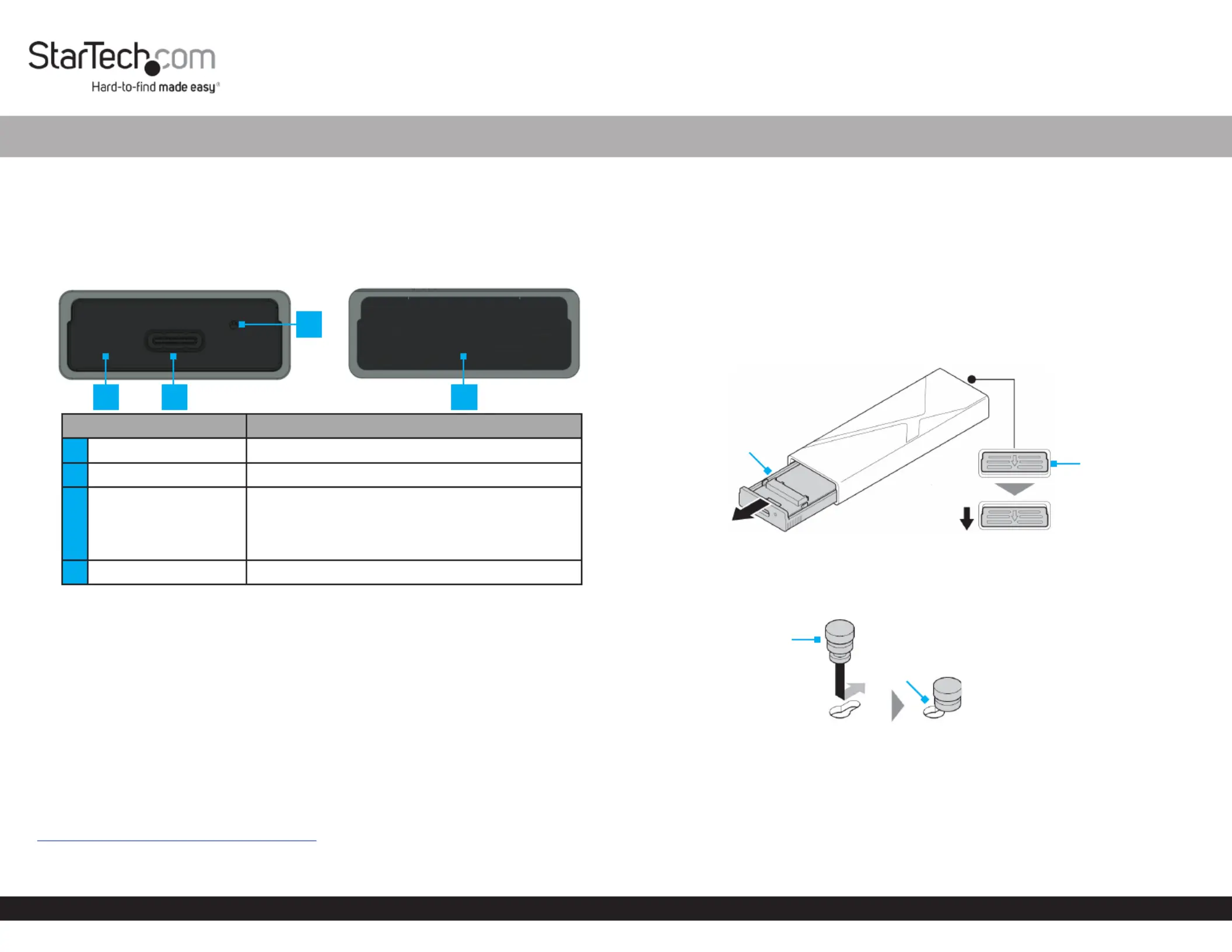

Product Diagram

Front Back

Component Function

1Drive Tray Cover • Enclosure component

2USB-C Port • Connect the to the Enclosure Host Computer

Power and Activity

LED Indicator

• Solid Blue Enclosure indicates the is receiving

power

• Flashing Blue Drive indicates read/write

activity

4Drive Tray Release Tab • Pull down to eject the Drive Tray

Package Contents

• M.2 SSD Enclosure x 1

• USB-C to USB-C Cable x 1

• USB-C to USB-A Cable x 1

• Thermal Pad x 1

• SSD Fastener Pegs x 2

• Quick-Start Guide

Product Information

For the latest product information, technical specications, manuals, and Declarations

of Conformance, please visit:

www.StarTech.com/M2-USB-C-NVME-SATA

M.2 SATA/NVMe SSD Enclosure - Tool-less - USB 3.2 (10Gbps) w/ USB-C and USB-A Cables

Product Requirements

• SSD x 1

• M-Key and B+M-Key PCI Express M.2 NVMe and M.2 SATA

• 30 mm, 42 mm, 60 mm, or 80 mm Drive Length

Installation

Install a Drive

Warning! Handle with care.Drives

1. Pull the down to eject the . (Figure 1)Drive Tray Release Tab Drive Tray

2. Carefully pull the out of the . Drive Tray Enclosure

3. Insert one into the that corresponds with the SSD Fastener Peg Drive Tray Hole

length of the and slide the into the . (Figure 2)Drive SSD Fastener Peg Notch

4. Gently slide the on the at a 30-degree angle into the Connector Drive

corresponding , located on the . (Figure 3)Drive Connector Drive Tray

Note: The on the is keyed so that it only ts one way.Connector Drive

5. Pull the away from the , lightly push the down into SSD Fastener Peg Drive Drive

position on the , and release the . (Figure 3)Drive Tray SSD Fastener Peg

2 4

Figure 2

SSD Fastener Peg

Notch

Figure 1

Drive Tray

Release Tab

Connect the Enclosure to a Computer

• Connect the or the to the USB-C to USB-C Cable USB-C to USB-A Cable USB-C

Port Enclosure USB Port Computer on the and to a on the .

Once connected, the OS will automatically install the necessary software.Computer’s

Note: The Enclosure does not require an external power supply, as it receives sucient

power from the Host Computer’s USB Port.

Disconnect the Enclosure from a Computer

Windows PC

Warning! Ejecting the Drive before receiving a notication that it is safe to do so

could result in lost or corrupted data.

1. In the tray, click the icon.Notication Safely Remove Hardware and Eject Media

2. Select the connected to the .Drive Enclosure

3. Once the message appears, disconnect the Safe to Remove Hardware USB-C to

USB-C Cable USB-C to USB-A Cable Enclosure USB Portor the from the or the on

the .Computer

macOS

Warning! Ejecting the Drive that is still visible in the Finder sidebar could result in lost

or corrupted data.

1. Close any that list the contents.Windows Drive

2. Open the .Finder

3. Locate the connected to the in .Drive Enclosure Finder sidebar

4. Select the next to the .Eject Icon Drive

5. Once the is no longer listed in the , disconnect the Drive Finder sidebar USB-C to

USB-C Cable USB-C to USB-A Cable Enclosure USB Portor the from the or the on

the .Computer

6. Peel the o of the . (Figure 4)Adhesive Cover Thermal Pad

7. Align the over the , ensuring the will t Thermal Pad Drive SSD Fastener Peg

through one of the holes in the . (Figure 4)Thermal Pad

8. Gently apply the to the . (Figure 4)Thermal Pad Drive

9. Slide the into the until it clicks into place.Drive Tray Enclosure

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

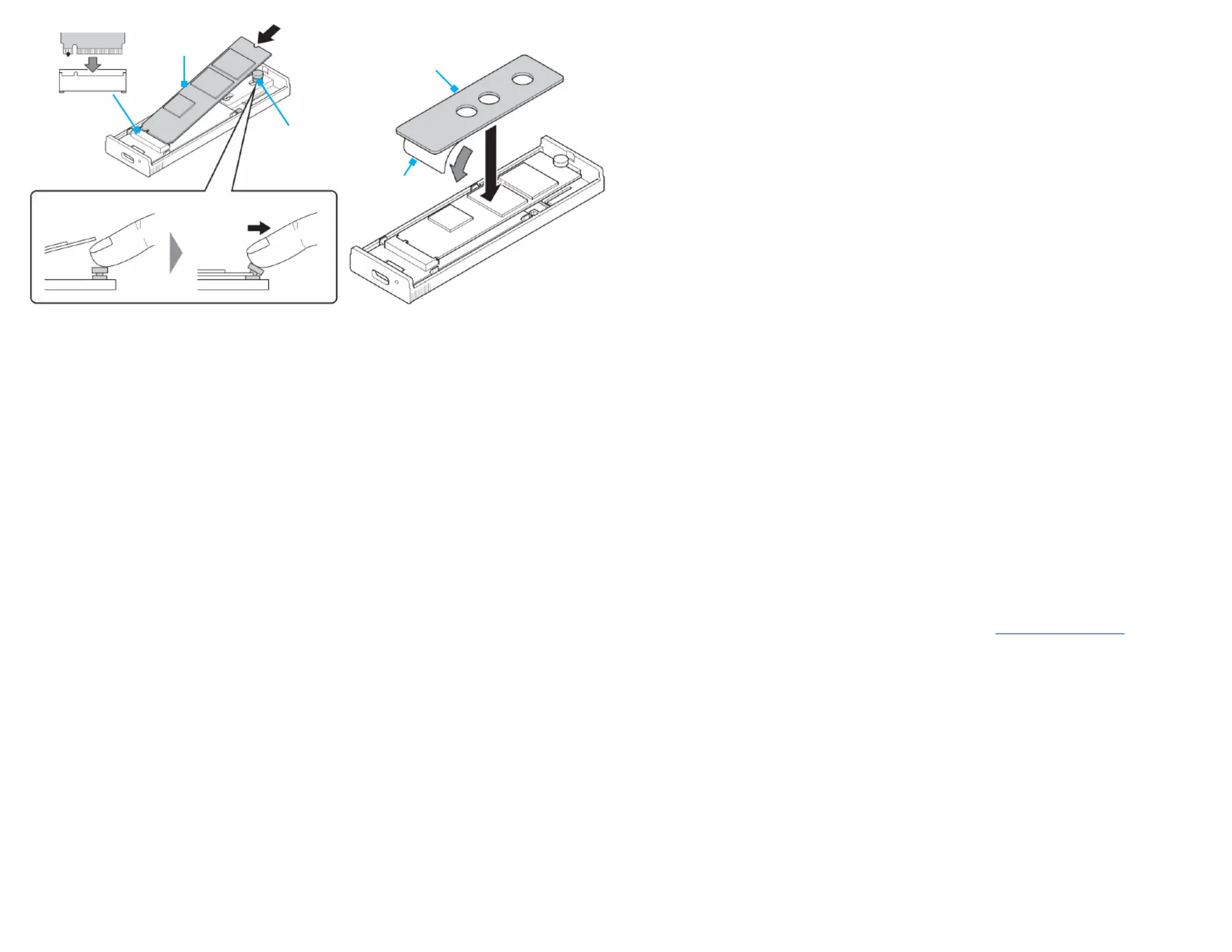

Figure 3 Figure 4

Thermal Pad

Drive

M Keyed

SSD

Fastener

Peg

Adhesive

Cover
