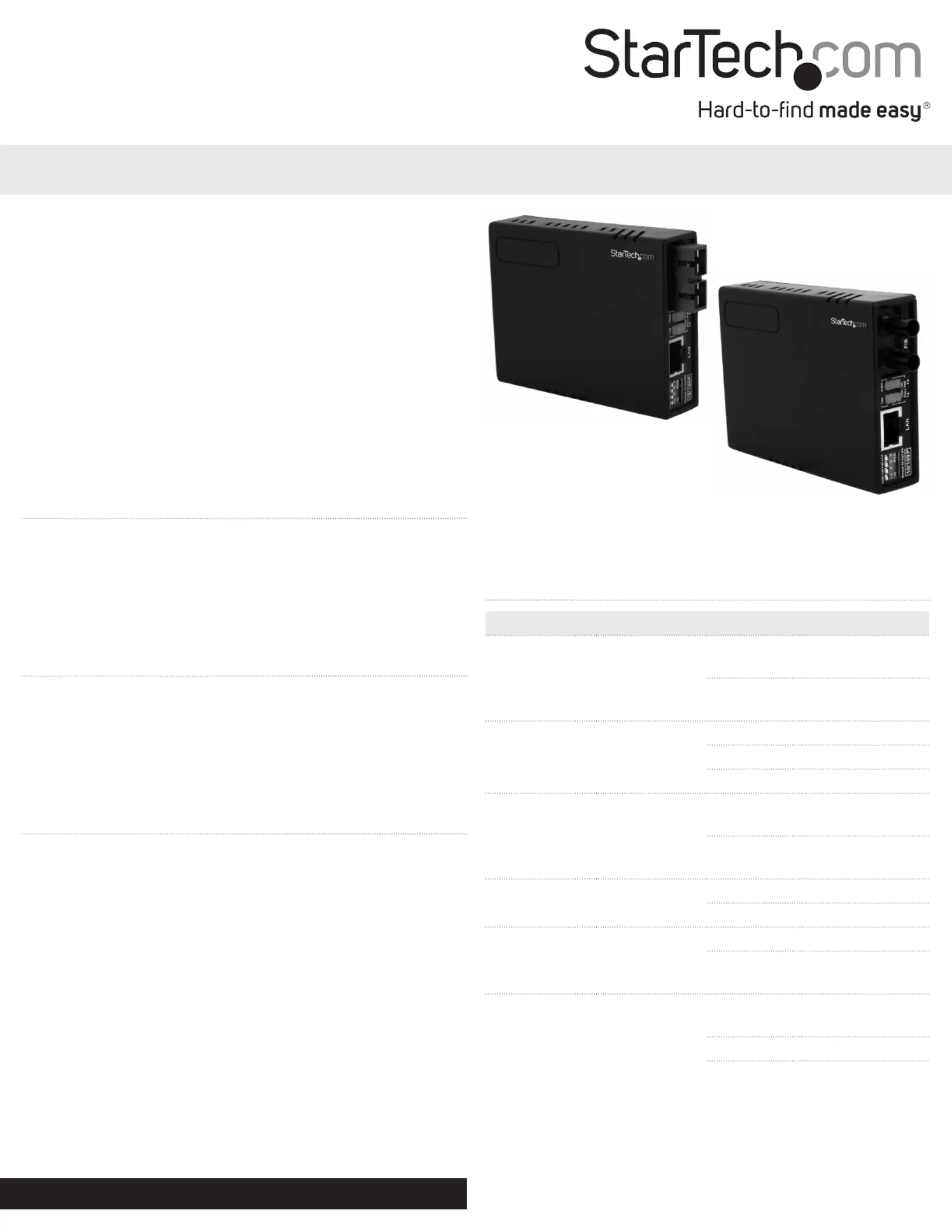

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/02/2021

For the most up-to-date information, please visit: www.startech.com

MCM110SC2P / MCM110SC2PGB

MCM110ST2P / MCM110ST2PGB

10/100 MM Fiber to Ethernet Media Converter SC/ST with PoE

Packaging Contents

• 1 x Fiber to Ethernet Media Converter

• 1 x Power Adapter ( MCM110ST2P only)MCM110SC2P and

• 1 x Instruction Manual

System Requirements

• 10/100Base compatible network

• For PoE operation: 802.3af compliant PSE (Power

Sourcing Equipment)

Installation

1. Connect the Ethernet cable to the Fiber Media Converter

“LAN” port.

2. Connect the other end of the Ethernet cable to the router/

switch/computer NIC. If connecting the media converter to

a 802.3af compliant PSE, skip Step 3.

3. Optional (Non-PoE operation): Plug a power adapter into

the media converter, and into an available AC power outlet.

4. Connect the ber cable into the ber receptacle on the

media converter.

5. Connect the other end of the ber cable into the router/

switch/computer NIC/another media converter. Remember

to reverse the TX and RX leads between the two devices.

*actual product may vary from photos

LED Indicators

LED Function StatusState

PWR

Power

Indicator

Converter has

Power

OFF

Converter has no

Power

FX Link/Act

Fiber Link/

Activity

ON Fiber Link on

OFF No Link Detected

Flashing Receiving Data

POE

Power over

Ethernet

PoE mode

enabled

OFF

PoE mode not

enabled

100 Mode

ON 100Mbps

OFF 10Mbps

Full Duplex Mode

ON Full Duplex Mode

OFF

Half Duplex

Mode

TX Link/Act

Ethernet Link/

Activity

Ethernet link

Detected

OFF No Link Detected

Flashing Receiving Data

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur

these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the

third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

MCM110SC2P / MCM110SC2PGB MCM110ST2P / MCM110ST2PGB

Connectors

1 x RJ45 Ethernet

2 x SC Fiber

1 x power connector

1x RJ45 Ethernet

2x ST Fiber

1x Power Connector

LEDs

Power

Fiber Link/Activity

Ethernet Link/Activity

10/100

Full/Half Duplex

PoE

Power

Fiber Link/Activity

Ethernet Link/Activity

10/100

Full/Half Duplex

PoE

Fiber Type Multi-Mode Multi-Mode

Maximum Distance 2 km 2 km

Transmission Standards

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

l00BASE-FX

IEEE802.3af PoE PD (Class 3)

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

100BASE-FX

IEEE802.3af PoE PD (Class 3)

Duplex Modes Full/Half Duplex Ethernet mode Full/Half Duplex Ethernet mode

Dimensions 73.0mm x 23.0mm x 10.8mm 73.0mm x 23.0mm x 10.8mm

Weight 170 g 170g

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	MCM110SC2P
Bredde:	75 mm
Dybde:	95 mm
Højde:	20 mm
Vægt:	90 g
Brugervejledning:	Ja
Pakkevægt:	300 g
Pakkedybde:	172 mm
Pakkebredde:	60 mm
Pakkehøjde:	143 mm
Opbevaringstemperatur (T-T):	-10 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Ethernet LAN-porte (RJ-45):	1
Strømforbrug (typisk):	4.8 W
Driftstemperatur (T-T):	0 - 50 °C
Ethernet LAN-datahastigheder:	10, 100 Mbit/s
Husmateriale:	Plast
Forbindelsesteknologi:	Ledningsført
Certificering:	CE, FCC
Netværksstandarder:	IEEE 802.1Q, IEEE 802.3u
DC-in-stik:	Ja
LED-indikatorer:	Activity, Link, PoE, Power
Udgangsspænding:	12 V
Udgangsstrøm:	0.4 A
AC-adapter inkluderet:	Ja
Bæredygtighedscertifikater:	RoHS
Indgangsspænding:	115 V
Intern:	Ingen
Maksimal dataoverførselshastighed:	100 Mbit/s
Fiber optisk strømstik:	SC
Maksimal overførselsafstand:	2000 m
Bølgelængde:	1310 nm
Ekstern strømadapter:	Ja
Strøm over Ethernet (PoE):	Ja
Ethernet-grænsefladetype:	Hurtigt ethernet
Gennemsnitstid mellem fejl (MTBF):	65000 t
Strømstiktype:	Type M
Kobber ethernet kabelteknologi:	100BASE-TX
Fibertilstandsstruktur:	Multitilstand
Duplex system:	Full, Half
Indgående omregner interface:	100BASE-FX
Bølgelængde-division multipleksing (WDM):	Ja
