Instruction manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 09/01/2015

For the latest information, technical specications, and support for

this product, please visit www.startech.com/MCM1110SFP.

Packaging contents

• 1x ber media converter with open SFP slot

• 1x universal power adapter (NA/EU/UK/AU)

System requirements

• MSA-compliant Gigabit SFP module (Mini-GBIC)

• 10/100/1000 Mbps Ethernet network equipment

• RJ45 terminated UTP Cat5e or better Ethernet cable

• Terminated ber-optic cable (dependent on the SFP transceiver

module used)

• AC electrical outlet

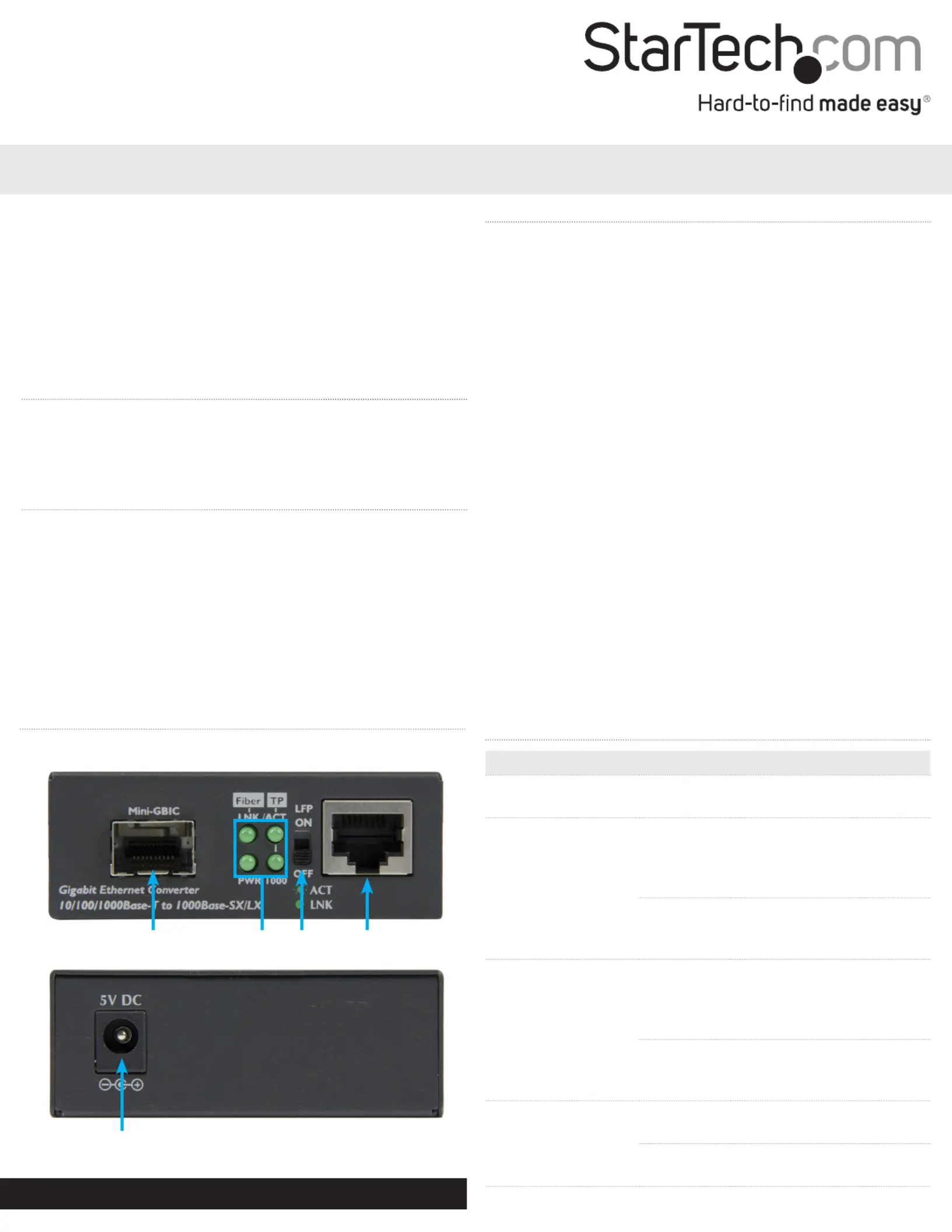

Product diagram

Front view

Rear view

MCM1110SFP

Gigabit Ethernet Fiber Media Converter with Open SFP Slot

LEDs

LFP DIP

switch

SFP slot

RJ45

port

DC input port

Install the media converter

1. Turn o the networking equipment that will be connected to the

media converter.

2. Remove the dust cover and insert a Gigabit MSA-compliant SFP

module into media converter’s SFP slot. The SFP transceiver used

should depend on your ber network infrastructure.

Note: The media converter can only be used with Gigabit SFP

modules and will not support 10/100Mbps modules.

3. Connect a duplex ber-optic cable from the media converter’s

SFP module to your ber network device.

The TX and RX connectors must be paired at both ends of the

connection. For example TX to RX, and RX to TX.

4. Connect an RJ45 Cat 5e/6 Ethernet cable from the media

converter’s RJ45 port to your 10/100/1000Mbps network device.

5. Select the appropriate regional clip for your region and connect

the power adapter to an AC electrical outlet.

6. Connect the power adapter to the media converter’s DC input.

The LED (power) should light up solid.PWR

7. Turn the networking equipment from step #1 back on. The Fiber

and LEDs should light up solid when all cables and TP LNK/ACT

devices are properly connected.

Note: Check the link budget of your SFP modules, as well as the

module’s intended wiring distance. SFP modules are designed to

transmit signals over large distances. If the physical wiring distance

is too short, the transmitting optical signal (laser) may be too strong

and damage the receiving SFP module. An in-line optical attenuator

may be required to protect them from damage.

LED indicators

LED Status Indication

PWR (Green) Solid

The media converter is

powered on

Fiber LNK/ACT

(Green)

Solid

A ber link between the

media converter and ber

network equipment is

established

Flashing

The ber port is actively

sending or receiving data

(activity)

TP LNK/ACT (Green)

Solid

An RJ45 Ethernet link

between the media

converter and RJ45 network

equipment is established

Flashing

The RJ45 port is actively

sending or receiving data

(activity)

TP 1000 (Green)

Solid

A Gigabit (1000Mbps) link on

the RJ45 port is established

O

The RJ45 port is running at

10/100Mbps speeds

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Link fault pass-through (LFP)

Link fault pass-through can notify you of link problems and provides

an ecient solution to monitor your network. The LFP DIP switch is

set to by default, and you can use the DIP switch to enable ON (ON)

or disable the LFP function.(OFF)

Enable LFP

When the DIP switch is set to then LFP is enabled. When a device ON

is connected to the media converter, and the (twisted pair) TP

copper line or Fiber line drops the link, then the media converter

will disconnect the transmission link on the opposite interface.

• Slide the LFP DIP switch to the position to enable LFP.ON

Disable LFP

When the DIP switch is set to then LFP is disabled. If you are OFF

familiar with your network infrastructure and proper diagnostic

procedures then you can disable LFP, otherwise it is recommended

to leave the DIP switch in the default position. ON

• Slide the LFP DIP switch to the position to disable LFP. Once OFF

set to , reset the media converter by disconnecting and OFF

reconnecting the power.

Duplex mode support

The media converter’s RJ45 port supports 10/100/1000Mbps

networks and will automatically negotiate the connection type. By

default, it will automatically detect the link speed and the duplex

mode of your connected equipment.

The media converter’s ber port (1000Base-SX/LX) allows 1000Mbps

full duplex auto-negotiation. Check to ensure the duplex setting of

the connected ber equipment matches the duplex setting of the

media converter.

Standard

(wavelength)

Fiber

cable

type

Diameter

(micron -

μm)

Bandwidth

(MHz)

1000Base-SX

(850nm)

62.5/125μm 100

50/125μm 500

1000Base-LX

(1310nm)

62.5/125μm 5

50/125μm 5

SM 9/125μm N/A

Surface or wall mounting

The media converter features two mounting holes on the bottom of

the unit which let you mount it on a surface or a wall.

• Fasten and secure the media converter to a wall or surface using

the integrated mounting holes.

Note: Screws are required to mount the media converter.

Fiber cable types

The distance capabilities of the media converter are variable and

depend on the SFP module and the ber optic cable used.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	MCM1110SFP
Bredde:	70 mm
Dybde:	95 mm
Højde:	26 mm
Vægt:	185 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	544 g
Pakkedybde:	139 mm
Pakkebredde:	284 mm
Pakkehøjde:	68 mm
Opbevaringstemperatur (T-T):	-10 - 70 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Ethernet LAN-porte (RJ-45):	1
Strømforbrug (typisk):	5 W
Driftstemperatur (T-T):	0 - 50 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Husmateriale:	Stål
Forbindelsesteknologi:	Ledningsført
Certificering:	CE, FCC
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
DC-in-stik:	Ja
LED-indikatorer:	Activity, Link, Power
Udgangsspænding:	5 V
Udgangsstrøm:	2 A
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
Indgangsspænding:	100 - 240 V
Intern:	Ingen
Maksimal dataoverførselshastighed:	1000 Mbit/s
Indgangsstrøm:	1 A
Fiber optisk strømstik:	SFP
Maksimal overførselsafstand:	- m
Bølgelængde:	- nm
Ekstern strømadapter:	Ja
Strøm over Ethernet (PoE):	Ingen
Ethernet-grænsefladetype:	Gigabit Ethernet
Gennemsnitstid mellem fejl (MTBF):	50000 t
Strømstiktype:	Type N
Auto MDI/MDI-X:	Ja
Jumbo Frames support:	Ja
Fiberkanal porte:	1
Fibertilstandsstruktur:	Multi-mode, Single-mode
Duplex system:	Fuld
Indgående omregner interface:	1000Base-T, 100Base-TX, 10Base-T
Udgående omregner interface:	1000Base-LX, 1000Base-SX
Bølgelængde-division multipleksing (WDM):	Ja
