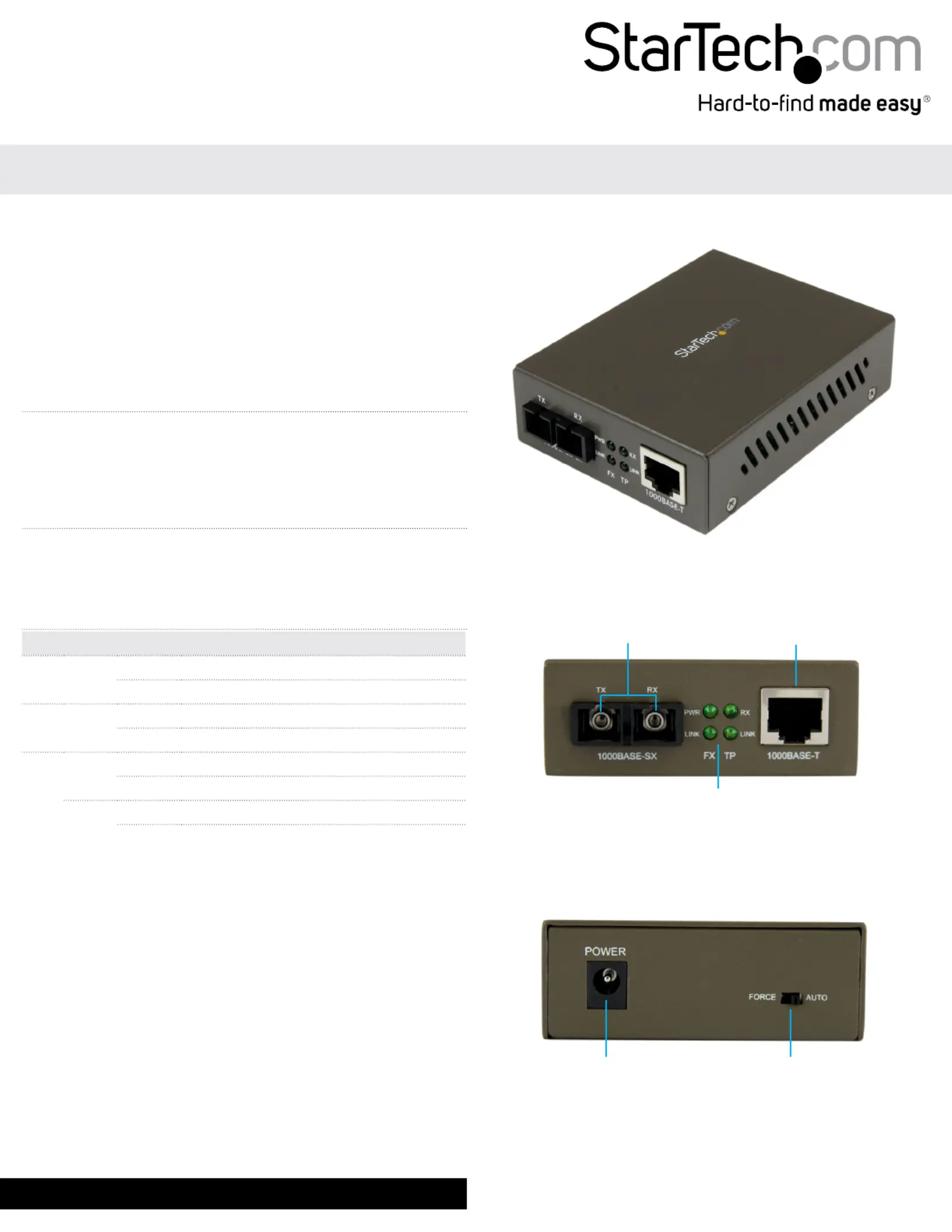

Side 1/2

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/19/2014

For the most up-to-date information, please visit: www.startech.com

MCMGBSC055 / MCMGBSC055GB / MCMGBSC055EU

Gigabit Multi Mode Fiber Ethernet Media Converter SC

Packaging Contents

• 1 x MCMGBSC055 / GB / EU media converter

• 1 x Power Adapter

• 1 x Installation Guide

System Requirements

• Gigabit (1000Mb/s) Ethernet network

• Gigabit (1000Mb/s) Fiber network

LED Indicators

LED Status Description

PWR

ON Power On

OFF Power O

FX LINK

ON Fiber Link Detected

OFF No Fiber Link Detected

LINK

ON Ethernet Link Detected

OFF No Ethernet Link Detected

ON Unit is receiving data from Ethernet port

OFF No incoming data from Ethernet port

RJ45 Ethernet port

SC Fiber port

LED

indicators

DC power port

Mode switch

Front View

Rear View

*actual product may vary from photos

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Connectors

1 x RJ45 Ethernet

2 x SC Fiber

1 x Power connector

LEDs

Power, Fiber Link, Fiber Receive, Ethernet

Link

Fiber Type Multi Mode 62.5 or 50/125 micron ber

Maximum Distance 550m (50/125) or 220m (62.5/125)

Transmission

Standards

IEEE802.3ab, 802.3z

Duplex Mode Full/Half (Auto-Detect)

Dimensions 99.0mm x 73.0mm x 27.0mm

Weight 450g

Installation

1. Connect the Ethernet cable to the Fiber Media Converter RJ45

Ethernet port.

2. Connect the other end of the Ethernet cable to the router/switch/

computer NIC.

3. Connect the ber cable into the ber receptacle on the media

converter.

4. Plug the provided power adapter into the media converter, and

into an available AC power outlet.

5. Connect the other end of the ber cable into the router/switch/

computer NIC/another media converter. Remember to reverse the

TX and RX leads between the two devices.

NOTE: Normally the Mode switch should be set for AUTO, but if

connecting to another media converter, FORCE may need to be set.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ikke kategoriseret
Model:	MCMGBSC055
Pakkedybde:	205 mm
Pakkebredde:	165 mm
Pakkehøjde:	68 mm
Opbevaringstemperatur (T-T):	-10 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Driftstemperatur (T-T):	0 - 40 °C
Forbindelsesteknologi:	Ledningsført
Kabelteknologi:	1000BASE-SX
LED-indikatorer:	Ja
Effektkrav:	9 VDC
Maksimal dataoverførselshastighed:	1000 Mbit/s
Maksimal overførselsafstand:	550 m
Bølgelængde:	850 nm
Fuld duplex:	Ja
Overholdelse af branchestandarder:	IEEE 802.3z
