Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 01/16/2013

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x MHL™ to VGA Adapter

System Requirements

• MHL enabled video source device (i.e. Smartphone, Tablet)

• VGA enabled video display device (i.e. television, projector)

• USB Power Source (i.e. Computer / USB Wall power adapter)

• USB A to Micro USB B Cable (Typically included)

• VGA Cable (male/male)

• Stereo 3.5mm Audio Cable (Optional)

MHD2VGA

MHL™ Adapter – Micro USB to VGA with Audio

*actual product may vary from photos

Hardware Installation and Operation

1. Connect the “Micro USB (MHL) Breakout Cable” to the Micro USB

Port on your MHL-enabled video source device.

2. Connect a VGA Cable (m/m) from the” VGA Output Port” on the

MHD2VGA, to the VGA input port on your VGA-enabled video

display device (i.e. television, projector).

3. Using the USB A to USB Micro B cable included with your mobile

device, connect your USB Power source to the “Micro USB Power

Port” on the MHD2VGA.

4. (Optional) If you would like your video output to include

accompanying audio, connect the 3.5mm Audio cable from the

“3.5mm Audio Output Port” on the MHD2VGA audio source

device (i.e. computer, Blu-ray Player) to the 3.5mm audio input

ports on the VGA2HD2 using a stereo 3.5mm Audio Cable.

5. The MHL-enabled device output will now appear on the

HDMI® display.

Specications

AV Input Micro USB (MHL)

AV Output VGA

Audio Yes

Industry Standards MHL 1 enabled

Chipset ID Silicon Image SiI9292CNUC

Output Signal HDMI

Connector A 1x USB Micro-B (5 pin) Male

Connector B

1x VGA (15 pin; High Density D-Sub)

Female

Maximum Cable Length 5 m

Max Resolution 1080p

Maximum Digital

Resolutions

1080p

Wide Screen Supported Yes

Audio Specications Stereo Audio

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

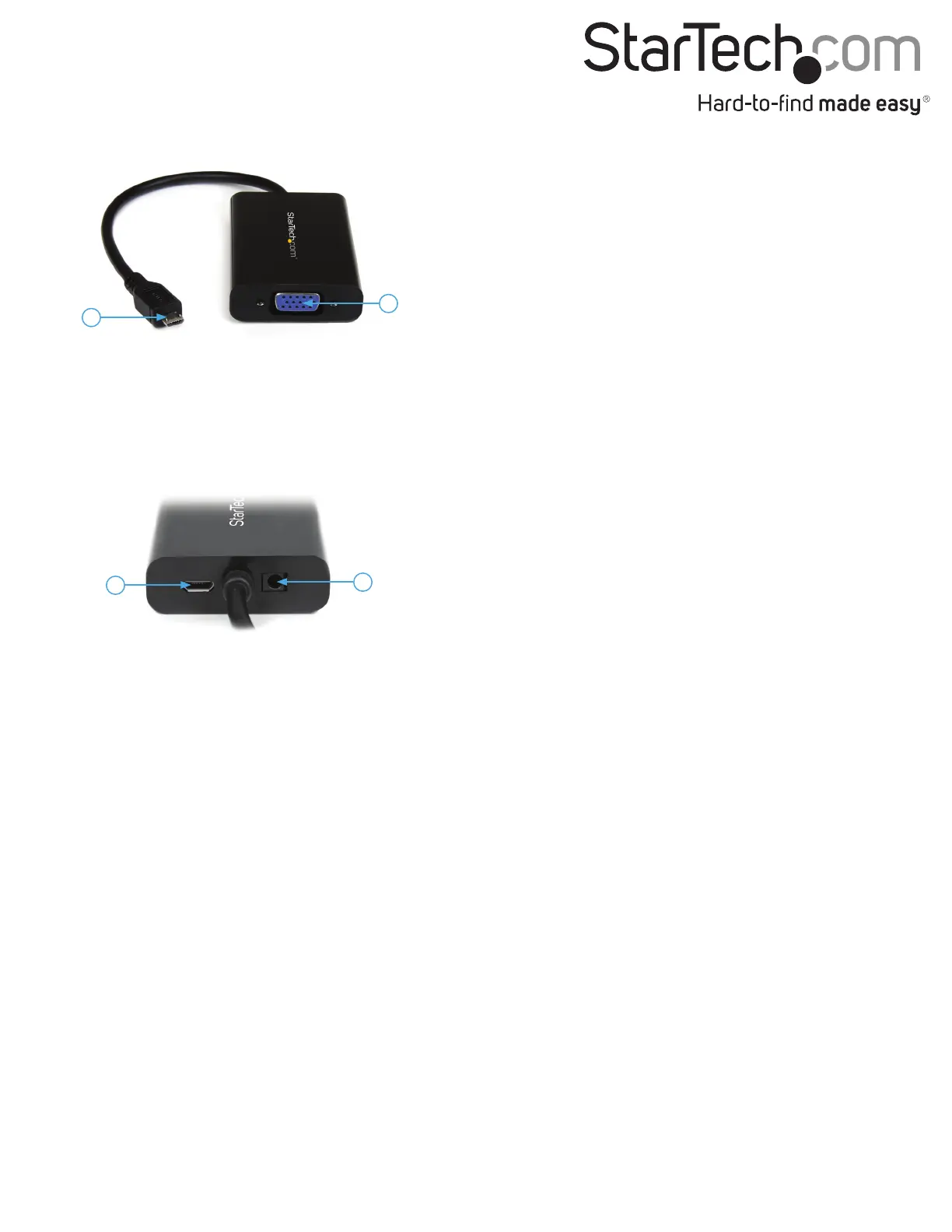

Front View

Back View

1. Micro USB (MHL) Breakout Cable

2. VGA Output Port

1. Micro USB Power Port

2. 3.5mm Audio Output Port
